Fluke 717 1G Instruction Sheet
Pressure calibrators
Hide thumbs
Also See for 717 1G:
- Calibration manual (98 pages) ,
- Technical data (3 pages) ,
- Supplement (3 pages)
Table of Contents
Advertisement
Quick Links
Introduction

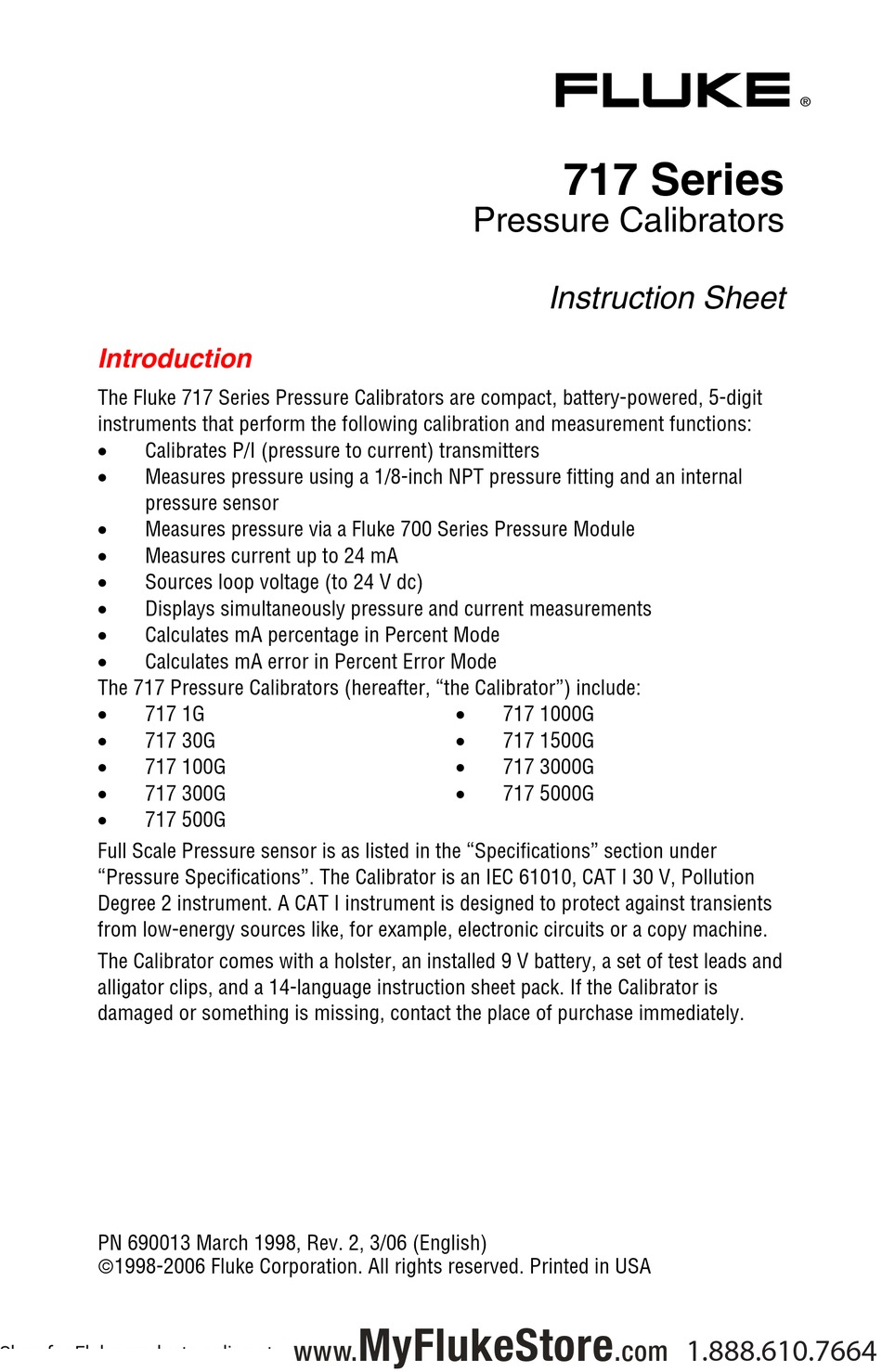

The Fluke 717 Series Pressure Calibrators are compact, battery-powered, 5-digit
instruments that perform the following calibration and measurement functions:
•
Calibrates P/I (pressure to current) transmitters
•
Measures pressure using a 1/8-inch NPT pressure fitting and an internal
pressure sensor
•
Measures pressure via a Fluke 700 Series Pressure Module
•
Measures current up to 24 mA
•
Sources loop voltage (to 24 V dc)
•
Displays simultaneously pressure and current measurements
•
Calculates mA percentage in Percent Mode
•
Calculates mA error in Percent Error Mode
The 717 Pressure Calibrators (hereafter, "the Calibrator") include:
•
717 1G
•
717 30G
•
717 100G
•
717 300G
•
717 500G
Full Scale Pressure sensor is as listed in the "Specifications" section under
"Pressure Specifications". The Calibrator is an IEC 61010, CAT I 30 V, Pollution
Degree 2 instrument. A CAT I instrument is designed to protect against transients
from low-energy sources like, for example, electronic circuits or a copy machine.
The Calibrator comes with a holster, an installed 9 V battery, a set of test leads and
alligator clips, and a 14-language instruction sheet pack. If the Calibrator is
damaged or something is missing, contact the place of purchase immediately.
PN 690013 March 1998, Rev. 2, 3/06 (English)
1998-2006 Fluke Corporation. All rights reserved. Printed in USA
for Fluke products online at:
MyFlukeStore
www.
717 Series
Pressure Calibrators
Instruction Sheet
•
717 1000G
•
717 1500G
•
717 3000G
•
717 5000G
1.888.610.76
.com
®
Advertisement
Table of Contents
Related Manuals for Fluke 717 1G
Summary of Contents for Fluke 717 1G
- Page 1 ® 717 Series Pressure Calibrators Instruction Sheet Introduction The Fluke 717 Series Pressure Calibrators are compact, battery-powered, 5-digit instruments that perform the following calibration and measurement functions: • Calibrates P/I (pressure to current) transmitters • Measures pressure using a 1/8-inch NPT pressure fitting and an internal pressure sensor •...
-
Page 2: Input Units
• kg/cm If inappropriate units are selected, the output of Fluke 700P pressure modules can be too low to be displayed or can cause the Calibrator to display OL (overload). Refer to Table 1 for pressure unit and range compatibility. - Page 3 When using pressure sensor connections, to avoid damage to the Calibrator or equipment to which it is attached: • To avoid overpressure damage, do not apply pressures that exceed ranges listed under “Pressure Specifications”. MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:...
-
Page 4: Getting Acquainted
Press h (W) to decrease or a ( ) to increase the turn-off time. To disable, press h until the display shows OFF. The Calibrator resumes normal operation after 2 seconds. MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:... -
Page 5: Pressure Measurement
RANGE -12 TO 100 PSI module input -83 TO 690 kPa sensor input MAX 200 PSI 1.4 mP I 69 mPa qo005f.eps Figure 2. The Pressure Calibrator (717 100G is Shown) MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:... -
Page 6: Pushbutton Functions
In the switch test mode, the display update rate is increased to help capture changing pressure inputs. Even with the enhanced sample rate, pressuring the device under test should be done slowly to ensure accurate readings. MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:... -
Page 7: Zeroing With Absolute Pressure Modules
Press O OFF to deactivate the 24 V dc supply when you are done sourcing loop voltage. S I G N A L – T E S T qo007f.eps Figure 3. Sourcing Connections MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:... -
Page 8: Percent Error Setup
OL (overload) is displayed at full scale. Connect the Calibrator to the transmitter as shown in Figure 4 or Figure 5. The Calibrator recognizes only the pressure module if both types of connection are in place. MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:... - Page 9 -83 O 690 kPa MAX 200 PSI 1.4 mP I 69 S I G N A L – T E S T qo002f.eps Figure 4. Connecting to an Internal Pressure Sensor MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:...
- Page 10 RANGE 100psi 689kPa Black RANGE -12 TO 100 PSI -83 TO 690 kPa MAX 200 PSI 1.4 mP I 69 mPa Pressure Module qo006f.eps Figure 5. Connecting to a Pressure Module MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:...
-
Page 11: Maintenance
Periodically wipe the case with a damp cloth and detergent; do not use abrasives or solvents. Calibration Calibrate your Calibrator yearly to ensure that it performs to specification. A Calibration Manual (Fluke PN 686540) is available. Replacing the Battery XW Warning To avoid false readings, which could lead to electric shock or injury, replace the battery as soon as M (low battery indicator) appears on the display. - Page 12 Figure 6. Battery Installation MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:...
-
Page 13: Replacement Parts And Accessories
Part or Accessory 2546258 717 case top for 300G and below 2546264 717 case top for 500G and above 2546993 717 1G Top Case Decal 2547000 717 30G Top Case Decal 2547017 717 100G Top Case Decal 2547021 717 300G Top Case Decal... -
Page 14: Specifications
2545122 717 3000G LCD Bezel 2545131 717 5000G LCD Bezel 2545064 717 1G LCD Bezel 690013 Instruction sheets (14) Figure 7. Replacement Parts and Accessories (cont.) Specifications Accuracy is specified for 1 year after calibration at operating temperatures of −10 °C to + 55 °C. -
Page 15: General Specifications
45 % up to 50 °C; 35 % up to 55 °C Vibration: Random 2 g, 5 Hz to 500 Hz, per MIL -PRF_28800F, Class 2 Shock: 1 meter drop, per IEC 61010-1 MyFlukeStore 1.888.610.76 www. .com for Fluke products online at:... -
Page 16: Contacting Fluke
The Netherlands Limited Warranty & Limitation Of Liability This Fluke product will be free from defects in material and workmanship for 3 years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
