Fluke 717-1000G Technical Data

Fluke Pressure
Calibrators

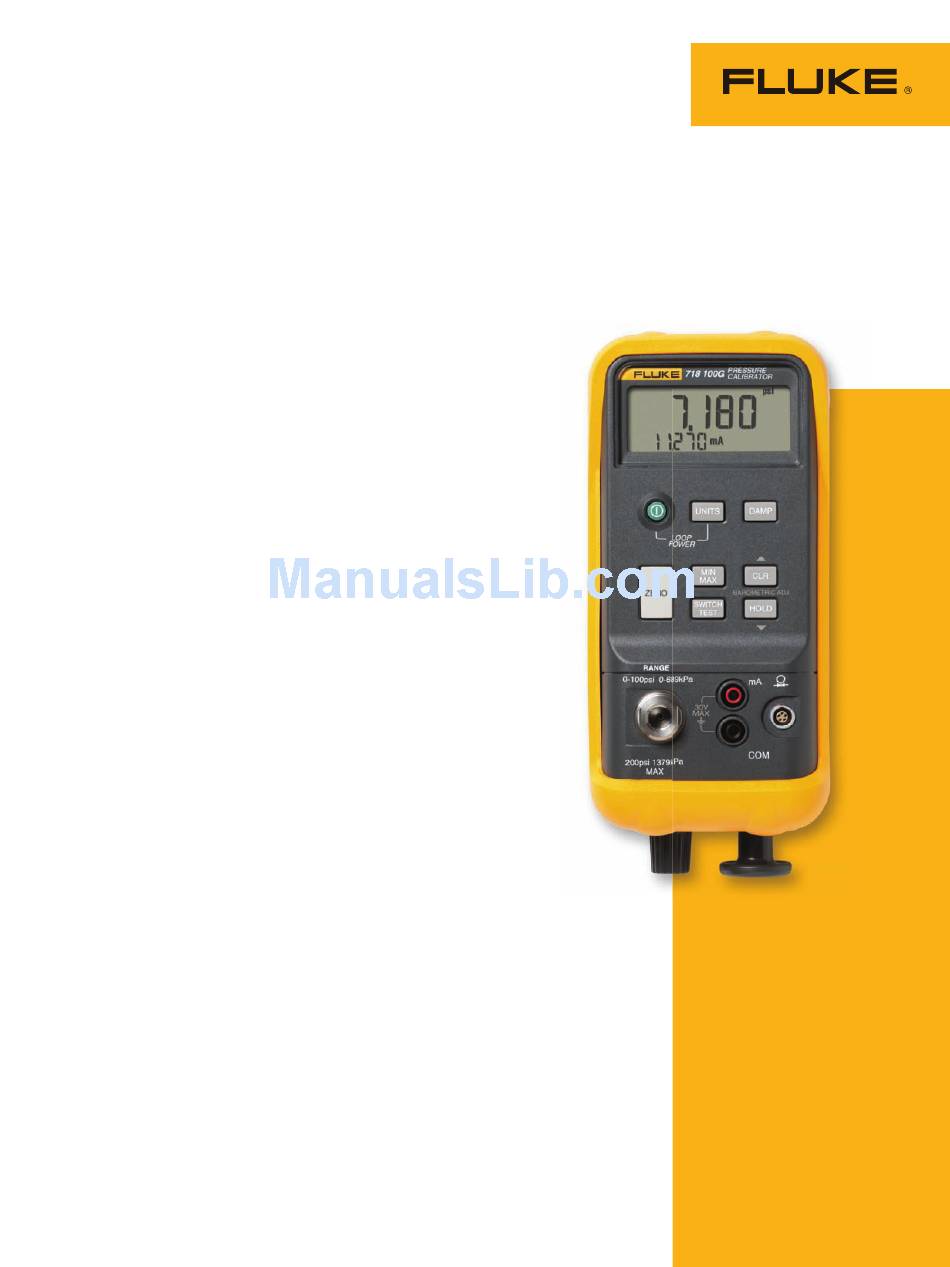

Fluke 718 Pressure Calibrator
The complete solution to pressure calibration
The Fluke 718 pressure calibrator family (4 models)
provide a total pressure calibration solution for
transmitters, gauges and switches. This compact
pressure calibration solution is about a third of the
size of comparable instruments and weighs just one
kilogram (two pounds). The unique, easy to clean
out access ports built into the pump protect the
pump from fluids and provides the ability to service
the pump without disassembly.
•
Pressure Source and Milliamp Measurement to
calibrate and maintain almost any pressure device
• Integrated pump is easily cleaned when
accidentally exposed to fluids:
– reduces cost of ownership and repairs
– service the pump in the field
•
Error % calculation for quicker pass/fail decision
making in the field
• Best in class mA accuracy of 0.015 % for better
measurement confidence and workload coverage
•
Min/Max/Hold to capture changing measurements
•
Switch test feature for quicker and more accurate
pressure switch testing
• New 1 and 300 PSI pressure ranges mean fewer
extra tools required
•
1, 30, 100 & 300 PSI ranges now available
General Specifications
Maximum voltage: 30 volts: Non-operating
Temperature: -40 °C to 60 °C
Operating temperature: -10 °C to 55° C
Relative humidity: 95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C);
45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)
Operating altitude: 3,000 m max
Shock: 1 m drop test
Vibration: Random, 2 g, 5 Hz – 500 Hz
Safety: CSA C22.2 No. 1010.1: 1992
EMC: EN50082-1: 1992 and EN55022: 1994 Class B
Size/weight (717 with holster): 201 mm x 98 mm x 52 mm
(7.93 in x 3.86 in x 2.06 in) 600 g (21 oz)
Size/weight (718 with holster): 216 mm x 94 mm x 66 mm
(8.50 in x 3.72 in x 2.60 in) 992 g (35 oz)
Power: 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two
batteries in 718
Battery Life: 4 to 20 hours typical, depending on functions used
Warranty: Three years (one year on pressure pump in Fluke 718)
Display: LCD, 5 digit pressure and current simultaneous
Accuracy: 0.05 %
Note: For use with non-corrosive gasses

Technical Data
