QQ
3 7 63 1515 0

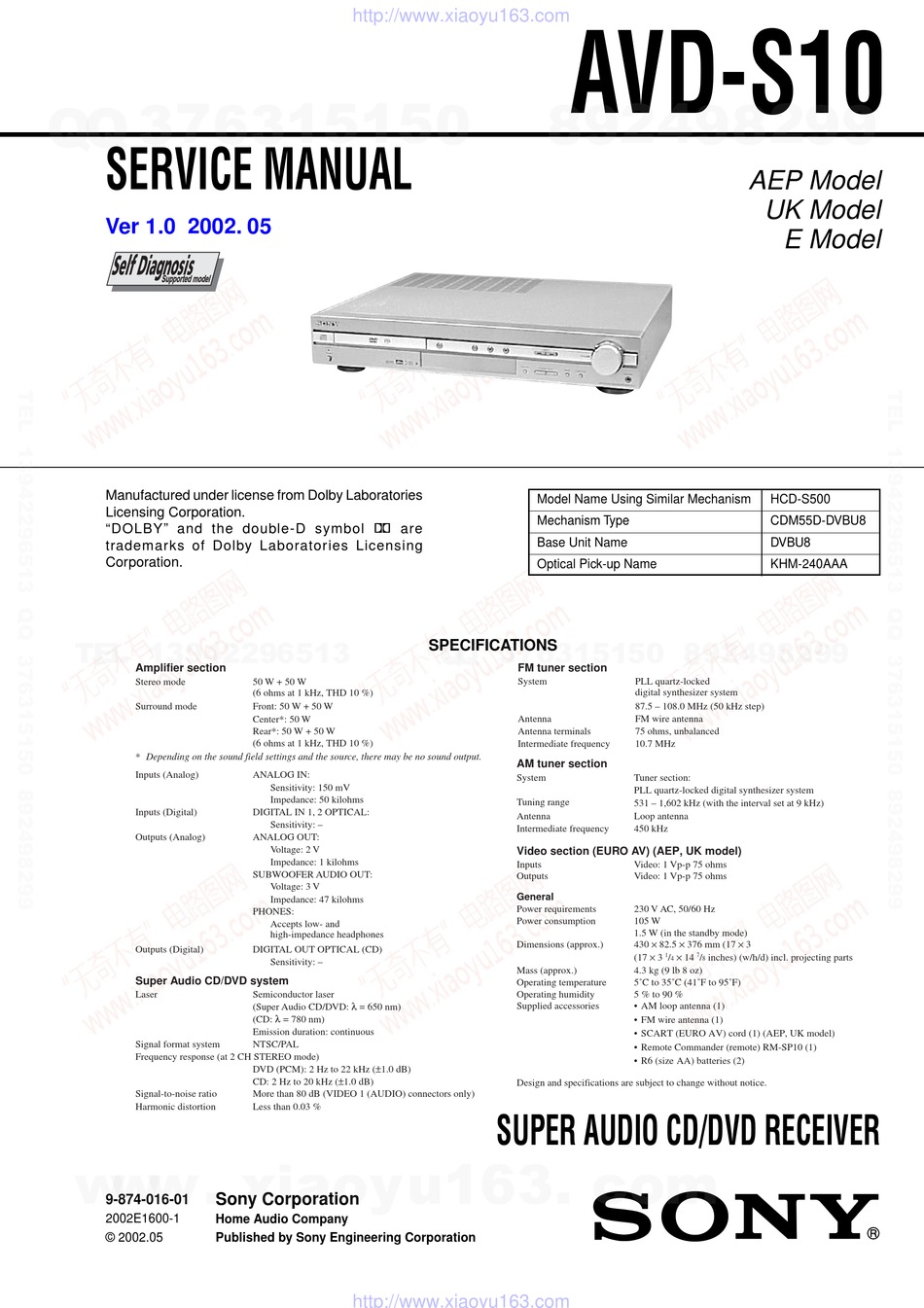

SERVICE MANUAL

Ver 1.0 2002. 05
Manufactured under license from Dolby Laboratories
Licensing Corporation.
"DOLBY" and the double-D symbol ; are
trademarks of Dolby Laboratories Licensing
Corporation.
TE
L 13942296513
Amplifier section
Stereo mode
Surround mode
* Depending on the sound field settings and the source, there may be no sound output.
Inputs (Analog)
Inputs (Digital)
Outputs (Analog)
Outputs (Digital)
Super Audio CD/DVD system
Laser
Signal format system
Frequency response (at 2 CH STEREO mode)
Signal-to-noise ratio
Harmonic distortion
www
.
Sony Corporation
9-874-016-01
2002E1600-1
Home Audio Company
© 2002.05
Published by Sony Engineering Corporation
http://www.xiaoyu163.com
50 W + 50 W
(6 ohms at 1 kHz, THD 10 %)
Front: 50 W + 50 W
Center*: 50 W
Rear*: 50 W + 50 W
(6 ohms at 1 kHz, THD 10 %)
ANALOG IN:
Sensitivity: 150 mV
Impedance: 50 kilohms
DIGITAL IN 1, 2 OPTICAL:
Sensitivity: –
ANALOG OUT:
Voltage: 2 V
Impedance: 1 kilohms
SUBWOOFER AUDIO OUT:
Voltage: 3 V
Impedance: 47 kilohms
PHONES:
Accepts low- and
high-impedance headphones
DIGITAL OUT OPTICAL (CD)
Sensitivity: –
Semiconductor laser
(Super Audio CD/DVD: λ = 650 nm)
(CD: λ = 780 nm)
Emission duration: continuous
NTSC/PAL
DVD (PCM): 2 Hz to 22 kHz (±1.0 dB)
CD: 2 Hz to 20 kHz (±1.0 dB)
More than 80 dB (VIDEO 1 (AUDIO) connectors only)
Less than 0.03 %
x
ao
u163
y
i
http://www.xiaoyu163.com
AVD-S10
2 9
8
Model Name Using Similar Mechanism
Mechanism Type
Base Unit Name
Optical Pick-up Name
Q Q
3
6 7
1 3
1 5
SPECIFICATIONS
FM tuner section
System
Antenna
Antenna terminals
Intermediate frequency
AM tuner section
System
Tuning range
Antenna
Intermediate frequency
Video section (EURO AV) (AEP, UK model)
Inputs
Outputs
General
Power requirements
Power consumption
Dimensions (approx.)
Mass (approx.)
Operating temperature
Operating humidity
Supplied accessories
Design and specifications are subject to change without notice.
SUPER AUDIO CD/DVD RECEIVER
co
.
9 4
2 8
AEP Model
UK Model
E Model
HCD-S500
CDM55D-DVBU8
DVBU8
KHM-240AAA
0 5
8
2 9
9 4
2 8
PLL quartz-locked
digital synthesizer system
87.5 – 108.0 MHz (50 kHz step)
FM wire antenna
75 ohms, unbalanced
10.7 MHz
Tuner section:
PLL quartz-locked digital synthesizer system
531 – 1,602 kHz (with the interval set at 9 kHz)
Loop antenna
450 kHz
Video: 1 Vp-p 75 ohms
Video: 1 Vp-p 75 ohms
230 V AC, 50/60 Hz
105 W
1.5 W (in the standby mode)
430 × 82.5 × 376 mm (17 × 3
(17 × 3
× 14
1
/
7
/
inches) (w/h/d) incl. projecting parts
4
8
4.3 kg (9 lb 8 oz)
5˚C to 35˚C (41˚F to 95˚F)
5 % to 90 %
• AM loop antenna (1)
• FM wire antenna (1)
• SCART (EURO AV) cord (1) (AEP, UK model)
• Remote Commander (remote) RM-SP10 (1)
• R6 (size AA) batteries (2)
m
9 9
9 9
