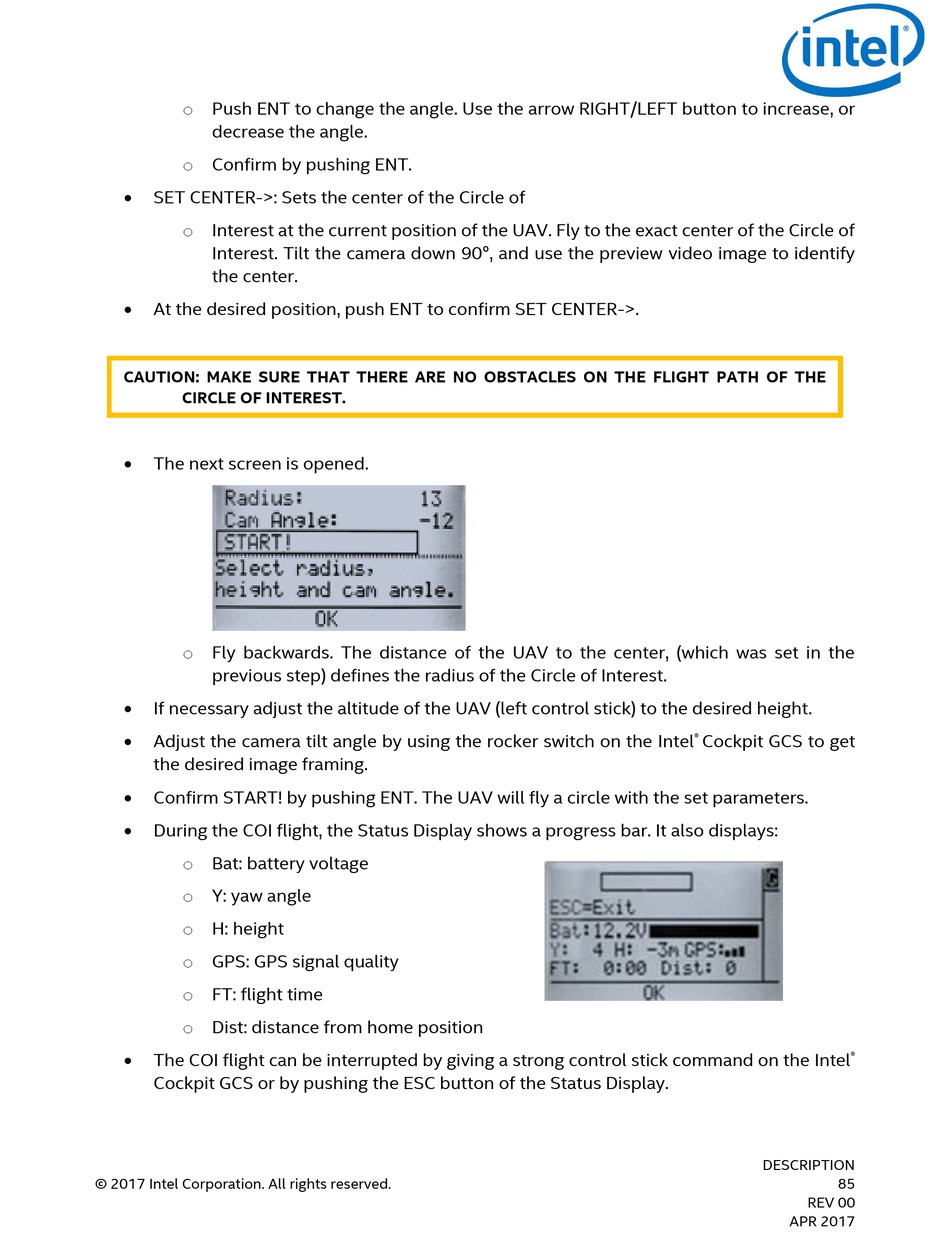

Intel FALCON 8+ Flight Manual page 91

o Push ENT to change the angle. Use the arrow RIGHT/LEFT button to increase, or
decrease the angle.
o Confirm by pushing ENT.

SET CENTER->: Sets the center of the Circle of
o Interest at the current position of the UAV. Fly to the exact center of the Circle of
Interest. Tilt the camera down 90°, and use the preview video image to identify
the center.
 At the desired position, push ENT to confirm SET CENTER->.
CAUTION: MAKE SURE THAT THERE ARE NO OBSTACLES ON THE FLIGHT PATH OF THE
CIRCLE OF INTEREST.

The next screen is opened.
o Fly backwards. The distance of the UAV to the center, (which was set in the
previous step) defines the radius of the Circle of Interest.
 If necessary adjust the altitude of the UAV (left control stick) to the desired height.
 Adjust the camera tilt angle by using the rocker switch on the Intel
the desired image framing.
 Confirm START! by pushing ENT. The UAV will fly a circle with the set parameters.
 During the COI flight, the Status Display shows a progress bar. It also displays:
o Bat: battery voltage
o Y: yaw angle
o H: height
o GPS: GPS signal quality
o FT: flight time
o Dist: distance from home position
 The COI flight can be interrupted by giving a strong control stick command on the Intel
Cockpit GCS or by pushing the ESC button of the Status Display.
© 2017 Intel Corporation. All rights reserved.
® Cockpit GCS to get
®
DESCRIPTION
85
REV 00
APR 2017
