3. Operating instructions

P
IXEL MAP

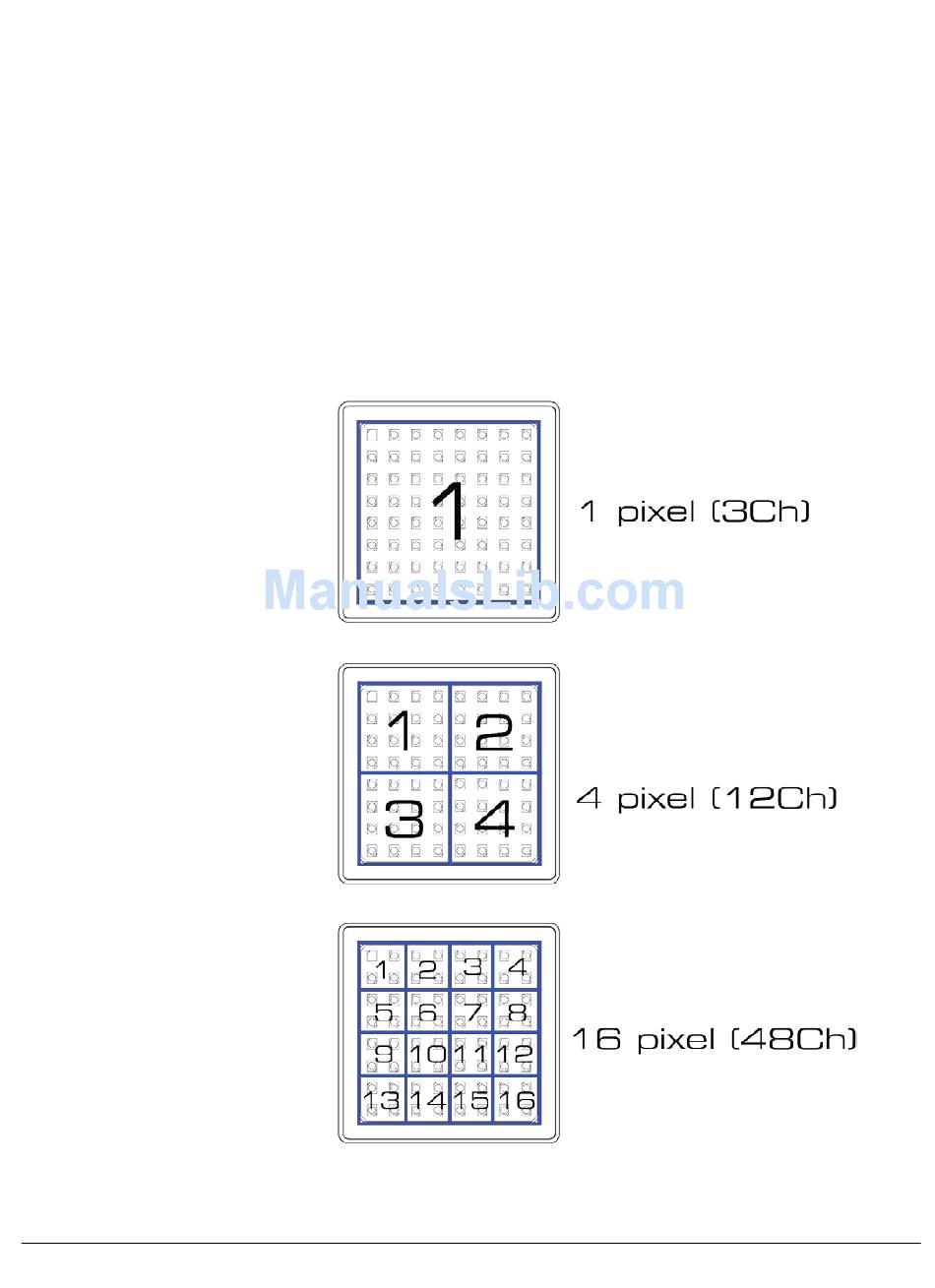

Mozart consists out of 64 RGB 1 chip engines which are located in 8 rows and 8 columns.
There are 3 control modes for Solaris Mozart fixtures:
1) As 1 pixel unit (3 channel mode)
2) As 4 pixel unit (12 channel mode)
3) As 16 pixel unit (48 channel mode)
You can only change these modes using the RDM protocol and an RDM enabled controller.
•
RDM Mode 1
•
RDM Mode 2
•
RDM Mode 3
