Summary of Contents for Solaris HITMAN 230

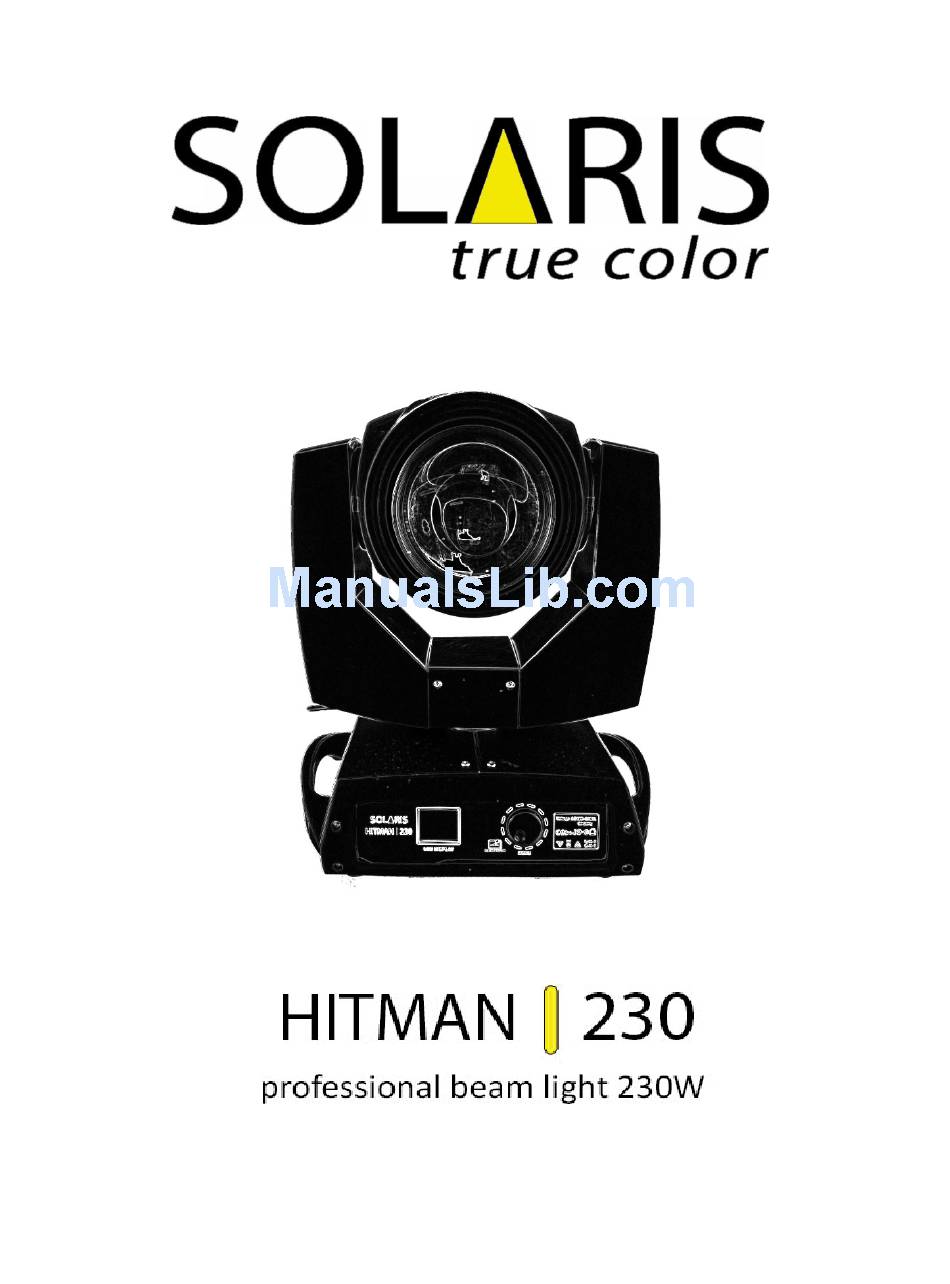

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
INTRODUCTION MAXIMIZING LAMP LIFE SPAN INSTALLATION AC POWER FIXTURE OVERVIEW DMX DATA LINK CONNECTING AND USING DMX DATA LINK FIXTURE OPERATION 10-11 TOKENS FIXTURE MENU STRUCTURE CHART DMX MODES CHARTS 14-16 MAINTENANCE SMART 180 SPECIFICATIONS 18-19 INCLUDED ITEMS SOLARIS® HITMAN230™... -
Page 3: Safety Information
· Make sure there are no flammable materials close to this product while MOUNTING & RIG- GING it is operating. · Always carry this product by the handles. Do not carry from the head. · When hanging this product, always secure to a fastening device using a safety cable. SOLARIS® HITMAN230™... - Page 4 · The maximum ambient temperature is 120 °F (49 °C). Do not operate this product at a higher temperature. · In case of a serious operating problem, stop using this product imme- diately In the unlikely event that your GLOW® product may require service, contact GLOW® Technical Support. SOLARIS® HITMAN230™...
-
Page 5: Introduction
INTRODUCTION The SOLARIS® HITMAN 230™ is a high-performance moving head lighting fixture with a 230W HRI 7R 230W lamp. A compact design makes it ideal for Venue Installations, Theatri- cal, Cinema, TV and Stage Use. The fixtures features a rotating and indexing gobo wheel with 17 gobos, a color wheel with 14 color filters with Half-Color Capability, high grade smooth mechanical step motors fitted for seamless moving of all the mechanical parts. -
Page 6: Installation
3. Working from a stable platform, hang the fixture on the truss and fasten the rigging clamps onto the truss. 4. Secure the fixture with a safety cable as directed below. 5. Check that the head will not collide with other fixtures or objects. SOLARIS® HITMAN230™... -
Page 7: Ac Power
250 V, 5 A. The fixture has an auto-ranging power supply that accepts AC mains power at 100-240 V at 50/60 Hz. Do not apply AC mains power at any other voltage or frequency to the fixture. SOLARIS® HITMAN230™... -
Page 8: Fixture Overview
Tokens® – symbol indicating the fixture DMX personality, Beam Angle, Weight and Power Supply Jog Scrolling Wheel and button Digital Screen for viewing the menu DMX IN \ DMX OUT PowerCon Power In Connector T5A Fuse Box ON \ OFF Switch SOLARIS® HITMAN230™... -
Page 9: Dmx Data Link
1. Connect the DMX data output from the controller to the first fixture’s male XLR DMX input connector. 2. Connect the first fixture’s DMX output to the DMX input of the next fixture and contin- ue connecting fixtures output to input. SOLARIS® HITMAN230™... -
Page 10: Fixture Operation
This section explains the fixture settings and utilities that the user has access to when us- ing the control panel. The SOLARIS® HITMAN230™ can function in different modes: DMX 16 CHANNEL MODE. When operated in DMX 16 channel mode the fixture screen will show A001 when first accessed. - Page 11 Jog Wheel to select your desired option and pressing the jog wheel once to make a selection, then by rotating the jog wheel you can change the values of each parameter. Select “Exit” and press once on the jog wheel to return to main menu. SOLARIS® HITMAN230™...
-
Page 12: Tokens
TOKENS® according to the fixture’s qualities. Those marks can be especially useful and informative for the technicians using Solaris fixtures. The TOKENS® are located above the digital screen on the back panel of the fixture. -
Page 13: Fixture Menu Structure Chart
Channel control [00][000] Manual Exit Info Lamp on timer Time of lamp on Info Reset timer Clear up the lamp on time Info Set on timer Set up the time Info Set pass-word Set the password Info Exit SOLARIS® HITMAN230™... -
Page 14: Dmx Modes Charts
SLOW ROTATION (0.2rpm) FAST ROTATION (160rpm) CLOSED SLOW STROBE (1 flash/sec) FAST STROBE (1 flash/sec) 104-107 Open SLOW PULSATION(30bpm) STOP/STROBE FAST PULSATION(360bpm) 208-212 OPEN 213-225 RANDOM SLOW STROBE 226-238 RANDOM MEDIUM STROBE 239-251 RANDOM FAST STROBE 252-255 OPEN SOLARIS® HITMAN230™... - Page 15 Gobo13 shake ,slow speed Gobo13 shake ,fast speed Gobo14 shake ,slow speed Gobo14 shake ,fast speed Gobo15 shake ,slow speed Gobo15 shake ,fast speed Gobo16 shake ,slow speed Gobo16 shake ,fast speed 0-127 Prism Excluded PRISM 128-255 Prism Inserted SOLARIS® HITMAN230™...
- Page 16 Linear (default) FUNCTION 63-255 Unused range 0-25 Unused range Effects Reset …… Effects Reset Pan/Tilt Reset RESET ……. Pan/Tilt Reset Complete Reset …… Complete Reset 0-25 Unused range LAMP OFF ……. LAMP CONTROL LAMP OFF LAMP ON …… LAMP ON SOLARIS® HITMAN230™...
-
Page 17: Maintenance
Remove stuck particles with an unscented tissue or cotton swab moistened with glass cleaner or distilled water. 4. Check that the fixture is dry before reapplying power. SOLARIS® HITMAN230™... -
Page 18: Smart 180 Specifications
HITMAN 230 SPECIFICATIONS FEATURES Shutter Strobe effect, pulse effects, instant open and black- Dimmer 0 - 100% Linear Dimmer Dynamic Effect Color Wheel 14 colors plus open, rotation with variable direction and speed Static Gobo Wheel 17 gobos plus open, wheel rotation and shake... -
Page 19: Included Items
IP20 CONNECTIONS AC Power Input Power-Con Connection DMX512 Data 3-pin locking XLR, 1 Input, 1 Output INCLUDED ITEMS 3 ft. Power-Con Power Cable User Manual Specifications are subject to change without notice. For latest product specifications, see www.Glow-Lighting.com SOLARIS® HITMAN230™... - Page 20 2015 SOLARIS BY GLOW® PROFESSIONAL. INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE. SOLARIS BY GLOW® PROFESSIONAL DISCLAIM LIABILITY FOR ANY INJURY, DAMAGE, DIRECT OR INDIRECT LOSS, CONSEQUENTIAL OR ECONOMIC LOSS OR ANY OTHER LOSS OCCASIONED BY THE USE OF, INABILITY TO USE OR RELIANCE ON THE INFORMATION CONTAINED IN THIS MANUAL.
