Summary of Contents for Solaris mozart
-

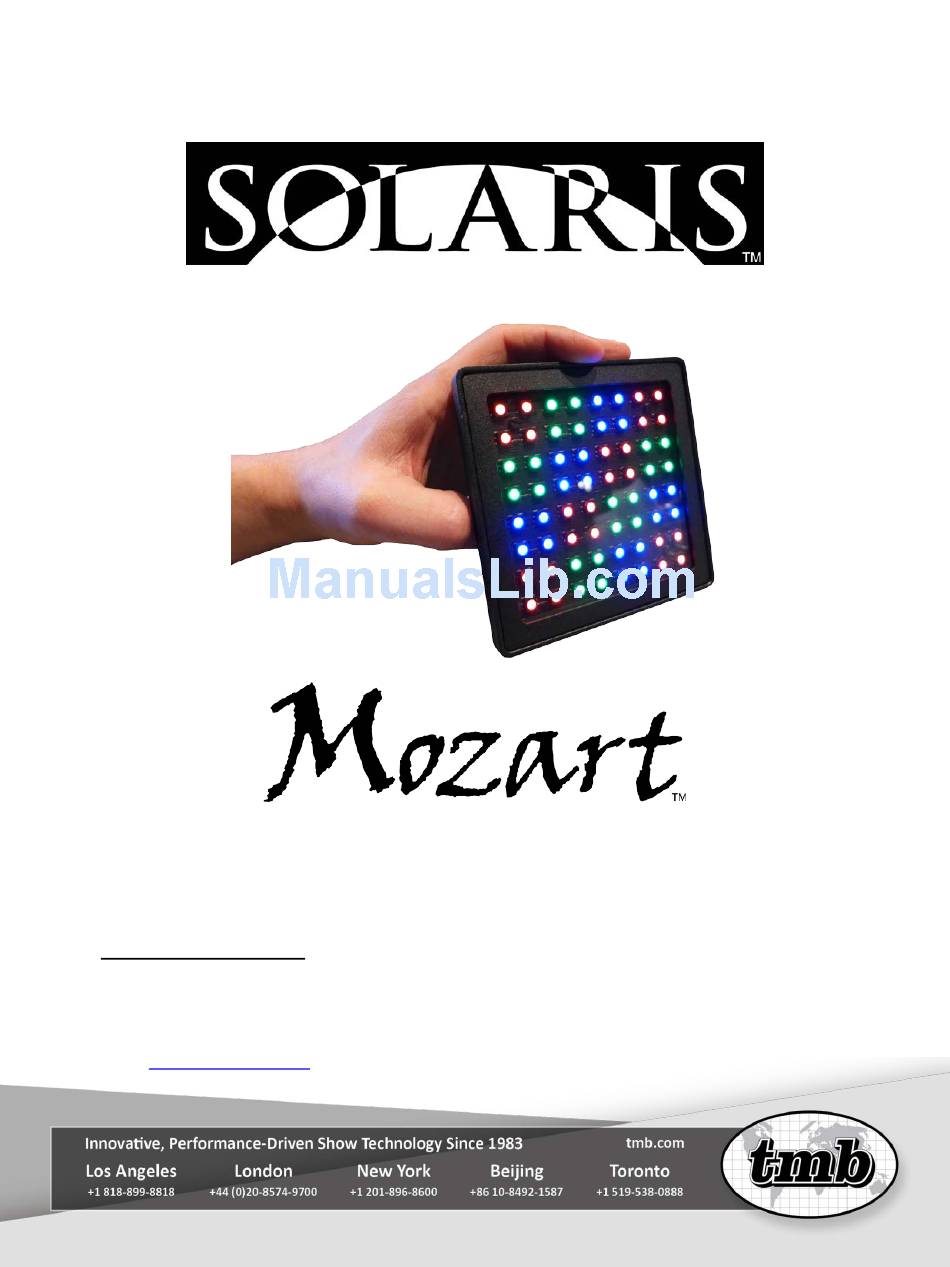

Page 1: User Manual
USER MANUAL TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 e-mail: techsupport@tmb.com... -
Page 2: Table Of Contents
RDM F ..........................11 UNCTIONALITY ..........................11 ENERAL AINTENANCE ........................... 11 IMITED ARRANTY ..........................12 ETURN RODECURE .................... 13 OZART IXTURE ECHNICAL PECIFICATIONS PSU T ..................14 OZART ECHNICAL PECIFICATIONS Solaris Mozart user manual version 2.0 122216 - 2 -... -
Page 3: Introduction
1. Introduction RODUCT VERVIEW The Solaris Mozart is an extremely versatile and creative pixel-mapping and decorative lighting tool that can ™ be placed almost anywhere. Blazing fast (38,400Hz), with Cree LEDs, Mozarts are ideal for high-speed photography and video. Modes include 1, 4, or 16 pixels (3 to 48 DMX channels) per fixture. -
Page 4: Fuse Replacement (Psu)
NCLOSURE Orientation The Mozart MZ10 PSU 10-way may be mounted on truss or pipe, in any position, using the yoke supplied with the unit. Always make sure there is adequate room for ventilation. Rigging – Always consult a certified rigging engineer before suspending any fixture overhead! ®... -
Page 5: Setup
Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other. Solaris Mozart user manual version 2.0 122216 - 5 -... -
Page 6: Setting Up Admx Serial Link
1. Connect the (male) 5-pin connector side of the DMX cable to the output (female) 5-pin connector of the DMX console. 2. Connect the opposite end of the cable (female) to the input connector of the Mozart PSU consisting of a (male) 5-pin connector. -
Page 7: Operating Instructions
3. Operating instructions IXEL MAP Mozart consists out of 64 RGB 1 chip engines which are located in 8 rows and 8 columns. There are 3 control modes for Solaris Mozart fixtures: 1) As 1 pixel unit (3 channel mode) -
Page 8: Internal Address Set
The Mozart 10-way power supply must be addressed via RDM. To set the address for Mozart fixtures, first set the starting address for the Mozart 10-way powersupply . To set the fixture address of Mozart fixtures (1-10), follow these steps: Press and hold <Address set>... - Page 9 Using a starting address of DMX 1 on the 10-way PSU, this chart is an example of the Mozart fixture addresses. Solaris Mozart user manual version 2.0 122216 - 9 -...
-
Page 10: Rdm
Using RDM you also have an option to locate the device. This will force selected Mozart to strobe its sequence number in white. ENSORS Mozart has 3 sensors: • Temperature sensor • Bus current sensor • Main voltage sensor Bus current and main voltage values can be seen only using RDM compliant lighting control device (for ®... -
Page 11: Appendix
RDM F UNCTIONALITY Mozart power supplies have RDM Functionality. Below are the RDM functions available in these devices. TMB has many options for RDM control of your devices: ProPlex RDMigo and IQ RDM Manager Software; ProPlex Striker; and ProPlex MasterFade. Additionally, ProPlex RDM Opto-Splitters and the ProPlex IQ product range offer many means of RDM over DMX data distribution. -
Page 12: Return Prodecure
Note: If you are given an RMA #, please include the following information on a piece of paper inside the box: 1) Your name 2) Your address 3) Your phone number 4) The RMA # 5) A brief description of the symptoms Solaris Mozart user manual version 2.0 122216 - 12 -... -
Page 13: Mozart Fixture Technical Specifications
Pixel modes ........................... 1, 4, 16 DMX Channels ................. 3, 12, 48 (based on selected pixel mode) Color dimming control ........................16 bit DMX/ power connectors ..................Amphenol Sensor M12 Solaris Mozart user manual version 2.0 122216 - 13 -... -
Page 14: Mozart 10- Way Psu Technical Specifications
DMX Channels ..........................3, 12, 48 DMX input ....................locking 5-pin XLR male socket DMX output for further linking ..............locking 5-pin XLR female socket DMX output for Mozart ..................Amphenol Sensor M12 DMX output for Mozart ........................10 max. 10-WAY PSU – inches [mm] Solaris Mozart user manual version 2.0 122216...
