Summary of Contents for Solaris PIX 72

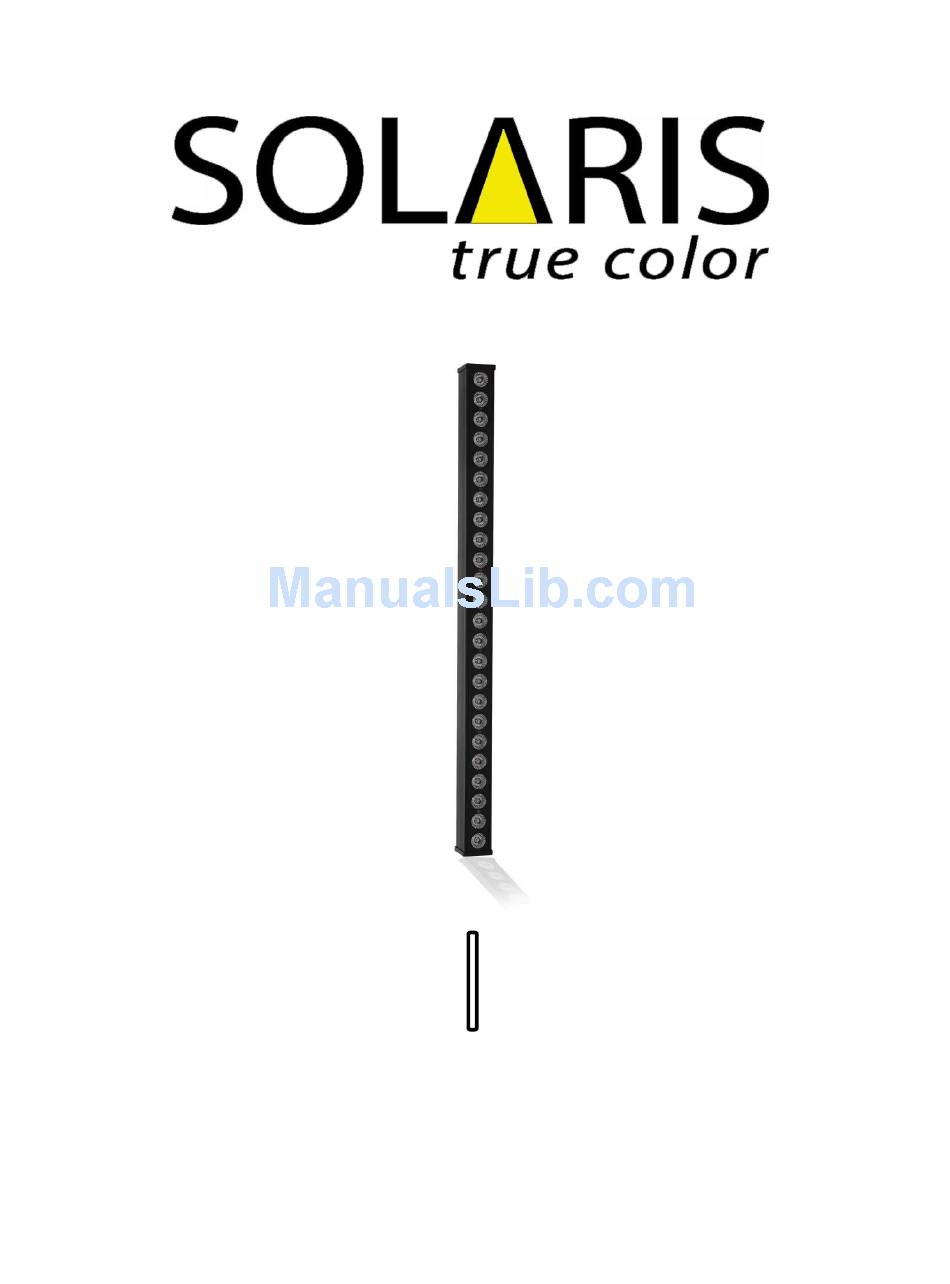

  • Page 1 basic pixel bar 24x3w USER MANUAL...
  • Page 2: Table Of Contents

    PAGE NO. SAFETY INFORMATION INTRODUCTION INSTALLATION AC POWER FIXTURE OVERVIEW DMX DATA LINK CONNECTING AND USING DMX DATA LINK FIXTURE OPERATION TOKENS FIXTURE MENU STRUCTURE CHART DMX MODES CHARTS 13-14 MAINTENANCE PIX 72 SPECIFICATIONS 16-17 INCLUDED ITEMS SOLARIS® PIX 72™...
  • Page 3: Safety Information

    · Make sure there are no flammable materials close to this product while MOUNTING & RIG- GING it is operating. · Always carry this product by the handles. Do not carry from the head. · When hanging this product, always secure to a fastening device using a safety cable. SOLARIS® PIX 72™...
  • Page 4 · The maximum ambient temperature is 120 °F (49 °C). Do not operate this product at a higher temperature. · In case of a serious operating problem, stop using this product imme- diately In the unlikely event that your GLOW® product may require service, contact GLOW® Technical Support. SOLARIS® PIX 72™...
  • Page 5: Introduction

    INTRODUCTION The SOLARIS® PIX 72™ is a high-performance 24 X 15W RGB 3 in 1 Pixel Led Bar lighting fixture featuring a Linear Dimmer & a light weighted body enclosure made of a sturdy alumi- num casting, designed for fixed indoor installations.
  • Page 6: Installation

    Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through and around a secure metal anchoring point. SOLARIS® PIX 72™...
  • Page 7: Ac Power

    250 V, 5 A. The fixture has an auto-ranging power supply that accepts AC mains power at 100-240 V at 50/60 Hz. Do not apply AC mains power at any other voltage or frequency to the fixture. SOLARIS® PIX 72™...
  • Page 8: Fixture Overview

    Press UP to toggle between menu options DOWN Press DOWN to toggle between menu options Press INC to change current value by Incrementing the value displayed by 1 Press DEC to change current value by decrementing the value displayed by 1 SOLARIS® PIX 72™...
  • Page 9: Dmx Data Link

    1. Connect the DMX data output from the controller to the first fixture’s male XLR DMX input connector. 2. Connect the first fixture’s DMX output to the DMX input of the next fixture and contin- ue connecting fixtures output to input. SOLARIS® PIX 72™...
  • Page 10: Fixture Operation

    This section explains the fixture settings and utilities that the user has access to when us- ing the control panel. Settings are retained when the fixture is powered off. The SOLARIS® PIX 72™ can function in different modes: CHANGING DMX CHANNEL MODE Scroll down using the up and down buttons below the digital screen and you will notice that the letter in the beginning changes but the number 001 persist.
  • Page 11: Tokens

    TOKENS® according to the fixture’s qualities. Those marks can be especially useful and informative for the technicians using Solaris fixtures. The TOKENS® are located above the digital screen on the back panel of the fixture.
  • Page 12: Fixture Menu Structure Chart

    5d00 00 - 20 Orange Gradual change, speed slow to fast Red,Green,Blue,Purple,Orange Color Circulate 6d00 00 - 20 Gradual change, speed from slow to fast SU00 00 - 20 Sound Program Effect, speed from slow to fast SOLARIS® PIX 72™...
  • Page 13: Dmx Modes Charts

    000-255 Section 1 Blue Dimmer 1-100% 240-251 Program Effect -13 000-255 Section 2 Red Dimmer 1-100% 252-255 Sound Effect 000-255 Section 2 Green Dimmer 1-100% 000-255 Section 2 Blue Dimmer 1-100% 000-255 Speed, from slow to fast SOLARIS® PIX 72™...
  • Page 14 204-217 Program Effect -10 000-255 Section 8 Green Dimmer 1-100% 218-227 Program Effect -11 000-255 Section 8 Blue Dimmer 1-100% 228-239 Program Effect -12 240-251 Program Effect -13 252-255 Sound Effect Speed, from slow to 000-255 fast SOLARIS® PIX 72™...
  • Page 15: Maintenance

    Do not rub the surface hard: lift particles off with a soft repeated press. Dry with a soft, clean, lint-free cloth or low pressure compressed air. Remove stuck particles with an unscented tissue or cotton swab moistened with glass cleaner or distilled water. 4. Check that the fixture is dry before reapplying power. SOLARIS® PIX 72™...
  • Page 16: Pix 72 Specifications

    40° C (104° F) Min Ambient temperature -25°C (-13° F) Total Heat Dissipation (calculated, +-10%) 1200BTU/hr. PHYSICAL DIMENSIONS Length 1010 mm 40.4 “ Width 60 mm 2.4 “ Height 65 mm 2.6 “ WEIGHT 6 Kg 13.2 lbs SOLARIS® PIX 72™...
  • Page 17: Included Items

    Built in Standard Power cable 3 pin (Deutsch Stan- dard) DMX512 Data 3-pin locking XLR, 1 Input, 1 Output INCLUDED ITEMS 3 ft. Power Cable User Manual Specifications are subject to change without notice. For latest product specifications, see www.Glow-Lighting.com SOLARIS® PIX 72™...
  • Page 18 2015 SOLARIS BY GLOW® PROFESSIONAL. INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE. SOLARIS BY GLOW® PROFESSIONAL DISCLAIM LIABILITY FOR ANY INJURY, DAMAGE, DIRECT OR INDIRECT LOSS, CONSEQUENTIAL OR ECONOMIC LOSS OR ANY OTHER LOSS OCCASIONED BY THE USE OF, INABILITY TO USE OR RELIANCE ON THE INFORMATION CONTAINED IN THIS MANUAL.
