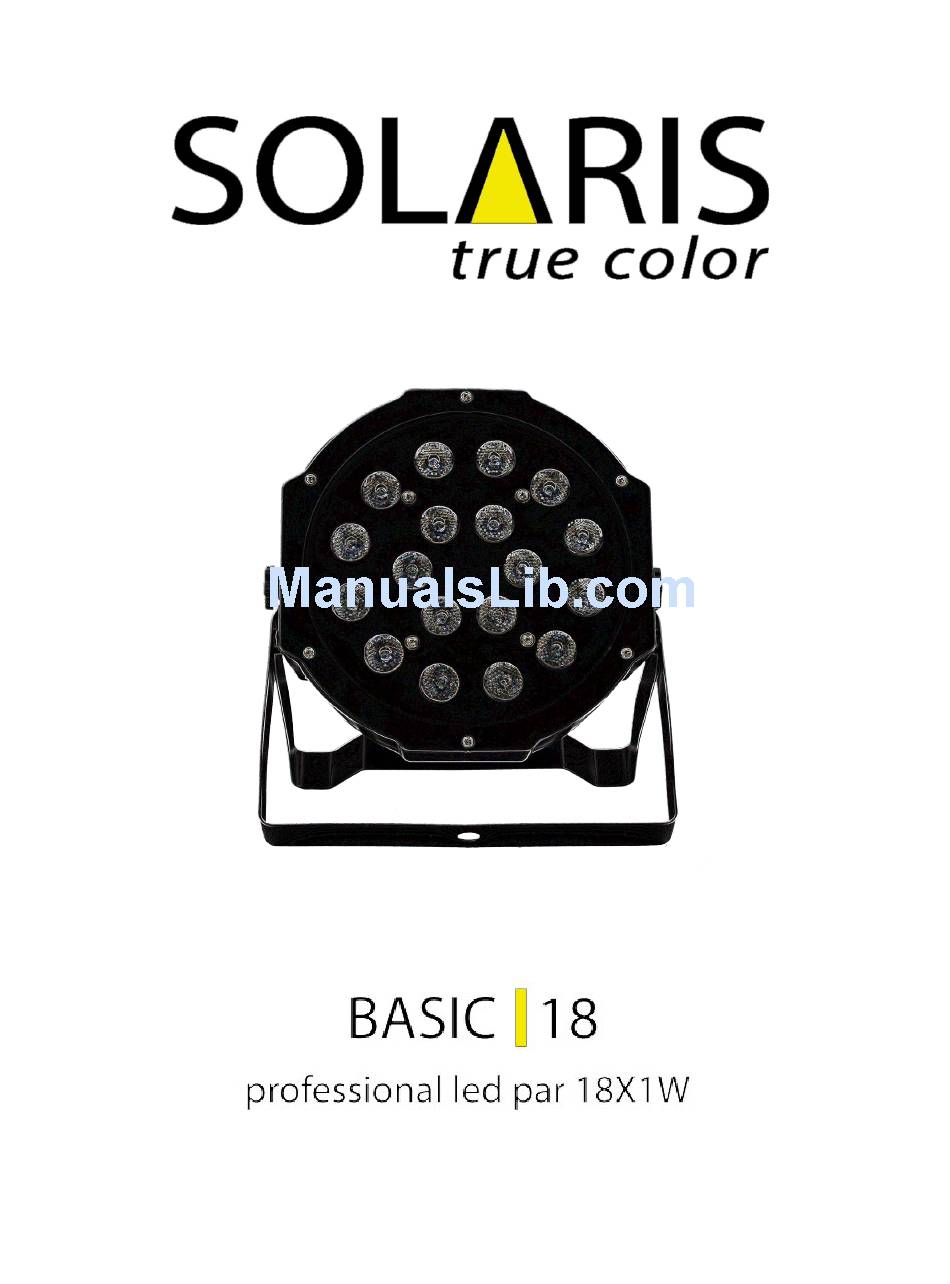

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
PAGE NO. SAFETY INFORMATION INTRODUCTION INSTALLATION AC POWER FIXTURE OVERVIEW DMX DATA LINK CONNECTING AND USING DMX DATA LINK FIXTURE OPERATION 10-11 TOKENS FIXTURE MENU STRUCTURE CHART DMX MODES CHARTS MAINTENANCE BASIC 18 SPECIFICATIONS 15-16 INCLUDED ITEMS SOLARIS® BASIC 18™... -
Page 3: Safety Information
MOUNTING & RIG- GING product while it is operating. · Always carry this product by the handles. Do not carry from the head. · When hanging this product, always secure to a fastening device using a safety cable. SOLARIS® BASIC 18™... - Page 4 · The maximum ambient temperature is 120 °F (49 °C). Do not operate this product at a higher temperature. · In case of a serious operating problem, stop using this product imme- diately In the unlikely event that your GLOW® product may require service, contact GLOW® Technical Support. SOLARIS® BASIC 18™...
-
Page 5: Introduction
INTRODUCTION The SOLARIS® Professional BASIC 18™ is a high-performance 18 X 1W RGB Par lighting fix- ture. Its compact design makes it ideal for Venue Installations and Indoor Use. The fixtures is deemed for its bright 1W LED with a slim design and provides a budget friendly solution for rental use and installations. -
Page 6: Installation
Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through and around a secure metal anchoring point. SOLARIS® BASIC 18™... -
Page 7: Ac Power
250 V, 5 A. The fixture has an auto-ranging power supply that accepts AC mains power at 100-240 V at 50/60 Hz. Do not apply AC mains power at any other voltage or frequency to the fixture. SOLARIS® BASIC 18™... -
Page 8: Fixture Overview
Digital Screen for accessing menu with 4 buttons for navigation: Menu, Up, Down and Enter Press UP to change current value DOWN Press DOWN to change current value MENU Press MENU to toggle between modes Use ENTER to save the parameter after you made the ENTER desires adjustments SOLARIS® BASIC 18™... -
Page 9: Dmx Data Link
1. Connect the DMX data output from the controller to the first fixture’s male XLR DMX input connector. 2. Connect the first fixture’s DMX output to the DMX input of the next fixture and contin- ue connecting fixtures output to input. SOLARIS® BASIC 18™... -
Page 10: Fixture Operation
This section explains the fixture settings and utilities that the user has access to when using the control panel. Settings are retained when the fixture is pow- ered off. The SOLARIS® BASIC 18™ can function in different modes: DMX 6 CHANNEL MODE. When operated in DMX 8 channel mode the fixture back screen will show d001 when first accessed. -
Page 11: Tokens
TOKENS® according to the fixture’s qualities. Those marks can be especially useful and informative for the technicians using Solaris fixtures. The TOKENS® are located above the digital screen on the back panel of the fixture. -
Page 12: Fixture Menu Structure Chart
Predefined Colors GREEN Au03 Predefined Colors BLUE Au04 Predefined Colors ORANGE Au05 Predefined Colors CYAN Au06 Predefined Colors MAGENTA Au07 Predefined Colors WHITE (COLD) Au08 Predefined Colors RED + BLUE Au09 Auto Mode Macro Effect Scrolls between Au01-Au08 SOLARIS® BASIC 18™... -
Page 13: Dmx Modes Charts
8 CHANNEL DMX MODE FUNCTION CHANNEL MASTER DIMMER DARK TO BRIGHT R (RED) DIMMER DARK TO BRIGHT G (GREEN) DIMMER DARK TO BRIGHT B (BLUE) DIMMER DARK TO BRIGHT STROBE SLOW TO FAST ALLOWS SCROLLING BETWEEN PREDEFINED MACRO EFFECTS SOLARIS® BASIC 18™... -
Page 14: Maintenance
Do not rub the surface hard: lift particles off with a soft repeated press. Dry with a soft, clean, lint-free cloth or low pressure compressed air. Remove stuck particles with an unscented tissue or cotton swab moistened with glass cleaner or distilled water. 4. Check that the fixture is dry before reapplying power. SOLARIS® BASIC 18™... -
Page 15: Basic 18 Specifications
BASIC 18 SPECIFICATIONS FEATURES Pre-Programed Effects 1 color blending modes Strobe Via DMX Control only Dimmer 0 – 100% Full Linear Dimming INSTALLATIONS Location Indoor Use Only, Must be fastened to surface or structure Mounting points Two adjustable bracket with clamp insertion point... -
Page 16: Included Items
Beam Angle 15° Degrees CONSTRUCTION Color Black IP Rating IP20 CONNECTIONS AC Power Input Standard Power cable 3 pin (Deutsch Standard) DMX512 Data 3-pin locking XLR, 1 Input, 1 Output INCLUDED ITEMS 3 ft. Power Cable User Manual SOLARIS® BASIC 18™... - Page 17 2015 SOLARIS BY GLOW® PROFESSIONAL. INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE. SOLARIS BY GLOW® PROFESSIONAL DISCLAIM LIABILITY FOR ANY INJURY, DAMAGE, DIRECT OR INDIRECT LOSS, CONSEQUENTIAL OR ECONOMIC LOSS OR ANY OTHER LOSS OCCASIONED BY THE USE OF, INABILITY TO USE OR RELIANCE ON THE INFORMATION CONTAINED IN THIS MANUAL.
