Summary of Contents for Solaris SMART 54

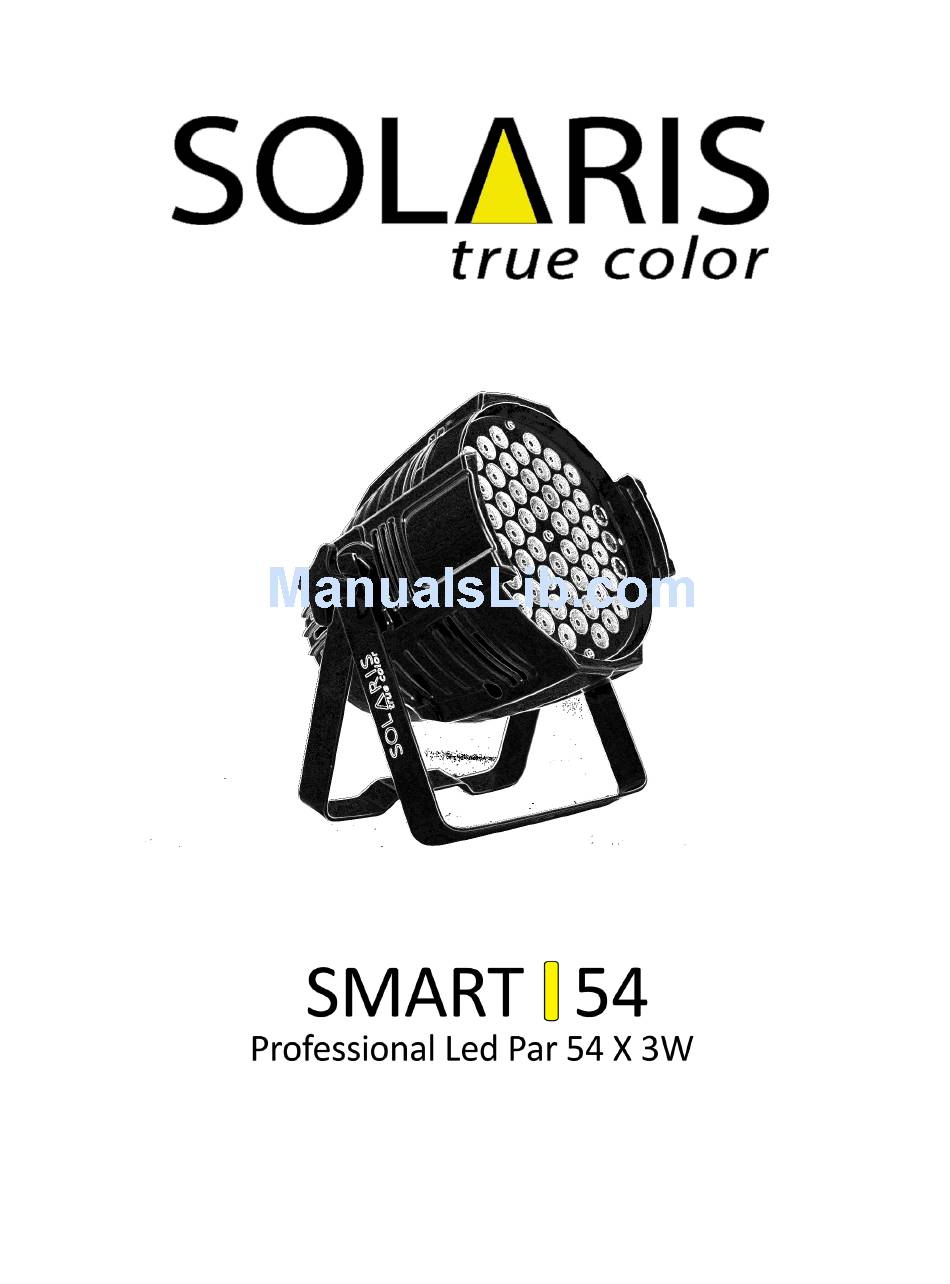

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
MAINTENANCE shock, do not expose this product to rain or moisture. (IP20) · Mount this product in a location with adequate ventilation, at least 20 SMART 54 SPECIFICATIONS 15-16 in (50 cm) from adjacent surfaces. · Make sure there are no flammable materials close to this product while MOUNTING &... -
Page 3: Introduction

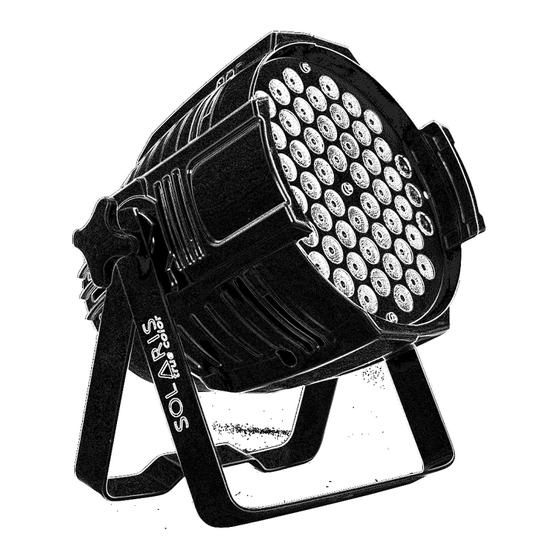

POWER & WIRING The SOLARIS® Professional SMART 54™ is a high-performance 3 X 54W RGBW (Warm White) · Never connect this product to a dimmer pack or any rheostat. Led Par lighting fixture. A compact design makes it ideal for Venue Installations, Theatrical, ·... -
Page 4: Installation
Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through and around a secure metal anchoring point. SOLARIS® SMART54™ SOLARIS® SMART54™... -
Page 5: Fixture Overview
Press UP to change current value DOWN Press DOWN to change current value MENU Press MENU to toggle between modes ENTER Use ENTER to save the parameter after you made the desires adjustments SOLARIS® SMART54™ SOLARIS® SMART54™... -
Page 6: Fixture Operation
DMX address according to your lighting setup. Optional DMX address especially useful and informative for the technicians using Solaris fixtures. values are 1 to 512. When you reach the desired value, press ENTER to save your changes. -
Page 7: Fixture Menu Structure Chart
Up & Down Buttons change Red intensity (000-255) G255 Green Up & Down Buttons change Green intensity (000-255) B255 Blue Up & Down Buttons change Blue intensity (000-255) Up & Down Buttons change Warm White W255 Warm White intensity (000-255) SOLARIS® SMART54™ SOLARIS® SMART54™... -
Page 8: Maintenance
MAINTENANCE SMART 54 SPECIFICATIONS WARNING! READ SAFETY INFORMATION ON PAGE 3 BEFORE SERVICING THE FIXTURE. Disconnect the fixture from mains power and allow to cool completely before cleaning or servicing. Service fixtures in an area where there is no risk of injury from failing parts, tools or other materials. Excessive dust, smoke fluid, and particle buildup degrades performance, causes overheating and will damage the fixture. -
Page 9: Included Items
DMX512 Data 3-pin locking XLR, 1 Input, 1 Output INCLUDED ITEMS INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE. SOLARIS BY GLOW® PROFESSIONAL DISCLAIM LIABILITY FOR ANY INJURY, DAMAGE, DIRECT OR User Manual INDIRECT LOSS, CONSEQUENTIAL OR ECONOMIC LOSS OR ANY OTHER LOSS OCCASIONED BY THE USE OF, INABILITY TO USE OR RELIANCE ON THE INFORMATION CONTAINED IN THIS MANUAL.
