RDM

Using RDM you also have an option to locate the device. This will force selected Mozart to strobe its
sequence number in white.
S
ENSORS
Mozart has 3 sensors:
•
Temperature sensor
•
Bus current sensor
•
Main voltage sensor
Bus current and main voltage values can be seen only using RDM compliant lighting control device (for
®
example, ProPlex MasterFade).
To see current temperature of Mozart, press "Address set" button located at the back of fixture.
If Mozarts temperature is below or equal 40°C (104°F), one green pixel (4 LEDs) will appear as shown:
Mozart's temperature is indicated by the number of illuminated pixels: i.e., one pixel equals 2.5°C increase.
In addition, as Mozart's temperature increases, more red pixels are illuminated. At 60°C (140°F) the fixture
is prompted to slowly decrease the LEDs' output intensity to reduce the temperature of fixture.

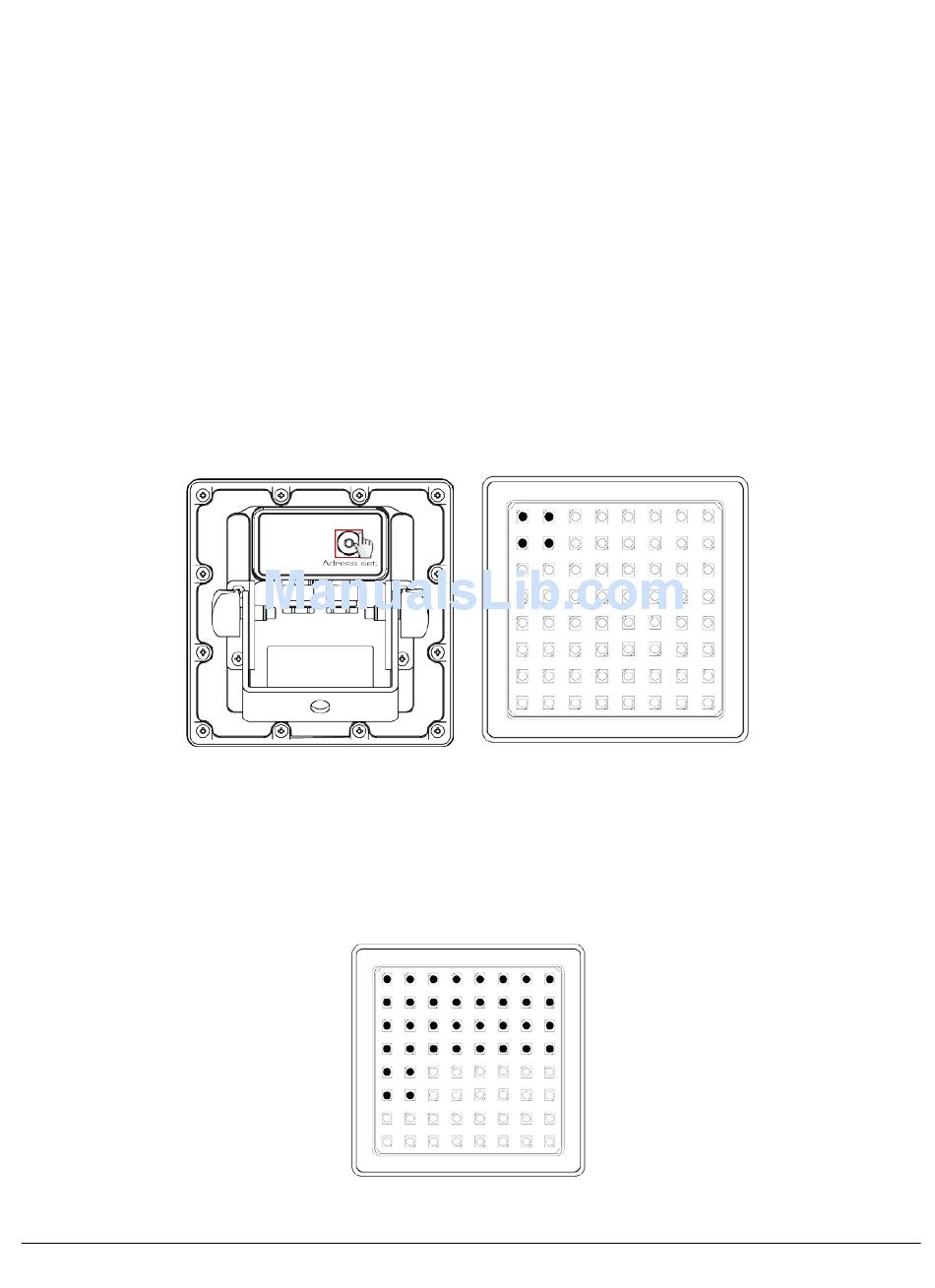

For example, the diagram below shows the current
and 8 additional pixels):
