Westermo DDW-002-B1 User Manual

En 50155 ethernet broadband bridge
Hide thumbs Also See for DDW-002-B1:

Advertisement

Quick Links

User Guide
6641-2280
DDW-002-B1
EN 50155 Ethernet Broadband Bridge
www.westermo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDW-002-B1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Westermo DDW-002-B1

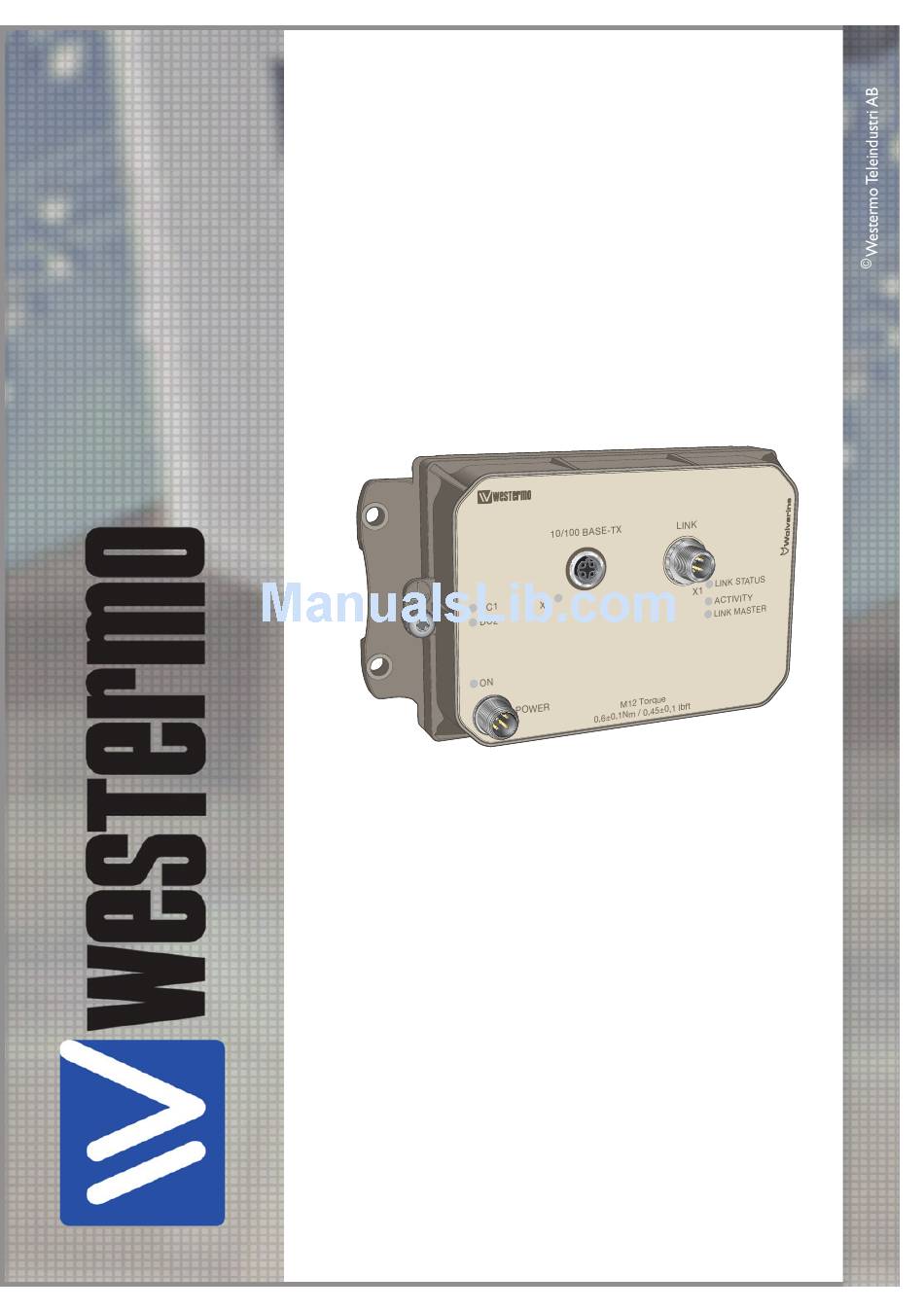

  • Page 1 User Guide 6641-2280 DDW-002-B1 EN 50155 Ethernet Broadband Bridge www.westermo.com...
  • Page 2: Legal Information

    Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 3: Before Installation

    Safety Before installation: Read this manual completely and gather all information on the unit. Make sure that you understand it fully. Check that your application does not exceed the safe operating specifications for this unit. This unit should only be installed by qualified personnel. This unit should be built-in to an apparatus cabinet, or similar, where access is restricted to service personnel only.
  • Page 4: Care Recommendations

    … Do not cover or bring mechanical force to the ventilation membrane on the back of the unit. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions.
  • Page 5: Agency Approvals And Standards Compliance

    Agency approvals and standards compliance Type Approval / Compliance EN 61000-6-1, Immunity residential environments EN 61000-6-2, Immunity industrial environments EN 61000-6-3, Emission residential environments EN 61000-6-4, Emission industrial environments EN 50121-3-2, Railway applications – Rolling stock – apparatus EN 50121-4/IEC 62236-4, Railway signaling and telecommunications apparatus IEEE 16 - IEEE Standard for Electrical and Electronic Apparatus on Rail Vehicles Tested and verified for FCC part 15, class A Safety...
  • Page 6: Declaration Of Conformity

    Declaration of Conformity Westermo Teleindustri AB Declaration of Conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Ethernet Broadband Bridge DDW-002-B1 3641-0900 is in conformity with the following EU directive(s).
  • Page 7: Type Tests And Environmental Conditions

    Type tests and environmental conditions Environmental phenomena Basic standard Description Test levels EN 61000-4-2 Enclosure Contact: ±6 kV Air: ±8 kV Fast transients EN 61000-4-4 Power port ±2 kV Signal ports ±2 kV Earth port ±1 kV Surge EN 61000-4-5 Power port L-E: ±2 kV, 12Ω, 9 μF, 1.2/50 μs L-L: ±1 kV, 2Ω, 18 μF, 1.2/50 μs...
  • Page 8 By simply installing a DDW-002-B1 on each side of the coupler, a bridge connecting the Ethernet networks on each side is created. The fact that no configuration is needed further contributes to the ease of use.
  • Page 9: Interface Specifications

    Up to 150 m with CAT5e cable or better Isolation to 1500 VAC rms to all other ports Connection 4-pin M12 D-code, auto MDI/MDI-X, use e g Westermo cable 3146-1100 M12-M12 – 1 m 3146-1101 M12-M12 – 5 m 3146-1103 RJ45-M12 – 1 m 3146-1104 RJ45-M12 –...
  • Page 10 Location of interface ports and LEDs Ethernet connection TX Powerline connection LED indicators 10/100 BASE/TX LINK LINK STATUS Earth ACTIVITY connection LINK MASTER POWER M12 Torque 0,6±0,1Nm / 0,45±0,1 lbft Power connection 6641-2280...
  • Page 11: Connector Pinout

    Connector pinout Power connection Pin number Signal No 1 +DC1 No 2 +DC2 No 3 -COM No 4 -COM Ethernet connection Pin number Signal No 1 No 2 No 3 TD– No 4 RD– Housing Shield Auto MDI/MDI-X is used. The table shows signals in MDI mode.
  • Page 12: Led Indicators

    LED Indicators Status Description Unit has no power GREEN All OK, no alarm condition Unit has no power GREEN Power OK on DC1 Power failure on DC1 Unit has no power GREEN Power OK on DC2 Power failure on DC2 No Link GREEN Link established...
  • Page 13: Wall Mounting

    Wall mounting There are four 6 mm bore holes intended for mounting the unit. The unit can be mounted vertical or horizontal. Use four M5 screws with 12 mm washer on a flat and stable surface. 10/100 BASE/TX LINK LINK STATUS ACTIVITY LINK MASTER POWER...
  • Page 14: Getting Started

    This product is an unmanaged Ethernet extender designed to propagate Ethernet traffic over existing cabling. The DDW-002-B1 is easy to use and install. The units work in a pair over existing copper cabling infrastructure and automatically connect to each other when the remote device is sensed over the interconnecting lines.
  • Page 15 Dimensions Measurements are stated in millimeters. 6641-2280...
  • Page 16: Sales Units

    France Singapore Other Offices infos@westermo.fr sales@westermo.com.sg www.westermo.fr www.westermo.com Germany Sweden info@westermo.de info.sverige@westermo.se www.westermo.de www.westermo.se For complete contact information, please visit our website at www.westermo.com/contact or scan the QR code REV. B 6641-2280 2017-03 Westermo Teleindustri AB, Sweden...
