Westermo RT-610 HV User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

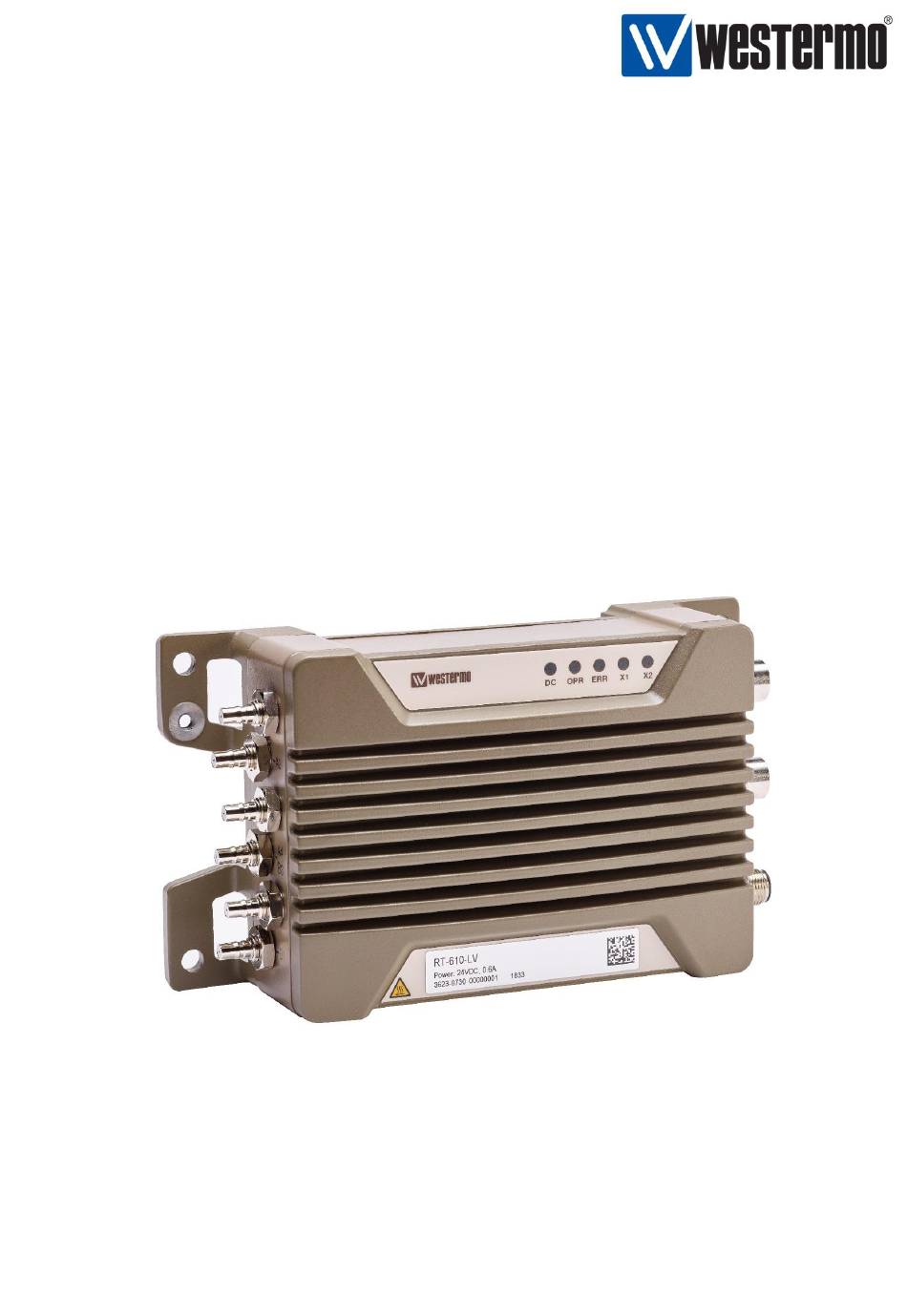

RT-610 HV/LV
User Guide
REV. A 6623-2290
2019-11
Westermo Network Technologies AB, Sweden

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT-610 HV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westermo RT-610 HV

Summary of Contents for Westermo RT-610 HV

  • Page 1 RT-610 HV/LV User Guide REV. A 6623-2290 2019-11 Westermo Network Technologies AB, Sweden...
  • Page 2 RT-610 HV/LV User Guide Page 2 (31)
  • Page 3 RT-610 HV/LV User Guide Version History Version Date Comments 2019-11 First version License and copyright for included Free/Libre Open Source Software This product includes software developed by third parties, including Free/Libre Open Source Software (FLOSS). The specific license terms and copyright associated with the software are included in each software package respectively.

  • Page 4: Table Of Contents

    RT-610 HV/LV User Guide Table of Contents 1 Foreword ................................. 6 1.1 Legal information ............................6 1.2 References and related documents ......................6 1.3 Abbreviations and Terms........................... 6 2 RT-610 Introduction ............................8 2.1 Supported Product Versions, Variants and SW ..................9 2.2 Important Safety Notes ..........................
  • Page 5 RT-610 HV/LV User Guide Figures and Tables Figure 1 RT-610-LV Picture ............................8 Figure 2 RT-610 Block diagram ..........................8 Figure 3 RT-610-LV Product identification label position ..................13 Figure 4 RT-610-LV Product identification label example ..................13 Figure 5 RT-610-LV Product label example ......................14 Figure 6 Mechanical overview ..........................

  • Page 6: Foreword

    Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 7 RT-610 HV/LV User Guide SNMP Simple Network Management Protocol WebGUI Web Graphical User Interface WLAN Wireless Local Area Network Page 7 (31)

  • Page 8: Rt-610 Introduction

    2.4 and 5 GHz WLAN bands, and configured as Access Point. The Westermo configuration management tool, WeConfig, can be used for discovery and basic configuration and maintenance. The configuration can be done via SNMP or via WebGUI. The status information is available in local LED status indicators, and through SNMP/WebGUI.

  • Page 9: Supported Product Versions, Variants And Sw

    RT-610 HV/LV User Guide 2.1 Supported Product Versions, Variants and SW Supported product versions, variants and SW: Specification Value Notes Product Versions/ Variants RT-610-LV 24V DC / PoE variant RT-610-HV 72-110V variant Software Version V6.8 and higher Table 1 Supported product versions, variants and SW 2.2 Important Safety Notes...

  • Page 10: Rt-610 Delivery Content

    RT-610 HV/LV User Guide 2.3 RT-610 Delivery Content The RT-610 delivery consists of following main components: Description Number of Parts Notes RT-610-xx Connector Dust Cap Temporary protection of connectors: • 2 plastic protection caps for Ethernet connectors • 1 plastic protection cap for power connector •...

  • Page 11: United States (Fcc)

    RT-610 HV/LV User Guide 2.5.1 United States (FCC) The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 12: Output Power Limitations

    RT-610 HV/LV User Guide 2.6 Output power limitations The RT-610 has following output power limitations for ambient temperatures from -40°C to +70°C. Active antennas Max. output power with DC supply (Wave1 or Wave 2) Max. output power with PoE supply...

  • Page 13: Product Identification And Version Information

    RT-610 HV/LV User Guide 2.7 Product Identification and Version Information Product identification information is available at the product label. The product label is fixed to the device. Figure 3 RT-610-LV Product identification label position Figure 4 RT-610-LV Product identification label example...

  • Page 14: Figure 5 Rt-610-Lv Product Label Example

    RT-610 HV/LV User Guide At the rear side of the product further product specific information is printed to a second label. Figure 5 RT-610-LV Product label example Specification Value Notes WEEE This symbol, found on the product indicates that this product should not be treated as household waste when disposing of it.

  • Page 15: Installation

    RT-610 HV/LV User Guide 3 Installation 3.1 Installation Procedure, Overview Order of Installation Step Description 1. Fixing The product is fixed in operating environment, ensuring that the environment complies with the installation environment constrains. See chapter 3.2 2. System Grounding The system grounding is ensured and verified based on customer installation.

  • Page 16: Dimensions For Fixing Points

    RT-610 HV/LV User Guide 3.2 Dimensions for Fixing Points 3.2.1 Mechanical Overview Figure 6 Mechanical overview Page 16 (31)

  • Page 17: Mechanical Integration, Fixing Points And Connector Positions

    RT-610 HV/LV User Guide Parameter Value Notes Max dimensions 195.5 x 110 x 66.2mm Max dimensions, with cables Approx 320 x 110 x 64.2mm Space needed for installation Location of the fixing points In each corner With four M6 screws...

  • Page 18: Figure 7 Connectors

    RT-610 HV/LV User Guide Figure 7 Connectors Page 18 (31)

  • Page 19: Considerations When Mounting The Device

    RT-610 HV/LV User Guide 3.3 Considerations When Mounting the Device 3.3.1 General Installation Considerations When planning an installation at least the following points shall be considered: • Indoor: protecting for dust (to ensure heat dissipation), vandalism, animals (rats, birds etc) •...

  • Page 20: Installations At Very High Temperatures

    RT-610 HV/LV User Guide 3.3.4 Installations at Very High Temperatures For installations, where the product is operated close to its maximum specified ambient temperature (+55°C <TAmbient < +70°C), it must be ensured that the natural convection is not blocked by objects close to the product.

  • Page 21: Figure 10 Improved Heat Transfer Based On Fixing Plate

    RT-610 HV/LV User Guide When operating the device at ambient temperatures above app. +60C it is recommended to mount the device to a metallic base plate to improve the heat dissipation. The base plate increases the surface to spread the heat.

  • Page 22: Connecting The Protective Earth

    RT-610 HV/LV User Guide 3.4 Connecting the Protective Earth There is a single grounding connection point in RT-610. An M5 grounding screw at the housing is used for grounding (see Figure 11). Danger! Do not use equipment without protective earth connection.

  • Page 23: Rf Antenna Connectors

    RT-610 HV/LV User Guide NOTICE: If antennas will be NOT used in customer application, the antenna connector MUST be terminated with 50 ohm termination. NOTICE: The antenna interfaces are protected against lightning with special protection devices. To ensure correct operation of these devices it is important, that the earth grounding contact is connected to protective earth as described in chapter 3.4 with a short cable.

  • Page 24: Connecting Ethernet Interface

    RT-610 HV/LV User Guide 3.6 Connecting Ethernet Interface RT-610 has two Ethernet interfaces. M12 industrial standard connector with keying is used. The Ethernet connectors are identified with the text markings X1 (Ethernet 1) and X2 (Ethernet 2 / PoE) in the mechanics.

  • Page 25: Ethernet Connector

    RT-610 HV/LV User Guide 3.6.2 Ethernet Connector Connector Pin Signal name, Function Notes Connector Type: Industrial ETHERNET M12-Socket “X”-coded MX1 + MX1 - MX2 + MX2 - MX4 + MX4 - MX3 - MX3 + Housing Ground For possible cable protection/ screening Table 14 Ethernet connector NOTICE: The pinning is compliant to IONA, Industrial Ethernet Planning and Installation Guide, Release 4.0.

  • Page 26: Connecting The Power Feed

    RT-610 HV/LV User Guide 3.7 Connecting the Power Feed The power feed is connected to the POWER connector. The power supply interface is a galvanically isolated interface; it is protected against surge and ESD. The power connector is keyed ensuring correct connector position.

  • Page 27: Power Supply Ripple

    RT-610 HV/LV User Guide 3.7.3 Power supply ripple According to EN50155 the voltage ripple of the power supply may be 10% of the nominal voltage. Otherwise too high touch current may result. Page 27 (31)

  • Page 28: Configuration And Use

    RT-610 HV/LV User Guide 4 Configuration and Use The operation parameters in configuration files define the functionality. The complete configuration process is described in the Software 6 Management Guide [1] 4.1 LED Indicators During Power Up Sequence LED behavior during power-up sequence is described in reference document Software 6 Management Guide [1] chapter Status Indication.

  • Page 29: Factory Reset Procedure

    RT-610 HV/LV User Guide 4.2.2 Factory Reset Procedure The Factory Reset is performed with a factory reset adapter that is connected to one of the Ethernet ports during the start-up. Step Description Plug the factory reset adapter to one of the Ethernet interfaces.

  • Page 30: Maintenance

    RT-610 HV/LV User Guide 5 Maintenance Danger! Never open the device. There are no serviceable parts inside! By trying to open the device you will be exposed to a risk of death or injury. Warning! Maintenance shall be done by trained staff only.

  • Page 31: Troubleshooting Based On Functional Behavior

    RT-610 HV/LV User Guide 5.2 Troubleshooting Based on Functional Behavior Please read the troubleshooting instructions in reference document Software 6 Management Guide [1]. 5.3 Repair Work This product is exchanged as a whole unit. On product level no repair work is done in the field. Broken units need to be returned to the supplier for repair.
