Summary of Contents for Westermo TD-34 LV

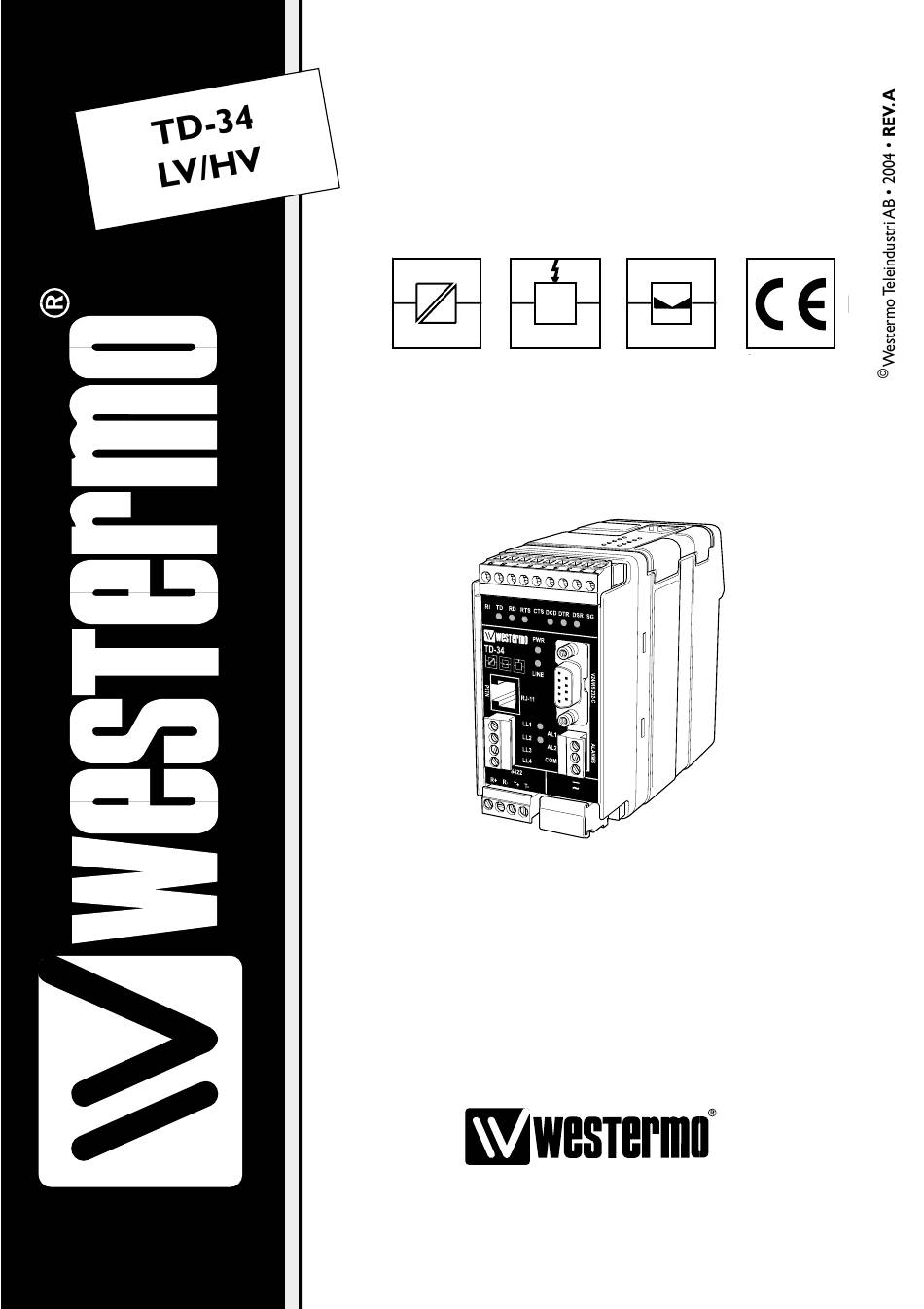

- Page 1 INSTALLATION MANUAL 6610-2203 Galvanic Transient Balanced Isolation Protection Transmission Approved Advanced Industrial Telemodem V.34 www.westermo.com...
-
Page 2: Table Of Contents
1. Introduction ..............................1.1 Functional description ....................... 2. Safety ..................................2.1 Approvals ..............................2.2 Declaration of conformity ....................3. Specifications TD-34 LV and TD-34 HV 8–9 ........... 4. Maintenance ............................. 5. Installation ..............................5.1 Mounting /Removal ........................ 5.2 Connections 11–17 ........................... -
Page 3: Introduction
1. Introduction The TD-34 is Westermo’s current top of the range analogue Telephone Modem intended for use under the most extreme conditions.The TD-34 is the result of Westermo’s experience and knowledge in the area of Industrial Telecommunication over more that 25 years. High noise environments, difficult configurations and customer-specific applications can easily be solved using TD-34 product.The philosophy for the TD-34 is based on quality and function... -
Page 4: Functional Description
1.1 Functional description The TD-34 has various interfaces that will cover most industrial applications.TD-34 is func- tionally complete industrial modem including alarm handling, leased line to PSTN redundancy, Industrial Temperature Range, RS-232/422/485 interfaces and a power supply interface with a wide input voltage range. All functional blocks are illustrated in the figure below. -
Page 5: Safety
2. Safety General: Before using this unit, read this manual completely and gather all information on the unit. Make sure that you understand it fully. Check that your application does not exceed the safe operating specifications for this unit. Before installation, maintenance or modification work: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. -
Page 6: Approvals
2.1 Approvals Conformity with the Directive 73/23/EEC (Low Voltage) has been assessed by application of the standard EN 60 950. Conformity with the Directive 89/336/EEC (Electromagnetic Compatibility) has been assessed by application of the standards EN55024:1998, EN61000-6-2:1999 and EN50082-1:1997. Conformity with the Directive 99/5/EEC (Radio Equipment & Telecommunications Terminal Equipment) has been assessed by application of the standards EN55024:1998, EN61000-6- 2:1999, EN50082-1:1997,EN 60 950 and EN41003:1996. -
Page 7: Declaration Of Conformity
2.2 Declaration of conformity 6610-2203... -
Page 8: Specifications Td-34 Lv And Td-34 Hv
3. Specifications TD-34 LV and TD-34 HV Power supply Model description TD-34 LV TD-34 HV 12–27 V AC ±10% 95–240 V AC ±10% 12–54 V DC ±10% 110–240 V DC ±10% Frequency 48–62Hz 48–62 Hz Fuse, F1 1.0 A F SMD 1.0 A S... - Page 9 EIA RS-232-C/V24 Interface Connector 9-pos D-sub and screw terminal DTE Speed Up to 115.2 kbit/s DTE Format Up to 11 bits EIA RS-422/485 Interface Connector 2-wire (RS-485) 4-wire on 4-pos screw terminal DTE Speed Up to 115.2 kbit/s DTE Format Up to 11 bits Special features Fail-safe, termination...
-
Page 10: Maintenance
4. Maintenance No maintenance is required, as long as the unit is used as intended within the specified condi- tions. 5. Installation 5.1 Mounting / Removal Before mounting or removing the unit: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. -
Page 11: Connections
TD-34 Tele Modem family consist of two products:TD-34 LV and TD-34 HV. ≈ TD-34 LV has a 2-pos. power connector insensitive to polarity as shown by the symbol the front. The PE wire “protective earth” is not connected internally in TD-34. -
Page 12: Interface Rs-232 9-Pos D-Sub
5.2.1 Interface RS-232 9-pos D-sub Direction 9-pos. Name Description DCE-DTE D-sub Data Carrier Detect Receive Data Transmit Data Data Terminal Ready – Signal Ground Data Set Ready Request To Send Clear To Send Ring Indicator 5.2.2 Interface RS-232, 9-pos screw terminal Direction 9-pos. -
Page 13: Interface Rs-485/422, 4-Pos Screw Terminal
5.2.3 Interface RS-485/422, 4-pos screw terminal Direction 4-pos. Name Description screw terminal Tx+ (A/A’) Transmit (RS-422) Transmit/Receive (RS-485) Tx– (B/B’) Transmit (RS-422) Transmit/Receive (RS-485) Rx+ (A’) Receive (RS-422) Rx– (B’) Receive (RS-422) 5.2.4 Interface Leased Line Direction Pos. no. Name Description Transmit (4-wire) -
Page 14: Configuration
5.3 Configuration TD-34 can be configured via AT-commands on the service interface, or by a remote modem (if the TD-34 is set for remote configuration, see SW 4). 5.3.1 DIP-switch settings DIP-switches are accessable under the lid on top/front of the unit. DIP-switches are used to configure the unit. - Page 15 SW 1 DTE Speed and Formats Auto detect 115 200 bit/s 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 300 bit/s 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 600 bit/s 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8...
- Page 16 SW 3 Line Mode & Modulation Leased line V34, 19 200 bit/s (Dial-Up PSTN = Off) 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 4-wire leased line mode V.32bis, 14 400 bit/s (2-wire leased line mode = Off) 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8...
-
Page 17: Led Status Indicators
5.4 LED Status Indicators Power Indication. Flashes if an error is detected Data Terminal Ready modem signal Request To Send modem signal Transmitted Data: Displays data received from the local RS-232/V.24 port Received Data: Displays data leaving the modem on the RS-232/V.24 port Data Carrier Detect modem signal LINE Modem is off-hook. -
Page 18: At Commands
6. AT Commands A – Answer The modem will go off-hook and attempt to answer an incoming call if correct conditions are met. Upon successful completion of answer handshake, the modem will go on-line in answer mode. The modem will enter the connect state after exchanging carrier with the remote modem. If no carrier is detected within a period specified in register S7, the modem hangs up. - Page 19 %C – Enable/Disable Data Compression Enables or disables data compression negotiation.The modem can only perform data compression on an error corrected link. Syntax: AT&%C<value> <value> = 0 Disables data compression. Resets S46 bit 1 1 Enables MNP 5 data compression negotiation. Resets S46 bit 1 2 Enables V.42 bis data compression.
- Page 20 +CMGW – Store SMS in memory This command sets SMS message and number in memory. Syntax: AT+CMGW=<index>,<num> AT+CMGW=? AT+CMGW? <index> Store SMS message in index [0,1] <num> Store SMS number in index [0,1] Examples: AT+CMGW=1,12345 > 123 > ABC CTRL^Z AT+CMGW? SMS NUM0= SMS MSG0=...
