Westermo RT-220-HV User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

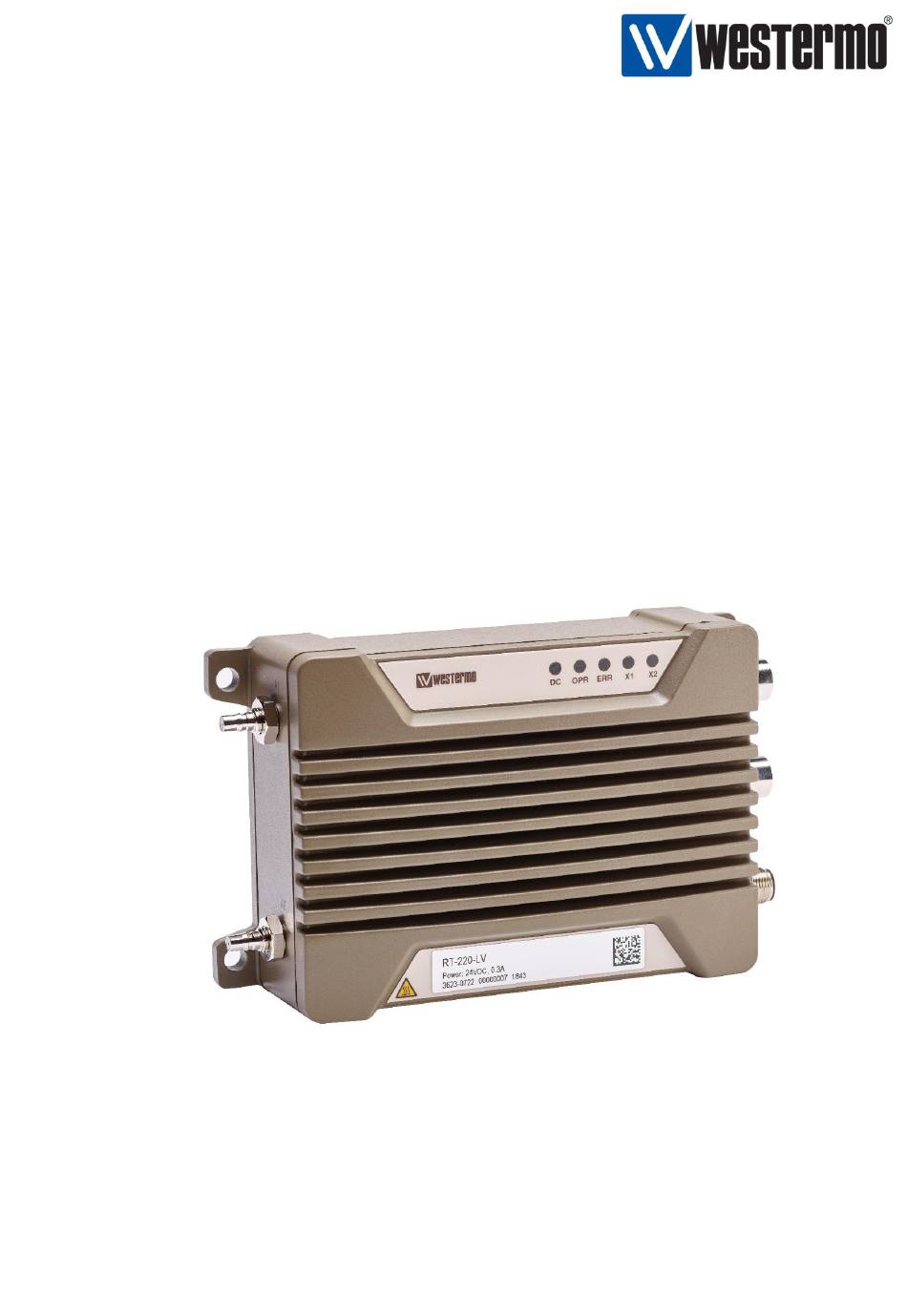

RT-220-HV / RT-220-LV
User Guide
REV. A 6623-2240
2019-11
Westermo Network Technologies AB, Sweden

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT-220-HV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westermo RT-220-HV

Summary of Contents for Westermo RT-220-HV

  • Page 1 RT-220-HV / RT-220-LV User Guide REV. A 6623-2240 2019-11 Westermo Network Technologies AB, Sweden...
  • Page 2 RT-220-HV / RT-220-LV User Guide Page 2 (31)
  • Page 3 RT-220-HV / RT-220-LV User Guide Version History Version Date Comments 2019-09 First version License and copyright for included Free/Libre Open Source Software This product includes software developed by third parties, including Free/Libre Open Source Software (FLOSS). The specific license terms and copyright associated with the software are included in each software package respectively.

  • Page 4: Table Of Contents

    RT-220-HV / RT-220-LV User Guide Table of Contents 1 Foreword ................................. 6 1.1 Legal information ............................6 1.2 References and related documents ......................6 1.3 Abbreviations and Terms........................... 6 2 RT-220 Introduction ............................8 2.1 Supported Product Versions, Variants and SW ..................9 2.2 Important Safety Notes ..........................
  • Page 5 RT-220-HV / RT-220-LV User Guide Figures and Tables Figure 1 RT-220-LV Picture ............................8 Figure 2 RT-220-HV / RT-220-LV Block diagram ....................... 8 Figure 3 RT-220-LV Product identification label position ..................13 Figure 4 RT-220 Product identification label example ....................13 Figure 5 RT-220 Product label example ........................

  • Page 6: Foreword

    Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 7 RT-220-HV / RT-220-LV User Guide SNMP Simple Network Management Protocol WebGUI Web Graphical User Interface WLAN Wireless Local Area Network Page 7 (31)

  • Page 8: Rt-220 Introduction

    2.4 and 5 GHz WLAN bands, and configured either as Access Point or Station. The Westermo configuration management tool, WeConfig, can be used for discovery and basic configuration and maintenance. The configuration can be done via SNMP or via WebGUI. The status information is available in local LED status indicators, and through SNMP/WebGUI.

  • Page 9: Supported Product Versions, Variants And Sw

    RT-220-HV / RT-220-LV User Guide 2.1 Supported Product Versions, Variants and SW Supported product versions, variants and SW: Specification Value Notes Product Versions/ Variants RT-220-LV 24V DC / PoE variant RT-220-HV 72-110V variant Software Version V6.8.7 and higher Table 1 Supported product versions, variants and SW 2.2 Important Safety Notes...

  • Page 10: Rt-220 Delivery Content

    RT-220-HV / RT-220-LV User Guide 2.3 RT-220 Delivery Content The RT-220 delivery consists of following main components: Description Number of Parts Notes RT-220-xx Connector Dust Cap Temporary protection of connectors: • 2 plastic protection caps for Ethernet connectors • 1 plastic protection cap for power connector •...

  • Page 11: Regulatory Notices

    RT-220-HV / RT-220-LV User Guide 2.5 Regulatory Notices Caution! Any changes or modifications shall be approved by the party responsible for compliance. If not, users could void the user's authority to operate the equipment. Country code and antenna gain needs to be set properly for correct functionality in the installed country.

  • Page 12: Certified Antennas For Fcc And Ic

    RT-220-HV / RT-220-LV User Guide 1. l’appareil ne doit pas produire de brouillage. 2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IC Certification Number of the implemented WLAN communication module: 9301A-103902DT50 Antennas: The device can operate with the antennas listed in 2.5.3.

  • Page 13: Product Identification And Version Information

    RT-220-HV / RT-220-LV User Guide 2.7 Product Identification and Version Information Product identification information is available at the product label. The product label is fixed to the device. Figure 3 RT-220-LV Product identification label position Figure 4 RT-220 Product identification label example...

  • Page 14: Figure 5 Rt-220 Product Label Example

    RT-220-HV / RT-220-LV User Guide At the rear side of the product further product specific information is printed to a second label. Figure 5 RT-220 Product label example Specification Value Notes This symbol means that the product shall not WEEE be treated as unsorted municipal waste when disposing of it.

  • Page 15: Installation

    RT-220-HV / RT-220-LV User Guide 3 Installation 3.1 Installation Procedure, Overview Order of Installation Step Description 1. Fixing The product is fixed in operating environment, ensuring that the environment complies with the installation environment constrains. See chapter 3.2 2. System Grounding The system grounding is ensured and verified based on customer installation.

  • Page 16: Dimensions For Fixing Points

    RT-220-HV / RT-220-LV User Guide 3.2 Dimensions for Fixing Points 3.2.1 Mechanical Overview Figure 6 Mechanical overview Page 16 (31)
  • Page 17 RT-220-HV / RT-220-LV User Guide Parameter Value Notes Maximum dimensions 176 x 110 x 52 mm Length with antenna connectors 180mm Maximum dimensions, with Approx 300 x 110 x 52 mm Space needed for installation cables but not including antennas...

  • Page 18: Mechanical Integration, Fixing Points And Connector Positions

    RT-220-HV / RT-220-LV User Guide 3.2.2 Mechanical Integration, Fixing Points and Connector Positions The product must be fixed with the four fixing points located at the corners of the product. M6 screws shall be used for the fixation of the product. The screws shall be tightened with min. 3.0 Nm (fixing screw ISO 898/1, quality class 8.8).

  • Page 19: Considerations When Mounting The Device

    RT-220-HV / RT-220-LV User Guide 3.3 Considerations When Mounting the Device 3.3.1 General Installation Considerations When planning an installation at least the following points shall be considered: • Indoor: protecting for dust (to ensure heat dissipation), vandalism, animals (rats, birds etc) •...

  • Page 20: Installations At Very High Temperatures

    RT-220-HV / RT-220-LV User Guide 3.3.4 Installations at Very High Temperatures For installations, where the product is operated close to its maximum specified ambient temperature (+55°C <TAmbient < +70°C), it must be ensured that the natural convection is not blocked by objects close to the product.

  • Page 21: Figure 10 Improved Heat Transfer Based On Fixing Plate

    RT-220-HV / RT-220-LV User Guide When operating the device at ambient temperatures above app. +60C it is recommended to mount the device to a metallic base plate to improve the heat dissipation. The base plate increases the surface to spread the heat.

  • Page 22: Connecting The Protective Earth

    RT-220-HV / RT-220-LV User Guide 3.4 Connecting the Protective Earth There is a single grounding connection point in RT-220. An M5 grounding screw at the housing is used for grounding (see Figure 11). Danger! Do not use equipment without protective earth connection.

  • Page 23: Rf Antenna Connectors

    RT-220-HV / RT-220-LV User Guide 3.5.2 RF Antenna Connectors The antenna connectors are identified with the text markings A1 (Antenna 1) and A2 (Antenna 2) in the mechanics. The antennas might be fixed in antenna connectors directly or using antenna cables fixed to the antenna connectors.

  • Page 24: Connecting Ethernet Interface

    RT-220-HV / RT-220-LV User Guide 3.6 Connecting Ethernet Interface RT-220 has two Ethernet interfaces. M12 industrial standard connector with keying is used. The Ethernet connectors are identified with the text markings X1 (Ethernet 1 ) and X2 (Ethernet 2) in the mechanics.

  • Page 25: Ethernet Connector

    RT-220-HV / RT-220-LV User Guide 3.6.2 Ethernet Connector Connector Pin Signal name, Function Notes Connector Type: Industrial ETHERNET M12-Socket “D”-coded Transmission Data + Transmission Data - Receiver Data + Receiver Data - Housing Ground For possible cable protection/screening Table 15 Ethernet connector NOTICE: The pinning is compliant to IONA, Industrial Ethernet Planning and Installation Guide, Release 4.0.

  • Page 26: Connecting The Power Feed

    RT-220-HV / RT-220-LV User Guide 3.7 Connecting the Power Feed The power feed is connected to the POWER connector. The power supply interface is a galvanically isolated interface; it is protected against surge and ESD. The power connector is keyed ensuring correct connector position.

  • Page 27: Power Feed Specifications

    RT-220-HV / RT-220-LV User Guide 3.7.2 Power Feed Specifications Parameter RT-220-LV RT-220-HV Notes Nominal Voltage 24VDC 72-110VDC 16 – 30VDC 50 – 138VDC Voltage Range Nominal current 0.6A 0.2A Power consumption App. 4W App. 4W with no user data App. 8W App.

  • Page 28: Configuration And Use

    RT-220-HV / RT-220-LV User Guide 4 Configuration and Use The operation parameters in configuration files define the functionality. The complete configuration process is described in reference document Software 6 Management Guide [1]. 4.1 LED Indicators During Power Up Sequence LED behavior during power-up sequence is described in reference document Software 6 Management Guide [1] in the chapter Status Indication.

  • Page 29: Factory Reset Adapter Specification

    RT-220-HV / RT-220-LV User Guide 4.2.1 Factory Reset Adapter Specification The factory reset adapter is a special plug for the Ethernet interface that activates the factory reset signal. There is a specific factory reset adapter available: FACTORY RESET PLUG D-CODED Part No.: 3623-0795...

  • Page 30: Maintenance

    RT-220-HV / RT-220-LV User Guide 5 Maintenance Danger! Never open the device. There are no serviceable parts inside! Warning! Maintenance shall be done by trained staff only. 5.1 Cleaning– Resistance to Chemicals In case the product is cleaned with cleaning chemicals, the resistance to chemicals of the plastic parts needs to be respected.

  • Page 31: Troubleshooting Based On Functional Behavior

    RT-220-HV / RT-220-LV User Guide 5.2 Troubleshooting Based on Functional Behavior Please read the troubleshooting instructions in reference document Software 6 Management Guide [1]. 5.3 Repair Work This product is exchanged as a whole unit. On product level no repair work is done in the field. Broken units need to be returned to the supplier for repair.
