Baldwin Boxall BVRDTSM Installation Instructions Manual
Touchscreen microphone
Hide thumbs
Also See for BVRDTSM:
- Installation instructions manual (36 pages) ,
- Basic user's manual (3 pages)
Subscribe to Our Youtube Channel
Related Manuals for Baldwin Boxall BVRDTSM
Summary of Contents for Baldwin Boxall BVRDTSM
-
Page 1: Installation Instructions

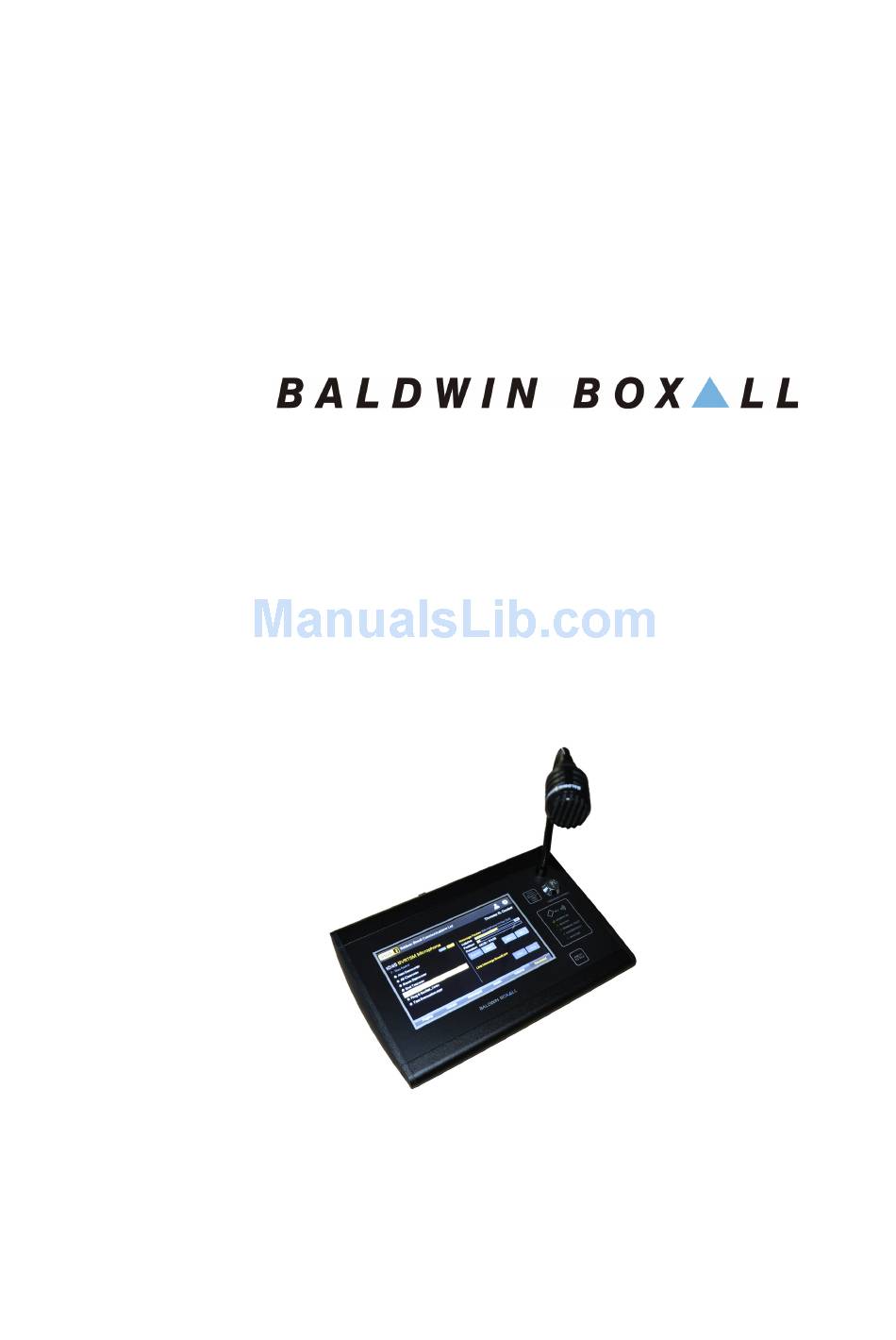

BVRDTSM Touchscreen Microphone Installation Instructions Manual name: BVRDTSM Touchscreen Microphone Issue: 1 ECR: N/A Date of issue: Jan 2017... - Page 2 BVRDTSM Touchscreen Microphone Installation Instructions © Jan 2017 Baldwin Boxall Communications Limited Wealden Industrial Estate Farningham Road, Jarvis Brook Crowborough East Sussex TN6 2JR Telephone: +44 (0)1892 664422 Facsimile: +44 (0)1892 663146 Email: mail@baldwinboxall.co.uk Website: http://www.baldwinboxall.co.uk This equipment has been designed and manufactured to conform to the following...
-
Page 3: Table Of Contents
Hardware Required - - - - - - - - - - - - - - - - - - - - - - - - - 16 Hardware Configuration - - - - - - - - - - - - - - - - - - - - - - - 17 BVRDTSM Touchscreen Microphone issue 1... - Page 4 Recording of User Messages - - - - - - - - - - - - - - - - - - - - - 22 Firmware Configuration Introduction _______________________________________ 23 Entering Configuration Mode ___________________________ 23 Import / Export Configuration Settings ____________________ 24 BVRDTSM Touchscreen Microphone issue 1...
-
Page 5: Amendment Record
Baldwin Boxall Communications Limited. The possession of this manual and the use of the information is, therefore, restricted only to those persons duly authorised by Baldwin Boxall Communications Limited. Do not reproduce, transcribe, store in a retrieval system or translate into any language, any part of this manual without the prior permission of Baldwin Boxall Communications Limited. -
Page 6: Safety Information
: Do not speak into the microphone until the "Speak Now" LED is illuminated. OMMENTS Comments regarding the content of this manual are welcome and should be addressed to mail@baldwinboxall.co.uk. BVRDTSM Touchscreen Microphone issue 1... - Page 7 BVRDTSM Touchscreen Microphone Installation Instructions 1 Introduction The BVRDTSM Touchscreen Microphone has been designed to provide a wide variety of features suitable for any installation. Figure 1.1 — BVRDTSM Microphone The Microphone is configured during commissioning using the in built touchscreen. Standard RJ45 Network cable connections (carrying both Audio and Serial Data) are employed, in order to make installation simple and flexible.
-
Page 8: Microphone Options & Features
1.1 M & F ICROPHONE PTIONS EATURES The BVRDTSM microphone includes the following features as standard: • Fully monitored microphone, speech and data paths • Ergonomic design with all buttons and displays mounted behind a stylish overlay • Performs as a Paging microphone (with emergency options... -
Page 9: Technical Specification
Type 2 Protocol, 9600 Baud, 8 bit, Even Parity, 1 Stop Bit Dimensions (W x H x D) BVRDTSM 275mm x 48mm x 177mm : The RS485 Protocol is configured during the commissioning process, the default values are shown above. BVRDTSM Touchscreen Microphone issue 1... - Page 10 BVRDTSM Touchscreen Microphone Installation Instructions BVRDTSM Touchscreen Microphone issue 1...
-
Page 11: Installation
ONFIGURATION PTIONS There are 4 hardware configuration options accessible by removing the left and right side panels of the BVRDTSM. These and their functions are shown in the images and tables below; Figure 2.1 — BVRDTSM RH Hardware Options Table 2.1 — BVRDTSM RH Hardware Options... -
Page 12: Audio Outputs
BVRD2M4 configured level. See manuals for these products for more details. 2.2 A UDIO UTPUTS The BVRDTSM is equipped with 2 Audio Outputs OP1 and OP2. OP1 is used for Live paging broadcasts. OP2 can be configured for either; BVRDTSM Touchscreen Microphone issue 1... -
Page 13: Configuration Option - Live Page & Aux
Audio Output Configuration. In order to simplify cabling requirements by default the BVRDTSM also carries the AUX Output on OP1. This means that the microphone can be installed using a single CAT6A cable. If a Hard Wired Bypass is fitted to the microphone (factory fit option) then the AUX Output is not available on OP1 so therefore OP2 must also be connected. -
Page 14: Hardware Configuration
BVRDTSM Touchscreen Microphone Installation Instructions • BMS8 - required to terminate the BVRDTSM microphone CAT6A lead to site wiring • BVRDIF7 - required to terminate the site wiring to a Voice Alarm rack • 1 x CAT6A cable Optional Equipment;... -
Page 15: Cabling And Connection Details
RS485-B RS485-B Audio CH1 (Paging) Audio CH1 (Paging) Audio CH1 (Paging) Audio CH1 (Paging) 4 Core 2 Audio CH2 (AUX) Audio CH2 (AUX) Audio CH2 (AUX) Audio CH2 (AUX) Shield of cable 1&2 Not Used BVRDTSM Touchscreen Microphone issue 1... -
Page 16: Configuration Option - Dual Outputs
: Broadcasting of microphone stored messages or local background music source is not possible in this configuration 2.4.2 Hardware Required In order to support this BVRDTSM configuration the following additional equipment is required; • BMS16 - required to terminate the BVRDTSM microphone OP1 and OP2 to site wiring •... -
Page 17: Cabling And Connection Details
4 Core 3 RS485-A RS485-A RS485-B RS485-B Channel 2 Audio CH2 (Paging) Line (Paging) Audio CH2 (Paging) Line (Paging) 4 Core 4 (or 2 Core) Not Used Not Used Not Used Not Used Shield of cable 3&4 BVRDTSM Touchscreen Microphone issue 1... -
Page 18: Configuration Option - Live Page & Hardwired Bypass
: Broadcasting of microphone stored messages or local background music source is not possible in this configuration 2.5.2 Hardware Required In order to support this BVRDTSM configuration the following additional equipment is required; • BMS8 - required to terminate the BVRDTSM microphone CAT6A lead to site wiring •... -
Page 19: Hardware Configuration
Dual OP / BGM Don’t Care* +3V3 / Park Must match the hardwired bypass access level of the connected Baldwin Boxall router (3V3 = 3V3, Park = 10V) : * see section section 2.1above for more information 2.5.4 Cabling and Connection details Please see Table below for details of Site Wiring connections;... -
Page 20: Configuration Option - Live Paging, Aux And Hardwired Bypass
• Performing an All Call utilising the Hardwired Bypass inputs of a Baldwin Boxall router. 2.6.2 Hardware Required In order to support this BVRDTSM configuration the following additional equipment is required; • BMS16 - required to terminate the BVRDTSM microphone OP1 and OP2 to site wiring •... -
Page 21: Hardware Configuration
Dual OP / BGM +3V3 / Park Must match the hardwired bypass access level of the connected Baldwin Boxall router (3V3 = 3V3, Park = 10V) : * see section section 2.1above for more information 2.6.4 Cabling and Connection details Please see Table below for details of Site Wiring connections;... -
Page 22: Configuration Option - Dual Outputs & Hardwired Bypass
: Broadcasting of microphone stored messages or local background music source is not possible in this configuration 2.7.2 Hardware Required In order to support this BVRDTSM configuration the following additional equipment is required; • BMS16 - required to terminate the BVRDTSM microphone OP1 and OP2 to site wiring •... -
Page 23: Hardware Configuration
Dual OP / BGM Dual OP +3V3 / Park Must match the hardwired bypass access level of the connected Baldwin Boxall router (3V3 = 3V3, Park = 10V) : * see section section 2.1above for more information 2.7.4 Cabling and Connection details Please see Table below for details of Site Wiring connections;... -
Page 24: Bms8/16 Termination Box
BVRDTSM Touchscreen Microphone Installation Instructions 2.8 BMS8/16 T ERMINATION As shown above all BVRDTSM microphone CAT6A connections should be terminated to a BMS8 or BMS16 termination box. A UT I O N The BMS8/16 Termination Boxes have a standard RJ45 socket to allow use of standard CAT6A network cables to connect to the microphone. -
Page 25: Operating Instructions
BVRDTSM Touchscreen Microphone Installation Instructions 3 Operating Instructions 3.1 C & I ONTROLS NDICATORS Figure 3.1 — BVRDTSM Controls and Indicators Table 3.1 — BVRDTSM Controls and Indicators Function Description Zone Select Press to select / de-select zones Zone Status... -
Page 26: Operation
Display current audio level of broadcast Speak Now Indicator Indicates when a pre-announcement chime has finished playing Emergency Mode Indicator Indicates that the BVRDTSM is currently in Emergency Mode Menu Bar Used to select different configured functions including: Zones: Zone Status Display... -
Page 27: Zone Selection
BVRDTSM Touchscreen Microphone Installation Instructions In order to use a BVRDTSM microphone a user must be logged in. This is achieved either by presenting a configured MFC card to the NFC antenna (Item H in Figure 3.1 above) or by pressing the “Login”... -
Page 28: Groups
It is possible to record user messages for future broadcast by using the PA Messages screen. Messages can be recorded, previewed via the H/SET OUT socket on the rear of the BVRDTSM, broadcast or scheduled for later broadcast. : PA Messages are not monitored and so should not be used for Emergency announcements. -
Page 29: Firmware Configuration
Installation Instructions 4 Firmware Configuration 4.1 I NTRODUCTION It is necessary to configure the BVRDTSM microphone prior to use. All configuration is performed using the touchscreen. AU TI O N It is possible to render the BVRDTSM inoperable if incorrect configuration settings are made. -
Page 30: Import / Export Configuration Settings
RS485 polling is disabled causing any connected BVRD2M/4 routers to indicate Audio and Transmission faults for the microphone : If the BVRDTSM configuration is changed it is important to press Save and Reboot, if the microphone is simply rebooted no changes will be saved. - Page 31 5. Select the required configuration backup file. 6. Press "Import" and then "Yes" on the Warning that appears. 7. The configuration can then be edited if required or "Save/ Reboot" pressed to reboot the microphone to begin using the imported configuration. BVRDTSM Touchscreen Microphone issue 1...
- Page 32 BVRDTSM Touchscreen Microphone Installation Instructions BVRDTSM Touchscreen Microphone issue 1...
