INTRODUCTION
The PPTEH Tool installs Panduit Heavy (H) and Extra Heavy
(EH) cross section cable ties (plastic tie down straps), for
medium to high volume cable tie applications.
pneumatically tensions the cable tie to a tool-controlled
tension, and cuts off the tip.
TOOL SPECIFICATIONS
Weight: 52 oz. (1474 gr.)
Dimensions*: 11.6" (294mm) Long X 8.6" (218mm) High
*Dimensions in parentheses are metric; all dimensions are
approximate, and for reference only.
GENERAL SAFETY PRACTICES
• For multiple hazards, read and understand the safety
instructions before
maintaining, changing accessories on, or working near the
pneumatic tool. Failure to do so can result in serious
bodily injury.
• Only qualified and trained operators should install, adjust or use the pneumatic tool
• DO NOT modify this pneumatic tool. Modifications can reduce the effectiveness of safety measures and increase the risks
to the operator
• DO NOT discard the safety instructions; give them to the operator
• DO NOT use the pneumatic tool if it has been damaged
• Tools shall be inspected periodically to verify that the ratings and markings required by this part of ISO 11148 are legibly
marked on the tool. The employer/user shall contact the manufacturer to obtain replacement marking labels when
necessary
• DO NOT use tool for purposes not intended. Unexpected tool movement or breakage of tool may cause injuries to hand
• Unsuitable postures may not allow counteracting of normal or unexpected movement of the tool
For multiple hazards, read and understand the safety instructions before installing, operating, repairing, main-
taining, changing accessories on, or working near the pneumatic tool.
Safety glasses must be worn at all times by all persons within ten (10) feet of any part of the system.
CAUTION: Be aware of the ejection of cable tie scrap from tool.
DO NOT use tool on live electrical sources.
DO NOT place fingers near gripper during tool actuation. Fingers may be pinched by moving gripper.
DO NOT use tool in an explosive atmosphere.
Ear protection should be worn when operating the tool.
Projectile Hazards:
• Disconnect the pneumatic tool from the energy source when changing inserted tools or accessories
• Always wear impact-resistant eye protection during operation of the tool. The grade of protection required should be
assessed for each use
• Ensure that the workpiece is securely fixed
• Be aware that working on brittle material can cause harmful splinters
PPTEH
PNEUMATIC TOOL OPERATION INSTRUCTIONS
installing, operating,

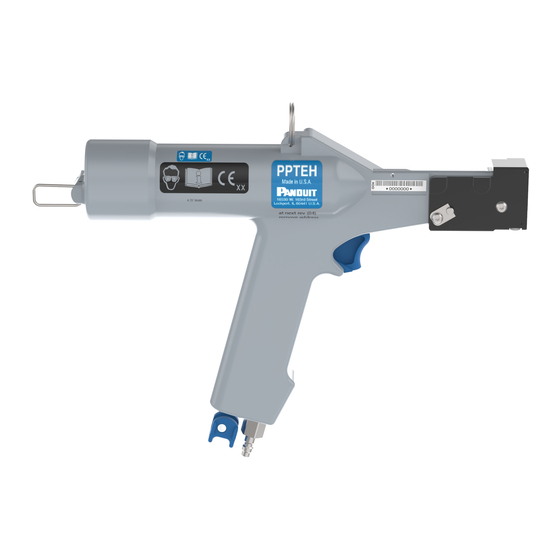

PPTEH Pneumatic Tool
The tool
repairing,
1. Tension Indicator
2. Selector Knob
Page: 1 of 4
PPTEH TENSION PPTEH TENSION
H EH
5 - 8
1 - 4
AIR REQUIRED: MIN: 80 PSIG (5,4 bar) AIR REQUIRED: MIN: 80 PSIG (5,4 bar)
MAX: 90 PSIG (6,1 bar) MAX: 90 PSIG (6,1 bar)
4
1
3
3. Hose Fitting
4. Trigger
PA22213A01
REV: 03 10-2015
