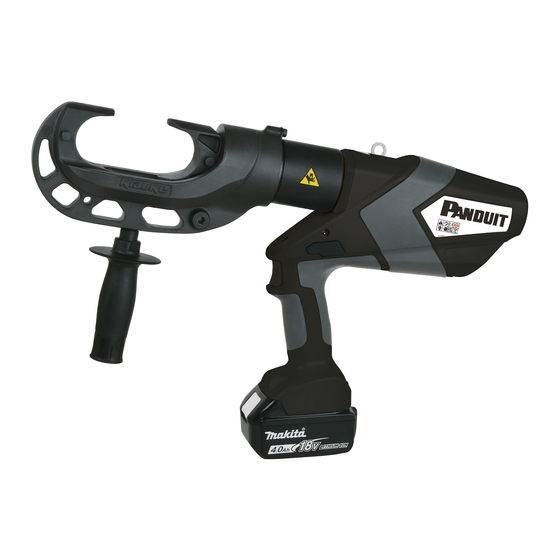

- Page 1 Panduit Corp www.panduit.com/blackfi n CT-2940/STBT Instruction Manual Serialnumber Pic. similar HE.20206_A © 11/2021 R&D-2...
- Page 2 CT-2940/STBT PANDUIT CD-940-DAPT datecode FCC ID: RFRMS42 • IC: 4957A-MS42 Model: CFM WARNING This device complies with Part 15 of the FCC Rules and with Year Code Month Code Month Code Industry Canada licence-exempt standard(s). Operation is subject to the following two conditions: (1) this 2022 Jan.
- Page 3 CT-2940/STBT 19,5“ 3,1“ 495.5mm 78mm 11,6“ 294.5mm 1,7“ 44.3mm <70dB <2,5m/s +104°F 15.2 Ton +40°C -4°F 3“ (135 kN) -20°C 75mm 17,6 CT-2940/STBT Crimping Tool Voltage: 18 V • Force: 15.2 Ton (135kN) LISTED TOOL Gustav Klauke GmbH Auf dem Knapp 46 •...
-
Page 4: Before Work
CT-2940/STBT BEFORE WORK DIN EN 50110 HE.17441 SAFETY 3 years or 10.000 operations Authorised Service Center Authorised Service Center WEEE Authorised 2012/19/EU Service klauke-weee-abholung@emerson.com Center on/off Pic. similar / Intended Use General WORK SERVICE DON´T DO HE.20206_A © 11/2021 safety rules... - Page 5 CT-2940/STBT PANDUIT CD-940-DAPT PANDUIT CD-940 Pic. similar / Intended Use General WORK SERVICE DON´T DO HE.20206_A © 11/2021 safety rules...
- Page 6 CT-2940/STBT WARNING Hydraulic tools can be heavy and might require additional support. Never overestimate your ability to handle the tool. HE.10310 Optional: HE.19361 HE.10310 >t <t auto reset Pic. similar / Intended Use General WORK SERVICE DON´T DO HE.20206_A © 11/2021 safety rules...
- Page 7 CT-2940/STBT Error codes: 1 Overcurrent fuse USER 3: Doubleclick 2 Overcurrent comparator D o p p e l k l ic k 3 Overheat board 4 Overheat battery 5 Battery empty, operation stop 6 Faulty crimp U SE R S E L E C T: Singleclick motor in operation R D3...
- Page 8 CT-2940/STBT Wann/When/Quand/Quando/ Warum/Why/Pourqoui/Porquê/ cuándo/Wanneer/Когда/это ¿por qué?/Waarom/Причина/ происходит/Kiedy/quando Dlaczego/Perché nach Arbeitsvorgang after working cycle après opération de travail Después del proceso de trabajo após o processo de trabalho 20 sec na bedrijfscyclus после цикла опрессовки po zakończeniu pracy dopo il processo di lavoro nach Arbeitsvorgang after working cycle après opération de travail...
- Page 9 CT-2940/STBT Authorised Service Center https://www.klauke.com/de/en/service-centre-and-repairs Pic. similar / Intended Use VIII HE.20206_A © 11/2021...
- Page 10 System Verbindungen mit Power of Partnership CT-2940/STBT Declaration of conformity (D) CE-´21 - Konformitätserklärung. Wir erklären in alleiniger Verantwortlichkeit, (DK) CE-´21 - Konformitetserklæring. Vi erklærer under almindeligt ansvardt dass dieses Produkt mit den folgenden Normen oder normativen Dokumenten at dette produkt er i overensstemmelse med folgende normer eller normative übereinstimmt: dokumenter: EN 62841-1, EN ISO 12100, EN ISO 13857, EN ISO 13854, EN 28662-1,...
- Page 11 System Verbindungen mit Power of Partnership CT-2940/STBT Declaration of conformity (D) CE-´21 - Konformitätserklärung RED. Wir erklären in alleiniger (N) CE-´21 - Konformitetserklæring RED. Vi erklærer på eget ansvarlighet Verantwortlichkeit, daß dieses Produkt mit den folgenden Normen oder at dette produkt er i overensstemmelse med følgende standarder eller normativen Dokumenten übereinstimmt: standard-dokumenter: EN 62368-1, EN 301489-1, EN 301489-17, EN 300328 V2.2.2, EN 62479...
- Page 12 11. The fi nal inspection is carried out by the Service Center Goods Department The user of the Panduit product is responsible for verifying suitability of the product for the application and assumes all risk and liability in connection with its use.
