Panduit TGJT Manual

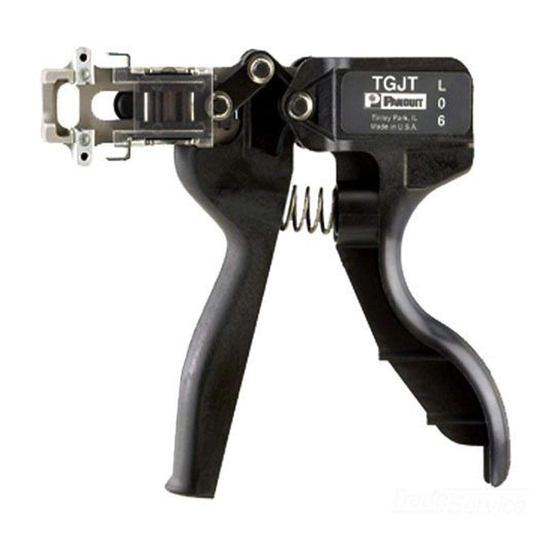

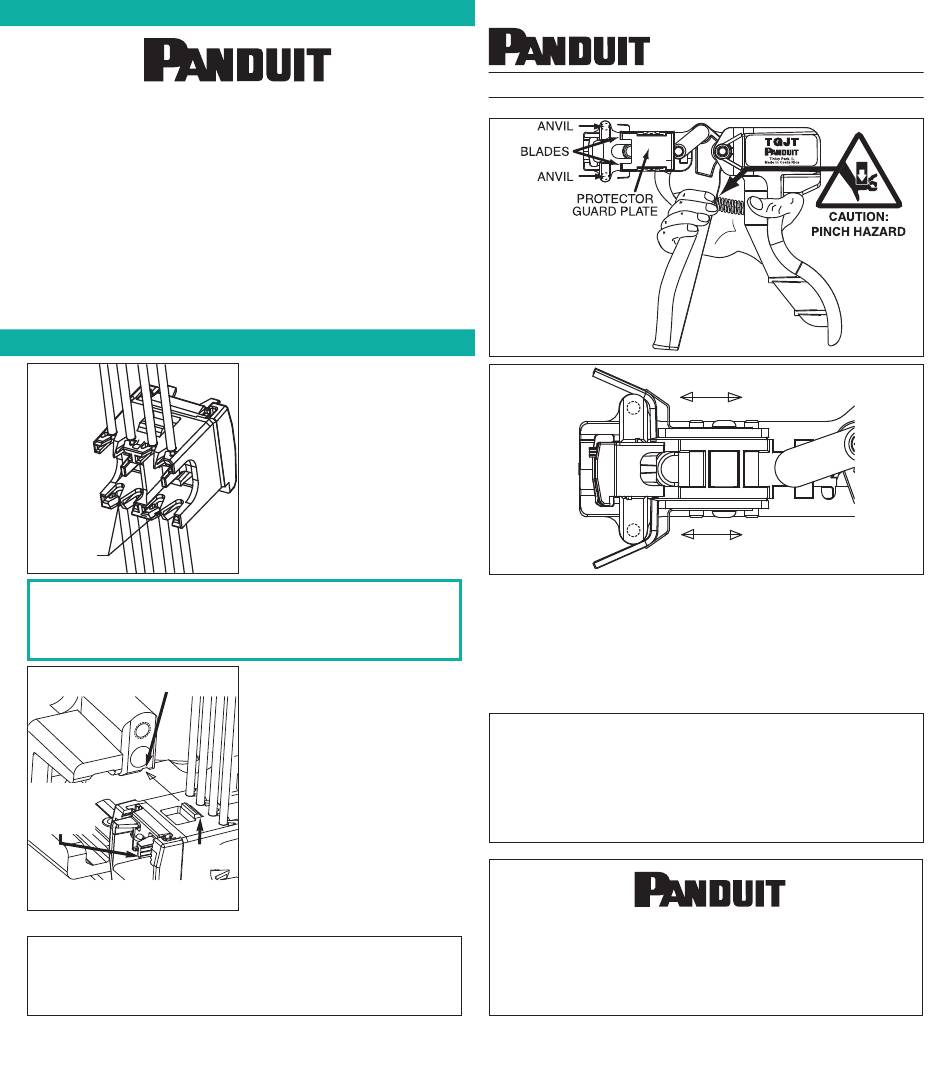

TG STYLE JACK TERMINATION TOOL
Part No.:
FOR INSTALLING ALL
TG STYLE COPPER JACK MODULES
MADE IN COSTA RICA
DIVIDER
WEDGES
Refer to product installation instructions for
TX6 PLUS and TX5e UTP Jack Modules: PN403M
and TX6A 10Gig UTP Jack Modules: PN511E
for wiring instructions.
ANVIL GROOVE
STRAIN
RELIEF
COLLAR
RAMP
NOTE: STRIPPED WIRES MUST BE LONG ENOUGH TO
STICK OUT OF THE SIDES OF THE WIRE CAP.
Refer to product installation instructions listed above
for recommended wire strip lengths.
TGJT

FIGURE 1:

1. Operator should manually
wire the required TG style
Jack Wire Cap for the desired
application. Wires must be
separated and slightly down
over the individual pocket
divider wedges. Depress
strain relief collar to secure
cable.

FIGURE 2:

2. Insert the prepared Wire Cap
into the Wire Seating/Cutting
side of the TGJT Tool. This
side pocket properly aligns
and holds the prepared Wire
Cap in place. Make sure all
twisted pairs of wires are out
to the sides of the Wire Cap
for proper cutting (refer to
Figure 1). The ramp of the
Wire Cap must be pointing
upward and be inserted
into the groove in the upper
Cutter Blade Anvil.

OPERATING INSTRUCTIONS

© Panduit Corp. 2016
TGJT TOOL

FIGURE 3:

3. Pull the handle and the mechanism seats the conductors into
the Wire Cap. At the same time, the Cutter Blades trim the
wires nearly flush with the side faces of the Wire Cap.
4. Keeping the handles closed, slide the Wire Cap up and out of
the tool. All wires should cut cleanly.
NOTE: IF THE WIRES DO NOT CUT CLEANLY OR THE WIRE
CAP DOES NOT WANT TO COME OUT, EXAMINE THE
CUTTER BLADE EDGE SURFACES AT THE NEXT
OPENING CYCLE.
APPEAR WORN, REPLACE THEM WITH THE BLADE
REPLACEMENT KIT.
Technical Support: Panduit USA
E-mail: techsupport@panduit.com
Page: 1 of 2
TGJT
IF BLADES ARE NICKED OR
www.panduit.com
888-506-5400, Ext. 86914
PA25217A01
Rev. 03 2-2016
