- Page 2 Please, read and follow the instalation and operating instructions carefully, to ensure the long life and reliable operation of this appliance. Kospel S.A. may make minor changes if necessary, in the appliance, that will not be shown in the operating instruction, so long as the main features of the heater remain the same.

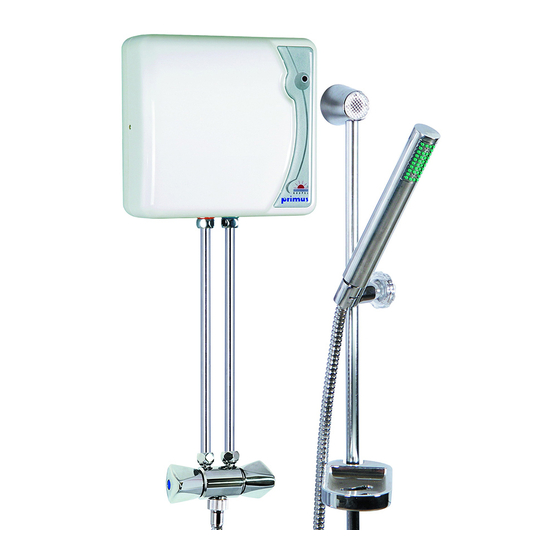

- Page 3 The EPJ.P Instantaneous Water Heater provides hot under the shower. It can be installed either over a bath or Description inside a shower cabin. Turning the hot water tap on, automatically starts up the heater (a red light on the heater's outer case comes on).
- Page 4 Recommendation Installation the appliance connect to cold water supplies only All installation work has to be do not install the spray- head carried out with the electricity holder above the heater and water supplies cut off. install the spray-head holder on the same wall where the heater is installed Installation - Assembly...
- Page 5 Picture 1b View EPJ.P-...u version [4] - flow regulating valve [9] - screws for fixing the case [12] - filter [13] - gasket [15] - water supply [16] - rosette [17] - extension [19] - tap body [20] - sink-shower switch [23] - sprayhead [24] - heating on indicator [27] - front case...
- Page 6 The heater has to be ear- Electric connection and anti-electric shock protection test has to be carried out by a thed or neutrally groun- qualified electrician. ded. Diagram 2a Electric connection in TN-C-S system: F1 - unipolar circuit breaker L - live wire PEN - neutral-earth wire Diagram 2b Electric connection in TN-S system:...
- Page 7 By the term "flow regulation" we mean the setting of the water temperature Flow regulation to a comfortable level, by means of limiting/opening the rate of flow. For this purpose,carry out the following steps: insert the spanner [25] into the regulation valve [4], Picture 3 Regulation set the hot water tap at maximum flow, [4] - regulating valve...
- Page 8 See general construction of the Costruction appliance in the diagram no. 5. Safety temperature limiter [3] protects against overheating. After the limiter goes off, you can turn the hot water tap on but heating will not start. Picture 5 Construction of the ap- Resetting the safety temperature pliance limiter should be carried out by an...
- Page 9 Diagram 6 Wiring diagram E1 - heating box [1] Q1 - differential pressure switch [2] F1 - safety temperature limiter [3] H1 - heating indicator [24] In case the appliance does not heat water, check for possible reasons: Faults a failure of mains supplies(e.g. fuses), insufficient flow through the heater (e.g.
- Page 10 EPJ.P water heater - 1 piece, Set contents Spanner for flow regulation - 2 pieces, Screw - 1 piece, Sleeve - 1 piece, Mixer set - 1 piece, Connecting tipe - 2 pieces, Shower set - 1 piece, Instalation and operation manual - 1 piece.

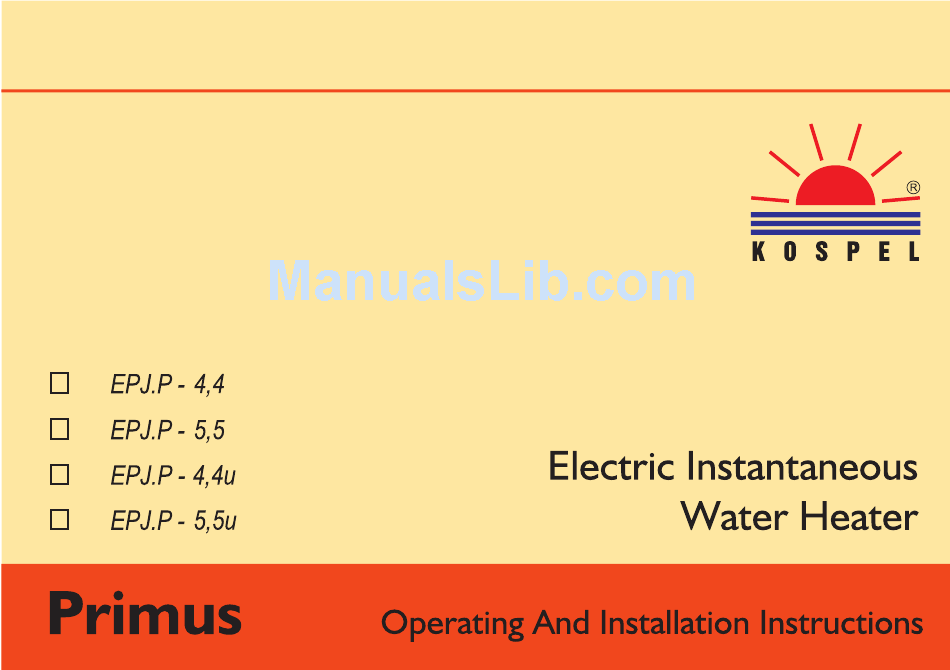

- Page 11 ENG-003B Installation and operation instruction EPJ.P...
