Fisher & Paykel DW60 Installation Instructions Manual
Hide thumbs
Also See for DW60:
- Installation instructions and user manual (32 pages) ,
- User manual (32 pages) ,
- Installation instructions and user manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for Fisher & Paykel DW60
Summary of Contents for Fisher & Paykel DW60

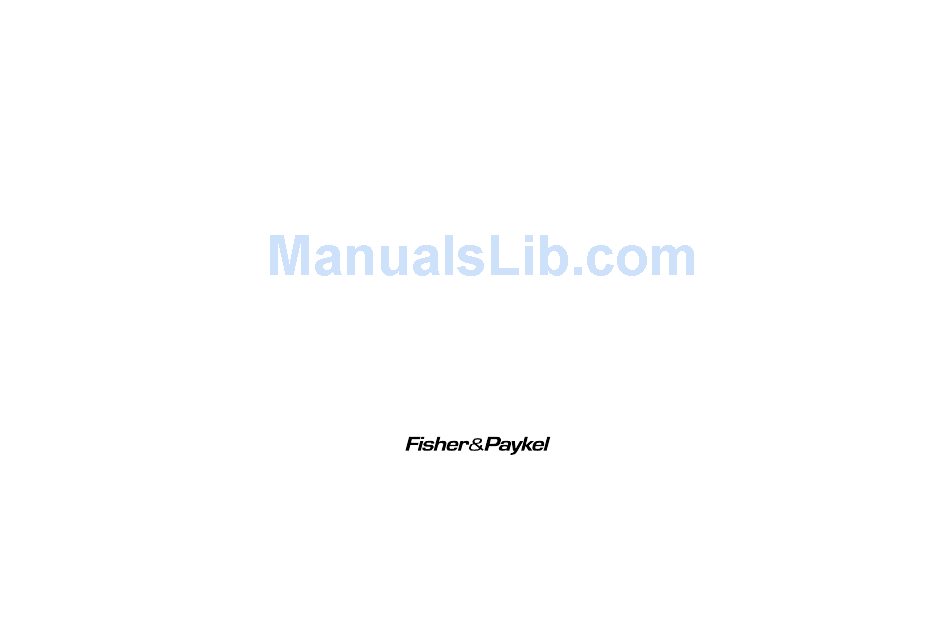

- Page 1 INSTALLATION INSTRUCTIONS Dishwasher DW60 models NZ AU www.fi sherpaykel.com 591217A 11.16...
-
Page 2: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS WARNING! Electrical shock hazard Before installing the dishwasher, remove the house fuse or open the circuit If the dishwasher is to be relocated from one installation to another it must be kept ● breaker. upright to avoid damage from water spillage. -
Page 3: Prior To Installation
PARTS SUPPLIED TECHNICAL DATA Technical data Check the electrical data on the rating label (located on the left-hand side of the dishwasher’s stainless steel inner door). Should the data on the rating label be different to those specified below, consider those on the rating label as correct. DW60FC2 DW60FC1 models DW60FC4... -
Page 4: Product Dimensions
PRODUCT DIMENSIONS Top panel (removable) PRODUCT DIMENSIONS Overall height of product with top panel in place 850 - 870** with top panel removed* 820 - 840** Overall width of product Overall depth of product Depth of open door (measured from front of kickstrip) CABINETRY DIMENSIONS Inside height of cavity with top panel in place... -
Page 5: Cavity Preparation
CAVITY PREPARATION IMPORTANT! Preparing the product and cabinetry To prevent possible steam damage to the cabinetry, ensure that any bare wood surrounding the dishwasher is sealed The top panel may be removed to with an oil-based paint or moisture-proof polyurethane. suit underbench cavity height. - Page 6 PLUMBING AND DRAINAGE OPTIONS. DETERMINE WHICH IS MORE SUITABLE. Dishwasher and Ø 38 mm Standpipe Dishwasher using drain hose joiner onto sink trap/waste tee Installer to provide drain hose joiner to suit If space is limited If space is limited min.
- Page 7 CONNECT INLET HOSE TO COLD WATER PLUG PRODUCT IN min. 10mm 3/4” BSP connector No leaks! Ensure the supplied rubber washer is fitted inside the coupling. Tighten coupling with spanner. Electrical connection Plumbing -- Water inlet connection IMPORTANT! The dishwasher must not be connected to the electrical supply while installation ●...
-
Page 8: Troubleshooting
TROUBLESHOOTING Excessive water remaining above the filter plate, after the rinse cycle (This can be displayed as an fault) ● Check for a kinked drain hose, blocked waste connection, highloop not properly installed, drain hose not routed correctly or spray arms not in place. No water supply (This is displayed as an fault) ●... -
Page 9: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Check that the door opens and closes freely without resistance to adjacent Check all parts are installed. cabinetry. Ensure that all panels and parts thereof are secure and final electrical tests have been Check that the electrical outlet is accessible and located in an adjacent cupboard. - Page 12 www.fi sherpaykel.com Copyright © Fisher & Paykel Appliances 2016. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
