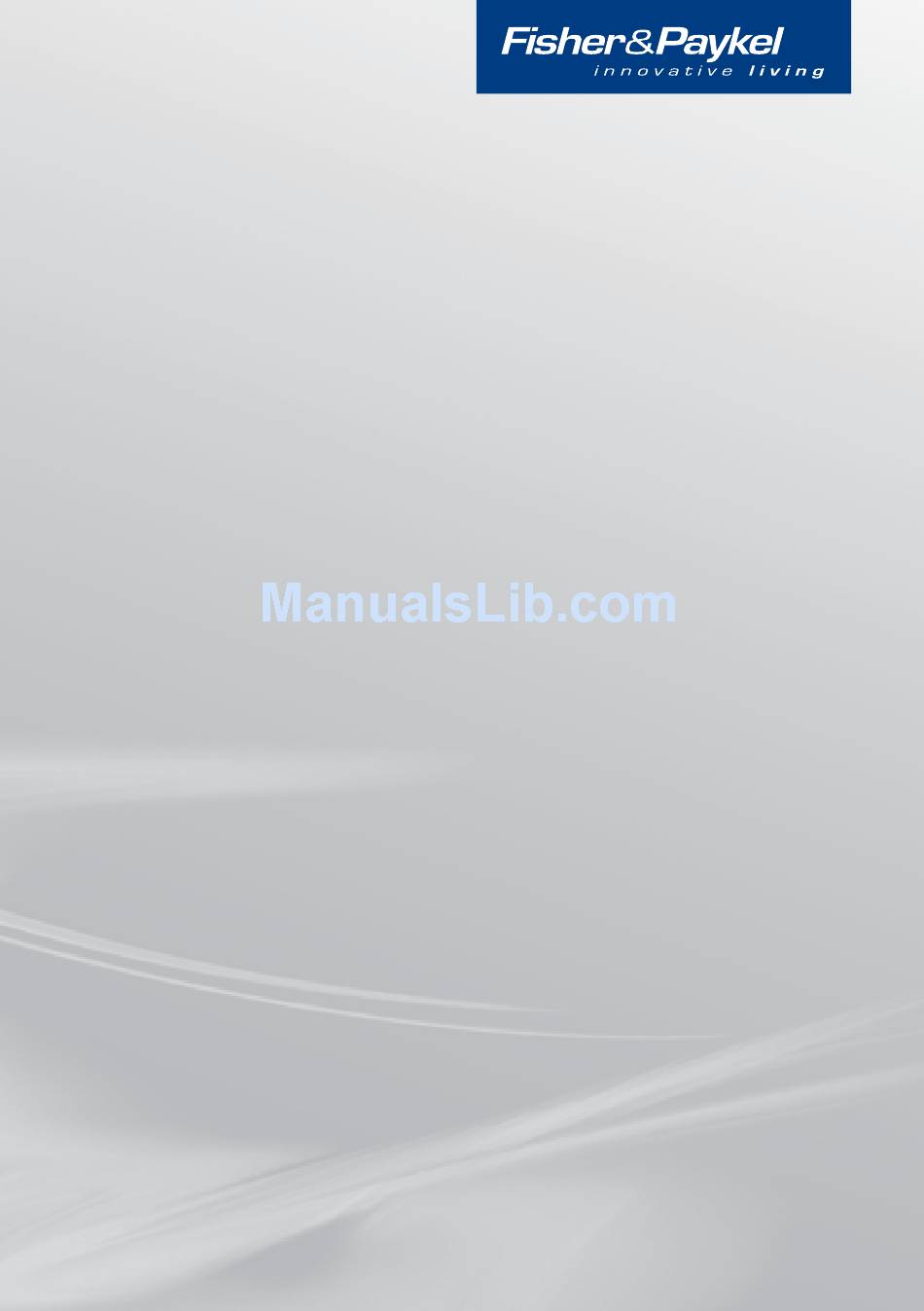

Page 1: Installation Instructions
Installation instructions User guide Dishwasher DW60 models AU SG... -
Page 3: Table Of Contents
Contents Safety and warnings Installation instructions Introducing your dishwasher Using your dishwasher Selecting a wash programme Caring for your dinnerware Dishwasher standards test Loading Detergent Rinse aid Care and cleaning Fault codes Troubleshooting Warranty and service Important! SAVE THESE INSTRUCTIONS The models shown in this user guide may not be available in all markets and are subject to change at any time. -
Page 4: Safety And Warnings
Safety and warnings Important safety precautions For your safety, follow basic precautions when using your dishwasher, including the following: Please read all instructions before operating your dishwasher. The information in this user guide must be followed to minimise the risk of fire or explosion, or to prevent property damage, personal injury or loss of life. - Page 5 Safety and warnings Installation This dishwasher must be installed and positioned in accordance with the ‘Installation instructions’ before it is used. Installation and service should be performed by a qualified technician. If the power supply cord is damaged, it must be replaced by the manufacturer or Authorised Service Centre or a similarly qualified person in order to avoid a hazard.
-
Page 6: Installation Instructions
Installation instructions Before you start These instructions are intended as a guide only. It is the responsibility of the plumber and electrician to ensure that each installation complies with the Government and local government by-laws. Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put into use but contact your Fisher &... - Page 7 Installation instructions Plumbing Drainage The recommended method of installation is shown in diagrams 1,2 and 3. The diagrams are designed to eliminate problems that occur with combined sink – dishwasher waste systems. The standpipe must have a minimum diameter of 38 mm and stand 750mm above the floor. A drain hose support is provided to hold the drain hose in place in the standpipe (See diagrams 1 and 2).
- Page 8 Installation instructions Water inlet connections The dishwasher has a single valve water connection. We recommend a cold water connection to give the best wash performance and energy efficiency. Important! The appliance should be connected to the water main using a new hose set. Old hose sets should not be used.
- Page 9 Installation instructions If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the whole cable, rather than using adaptors as they could cause overheating and burns. Important! The dishwasher plug must be accessible even when the appliance is installed as a built-in unit so that maintenance can be done safely.
-
Page 10: Introducing Your Dishwasher
Introducing your dishwasher Dishwasher interior Fig. 1 Dishwasher interior Upper rack Top spray arm Lower rack Bottom spray arm Drain filter Detergent and rinse aid dispenser Water inlet hose Drain hose Power supply cord Cutlery basket... -
Page 11: Using Your Dishwasher
Using your dishwasher Power button (ON/OFF) Fig. 2 Control panel for DW60CS models Programme button Programme indicator Fig. 3 Control panel for DW60CD models Power button (ON/OFF) Rinse aid indicator Reset button Programme button Delay start button Programme indicator Time remaining indicator Heater indicator Quick start Remove all food scraps and load the dishes. - Page 12 Using your dishwasher If you have forgotten to load some dishes To pause a wash programme (DW60CD models only) Press the Power button. Open the door slowly. Important! There is a risk of being sprayed with hot water. Do not open the door fully until the spray arm has stopped rotating.
- Page 13 Using your dishwasher If you want a programme to start later Delay start (DW60CD models only) This feature can delay the start of a wash programme from 1 to 12 hours. To activate the delay start: Ensure you have loaded all the dishes, added detergent, and closed the door. Turn your dishwasher ON.
-
Page 14: Selecting A Wash Programme
Selecting a wash programme HEAVY PROGRAMME NORMAL NORMAL ECO DELICATE FAST RINSE DUTY Dishes with Normally Lightly Very Rinses dishes What load Heavily normal soils soiled dishes soiled lightly that have been should I use soiled pots, for optimum for optimum delicate soiled stacked... -
Page 15: Caring For Your Dinnerware
Caring for your dinnerware The combination of high temperatures and dishwasher detergent may cause damage to some items if they are washed in your dishwasher. Remember, if in doubt about any items to be washed in the dishwasher, follow the instructions from the manufacturer of the items, or wash them by hand. -
Page 16: Dishwasher Standards Test
Dishwasher standards test This dishwasher is tested to AS/NZS 2007 standards for both wash and dry performance. The following are loading pattern diagrams, detergent quantities and rinse aid quantities used for the dishwasher. Wash programme Normal Eco Detergent quantities 5 g prewash, +25 g main wash Rinse aid setting Maximum place setting Recommended loading pattern... -
Page 17: Loading
Loading Take care when loading dishes to ensure that there is enough space and room for the water to reach all areas, particularly the cup racks. If there are any items blocking the spray arms’ paths or the wash water, then the performance will be ineffective. Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from becoming clogged. - Page 18 Loading How to load the upper rack The upper rack is designed to hold items like glasses, cups, saucers, plates, small bowls and shallow pans. Position these items so that they cannot be moved during the wash. Upper rack adjustment for DW60CS models The upper rack can be adjusted for height by using the rollers located on both sides of the rack (see below).
-
Page 19: Detergent
Detergent Important! Never sprinkle or pour detergent directly onto any item in the dishwasher. Hand washing liquids, soap, laundry detergents or disinfectants will damage your dishwasher. Press button to open Filling the detergent dispenser Press the button on the top of the dispenser to open the cover. Pour the detergent for the wash cycle into the larger main detergent compartment. -
Page 20: Rinse Aid
Rinse aid We highly recommend the regular use of liquid rinse aid to give the best drying results. Rinse aid gives a streak-free, sparkling clean look to glass and chinaware. In addition it prevents metal from tarnishing. The rinse aid dispenser is located on the inside panel of the door. Filling the rinse aid dispenser Open the dispenser by turning the cap in an anticlockwise direction. -
Page 21: Care And Cleaning
Care and cleaning After each wash, turn off the water supply to the dishwasher and leave the door ajar 30°, so that moisture and odours are not trapped inside. Important! The door should not be left in the fully open position as this could present a tripping hazard. Before cleaning or performing maintenance, always remove the power plug from the wall socket. - Page 22 Care and cleaning Cleaning the drain filters and spray arms Regular inspection and maintenance of your dishwasher helps to prevent problems from occurring. You should carefully inspect your dishwasher regularly. Check that no grease or scale has accumulated on the inside of your dishwasher. If you discover any deposits, clean them thoroughly with warm water on a soft, lint-free cloth.
-
Page 23: Fault Codes
Fault codes Please read the following pages before you call for service. You can correct many of your dishwasher’s problems yourself, using the checklists on the following pages. Fault signal Fault Possible causes What to do code First 2 The door is not properly closed. Close the door firmly. -
Page 24: Troubleshooting
Troubleshooting Problem Probable cause What to do Dishwasher will not start. Power supply is not connected. Connect the power supply. The door is not properly closed. Close the door. Programme button has not been Select a programme. pressed. Water tap not turned on. Ensure the water is connected and turned on. - Page 25 Troubleshooting Problem Probable cause What to do Knocking or rattling sound Spray arm knocking against dishes. Stop cycle and reposition during wash. dishes. Dishes have been stacked Stop cycle and reposition incorrectly. dishes. Unclean dishes. Wash programme unsuitable for See the ‘Wash programme chart’ load or soils were too heavily baked for a suitable wash programme.
- Page 26 Troubleshooting Problem Probable cause What to do Glasses have dull Rinse aid set too low. Increase rinse aid setting. See appearance. the ‘Rinse aid’ section. Tea stains or traces of Not enough detergent. See the ‘Detergent’ section or lipstick have not been the detergent manufacturer’s completely removed.
-
Page 27: Warranty And Service
Warranty and service Manufacturer’s warranty When you purchase any new Fisher & Paykel whiteware Product you automatically receive a two year Manufacturer’s Warranty covering parts and labour for servicing. Fisher & Paykel undertakes to Repair or, at its option, replace without cost to the owner either for material or labour any part of the Product, the serial number of which appears on the Product, which is found to be defective within TWO YEARS of the date of purchase. - Page 28 Warranty and service Customer care Check the things you can do yourself. Refer to your User Guide and check: your appliance is correctly installed you are familiar with its normal operation If after checking these points you still need assistance please refer to the following: Australia If you need assistance call...* Call the Fisher &...
- Page 32 Copyright © Fisher & Paykel 2008. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
