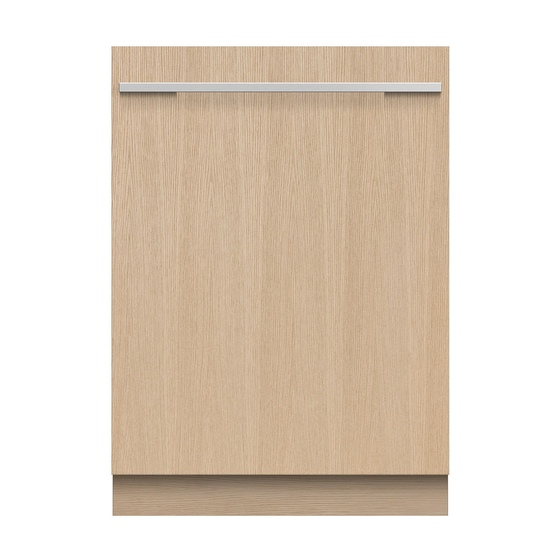

- Page 1 BUILT IN DISHWASHER DW60U2I1 FP AA PRODUCT CODE: 81202-B PARTS MANUAL...
-
Page 2: Table Of Contents
CONTENTS Introduction Chassis & Tub components Basket components Spray Arm components Base & flood components Door components... -
Page 3: Introduction
MODEL PRODUCT CODE Fisher & Paykel 230-240VAC 50Hz DW60U2I1 FP AA 81202-B MODELS The models covered by this manual are listed on the front cover. The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions. -
Page 4: Chassis & Tub Components
CHASSIS & TUB COMPONENTS DWG 005239... - Page 5 CHASSIS & TUB COMPONENTS REFERENCE PART NUMBER PART DESCRIPTION GASKET TUB H0120300248 SCREW ST3.5 17 H0120600754 PANEL SIDE LEFT WHITE H0120100421A PLUG H0120200393 DOOR LOCK/HOOK ASSEMBLY H0120801601 HOUSING THERMO DRY H0120802341 H0120200605 GASKET SEALING H0120200604 HOSE THERMO DRY H012G8010123 BOLT SUPPORT CROSSPIECE UPPER REAR H0120201556 FELT SOUND DEADENING SIDE/TOP...
-
Page 6: Basket Components
BASKET COMPONENTS DWG 004872... - Page 7 BASKET COMPONENTS REFERENCE PART NUMBER PART DESCRIPTION MID RAIL SUPPORT H0120802832A MID RAIL LEFT H0120802954 MID RAIL RIGHT H0120802949 MID RAIL STOP BACK H0120201502 UPPER BASKET H0120803057A H0120100991 SS HANDLE EMBLSSED HANDLE FRONT H0120201179A HANDLE BACK H0120201179B CUP RACK H0120201180 CUP RACK SUPPORT LEFT H0120201180B CUP RACK SUPPORT RIGHT...
-
Page 8: Spray Arm Components
SPRAY ARM COMPONENTS DWG 005237... - Page 9 SPRAY ARM COMPONENTS REFERENCE PART NUMBER PART DESCRIPTION WEIR INCL FLOW METER H0120801702A O-RING GASKET WEIR H0120200382 NUT BREATHER RING WEIR H0120200401 HOSE DRAIN (LONG) H0120200643 SPRAYER TOP H0120201003 O RING GASKET H0120301022 UPPER SPRAY BASE H0120202701 CLAMP HOSE H012G1040020 H0120301040A HOSE TOP SPRAYER COVER FOR SUMP...
- Page 10 SPRAY ARM COMPONENTS DWG 005237...
- Page 11 SPRAY ARM COMPONENTS REFERENCE PART NUMBER PART DESCRIPTION CLAMP HOSE 32-50MM H0120105775 PIPE DIVERTER MOTOR PUMP H0120200358 FIRE BLANKET H0030508588J SCREEN SUMP OUTLET H0120200378 SUMP ASSY H0120802652B DRAIN PUMP H0120400050B FRAME NON RETURN VALVE H0120200374 FLAP NON RETURN VALVE H0120200373 H0120400076 SENSOR TEMP/TURBIDITY (EMZ) SCREW ST3.9 13...
-
Page 12: Base & Flood Components
BASE & FLOOD COMPONENTS DWG 004874... - Page 13 BASE & FLOOD COMPONENTS REFERENCE PART NUMBER PART DESCRIPTION PLATE PLASTIC OVERFLOW H0120200365 SCREW ST3.5 13 H012G8010102 PANEL LOWER FRONT H0120100829B HOSE OVERFLOW PLATE H0120200635 BLOCK ADJUSTABLE LEFT H0120201475 BLOCK ADJUSTABLE RIGHT H0120201477 TRAY BOTTOM BASE H0120100239A FLOAT H0120505219A FLOAT SUPPORT H0120202056C MICRO SWITCH FLOAT SWITCH H012G6050040A...
-
Page 14: Door Components
DOOR COMPONENTS DWG 005240... - Page 15 PANEL HINGE LOWER DOOR HINGE ASSEMBLY RIGHT H0120802306A DOOR INSULATION H0120301006 SLEEVE DOOR FIXING H0120200437 SLIDER ADJUSTER DOOR H0120200435 BASE DOOR ADJUSTMENT H0120200434 QUICKSTART DW60U2I1 FP AA 591481 BK INSTALL DW60U FP AA 591483 BK USR DW60U FP AA 591484...
- Page 16 FISHERPAYKEL.COM © Fisher & Paykel Appliances Ltd 2019. All rights reserved. The product specifications in this document apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this document correctly describes the product currently available.
