INSTALLATION,OPERATION & MAINTENANCE

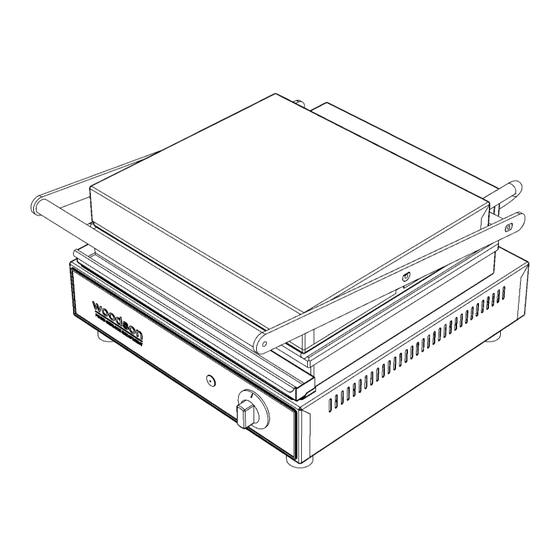

Woodson Contact Grill – WCTx
WOODSON CONTACT GRILL
Models WCT6 & WCT8
FEATURES
Bottom and top heated plates hold heat for fast, flavourful and extremely even toasting
Spring balanced top platen forms the optimum seal around food
Ultra-smooth plate with drain groove to front makes cleaning easier
Full stainless steel body and lift mechanism including insulated handle- heavy duty construction
means longer life
Removable front mounted grease tray
Flexible metal conduit to upper plate, with cast fitting to base to prevent damage
Thermostat control and indicator light
Non-slip rubber feet
4-6 slice capacity on WCT6 model and 6-8 slice capacity on WCT8 model
Ideal cooking surface for toasting sandwiches, focaccias and kebabs etc.
Due to continuous product research and development, the information contained herein is subject to change without notice
Tel: 1300 79 1954 Web: www.stoddart.com.au
Email: fse@stoddart.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCT6 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodson WCT6

Summary of Contents for Woodson WCT6

  • Page 1 Thermostat control and indicator light Non-slip rubber feet 4-6 slice capacity on WCT6 model and 6-8 slice capacity on WCT8 model Ideal cooking surface for toasting sandwiches, focaccias and kebabs etc. Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au...

  • Page 3: Table Of Contents

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Table of Contents General Recommendations ................3 General Safety .........................3 Service ........................3 Sharp Edges ......................3 Power Cables .......................3 Introduction ........................4 Product Overview ....................4 Specifications........................5 Technical Specifications ..................5 Technical/Connection Diagram ................6 Rating Plate ......................8 Installation .......................9...
  • Page 4 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Electrical Diagrams ..................21 Spare Parts/ Assembly Diagram ...............22 Warranty......................23 Appendix 1 – Australian Warranty and Importer/Distributor Contact Details ......23 Australian Warranty Policy & Procedure................23 WARRANTY REQUEST FORM................... 26 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au...

  • Page 5: General Recommendations

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx General Recommendations ATTENTION Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians.

  • Page 6: Introduction

    Woodson Contact Grill – WCTx Introduction The Woodson Contact Grill has been specifically designed to meet the rigorous demands of a busy food service operation. The Woodson WCT6 and WCT8 Contact Grills are ideal for use in toasting sandwiches, focaccias and kebabs.

  • Page 7: Specifications

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Specifications Technical Specifications SPECIFICATIONS Model WCT6 WCT8 Height 244mm 244mm Width 415mm 520mm Depth 504mm 459mm Voltage 220-240V, 50Hz Power 2200W 2200W Connection 10A Plug and Lead Amps Capacity 4-6 Slices 6-8 Slices...

  • Page 8: Technical/Connection Diagram

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Technical/Connection Diagram WCT6 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 6...
  • Page 9 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx WCT8 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 7...

  • Page 10: Rating Plate

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Rating Plate The rating plate of the appliance contains identification and technical data and is located on the unit as shown below. Sample Only Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au...

  • Page 11: Installation

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Installation General Precautions Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.  Read the installation, operating and maintenance instructions thoroughly before installation, maintenance or servicing this equipment ...

  • Page 12: Setting Up

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Setting Up Handling  Use suitable means to move the appliance: eg. A lift truck or fork pallet trucks (the forks should reach more than halfway beneath the appliance). Site Preparation ...

  • Page 13: Electrical Connection

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Electrical Connection WARNING! This machine must be installed in accordance with AS/NZS 60335.1 Information  The electrical supply shall comply with the rating plate data.  The machine is supplied with a plug and lead (10A).

  • Page 14: Operation

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Operation General Recommendations When using any electrical appliance, safety precautions should always be observed. Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for the purpose for which it has been designed.

  • Page 15: Operating Instructions

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Operating Instructions First Time Operation Before cooking for the first time the plates need to be seasoned as follows:  Visually check the toaster is clean, in good repair and safe. ...

  • Page 16: Cleaning Procedure

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Cleaning Procedure  Clean Plates Daily (10 mins) NOTE! After each cook wipe plates with moist cloth. Materials Required  Grill Cleaner  Stainless Cleaner  Cleaner pad  Clean Sanitised Towel ...

  • Page 17: External Surfaces

    NOTE! Some cleaning agents can damage stainless steel. For this reason we recommend cleaning with soapy water. Woodson do not take any responsibility for damage caused by the use of inappropriate cleaning agents. In some areas, particularly seaside environments, stainless steel can be subject to surface discolouration or “tea staining”.

  • Page 18: Maintenance

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Maintenance Routines Schedules  To maintain optimal performance, maintenance and cleaning schedules must be regular and thorough.  The unit should be cleaned at the end of the every work day. Log Books ...

  • Page 19: Stainless Steel Protection

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Stainless Steel Protection Cleaning  For cleaning a stain on the surface of the stainless steel, check the cleaning section of the operation manual.  All metal surfaces should be checked while cleaning for damage, scuffs or scapes as these can lead to rust and further damage to the product.

  • Page 20: Water Damage

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Water Damage Information  Water damage to the electrical and mechanical parts of unit can occur through hosing on or around the unit.  Improper cleaning of the unit can lead to water damage. Check the cleaning section of the operation manual for more information.

  • Page 21: Replacements

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Replacements Electrical Parts  All electrical parts can be replaced by the manufacturer.  All electrical parts MUST be replaced by a qualified technician. Mechanical Parts  All mechanical parts can be replaced by the manufacturer.

  • Page 22: Troubleshooting

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Troubleshooting WARNING! Technician tasks only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Problem Possible Causes Task Possible Corrective Action Unit not turned “on”...

  • Page 23: Electrical Diagrams

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Electrical Diagrams Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 21...

  • Page 24: Spare Parts/ Assembly Diagram

    INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx Spare Parts/ Assembly Diagram Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 22...

  • Page 25: Warranty

    Warranty Appendix 1 – Australian Warranty and Importer/Distributor Contact Details As the exclusive manufacturer and distributor of Woodson products in Australia, Stoddart Manufacturing (Stoddart) would like to congratulate you on your purchase of a Woodson product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose.
  • Page 26 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx (vi) Proper maintenance and cleaning of equipment in accordance with the Instructions is essential to the equipment's effective operation; (vii) On site warranty services are limited to sites within 50km from the nearest Stoddart authorized service agent and service agent's reasonable travel costs must be paid by Customer prior to the commencement of the repairs;...
  • Page 27 INSTALLATION,OPERATION & MAINTENANCE Woodson Contact Grill – WCTx 4. Warranty Claim Procedure The following procedure must be followed to claim under Stoddart's warranties: Refer to the trouble-shooting section of the Instructions to establish the nature of the fault. Check the equipment is plugged-in, turned-on or has no other valid reason for not operating.

  • Page 29: Warranty Request Form

    WARRANTY REQUEST FORM Phone: (07) 3440 7600 Int: +617 3440 7600 Phone: 1300 307 289 Fax: (07) 3344 1000 Int: +617 3344 1000 Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information.
