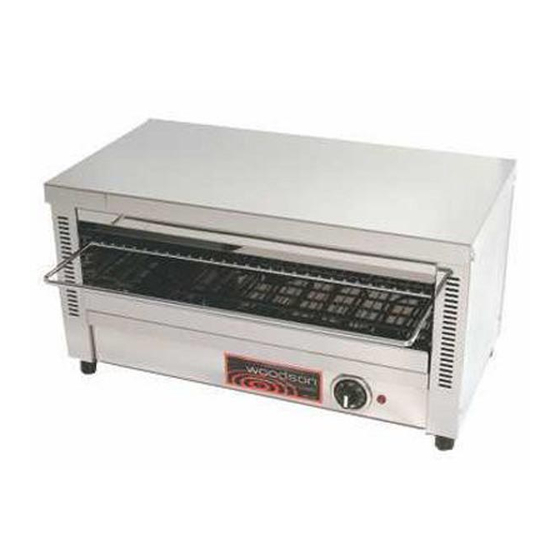

Large capacity griller and warmer
Supplied with heavy duty chrome wire rack (595mm x 255mm)
3 height settings
Top element with simmerstat controls
Pilot light to indicate element is on
Stainless steel construction in bright annealed finish
Supplied with 15 amp plug and lead
10-12 bread slices capacity
Ideal for toasting and grilling foods such as cheese, au gratin, fish etc.
Manufactured by:
Tom Stoddart Pty Ltd
39 Forest Way, Karawatha, QLD, 4117
Ph: 07 3440 7600 (int +61 7 3440 7600)
Fax: 07 3344 1000 (int +61 7 3344 1000)
Due to continuous product research and development, the information contained herein is subject to change without notice
WOODSON SALAMANDER
Models WGLS30
FEATURES
Tel: 1300 79 1954 Web: www.stoddart.com.au
INSTALLATION,OPERATION & MAINTENANCE
INSTALLATION,OPERATION & MAINTENANCE
INSTALLATION,OPERATION & MAINTENANCE
INSTALLATION,OPERATION & MAINTENANCE
Woodson Salamander – WGlS30
Email: fse@stoddart.com.au
Advertisement
Table of Contents
Related Manuals for Woodson WGLS30
Summary of Contents for Woodson WGLS30
- Page 1 INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander – WGlS30 WOODSON SALAMANDER Models WGLS30 FEATURES Large capacity griller and warmer Supplied with heavy duty chrome wire rack (595mm x 255mm) 3 height settings Top element with simmerstat controls...
-
Page 3: Table Of Contents
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Table of Contents General Recommendations .................3 General Safety ........................3 Service ........................3 Sharp Edges ......................3 Power Cables......................3 Introduction........................4 Product Overview....................4 Specifications........................ - Page 4 INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Spare Parts/ Assembly Diagram ................ 19 Warranty ......................20 Appendix 1 – Australian Warranty and Importer/Distributor Contact Details......20 Australian Warranty Policy & Procedure ................20 WARRANTY REQUEST FORM ....................
-
Page 5: General Recommendations
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 General Recommendations ATTENTION Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians. -
Page 6: Introduction
The Woodson Salamander has been specifically designed to meet the rigorous demands of a busy food service operation. The Woodson WGLS30 is ideal for toasting and grilling foods such as cheese, au gratin, fish etc. Each Woodson Salamander has been assembled and tested according to Stoddart’s strict quality standards. -
Page 7: Specifications
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Specifications Technical Specifications SPECIFICATIONS Model WGLS30 Height 364mm Width 698mm Depth 481mm Voltage 220-240V, 50Hz Power 3200W Connection 15A Plug and Lead Amps Capacity 10-12 Bread Slices... -
Page 8: Technical/Connection Diagram
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Technical/Connection Diagram Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au... -
Page 9: Rating Plate
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Rating Plate The rating plate of the appliance contains identification and technical data and is located on the unit as shown below. Sample Only Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au... -
Page 10: Installation
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Installation General Precautions Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installation, maintenance •... -
Page 11: Setting Up
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Setting Up Handling Use suitable means to move the appliance: eg. A lift truck or fork pallet trucks (the forks should • reach more than halfway beneath the appliance). -
Page 12: Electrical Connection
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Electrical Connection WARNING! This machine must be installed in accordance with AS/NZS 60335.1 Information The electrical supply shall comply with the rating plate data. •... -
Page 13: Operation
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Operation General Recommendations When using any electrical appliance, safety precautions should always be observed. Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for the purpose for which it has been designed. -
Page 14: Operating Instructions
NOTE! Some cleaning agents can damage stainless steel. For this reason we recommend cleaning with soapy water. Woodson do not take any responsibility for damage caused by the use of inappropriate cleaning agents. In some areas, particularly seaside environments, stainless steel can be subject to surface discolouration or “tea staining”. -
Page 15: Maintenance
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Maintenance Routines Schedules To maintain optimal performance, maintenance and cleaning schedules must be regular and thorough. • The unit should be cleaned at the end of the every work day. -
Page 16: Stainless Steel Protection
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Stainless Steel Protection Cleaning For cleaning a stain on the surface of the stainless steel, check the cleaning section of the operation • manual. All metal surfaces should be checked while cleaning for damage, scuffs or scapes as these can lead to rust •... -
Page 17: Water Damage
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Water Damage Information Water damage to the electrical and mechanical parts of unit can occur through hosing on or around the • unit. Improper cleaning of the unit can lead to water damage. Check the cleaning section of the operation •... -
Page 18: Replacements
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Replacements Electrical Parts All electrical parts can be replaced by the manufacturer. • All electrical parts MUST be replaced by a qualified technician. • Mechanical Parts All mechanical parts can be replaced by the manufacturer. -
Page 19: Troubleshooting
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Troubleshooting WARNING! Technician tasks only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task... -
Page 20: Electrical Diagrams
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Electrical Diagrams Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au... -
Page 21: Spare Parts/ Assembly Diagram
INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 Spare Parts/ Assembly Diagram Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au... -
Page 23: Warranty
Warranty Appendix 1 – Australian Warranty and Importer/Distributor Contact Details As the exclusive manufacturer and distributor of Woodson products in Australia, Stoddart Manufacturing (Stoddart) would like to congratulate you on your purchase of a Woodson product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose. - Page 24 INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 (vi) Proper maintenance and cleaning of equipment in accordance with the Instructions is essential to the equipment's effective operation; (vii) On site warranty services are limited to sites within 50km from the nearest Stoddart authorized service agent and service agent's reasonable travel costs must be paid by Customer prior to the commencement of the repairs;...
- Page 25 INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE INSTALLATION,OPERATION & MAINTENANCE Woodson Salamander– WGLS30 4. Warranty Claim Procedure The following procedure must be followed to claim under Stoddart's warranties: Refer to the trouble-shooting section of the Instructions to establish the nature of the fault. Check the equipment is plugged-in, turned-on or has no other valid reason for not operating.
-
Page 27: Warranty Request Form
WARRANTY REQUEST FORM Phone: (07) 3440 7600 Int: +617 3440 7600 Phone: 1300 307 289 Fax: (07) 3344 1000 Int: +617 3344 1000 Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information.
