Summary of Contents for Woodson W.GPC62SC

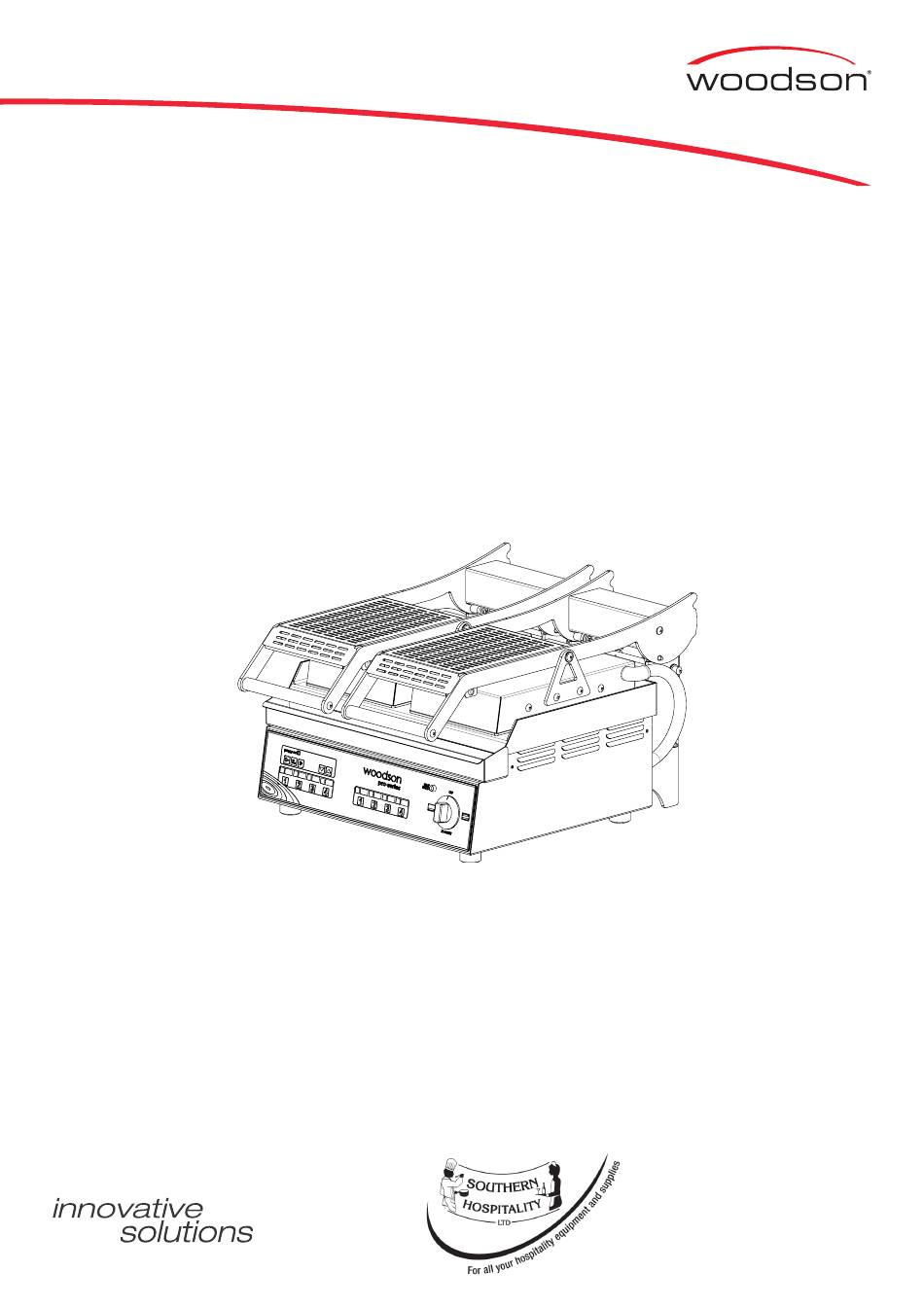

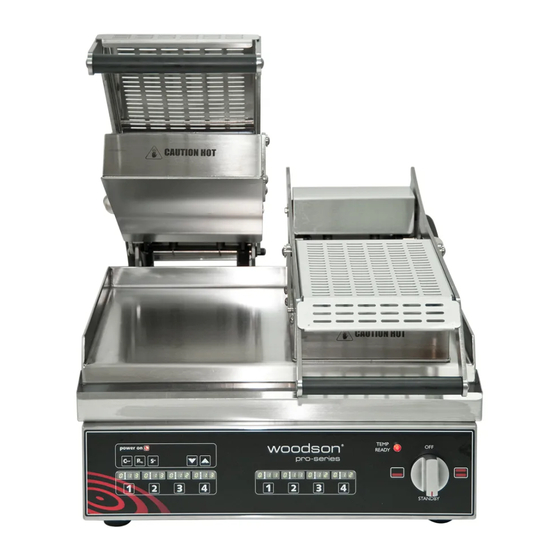

- Page 1 Specification, Installation and Operation Manual Pro Series Woodson Contact Grill Models: W.GPC62SC, W.GPC61SC, W.GPC350 A guide on the use, care and maintenance of your quality Woodson product Rev: B - 27/07/2018 Phone: 0800 503 335 Spare Parts: 0800 503 503...
- Page 2 Page Intentionally Left Blank Page 1...
-
Page 3: Table Of Contents
Your New Woodson Product: � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �... -
Page 4: Introduction
Your New Woodson Product: Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals� By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of reliable service�... -
Page 5: Attention
Introduction Attention Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on hand in a safe place for future reference by other operators or users� Disclaimer The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units or others, due to abuse and misuse of this unit in regards to installation, un-installation, operation, servicing or maintenance, or lack of conformity with the instructions indicated in this documentation�... -
Page 6: Installation
Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit: eg� A lift truck or fork pallet trucks (the forks should reach more completely beneath the unit) Unpacking •... -
Page 7: Electrical Connection
Installation Electrical Connection WARNING This unit must be installed in accordance with AS/NZS 60335.1 Information Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual� Single Phase Units: Supplied with an appropriately rated plug and lead fi tted and be indicated as: •... -
Page 8: Specification
Specification Technical Specifications W.GPC62SC Specifications Model W.GPC62SC Height 331mm Width 468mm Depth 578mm Power 2.2kW AMPS 10A plug & lead fitted Page 7... -
Page 9: W.gpc61Sc
Specification W.GPC61SC Specifications Model W.GPC61SC Height 331mm Width 360mm Depth 578mm Power 2.2kW AMPS 10A plug & lead fitted Page 8... -
Page 10: W.gpc350
Specification W.GPC350 Specifications Model W.GPC350 Height 331mm Width 410mm Depth 630mm Power 2.2kW AMPS 10A plug & lead fitted Page 9... -
Page 11: Operating Instructions
Operation Operating Instructions First Time Operation (W.GPC61SC, W.GPC62SC) Upon setting up your equipment, the following steps must be followed to setup the timer and temperature: When this unit is initially switched on, the display will show pre-set factory settings� The Control panel has 8 timers located along the front of the control panel� The displays indicate the pre-programmed times in minutes and seconds�... -
Page 12: Operation (W.gpc350)
Operation Operation (W.GPC350) Thermostat Indicator Light 1� Ensure that the top plate is in a closed position 2� Set the thermostat To 200ºC� The indicator light will illuminate indicating that the grill is heating� If the indicator light does not illuminate refer to the trouble shooting section of the manual 3�... -
Page 13: Cleaning
Operation Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •... -
Page 14: Cleaning Schedule
Operation Cleaning Schedule • Daily cleaning is required for Contact Grills, and external surfaces� This will help to maintain and prolong the efficiency of your unit • The grill plate should be kept clean at all times, free from carbon and burnt materials •... -
Page 15: Troubleshooting
Operation Troubleshooting WARNING Technician tasks are only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Problem Possible Causes Task Possible Corrective Action Unit not turned “on” at the Unit not heating Turn power to “on”...
