Proline Promag 53
5.3

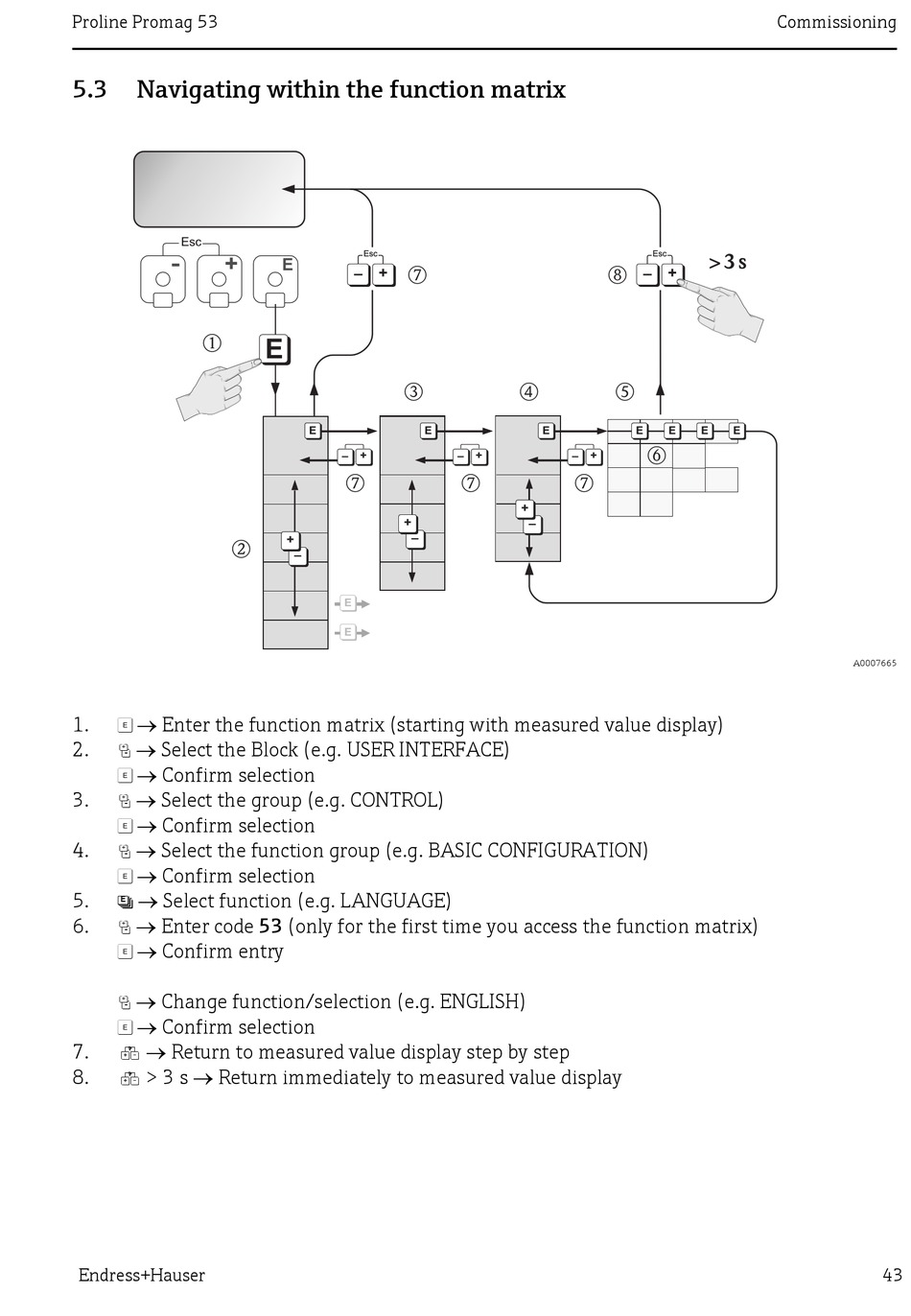

Navigating within the function matrix

Esc
+
-
m
n
Enter the function matrix (starting with measured value display)
1.
F
2. Select the Block (e.g. USER INTERFACE)
P
Confirm selection
F
3. Select the group (e.g. CONTROL)
P
Confirm selection
F
4. Select the function group (e.g. BASIC CONFIGURATION)
P
Confirm selection
F
5. Select function (e.g. LANGUAGE)
N
Enter code 53 (only for the first time you access the function matrix)
6.
P
Confirm entry
F
Change function/selection (e.g. ENGLISH)
P
Confirm selection
F
Return to measured value display step by step
7.
Q
> 3 s Return immediately to measured value display
8.
Q
Endress+Hauser
Esc
E
s
– +
E
o
E E
+
–
s
+
–
+
–
E
E
t
p q
E
+ +
– –
s s
+
–
Commissioning
Esc > 3 s
– +
E E E E
r
A0007665
43
