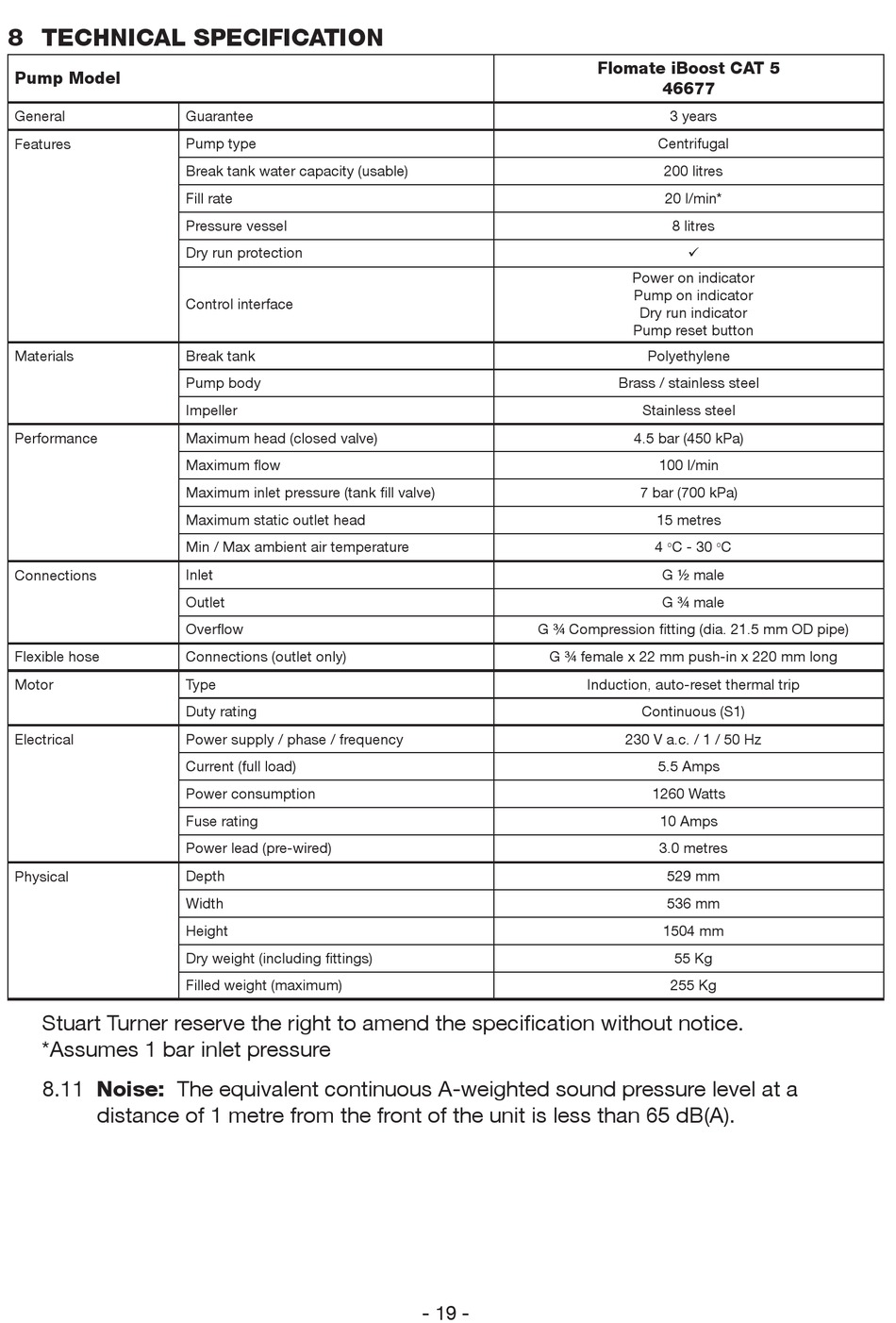

8 TECHNICAL SPECIFICATION

Pump Model
General
Features
Materials
Performance
Connections
Flexible hose
Motor
Electrical
Physical
Stuart Turner reserve the right to amend the specification without notice.
*Assumes 1 bar inlet pressure
8.11 Noise: The equivalent continuous A-weighted sound pressure level at a
distance of 1 metre from the front of the unit is less than 65 dB(A).
Guarantee
Pump type
Break tank water capacity (usable)
Fill rate
Pressure vessel
Dry run protection
Control interface
Break tank
Pump body
Impeller
Maximum head (closed valve)
Maximum flow
Maximum inlet pressure (tank fill valve)
Maximum static outlet head
Min / Max ambient air temperature
Inlet
Outlet
Overflow
Connections (outlet only)
Type
Duty rating
Power supply / phase / frequency
Current (full load)
Power consumption
Fuse rating
Power lead (pre-wired)
Depth
Width
Height
Dry weight (including fittings)
Filled weight (maximum)
G ¾ Compression fitting (dia. 21.5 mm OD pipe)
G ¾ female x 22 mm push-in x 220 mm long
Induction, auto-reset thermal trip
- 19 -
Flomate iBoost CAT 5
46677
3 years
Centrifugal
200 litres
20 l/min*
8 litres
ü
Power on indicator
Pump on indicator
Dry run indicator
Pump reset button
Polyethylene
Brass / stainless steel
Stainless steel
4.5 bar (450 kPa)
100 l/min
7 bar (700 kPa)
15 metres
4 C - 30 C
o o
G ½ male
G ¾ male
Continuous (S1)
230 V a.c. / 1 / 50 Hz
5.5 Amps
1260 Watts
10 Amps
3.0 metres
529 mm
536 mm
1504 mm
55 Kg
255 Kg
