Stuart Turner Flomate iBoost CAT 5 Installation, Operation & Maintanance Instructions page 10

Step 2

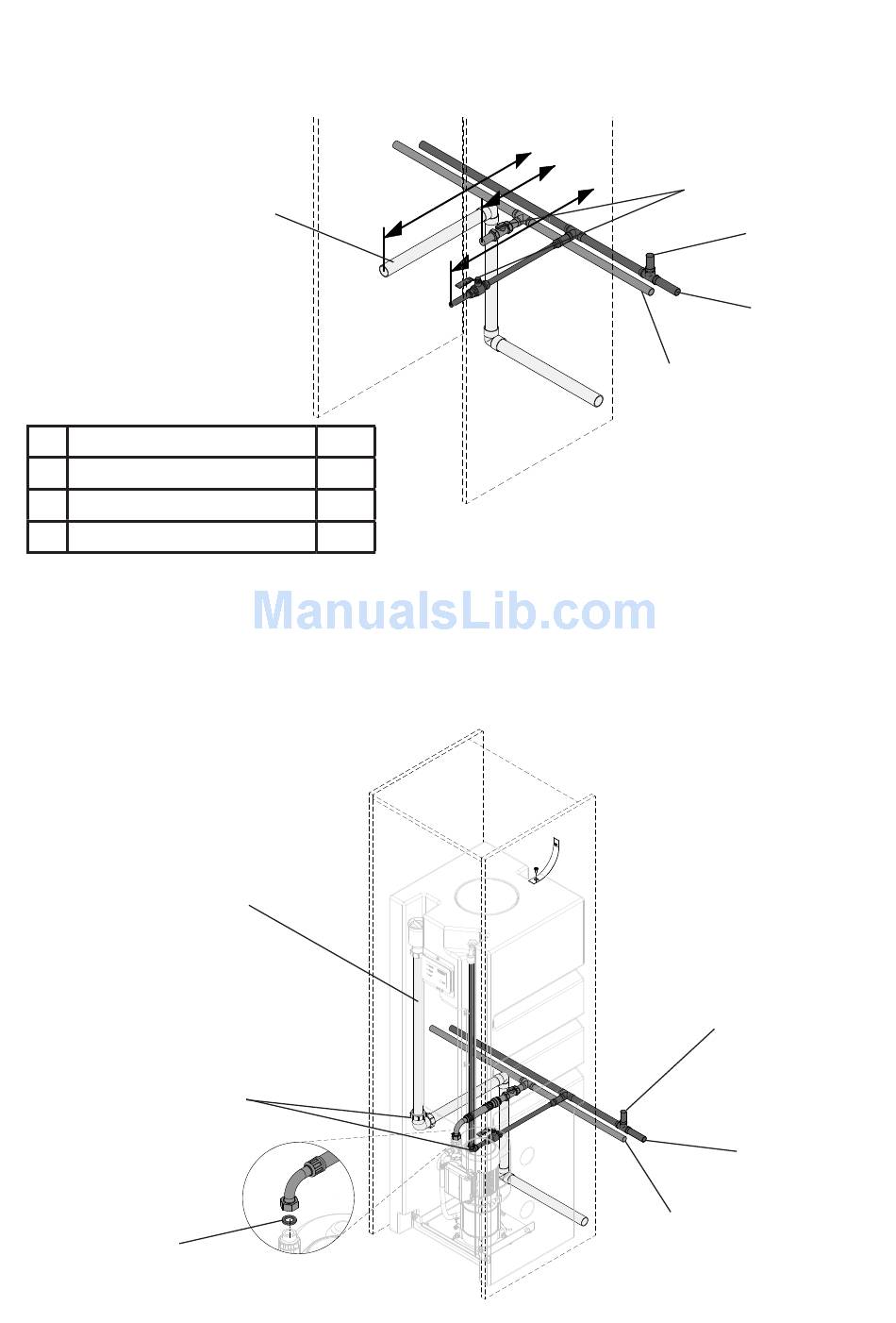

Run the mains water, pumped water supply and overflow to the template
positions and make the pipe length as detailed in Fig 6.
Overflow
Length of pipework from wall*
A Overflow
B Pumped water (iBoost outlet)
C Mains water supply
Step 3
Slide the iBoost into position in front of the services leaving approximately
50 mm gap between the iBoost and the wall behind.
Connect the services using isolation valves and demountable fittings (push-fit or
compression) where shown in Fig. 7. The positioning of these fittings allow the
iBoost to be removed without cutting pipes or draining the system.
Overflow
Demountable
fittings
Sealing washer
mm
520
220
*Lengths are dependent on fittings used
530
Fig. 7
B
C
A
Fig. 6
- 10 -
Isolating valve
Non-pumped
water supply
Mains water
supply
Pumped water
supply
Non-pumped
water supply
Mains water
supply
Pumped water
supply
Cont ...
