6 COMMISSIONING / STARTING
6.11 The iBoost is fitted with a user interface, this has the following indicator lights
A) Green - illuminated when the mains power is supplied to the iBoost
B) Orange - illuminated when the pump is running
C) Red
The user interface also has a 'Reset' button (D), this is only functional when the
red 'Error' light is illuminated.
6.12 The supply of water from the storage tank can be isolated from the pump by use
of the isolation valve behind the pump.

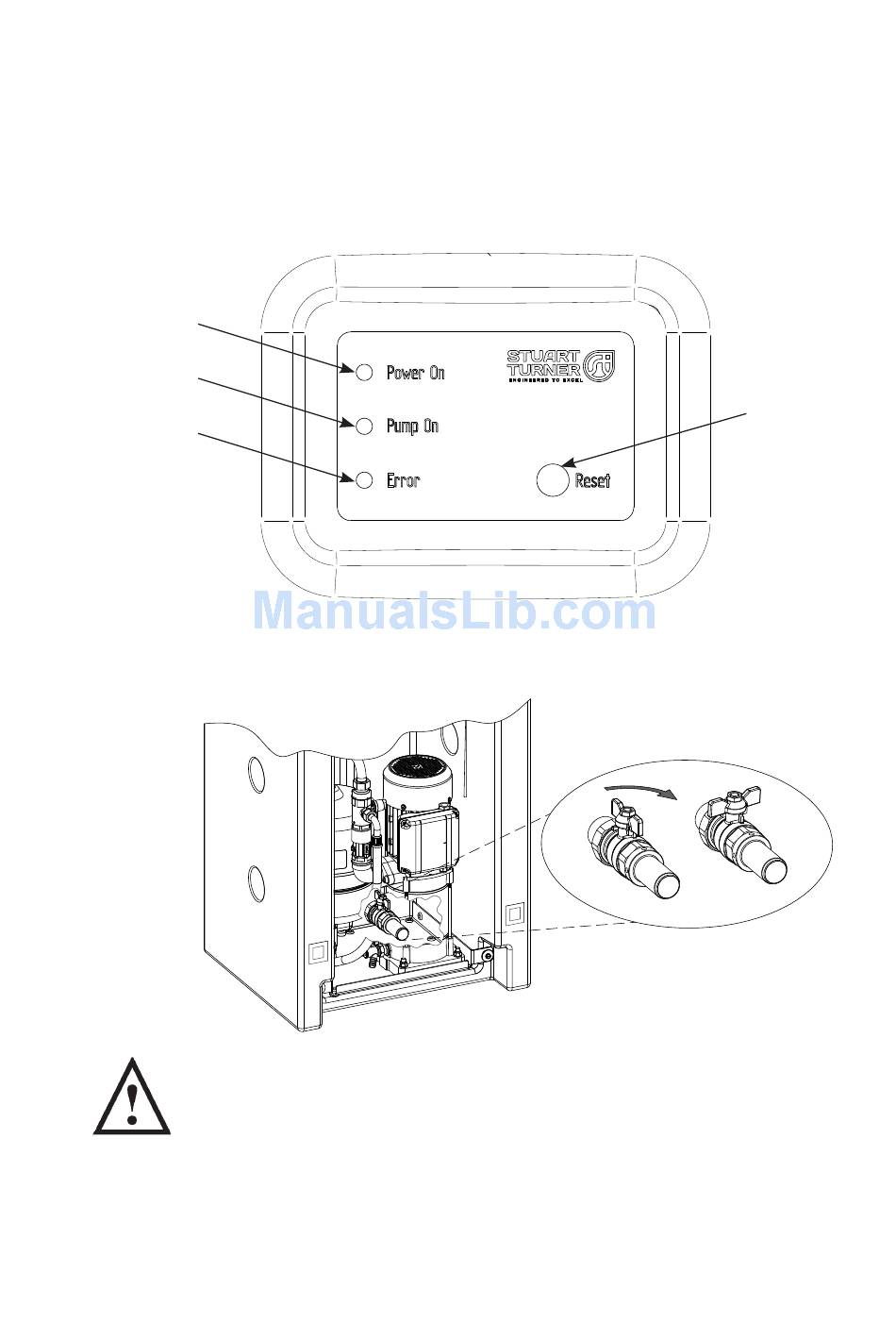

Fig. 13
6.14 Water Supply: Always ensure that water supply is adequate to meet the
demand. Ensure the pump chamber is full of water before starting the pump.
Failure to do this could result in seal damage. To ensure dry running does not
occur the pump must be primed as described in priming section below.
Do not run pump dry.
- illuminated when the iBoost runs out of water and is in dry run
protection mode.
A
B
C
Fig. 12
6.13 System Flushing
The pipework system should be flushed out prior to the iBoost
being connected to ensure any contaminants/chemical residues
and foreign bodies are removed from elsewhere in the system.
- 15 -
D
