Summary of Contents for King Industrial KC-1700WM-VS
-

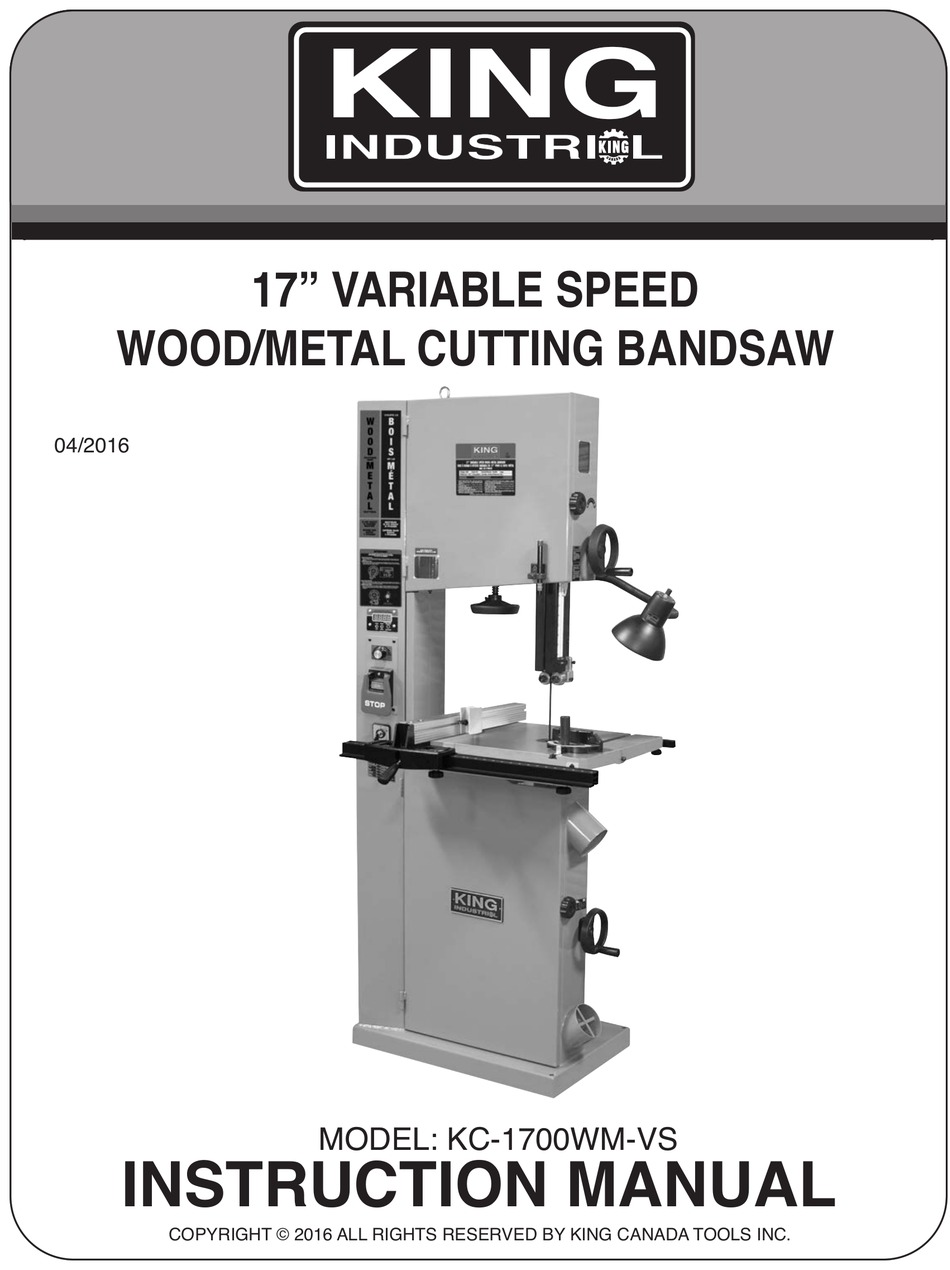

Page 1: Instruction Manual

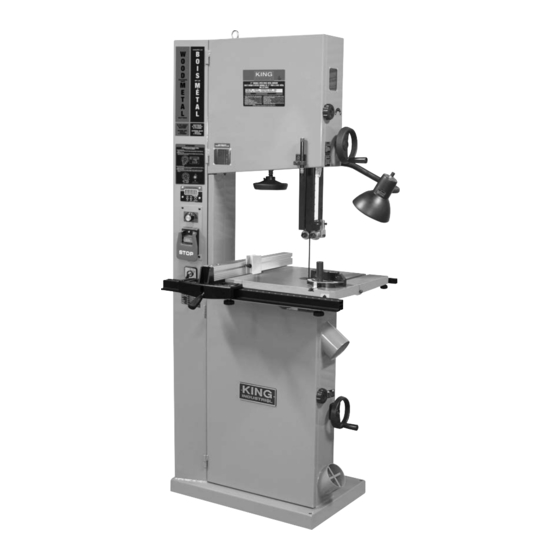

17” variable speed wood/metal cutting bandsaw 04/2016 instruction manual MODEL: KC-1700WM-VS COPYRIGHT © 2016 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC. -
Page 2: Replacement Parts
warranty inFormation & speciFications 2-year king canada tools LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS 17” WOOD/METAL BANDSAW FOR NON COMMERCIAL USE. prooF oF purcHase Please keep your dated proof of purchase for warranty and servicing purposes. replacement parts Replacement parts for this product are available at our authorized King Canada service centers across Canada. -
Page 3: General Safety Instructions For Power Tools
general saFety instructions For power tools 1. know your tool 12. always wear saFety glasses. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday eyeglasses only have impact resistant lenses, they are not safety glasses. the tool. - Page 4 getting to know your 17” wood/metal bandsaw 1) Transport hook 17) Laser guide 2) Blade tension viewing window 18) Upper wheel cover lock knob 3) Blade speed digital readout 19) Blade tracking viewing window 4) Variable speed control dial 20) Blade guide lock knob 5) Keyed On/Off control switch 21) Quick release blade tension lever 6) On/Off master switch...
-
Page 5: Electrical Information
electrical inFormation warning! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE BANDSAW DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! warning! 220v 3 pHase motor- input power: 220v 1 pHase power supply general inFormation- 220v single phase operation properly grounded outlet This 17”... -
Page 6: Assembly And Adjustments
assembly & adJustments moving your bandsaw 1. Use a 2000kg. chain hoist connected to the top mounted transport hook to move the bandsaw to the desired location. 2. To ensure sufficient stability and security, bolt the base of the bandsaw to the floor using the 4 mounting holes. - Page 7 assembly & adJustments installing rip fence system with resaw guide 1. Mount the large front rail mounting brackets (A) Fig.5 to the front of the table using hex. bolts. 2. Mount lock knobs (B) and flat square nuts (C) to the mounting brackets as shown.
- Page 8 adJustments & operation cHanging blades loosening upper and lower blade guides for blade removal upper blade guides 1. Loosen cap screws (A) Fig.9 on both sides, turn both cap screws (B) to widen the gap between the ball bearings. 2. Loosen cap screw (C) Fig.9, and move the upper back-up ball bearing shaft (D) backwards away from the blade.
- Page 9 adJustments & operation cHanging blades readjusting the upper and lower blade guide assemblies Note: Make sure blade is tensioned and tracking properly before adjusting the upper or lower blade guide assemblies. 1. Adjust the upper ball bearing guides (A) Fig.13 as far forward as possible to the blade gullets (B).
-
Page 10: Controls And Operation
controls & operation controls digital readout In order for the digital readout (A) Fig.16 to indicate the correct speed range (Wood or Metal), press the “Selection” button (B). The corresponding mode “Wood” LED (C) or “Metal” LED (D) will light up when selected. variable speed control dial The variable speed control dial (E) Fig.16 adjusts the blade speed and can be adjusted before or during operation. -
Page 11: Electrical Diagram
ELECTRICAL DIAGRAM model: kc-1700wm-vs...
