Page 1: User Manual

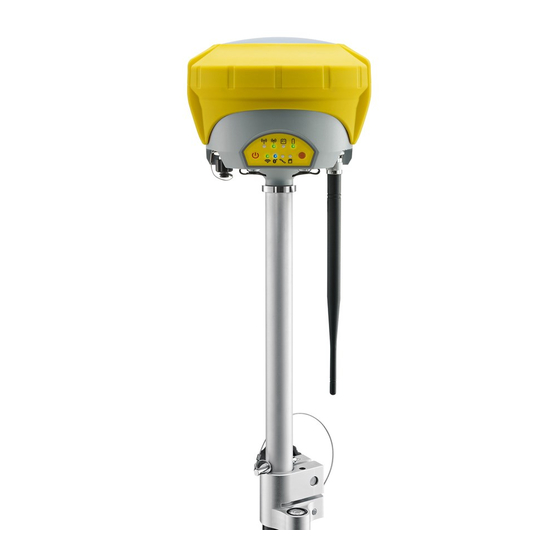

GeoMax Zenith35 Pro Series User Manual Version 1.0 English... - Page 2 Read carefully through the User Manual before you switch on the product. Product identification The model and serial number of your product are indicated on the type plate. Always refer to this information when you contact your agency or GeoMax authorised service workshop. Trademarks •...
-
Page 3: Table Of Contents
Table of Contents In this manual Chapter Page Safety Directions General Introduction Definition of Use Limits of Use Responsibilities Hazards of Use Electromagnetic Compatibility EMC FCC Statement, Applicable in U.S. Description of the System System Components Container Contents System Concept 2.3.1 Software Concept 2.3.2... -
Page 4: Safety Directions
Use after misappropriation. • Use of products with obvious damages or defects. • Use with accessories from other manufacturers without the prior explicit approval of GeoMax. • Inadequate safeguards at the working site. • Controlling of machines, moving objects or similar monitoring application without additional control and safety installations. -
Page 5: Limits Of Use
Responsibilities Manufacturer of the GeoMax AG, CH-9443 Widnau, hereinafter referred to as GeoMax, is responsible for supplying the product, product including the user manual and original accessories, in a safe condition. - Page 6 If the product is used with accessories, for example masts, staffs, poles, you may increase the risk of being WARNING struck by lightning. Precautions: Do not use the product in a thunderstorm. If the product is used with accessories, for example on masts, staffs, poles, you may increase the risk of DANGER being struck by lightning.
-
Page 7: Electromagnetic Compatibility Emc
Electromagnetic radiation can cause disturbances in other equipment. WARNING Although the product meets the strict regulations and standards which are in force in this respect, GeoMax cannot completely exclude the possibility that other equipment may be disturbed. There is a risk that disturbances may be caused in other equipment if the product is used with accessories... -
Page 8: Fcc Statement, Applicable In U
It can also affect humans and animals. Precautions: Although the product meets the strict regulations and standards which are in force in this respect, GeoMax cannot completely exclude the possibility that other equipment can be disturbed or that humans or animals can be affected. - Page 9 Labelling internal battery ZBA601 010004_001 This Class (B) digital apparatus complies with Canadian ICES-003. WARNING Cet appareil numérique de la classe (B) est conforme à la norme NMB-003 du Canada. Zenith35 Pro | 9 Safety Directions...
-
Page 10: Description Of The System
Refer to "4.2.6 Zenith35 Pro WebManager". 2.3.2 Power Concept General Use the GeoMax batteries, chargers and accessories or accessories recommended by GeoMax to ensure the correct functionality of the instrument. Power options Power for the instrument can be supplied either internally or externally. -
Page 11: Data Storage Concept
2.3.3 Data Storage Concept Description GNSS raw data can be recorded on the microSD card or internal memory. Data storage device Unplugging connecting cables or removing the microSD card during the measurement can cause loss of data. Only remove the microSD card or unplug connecting cables when the instrument is switched off. -
Page 12: The Mechanical Reference Plane, Mrp
The Mechanical Reference Plane, MRP Description The Mechanical Reference Plane: • is where the instrument heights are measured to. • is where the phase centre variations refer to. • varies for different instruments. MRP for instrument The MRP for the instrument is shown in the diagram. a) The Mechanical Reference Plane is the under- side of the thread. -
Page 13: User Interface
User Interface Keyboard Using the keyboard a) ON/OFF key b) Function key 010015_001 ON/OFF key Function ON/OFF If Zenith35 Pro is off: Turns on Zenith35 Pro when held for 2 s. While the Zenith35 Pro is booting the two Power LEDs flash. If Zenith35 Pro is already on: Turns off Zenith35 Pro when held for 2 s. -
Page 14: Led Indicators
LED Indicators LED indicators Description The Zenith35 Pro has Light Emitting Diode indicators. They indicate the basic instrument status. Diagram a) RTK Base LED b) RTK Rover LED c) Power LED d) Wi-Fi LED 010017_001 e) Bluetooth LED Position LED g) Storage LED Description of the LEDs IF the... -
Page 15: Operation
Operation Guidelines for Correct Results with GNSS Surveys Undisturbed satellite Successful GNSS surveys require undisturbed satellite signal reception, especially at the instrument which signal reception serves as a base. Set up the instrument in locations which are free of obstructions such as trees, buildings or mountains. -
Page 16: Setting Up As A Post-Processing Base
4.2.2 Setting up as a Post-Processing Base The following equipment setup is used for static operations over markers. Equipment setup - Zenith35 Pro a) Zenith35 Pro instrument b) ZBA601 battery c) ZCA100 carrier d) Tribrach e) Tripod Handheld 010030_001 Equipment setup step- Step Description by-step... -
Page 17: Fixing The Handheld To A Holder And Pole
Equipment setup step- Step Description by-step Attach the ZHR200 holder to the ZPC200 pole. Refer to "4.2.4 Fixing the handheld to a holder and pole". Clip the handheld into the holder and lock it by tighten the screw on the holder. Turn on the handheld. -
Page 18: Connecting To A Personal Computer
The instrument is connected to a Personal Computer via serial/USB cable. Install software Step Description Start the PC. Download the cable driver from the GeoMax website. Install the cable driver on a PC using a Windows operating system. Connect instrument to 010032_001 Step Description Start the PC. -
Page 19: Batteries
• For Li-Ion batteries, a single discharging and charging cycle is sufficient. We recommend carrying out the process when the battery capacity indicated on the charger or on a GeoMax product deviates signif- icantly form the actual battery capacity available. -
Page 20: Inserting And Removing The Battery
4.3.2 Inserting and removing the Battery Change battery step-by- step 010034_001 010034_001 Step Description The battery is inserted at the side of the instrument. To remove a battery, push the slide fastener of the battery compartment in the direction of the arrow with the open-lock symbol and open the battery compartment. - Page 21 Inserting a microSD card Step Description Removing the microSD card while the instrument is turned on can cause loss of data. Only remove the microSD card or unplug connecting cables when the instrument is switched off. The microSD card is inserted into a slot inside the battery compartment of the instrument. Push the slide fastener of the battery compartment in the direction of the arrow with the open- lock symbol.
-
Page 22: Care And Transport
Shipping When transporting the product by rail, air or sea, always use the complete original GeoMax packaging, transport container and cardboard box, or its equivalent, to protect against shock and vibration. -
Page 23: Technical Data
Accuracy is dependent upon various factors including the number of satellites tracked, constellation geom- etry, observation time, ephemeris accuracy, ionospheric disturbance, multipath and resolved ambiguities. The accuracies, given as root mean square, are based on measurements processed using GeoMax Geo Office and on real-time measurements. -
Page 24: Technical Data
6.1.5 Technical Data Height: 131 mm (5.2") Dimensions Diameter: 161 mm (6.3") Zenith35 Pro: 1.170 kg (without battery) Weight Recording GNSS raw data can be recorded on a microSD card or internal memory. 1 GB capacity is typically sufficient for about 7000 h dual frequency logging at a 15 s rate (average constellation). -
Page 25: Conformity To National Regulations
• Hereby, GeoMax AG, declares that the product Zenith35 Pro is in compliance with the essential require- ments and other relevant provisions of Directive 1999/5/EC and other applicable European Directives. The declaration of conformity is available from GeoMax AG. -
Page 26: Dangerous Goods Regulations
IATA Dangerous Goods Regulations. GeoMax has developed Guidelines on “How to carry GeoMax products” and “How to ship GeoMax products” with Lithium batteries. Before any transportation of a GeoMax product, we ask you to consult these guidelines on our web page (http://www.geomax-positioning.com/dgr) to ensure... - Page 28 GeoMax Zenith35 Pro Series 848674-1.0.0en Original text © 2016 GeoMax AG, Widnau, Switzerland GeoMax AG www.geomax-positioning.com...
