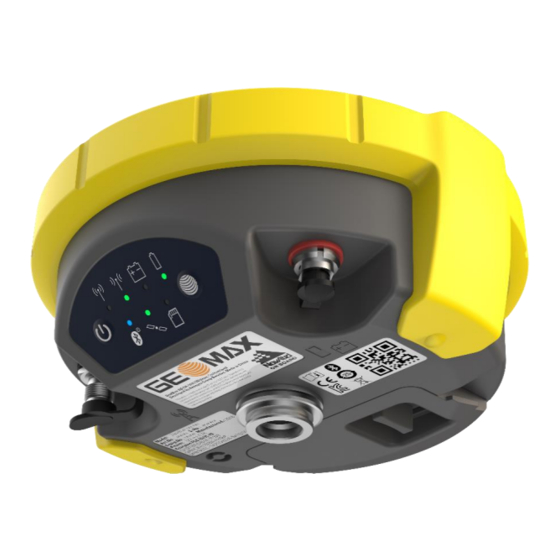

16/40 F ENITH IRMWARE ON ICRO CARD Visit GeoMax Downloads to check for the current versions of both System and GNSS firmware’s. Download the files and store them on the provided MicroSD card in the SYSTEM folder. 2.2 B ATTERY HARGING Before using the receiver, the included ZBA201 batteries should be charged.
ECEIVER CONNECTION WITH ENITH ANAGER Locate the Zenith Manager software on the Zenith16/40 folder on the GeoMax partner area and download it to your PC. Run Setup_Zenith_Manager.exe and follow the instructions of the installer. Click on the Zenith Manager icon of your desktop to launch it.
Page 7
If the firmware is older as the one downloaded from the GeoMax partner Area, it is recommended to perform an update. To update the receiver firmware, download the respective *.FW file, copy to the SYSTEM directory on a MicroSD card and insert it into the Zenith16/40 receiver.
All available GeoMax GNSS antennas are currently supported in the antenna management by default. If your Base-Rover set up will include a non GeoMax device, you should make sure the base antenna is recognised on the Zenith16/40. To do that, it’s needed to add this specific antenna manually with the Zenith Manager.
When working with the UHF radio, ensure the correct frequency and protocol are set as described in section 3.5. Attach a radio antenna suitable for the set frequency. The following UHF antennas can be ordered from GeoMax: - 16 -...
For long range RTK, a high powered radio can be used at the base station. Available from GeoMax is the 789359 Satel EASyPro 35W radio. This radio is connected to the receiver and an external power supply, with the 797024 ZDC225 cable. The cable needs to be connected to the Lemo port of the receiver.
