  • Page 1 Zenith35 First Steps Video https://youtu.be/M6D_NgtS8EU...
  • Page 2 Topics Introduction • Z35 first steps • Web interface connection • Firmware upgrade • UHF Settings • License installation • Antenna file upload • Z35 field sw configuration • Z35 safe mode feature •...

  • Page 3: Needed Equipment

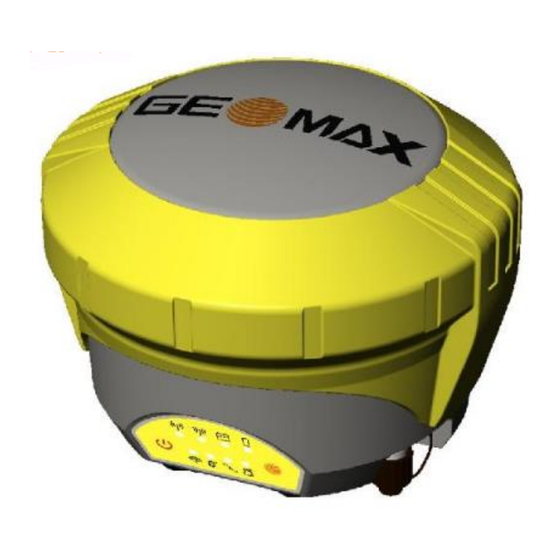

    Needed equipment Zenith35 GNSS receiver • Device with Wi-Fi connection (PC, smartphone, etc..) to • access web interface Web browser (IE, Chrome, Firefox, etc..) • GeoMax Partner area login •...

  • Page 4: Web Interface

    Web interface To access to the web interface the device (PC,  smartphone, controller, etc..) must connect to the Z35 Wi-Fi network Search for Z35 Wi-Fi network (it is named with Z35 serial  number) Connect to the Wi-Fi network and open an internet ...
  • Page 5 Web interface Connect to the Wi-Fi network and open an internet  browser...
  • Page 6 Web interface Once an internet browser has been opened, digit the  following internet page http://192.168.10.1 A login window pops--up ...
  • Page 7 Web interface Default values for login are  User: admin Password: password After a succesful login the web interface happear  Click on top right of the screen to change the interface  language...

  • Page 8: Firmware Upgrade

    Firmware upgrade Login in geomax partner area and open the folder  GeoMax > GNSS > Zenith35 Series > Firmware Download the Z35 firmware file  Before to upload the new one check in Status info –  Device info that the firmware need to be upgraded...
  • Page 9 Firmware upgrade If you need to upgrade the firmware in web interface go  to Updates Choose the downloaded firmware from the PC and click on  Upload...
  • Page 10 Firmware upgrade Accept the warning message and wait for confirmation  message Then unit will restart ...
  • Page 11 Firmware upgrade Accept the warning message and wait for confirmation  message Then unit will restart ...
  • Page 12 UHF Settings To define the UHF settings you can use the web interface  Open the UHF settings in Settings and select UHF as real  time datalink When you click on Advanced UHF settings you are asked  to enter a password To meet some coutries restriction UHF frequencies are ...
  • Page 13 UHF Settings When logged, enter the desired  settings • Frequency • Protocol (Satel, PacCrest, Trimtalk) • Spacing • Error checking Press Save Settings to confirm ...

  • Page 14: License Installation

    License installation The following licenses are optional:  • Beidou • 20Hz • GPS L5 frequency If you order an optional license you will receive a key file  that need to be uploaded To update a license select Updates -> License key ...
  • Page 15 License installation Select the .key file from the PC  Click on Upload to load the license file to the receiver  A manual entry of the license is not permitted ...
  • Page 16 This don’t apply if you are working in a network; the  network always use ADVNULLANTENNA If your Z35 works as rover and the base is not a Geomax  antenna, you need to know the phase center offsets of the...
  • Page 17 Antenna file upload Download from Geomax partner area the antenna file  Click on Upload – Antenna file to upload the new antenna  file you have downloaded...
  • Page 18 To configure the field controller and the field software,  proceed in the standard way Verify that the field software is the last version available  and the Zenith35 firmware is upgraded XPAD version 2.7.000  GeoMax Fieldgenius 8.1.15.4 and Layout 2.4.15.3 ...
  • Page 19 Focus on Safe mode With Zenith35 the user can configure the accuracy level  On field software or on web interface is possible to  activate/deactivate the safe mode When a point must be saved with maximum reliability is ...
  • Page 20 Focus on Safe mode Standard enviroment  • SAFE MODE OFF and SAFE MODE ON the accuracy and the time to fix is the same Severe enviroment  • SAFE MODE ON the accuracy is better but time to fix is increased In standard enviroment there is no different in accuracy ...
  • Page 21 Thanks for your attentions Any question? For comment/suggestion please send an email to: webinar@geomax-positioning.com...
