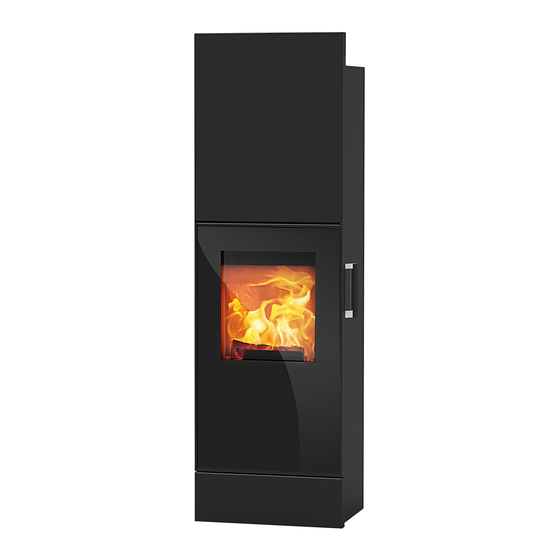

Related Manuals for RIKA IMPERA
Summary of Contents for RIKA IMPERA
- Page 1 IMPERA / XL Operating Manual...
-
Page 2: Table Of Contents
Amount of fuel ......................................3 Technical data ......................................3 Packaging .........................................3 Spare part overview exploded diagram Impera ............................4 Spare part overview exploded diagram Impera XL ..........................6 Spare part overview article numbers Impera ............................8 Spare part overview article numbers Impera XL ............................9 2. IMPORTANT INFORMATION General warning and safety information ..............................10... -
Page 3: Preface
...Useful ...Allen ...Manually ...Hacksaw note key #4 Dimensions Technical data RO-T2 RO-S Description Measure Impera Impera XL RO-T3 Heating capacity range [kW] 3 - 6 4 - 8 Room heating capacity [m³] 70 - 160 90 - 210 depending on house coating... -
Page 4: Spare Part Overview Exploded Diagram Impera
Spare part overview exploded diagram Impera... -
Page 6: Spare Part Overview Exploded Diagram Impera Xl
Spare part overview exploded diagram Impera XL... -
Page 8: Spare Part Overview Article Numbers Impera
Spare part overview article numbers Impera Art.Nr.: Description Art.Nr.: Description Z34837 Decorative glass 55 *1 B17867 Convection cover AH complete Z35138 Door bracket top N110017 Allen screw L02290 Spacer bar above Z35123 Slider handle L02516 Glass frame top L02512 Rear wall top... -
Page 9: Spare Part Overview Article Numbers Impera Xl
Spare part overview article numbers Impera XL Art.Nr.: Description Art.Nr.: Description Z34835 Decorative glass Z35123 Slider handle Z35021 Door bracket top L02523 Rear wall top L02518 Glass frame top L02524 Rear wall bottom 3 *1 Z35361 Glass frame top 56 *1... -
Page 10: Important Information
> 80 cm b > 20 cm RIKA stoves should only be installed in rooms with normal humidity (dry areas according to VDE 0100 Part 200). The furnaces are not splash water please observe a minimum distance of 20 cm behind and sideways the stove protected and may not be installed in wet areas. -
Page 11: Prior To Set Up
Prior to set up Stoves type 1 (BA 1): Suitable for multiple occupancy. (Note the different country regulations.) Floor bearing capacity Ensure that the substructure is capable of bearing the weight of the stove prior These may only be operated with the combustion chamber door closed. to set-up. -
Page 12: Brief Information On Combustible Logs
3. BRIEF INFORMATION ON COMBUSTIBLE LOGS Suitable fuels and fuel amounts Output controlling Your stove is generally suitable for burning dry firewood. You can also burn The output of your stove is regulated manually or via the Rikatronic-control. combustibles such as wood briquettes. Please observe that the output of your stove also depends on the chimney draught and the amount of fuel added. -
Page 13: Installing The Stove
Cut the perforated rear wall out with a hacksaw. or carpet. We recommend original flue pipes from RIKA for proper connection. Connect at the air intake either a pipe Ø125mm (log wood and combi stoves) or Ø50mm (pellet stoves) and fix it with a hose clamp (not included!). -
Page 14: Manual Operation
2. Now place further pieces of chipboard in crosswise layers on top of the logs 0% primary air and place 2-4 ribs of the RIKA-firelighter on the left on top of the chipboard. middle position Some uncoated paper can be placed underneath the chipboard in case there is 100% secondary air no firelighter available. -
Page 15: Cleaning And Maintenance
6. CLEANING AND MAINTENANCE Now you can remove the top baffle plate. Basic information Note When you vacuum clean around the stove ensure that you do not vacuum into the combustion air intake during heating operation. You could vacuum out embers –... -
Page 16: Empty The Ash Drawer
Empty the ash drawer Cleaning the convection air openings Empty the ash drawer regularly. You can simply pull forward the ash drawer Vacuum clean any dust deposits from the convection air openings at regular with open fire door intervals. The stove should be cleaned thoroughly prior to the start of the heating season to prevent excess odour. -
Page 17: Assembly / Disassembly
Changing to rear connected flue gas Remove the stove cover by simply lifting Remove the rear panel and cut it out along the perforation. Finally the rear wall and the optional stove cover (# E15266-Impera, # E15403 Impera XL) can be mounted... -
Page 18: Problems Possible Solutions
8. PROBLEMS POSSIBLE SOLUTIONS Problem 1 Problem 2 Fire burns with weak, orange flame, window is sooted up. Stove smells strongly and / or fumes are emitted. Cause(s) Cause(s) Poor chimney draught Burning-in phase (taking into service) Damp wood Stove has accumulated dust and/or dirt Possible solution(s) Incorrect heating up Wait to end of burning-in phase and vent sufficiently... -
Page 19: Guarantee
In case of doubt as well as missing or incorrect translations, the German version is the only valid one. For the purpose of timely damage limitation, the warranty claim on the part of the claimant is to be enforced at the RIKA dealer in writing using the invoice and stating the purchase date, model name, serial number and reason for complaint. - Page 20 Technical and design changes, as well as typesetting and printing errors reserved © 2017 | RIKA Innovative Ofentechnik GmbH RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20 Telefon: +43 7582 686 - 41, Fax-DW: 43 E-Mail: verkauf@rika.at RIKA.AT...
