Summary of Contents for RIKA Signum

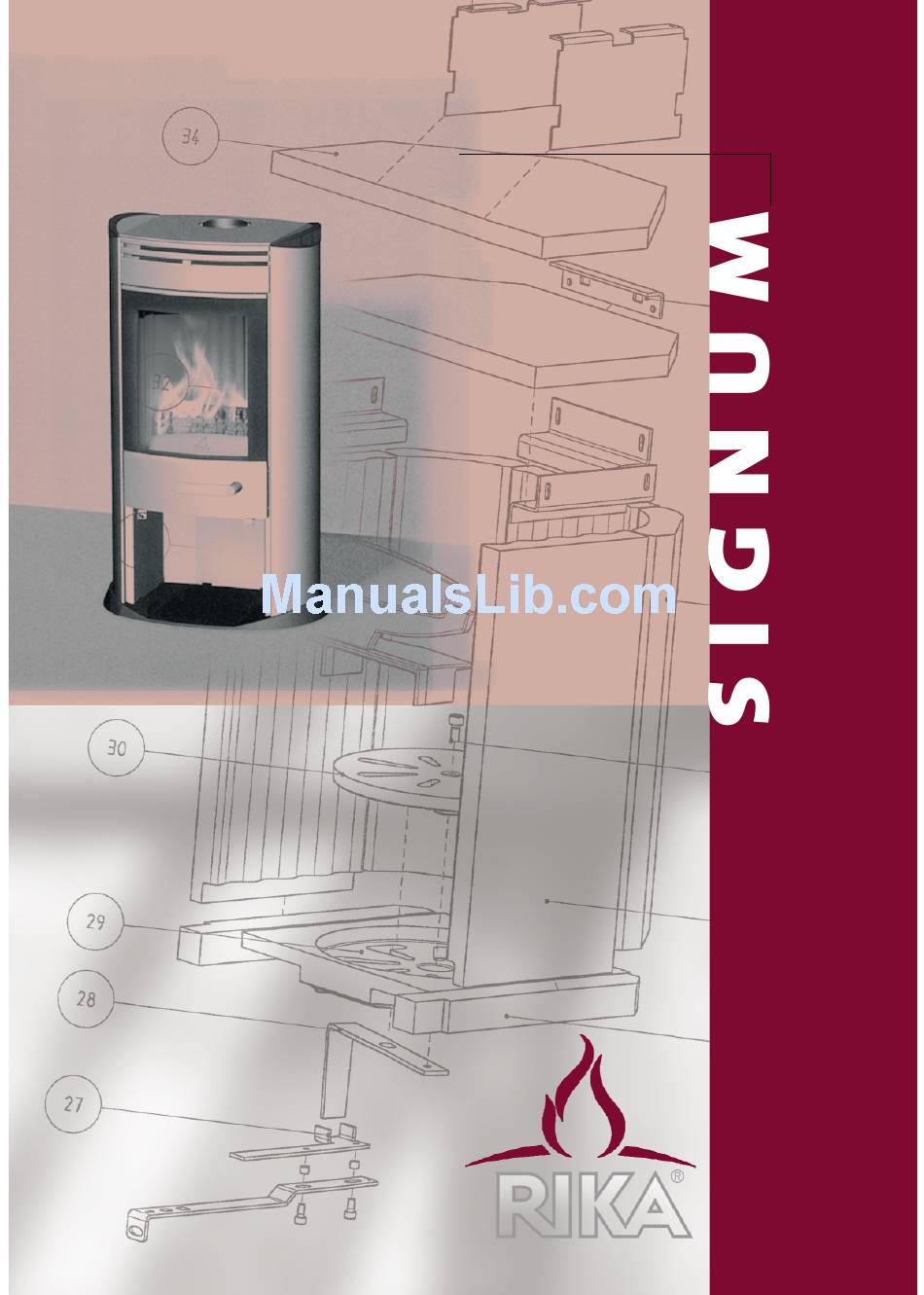

  • Page 1 M A N U A L R I K A - K A M I N Ö F E N D i e S e e l e I h r e s H e i m e s...
  • Page 2 Fig. 1 Fig. 2...
  • Page 3 Fig. 3 Fig. 4...
  • Page 4 Fig. 5 Fig. 6...
  • Page 5 Fig. 7 Fig. 8...

  • Page 6: Table Of Contents

    Overview of technical data and spare parts 1. I M P O R TA N T I N F O R M AT I O N General warning and safety instructions Before installing the appliance 20 - 21 INFORMATION ON HEATING PRACTICE Suitable fuels and quantities Fuel quantities Maximum fuel quantities...
  • Page 7 T E C H N I C A L D A T A S P A R E P A R T S - O V E R V I E W (Fig. 1) (Fig. 3 to Fig. 8) As a domestic heater of construction type 1, DESCRIPTION 01 Cooking plate lid this unit can be connected to a flue that has...

  • Page 8: I M P O R Ta N T I N F O R M At I O N

    1 . I M P O R T A N T I N F O R M A T I O N The placing of non-heat resistant objects GENERAL WARNING AND SAFETY INSTRUCTIONS on or near the heating appliance is prohi- bited.
  • Page 9 1 . 7 1 . 3 Be sure to note the build-up of flue gases When opening the doors on your appliance under unfavourable weather conditions and when actuating the controls, use the (Weather inversion) and the flue draft tools provided with your heater for these behaviour.

  • Page 10: Information On Heating Practice

    I N F O R M A T I O N O N H E A T I N G P R A C T I C E SUITABLE FUELS AND QUANTITIES MAXIMUM FUEL QUANTITIES Your appliance is basically suitable for Wood: the burning of dry chopped firewood.

  • Page 11: Clean Combustion

    Satisfying the challenges of our time 2. THE CORRECT QUANTITY AND SIZES OF WOOD FUEL implies the acceptance of responsibility. The conservation of nature is now one of Too much wood fuel results in overhea- our greatest challenges. Our products are ting.

  • Page 12: I N S Ta L L At I O N O F T H E A P P L I A N C E

    2 . I N S T A L L A T I O N O F T H E A P P L I A N C E 4. When the mortar has hardened and CHANGING THE DRAW PLATE (Fig. 4) after the filling and smoothing , position the base plate and floor protection If the draw plate or the draw-deflector is to...

  • Page 13: O P E R At I O N

    3 . O P E R A T I O N FIRING UP Now ignite the paper. Wait until the soft- In order to suppress the emission of pollu- wood chippings are burning well. tants as far as possible, we would ask you - Several minutes later, close the vibrating for the sake of the environment - to adhere grate actuator and the primary air damper.

  • Page 14: The Ash Drawer

    ACTUATION OF THE VIBRATING GRATE The translatory motion of the vibrating grate actuator causes the ash to be transfe- red from the combustion chamber to the ash drawer. This leaves the path clear in the combus- tion chamber for primary air - necessary for the heating-up phase.

  • Page 15: I N S Ta L L At I O N O P T I O N S

    4 . I N S T A L L A T I O N O P T I O N S REMOVE THE SMOKE TUBE 4. Exchange the smoke tube outlets (Fig. 3, CONNECTION FROM THE TOP Part 2) (3 x cross slit screws + washers + TO THE REAR nuts) and cooking plate lid (3 x cros slit (Fig.

  • Page 16: C L E A N I N G A N D M A I N T E N A N C E

    The grey surface of the appliance is highly GENERAL MAINTENANCE heat-resistant and need only be cleaned Your SIGNUM appliance has been designed using a cloth (dampened if necessary). If by our development team with the con- the surface needs to be restored, then use...

  • Page 17: Troubleshooting

    T R O U B L E S H O O T I N G What to do if ...? Problem Reason Solution Basically: From time to time (depen- 1. Ceramic glass ding on usage), each glass pane soots up too quickly pane must be cleaned using a special glass cleaner (e.g.
  • Page 18 C O S A G A R A N T I A M O N O U S G A R A N T I S S O N S 5 anni per un funzionamento corretto di tutte le parti in Nous garantissons pendant 5 ans la fonction irréprochable acciaio.

  • Page 19: G U A R A N T E E

    W I R G A R A N T I E R 5 Jahre für eine einwandfreie Funktion von allen Bauteilen 5 years unimpared functioning of all steel components. aus Stahl. Die Garantie umfaßt Defekte an Material und The Guarantee includes material defects and defective Verarbeitung.

This manual is also suitable for:
