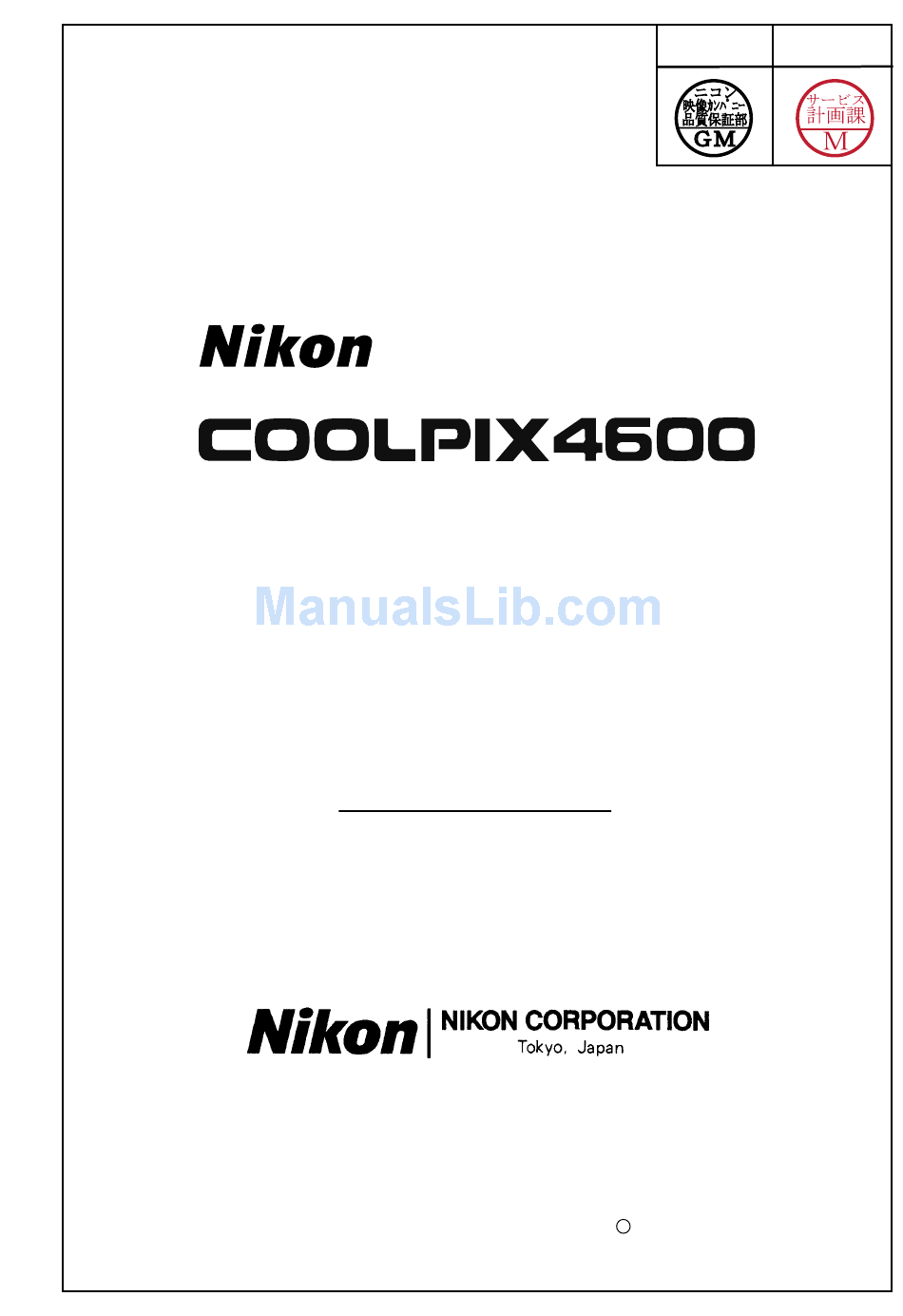

VAA32001-R.3652.A
作成承認印 配布許可印
就爱技术网 http://www.92jishu.cn
VAA32001
REPAIR MANUAL
Copyright ｃ 2005 by Nikon Corporation.
All Rights Reserved.
無断転載を禁ず !!
Printed in Japan February 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Coolpix 4600 and is the answer not in the manual?

Questions and answers

Related Manuals for Nikon Coolpix 4600

Summary of Contents for Nikon Coolpix 4600

  • Page 1 VAA32001-R.3652.A 作成承認印 配布許可印 就爱技术网 http://www.92jishu.cn VAA32001 REPAIR MANUAL Copyright ｃ 2005 by Nikon Corporation. All Rights Reserved. 無断転載を禁ず !! Printed in Japan February 2005...
  • Page 2 VAA32001-R.3652.A CONTENTS SPECIFICATIONS ･････････････････････････････････････････････････････････････････････････ Ｍ１－Ｍ２ Disassembly WARNING ･･････････････････････････････････････････････････････････････････････････････････ Ｄ１ REAR COVER･･･････････････････････････････････････････････････････････････････････････････ Ｄ２ DISASSEMBLY OF REAR COVER ･････････････････････････････････････････････････････････････ Ｄ３ Discharging of main condenser ･･････････････････････････････････････････････････････････････････ Ｄ４ FRONT COVER ･････････････････････････････････････････････････････････････････････････････ Ｄ５ DISASSEMBLY OF FRONT COVER ･･････････････････････････････････････････････････････ Ｄ６ーＤ７ 就爱技术网 http://www.92jishu.cn TRIPOD SOCKET････････････････････････････････････････････････････････････････････････････ Ｄ８ LCD ･･･････････････････････････････････････････････････････････････････････････････････････ Ｄ８ SPEAKER HOLDER･･････････････････････････････････････････････････････････････････････････...
  • Page 3 VAA32001-R.3652.A ASSEMBLY OF FIXED BARREL ･･･････････････････････････････････････････････････････････････ Ａ３ FIXED BARREL ･････････････････････････････････････････････････････････････････････････････ Ａ４ CCD FRAME････････････････････････････････････････････････････････････････････････････････ Ａ５ ASSEMBLY OF ZOOM MOTOR UNIT ･･････････････････････････････････････････････････････････ Ａ６ ZOOM MOTOR UNIT ････････････････････････････････････････････････････････････････････････ Ａ７ FFD Inspection and adjustment (*FFD:Flange Focal Distance) ･････････････････････････････････････････ Ａ８ 　Preparation ････････････････････････････････････････････････････････････････････････････････ Ａ８ 　FFD inspection and adjustment ････････････････････････････････････････････････････････ Ａ８－Ａ１０ 　FFD adjustment ･･････････････････････････････････････････････････････････････････････････...
  • Page 4 VAA32001-R.3652.A CCD BLOCK DIAGRAM ････････････････････････････････････････････････････････････････････ Ｅ１８ LENS BLOCK DIAGRAM ･･･････････････････････････････････････････････････････････････････ Ｅ１９ ASIC BLOCK DIAGRAM ･･･････････････････････････････････････････････････････････････････ Ｅ２０ SYSTEM CONTROL BLOCK DIAGRAM ･･････････････････････････････････････････････････････ Ｅ２１ POWER BLOCK DIAGRAM ･････････････････････････････････････････････････････････････････ Ｅ２２ FUSE arrangement (CP1 PCB) ････････････････････････････････････････････････････････････････ Ｅ２３ INSPECTION STANDARDS･･･････････････････････････････････････････････････････････････ Ｒ１－Ｒ１０ Tool List ･････････････････････････････････････････････････････････････････････････････････ Ｔ１－Ｔ５ 就爱技术网...
  • Page 5 VAA32001-R.3652.A Disassembly ������� � ����������������������������������������������������������������������� �������������������������� ������������������������������������������������������������������ �������������������������������������������������� Points to notice for Lead-free solder products ・ Lead-free solder is used for this product. 就爱技术网 http://www.92jishu.cn ・ For soldering work, the special solder and soldering iron are required. ・ Do NOT mix up lead-free solder with traditional solder. ・...

  • Page 6: Rear Cover

    VAA32001-R.3652.A REAR COVER ・ Remove the four screws [#102]. ・ Remove the two screws [#103]. ・ Open the USB cover [#033]. Screw [#102] Screw [#103] 就爱技术网 http://www.92jishu.cn USB cover [#033] Screw [#102] ・ As pushing the top side of the rear cover unit [#030] ・...

  • Page 7: Disassembly Of Rear Cover

    VAA32001-R.3652.A DISASSEMBLY OF REAR COVER ・ Remove the screw [#104]. ・ Remove the earth shaft [#029]. ・ Remove the cover shaft [#009]. ・ Remove the SD cover [#037]. Cover shaft [#009] SD cover [#037] 就爱技术网 http://www.92jishu.cn Earth shaft [#029] Screw [#104] - D3･...
  • Page 8 VAA32001-R.3652.A Discharging of main condenser ������� � ����������������������������������������������������������������������� �������������������������� ������������������������������������������������������������������ �������������������������������������������������� 2KΩ/5W 就爱技术网 http://www.92jishu.cn - D4･ E4600 -...

  • Page 9: Front Cover

    VAA32001-R.3652.A FRONT COVER ・ Remove the solder at 2 places. ・ Remove the FPC. ・ Remove the two screws [#102]. ・ The earth release [#026] can be removed. Earth release [#026] 就爱技术网 http://www.92jishu.cn Screw [#102] Solder ・ Remove the front cover [#013]. Front cover [#013] - D5･...
  • Page 10 VAA32001-R.3652.A DISASSEMBLY OF FRONT COVER ・ Remove the decoration top [#021]. Decoration top [#021] 就爱技术网 http://www.92jishu.cn ・ Remove the two screws [#104]. ・ Unhook the battery holder [#024]. Battery holder [#024] Hook Screw [#104] - D6･ E4600 -...
  • Page 11 VAA32001-R.3652.A ・ Remove the DC cover spring [#012]. ・ Pull out the DC cover [#011]. DC cover [#011] DC cover spring [#012] 就爱技术网 http://www.92jishu.cn ・ Take off the spacer [#019] from the release button ・ Remove the screw [#104]. unit. ・...

  • Page 12: Tripod Socket

    VAA32001-R.3652.A Hook TRIPOD SOCKET ・ Perform unhooking and remove the tripod socket [#201]. Tripod socket [#201] LCD[#239] 就爱技术网 http://www.92jishu.cn ・ Lift up the LCD [#239] and unsolder the lead wires [red] and [white]. ※ The LCD [#239] is adhered with the double-adhesive tape. LCD[#239] ・...

  • Page 13: Monitor Holder

    VAA32001-R.3652.A MONITOR HOLDER ・ Remove the two screws [#102]. ・ Remove the earth release [#228]. ・ Remove the three screws [#104]. ・ Remove the LCD holder [#231]. Screw [#102] Earth release [#228] 就爱技术网 http://www.92jishu.cn Screw [#104] Screw [#102] LCD holder [#231] - D9･...
  • Page 14 VAA32001-R.3652.A SB UNIT ・ Remove the spacer [#039]. ・ Unsolder the lead wires [gray] and [white]. Spacer [#039] 就爱技术网 http://www.92jishu.cn Lead wires [gray] and [white] ・ Unsolder the lead wire [black]. ・ Unsolder the lead wire [pink]. Lead wire [pink] Lead wire [black] ・...

  • Page 15: Wire Holder

    VAA32001-R.3652.A Screw [#102] WIRE HOLDER ・ Remove the screw [#102]. ・ Remove the wire holder [#215]. Wire holder [#215] 就爱技术网 http://www.92jishu.cn TB-1 PCB ・ Perform unhooking and remove the TB-1 PCB [#216]. Hook TB-1 PCB [#216] Wire holder [#215] CONDENSER HOLDER ・...
  • Page 16 VAA32001-R.3652.A LENS UNIT ・ Remove the FPC. ・ Take off the spacer [#225]. 就爱技术网 http://www.92jishu.cn Spacer [#225] ・ Remove the two screws [#106]. ・ The lens unit can be removed. ・ The spacer LPF [#209], the optical filter [#210] and the spacer [#211] can be removed. ・...
  • Page 17 VAA32001-R.3652.A Points to notice when disassembling / (re)assembling Lens unit When the following parts are replaced for repairing the lens unit singularly, the lens unit checking tool is required for the FFD inspection and adjustment. Therefore, at service facilities where there is no tool, do NOT make a replacement ・1st lens group unit ・2nd lens group unit ・3rd lens group unit...

  • Page 18: Finder Unit

    VAA32001-R.3652.A FINDER UNIT ・ Remove the three screws [#429]. ・ Remove the finder unit [#405]. [#405] Screw [#429] 就爱技术网 http://www.92jishu.cn ZOOM MOTOR UNIT ・ Remove the solder of the motor at 2 places. ・ Remove the screw [#430]. ・ Remove the solder of the FPC at 4 places. ・...
  • Page 19 VAA32001-R.3652.A DISASSEMBLY OF ZOOM MOTOR UNIT ・ Pull out the gear shaft D [#419]. ・ Remove the screw [#429] and then remove the gear ・ Remove the zoom gear E [#411]. cover [#403]. Screw [#429] Gear shaft D [#419] Gear cover [#403] 就爱技术网...
  • Page 20 VAA32001-R.3652.A CCD FRAME ・ Remove the solder. ・ Remove the four screws [#431]. ・ Remove the screw [#430]. Screw [#431] Screw [#431] 就爱技术网 http://www.92jishu.cn ・ Remove the lens barrel unit. ・ The finder gear B [#417] can be removed. - D16 ･ E4600 -...

  • Page 21: Barrier Unit

    VAA32001-R.3652.A BARRIER UNIT ・ Take off the name plate seal [#415]. ・ Remove the barrier unit [#407] by turning counterclockwise. Name plate seal [#415] ※ Insert tweezers into the clearance and turn the barrier unit counterclockwise. It will be removed easily.
  • Page 22 VAA32001-R.3652.A FIXED BARREL ・ Take off the FPC sheet [#423]. ・ Push out the turn barrel [#401]. As taking out the shutter FPC, remove the turn barrel [#402]. Turn barrel [#402] 就爱技术网 http://www.92jishu.cn Push out. FPC sheet [#423] Shutter FPC Turn barrel [#401] DISASSEMBLY OF FIXED BARREL ・...
  • Page 23 VAA32001-R.3652.A 2ND LENS GROUP UNIT ・ Turn the key barrel unit [#428] in the W-end direction to the limit. 2nd lens group unit [#426] ・ The 2nd lens group unit [#426] floats a little and can be removed. Key barrel unit [#428] 就爱技术网...
  • Page 24 VAA32001-R.3652.A KEY BARREL・TURN BARREL ・ Pull out the key barrel unit [#428] from the turn barrel [#401]. Key barrel unit [#428] 就爱技术网 http://www.92jishu.cn Shading ring [#424] Turn barrel [#401] 1ST LENS GROUP UNIT ・ Turn the 1st lens group unit [#425] counterclockwise. ・...
  • Page 25 VAA32001-R.3652.A ASSEMBLY 1ST LENS GROUP UNIT ・ Set the 1st lens group unit [#425] into the straight ・ Apply the adhesive (1401B) to 3 places. barrel unit [#427]. Turn the 1st lens group unit [#425] counterclockwise to be level and turn it clockwise to be installed correctly.
  • Page 26 VAA32001-R.3652.A STRAIGHT BARREL ・ Set the lever of the key barrel unit [#428] at the front side. Set the long hole of the straight barrel unit [#427] at the left side. Fit the convex sections to the grooves and then set the straight barrel unit [#427] into the key barrel unit [#428]. Long hole Straight barrel unit [#427] Convex section...
  • Page 27 VAA32001-R.3652.A 2ND LENS GROUP UNIT ・ Set the lever of the key barrel unit [#428] at the front side. Set the notch of the 2nd lens group unit [#426] at the left side. Fit the convex sections to the grooves and set the 2nd lens group unit [#426] into the key barrel unit [#428]. Convex section Notch 2nd lens group unit [#426]...
  • Page 28 VAA32001-R.3652.A FIXED BARREL ・ Insert the shutter FPC into the hole on the side of the ・ Adhere the FPC sheet [#423]. fixed barrel [#402]. ・ Fit the convex sections on the turn barrel [#401] to the grooves on the fixed barrel [#402]. Set the turn barrel [#401] into the fixed barrel [#402].
  • Page 29 VAA32001-R.3652.A CCD FRAME ・ Set the finder gear B [#417] into the lens barrel unit. Then, install the lens barrel unit. Lens barrel unit 就爱技术网 http://www.92jishu.cn Finder gear B [#417] ・ Tighten the four screws [#431]. ・ Insert the FPC of the CCD frame into the boss. ・...
  • Page 30 VAA32001-R.3652.A ASSEMBLY OF ZOOM MOTOR UNIT ・ Set the zoom gear C [#409] and the zoom gear D ・ Set the gear cover [#403] and tighten the screw [#410]. [#429]. Screw [#429] Zoom gear D [#410] Zoom gear C [#409] 就爱技术网...
  • Page 31 VAA32001-R.3652.A ZOOM MOTOR UNIT ・ Fit the zoom motor unit to the bosses on the CCD ・ Tighten the screw [#429]. frame and set it. ・ Tighten the screw [#431]. Screw [#431] Zoom motor unit Screw [#429] 就爱技术网 http://www.92jishu.cn ・ Fold the FPC of the zoom PI as shown below and insert the zoom PI. ・...
  • Page 32 VAA32001-R.3652.A FFD Inspection and adjustment (*FFD:Flange Focal Distance) Preparation ・ Turn the objective glass of the collimator (J19019), and set degree to 0 (0 mm). ・ Set the 0-position of “ Adjusting focus stand for APS (J15327)” as follows: 1. Replace the white acrylic plate of the above stand(J15327)with the new one(J15327A) 2.
  • Page 33 VAA32001-R.3652.A ・As shown below, mount the lens-barrel unit on the Adjusting focus stand. Lens-barrel unit 就爱技术网 http://www.92jishu.cn Adjusting focus stand for APS (J15327) J15327A J15327D ・ After mounting the lens-barrel unit on the Adjusting focus stand, connect wires (J61202F) of the lens unit inspection tool.
  • Page 34 VAA32001-R.3652.A ・Hold the lens-barrel unit lightly with a hand, and run the program for inspecting the lens unit. Note: If the lens-barrel unit is held too tightly, the FFD value cannot be measured correctly. Note: Refer to supplied user manuals of the lens unit checking tool for how to run the program for inspecting the lens unit.
  • Page 35 VAA32001-R.3652.A BARRIER UNIT ・ Insert the convex section A on the barrier ring [#404] ・ Set the barrier ring spring [#420]. into the clockwise side of the convex section B in the lens barrel. Then, set the barrier ring [#404] and turn it counterclockwise.
  • Page 36 VAA32001-R.3652.A ・ Adhere the name plate seal [#415]. Name plate seal [#415] 就爱技术网 http://www.92jishu.cn Operation inspection ・ It is possible to check the operation with the lens-barrel driving software at the service facilities equipped with the lens unit checking tool. FINDER UNIT ・...
  • Page 37 VAA32001-R.3652.A Resolution inspection When dissembling and repairing the lens-barrel, be sure to check the following after assembling it into the camera body. ・Resolution inspection By shooting the high-definition resolution chart (J63079), confirm that the number of TV lines is within the standard.
  • Page 38 VAA32001-R.3652.A LENS UNIT ・ Set the spacer LPF [#209] and the optical filter [#210] into the lens unit. ・ As taking care about its direction, set the spacer [#211] into the lens unit. ・ Set the spacer insulator [#214], the lens mount [#213] and the CCD [#212] and solder them to the main PCB CP-1 [#218].
  • Page 39 VAA32001-R.3652.A CONDENSER HOLDER ・ Set the condenser holder [#204] and tighten the ・ Adhere the spacer [#224]. screw [#102]. Spacer [#224] Screw [#102] 就爱技术网 http://www.92jishu.cn Condenser holder [#204] Spacer [#224] TB-1 PCB ・ Set the TB-1 PCB [#216] onto the hook of the wire holder [#215]. ・...
  • Page 40 VAA32001-R.3652.A SB UNIT ・ Arrange the lead wires [pink] and [blue] as shown below. 就爱技术网 http://www.92jishu.cn ・ As arranging the lead wire [blue] as shown below (Fig. 1), set the flash unit [#219] and tighten the screw [#104]. (Fig. 2) Flash unit [#219] Lead wire [blue] Screw [#104]...
  • Page 41 VAA32001-R.3652.A ・ Solder the lead wire [black]. ・ Solder the lead wires [gray] and [white]. 就爱技术网 http://www.92jishu.cn Lead wires [gray] and [white] Lead wire [black] ・ Arrange the lead wires as shown below. ・ Adhere the spacer [#039]. Spacer [#039] - A17 ･...
  • Page 42 VAA32001-R.3652.A MONITOR HOLDER ・ Fit the LCD holder [#231] to the bosses, set it and tighten the three screws [#104]. ・ Set the earth release [#228]. ・ Tighten the two screws [#102]. Screw [#102] Earth release [#228] Boss 就爱技术网 http://www.92jishu.cn crew [#104] Boss Screw [#102]...
  • Page 43 VAA32001-R.3652.A SPEAKER HOLDER ・ Fit the center boss on the speaker holder [#233] into ・ Solder the lead wires [red] and [white]. the boss hole on the LCD holder [#231]. Then, turn ・ Arrange the lead wires [red] and [white] as shown the speaker holder [#233] clockwise.
  • Page 44 VAA32001-R.3652.A Hook TRIPOD SOCKET ・ Install the tripod socket [#201] by fitting onto the Tripod socket [#201] hook. LCD [#239] ASSEMBLY OF FRONT COVER 就爱技术网 http://www.92jishu.cn ・ Install the release button unit [#020] by inserting its ・ Adhere the spacer [#019] of the release button unit convex section A into the notch B on the front cover as shown below.
  • Page 45 VAA32001-R.3652.A ・ Set the battery holder [#024] by using the hook. ・ Tighten the two screws [#104]. Battery holder [#024] Hook 就爱技术网 http://www.92jishu.cn Screw [#104] ・ Set the decoration top [#021]. Decoration top [#021] - A21 ･ E4600 -...
  • Page 46 VAA32001-R.3652.A FRONT COVER ・ Set the front cover [#013]. ・ Set the earth release [#026]. ・ Tighten the two screws [#102]. ・ Perform soldering. ・ Set the FPC. Perform soldering. Earth release [#026] 就爱技术网 http://www.92jishu.cn Screw [#102] Front cover [#013] ASSEMBLY OF REAR COVER ・...
  • Page 47 VAA32001-R.3652.A REAR COVER ・ Set the USB cover [#033]. ・ Fold the FPC as shown below and set it. Rear cover unit [#030] USB cover [#033] 就爱技术网 http://www.92jishu.cn ・ Set the rear cover unit [#030]. ・ Tighten the two screws [#103]. Screw [#103] Rear cover unit [#030] ・...
  • Page 48 VAA32001-R.3652.A ADJUSTMENT 1. Equipment IBM compatible PC/AT • AC adapter EH-62B • USB cable ( UC-E6) 2. Servicing tools • Pattern box • Color meter • Luminance meter • Siemens star chart • Calibration software (J65071) • Adjustment collimator (J63090) or Adjustment firmware 3.
  • Page 49 VAA32001-R.3652.A 4. Initial image data writing and Firmware upgrading Write the data of initial images, and go on to upgrade the firmware. Device ・ AC adapter (EH-62B)　 ・ Upgrading SD card X 1　 [How to create an upgrading SD card] 1) Format SD card on PC.
  • Page 50 VAA32001-R.3652.A ・ When the data writing is completed, the menu for upgrading will be displayed. (Fig.3) (Fig.3) ・ Select "Yes", and press the decision button to carry out upgrading. (Fig.4) 就爱技术网 http://www.92jishu.cn Note: Do NOT turn power OFF during upgrading.　　 (Fig.4) ・...
  • Page 51 • Copy "DscCalDi.exe, Camapi32.dll" folder of the floppy disk drive in any folder on the hard disk. 6. Installing USB driver If the USB driver is necessary, install Nikon View via CD-ROM packed with the camera. - A27 ･ E4600 -...
  • Page 52 VAA32001-R.3652.A 7. Pattern box Before using the pattern box, turn its power on to carry out "Aging" approx. 30 minutes: the color temperature should be 3100 ± 20K by the adjustment with the color meter, and the luminance should be 900 ± 20cd/m by the adjustment with the luminance meter.
  • Page 53 VAA32001-R.3652.A 9. Connecting the camera to the computer 1) Insert the camera connector of USB cable in the notch of the camera’s USB port. 2) Connect the cable to the USB port on PC. To USB port USBポートへ 就爱技术网 http://www.92jishu.cn USB Cable (UC-E6) UC-E6）...
  • Page 54 VAA32001-R.3652.A 11. Lens adjustment ※ For the lens adjustment, choose either the infinity adjustment with the collimator or the 1.5-m adjustment with the adjustment firmware. (However, in case of 1.5-m adjustment, the focus may not be sharp at infinity.) 11-1. Infinity adjustment [Preparations] •...
  • Page 55 VAA32001-R.3652.A 11-2. 1.5-m Adjustment ※ Before performing the 1.5-m adjustment in this machine, write the adjustment firmware on the camera. After adjustment, be sure to write the product firmware. Procedure for setting Adjustment firmware 1) Save the adjustment firmware and the product firmware in any folder. 2) Start up "DscCa1Di.exe"...
  • Page 56 VAA32001-R.3652.A 12. AWB adjustment [Preparations] • Pattern Box(Color temperature: 3100 ± 20K, Luminance: 900 ± 20cd/m [Conditions] • Set the pattern box and camera (lens front) at "0cm" distance between them. Note) Do not allow outside light to enter in. [How to] •...
  • Page 57 VAA32001-R.3652.A 13. CCD white dot defect compensation [Conditions] • With the lens shutter being closed, read the defect of CCD pixels. Then, make the correction data and rewrite the data by the following procedure. Correct the upper level of defective 2000 pixels from the brightest number of CCD pixels.. [How to] •...
  • Page 58 • Connect the camera to a computer. • Double-click on the "DscCa1Di.exe". • Click on the "Get" button in the USB storage window and check the USB storage data. VID: NIKON PID: NIKON DSC E5600 Serial: Rev. : 1.00 就爱技术网 http://www.92jishu.cn •...
  • Page 59 VAA32001-R.3652.A 就爱技术网 http://www.92jishu.cn - E1･ E4600 -...
  • Page 60 VAA32001-R.3652.A 就爱技术网 http://www.92jishu.cn - E2･ E4600 -...
  • Page 61 VAA32001-R.3652.A 就爱技术网 http://www.92jishu.cn - E3･ E4600 -...
  • Page 62 VAA32001-R.3652.A 就爱技术网 http://www.92jishu.cn - E4･ E4600 -...
  • Page 63 VAA32001-R.3652.A 就爱技术网 http://www.92jishu.cn - E5･ E4600 -...
  • Page 64 VAA32001-R.3652.A 就爱技术网 http://www.92jishu.cn - E6･ E4600 -...
  • Page 65 VAA32001-R.3652.A 就爱技术网 http://www.92jishu.cn - E7･ E4600 -...
  • Page 66 VAA32001-R.3652.A 就爱技术网 http://www.92jishu.cn - E8･ E4600 -...

  • Page 67: Lcd Panel

    VAA32001-R.3652.A 総合結線図 OVERALL WIRING LCD PANEL LCD BACK LIGHT WHITE CL308 LED_A JW601 LED_A CL307 LED_C JW602 LED_C GRAY 就爱技术网 http://www.92jishu.cn CN110 & USB_VDD USB D(-) VIDEO USB D(+) ZAV_JACK JW501 BAT+ (RED) TO BATTERY VIDEO_OUT JW502 BAT-(BLACK) (DMA) W1400 XAN (PINK) FLASH W1600 TRG (GRAY) REFLECTOR...
  • Page 68 VAA32001-R.3652.A CP1(DMA) 回路図 CP1(DMA)CIRCUIT DIAGRAM DMA(LENS) VDD3 VDD3 TEMB10------H Q9509 DMA(MAIN) EMB10N CN951 1AV4J11SL203G CN143 R9503 ZPLS K1 1AV4J11B6390M OM/ORTR56Z OM/ORZJ11B6390MHBZ D1-69000/SX797-UNK 390;1/16J ZPLS E1 ZPLS K2 DATA3 COMMAND ZPLS E2 DC 1- R1403 R1402 RB101 DC 2+ C9502 100;1/16J 0;1/16Z LB8655T-E ZCCE1...
  • Page 69 VAA32001-R.3652.A CP1(SYA) 回路図 CP1(SYA) CIRCUIT DIAGRAM +12V(B) TO PWA Y1-69000/SX797-UNK R3022 22K;1/16J Q3005 2SC5658R PS1550L PAON2 TO DMA(MAIN) COMREQ PLLEN TO TB1 JW601, JW602 ZTEST CL308 CL307 LCDON2 R3014 LCDON 220;1/16J OM/ORZJ11SJ060GZ 就爱技术网 http://www.92jishu.cn PAON 1AV4J11SJ062G CN301 SREQ BACK UP3.2V SCAN IN 1E SI1E USBCNT...
  • Page 70 VAA32001-R.3652.A CP1(CAA) 回路図 CP1(CAA) CIRCUIT DIAGRAM R9007 3.3;1/16J -8.0V(A) C1-69000/SX797-UNK �������� ���� ����� ��� �� +3.45V(A) C9026 R9001 0;1/16Z +12V(A) TO DMA(MAIN) R9011 ADCK 68;1/16J 22 21 20 19 18 17 16 15 就爱技术网 http://www.92jishu.cn ��� ���� IC901 XSG1A ��� ����...
  • Page 71 VAA32001-R.3652.A CP1(PWA) 回路図 CP1(PWA) CIRCUIT DIAGRAM F5005 UNREG(ST) F47K2R0C3LFND UNREG(ST) TO STA 1608 2A 32V D9601 F5004 BOOST4.25V <BOOST/LENS> L9601 P1-69000/SX797-UNK F47K2R0C3LFND 10;M SD833-04(SC) BOOST4.25V TO DMA(MAIN, LENS) 1608 D53LC �������� ���� ����� ��� �� 2A 32V Q9601 FDC633N-NF M-GND M-GND OM/ORTR16Z H=1.2...
  • Page 72 VAA32001-R.3652.A CP1(STA) 回路図 CP1(STA) CIRCUIT DIAGRAM S2-69000/SX797-UNK FLASH REFLECTOR 就爱技术网 http://www.92jishu.cn D5403 D5402 RR264M-400 W1400 CRF02-Q PINK OM/ORDD44Z OM/ORDD44Z STROBO UNIT T5402 OM/ORCC3316Z OM/ORLIV006HZ 3316 H=1.8 1AV4L17B0370N W1600 C5410 1AV4L17B0200G GRAY 0.033;350H T5401 UNREG(ST) TO PWA 3216 C5411 0.01;630H W1500 BLUE R5414 1608...
  • Page 73 VAA32001-R.3652.A ST1 回路図 ST1 CIRCUIT DIAGRAM 就爱技术网 http://www.92jishu.cn TO CP1(STA) JM541, 542 JW551 JW552 BLACK S1-69000/SX797-UNK MODEL: E4600 CIRCUIT DIAGRAM: ST1 - E15 ･ E4600 -...
  • Page 74 VAA32001-R.3652.A TB1 回路図 TB1 CIRCUIT DIAGRAM 就爱技术网 http://www.92jishu.cn OM/ORLE07AZ H=0.8 D6001 DLSML-511UW-G WHITE TO CP1(SYA) CL308, CL307 JW601 SELF LED JW602 GRAY T1-69000/SX797-UNK MODEL: E4600 CIRCUIT DIAGRAM: TB1 - E16 ･ E4600 -...
  • Page 75 VAA32001-R.3652.A 総合ブロック図 OVERALL BLOCK DIAGRAM LENS BLOCK CCD BLOCK IC951 IC903 IC905 IC901 5M Pixel CDS/AGC/AD-C LENS H. Driver V. Driver LENS DRIVER 就爱技术网 http://www.92jishu.cn SYA BLOCK IC121 FLASH(NAND) FD(0:7) 128Mbit D(0:15) MRST FLASH(NOR) 16Mbit A(1:20) ZTEST CN301 RELEASE UNIT PLLEN IC103 128Mbit...

  • Page 76: Ccd Block Diagram

    VAA32001-R.3652.A CCD ブロック図 CCD BLOCK DIAGRAM 就爱技术网 http://www.92jishu.cn V1,V2,V3A,V3B,V4,V5A,V5B,V6 SUBSW VDD3 26, 24, 37, 6 34, 35 - E18 ･ E4600 -...

  • Page 77: Lens Block Diagram

    VAA32001-R.3652.A LENS ブロック図 LENS BLOCK DIAGRAM IC961 UNREG BOOST4.25V L9601, D9601 Q9601, C9603 UNIT LENS SW REG. CN951 1, 14 Q9509 VDD3 ZPLUSE1 就爱技术网 http://www.92jishu.cn PICTL (IC101 198pin) ZPULSE1 ZPLUSE2 (IC101 213pin) Q9502 ZPULSE2 (IC101 212pin) ZOOM_PI ZRESET (IC101 210pin) Q9501 FOCUS_PI (IC101 206pin)

  • Page 78: Asic Block Diagram

    VAA32001-R.3652.A ASIC ブロック図 ASIC BLOCK DIAGRAM 就爱技术网 http://www.92jishu.cn - E20 ･ E4600 -...

  • Page 79: System Control

    VAA32001-R.3652.A SYSTEM CONTROL ブロック図 SYSTEM CONTROL BLOCK DIAGRAM IC304 RESET IC UNREG BOOST4.25V BOOST4.25V ALWAYS3.2V TO DMA(MAIN) IC302 就爱技术网 http://www.92jishu.cn P ON BATTERY P ON BACKUP PA ON Q3002 RESET PA ON CHG ON VMONIT BAT OFF VMONIT LCD ON LCD ON BATTERY PA ON2...

  • Page 80: Power Block Diagram

    VAA32001-R.3652.A POWER ブロック図 POWER BLOCK DIAGRAM CN1, 5, 7 就爱技术网 http://www.92jishu.cn - E22 ･ E4600 -...
  • Page 81 VAA32001-R.3652.A FUSE arrangement (CP1 PCB) F5004 F5005 F5001 F5002 就爱技术网 http://www.92jishu.cn FUSE Function of FUSE Phenomenon when FUSE has blown out Rating Protection of the DC/DC converter and F5001 The power is not turned on. 2A　32V the system computer circuit F5002 Protection of the DC/DC converter The power is not turned on.
  • Page 82 VAA32001-R.3652.A The contents of inspection standards and tools for E4600 [1] Inspection standards ............................R1 to R10 [2] Tools ..................................T1 to T5 就爱技术网 http://www.92jishu.cn - E4600 -...

  • Page 83: Inspection Standards

    VAA32001-R.3652.A INSPECTION STANDARDS Item Criteria Applied tool(s) External view Gap/Difference in ・ General components Visual observation height Gap: 0.3mm or less Difference in height: 0.15mm or less ・ When the battery case is opened/closed: 　Gap in its periphery: 0.3mm or less 　Gap in the bottom: 0.5mm or less 　Difference between right and left: 0.2mm or less 　Stepped difference: 0.5mm or less...
  • Page 84 VAA32001-R.3652.A Item Criteria Applied tool(s) Monitor Shooting image ・ Inclined degree of image shall be 0.5 degree or less. Photoshop ・ PC monitor and print output Printer (Output will be evaluated while the display range boundary of LCD unit is regarded as standard when the through-the-monitor image is made.) Lens capacity Focal length...
  • Page 85 VAA32001-R.3652.A Item Criteria Applied tool(s) Lens barrel Zoom / Focus ・ There must not be an abnormal action (for example, the unit oper- Visual observation ates one-sidedly or its operation is not smooth or it is caught). (As changing the camera's posture, check it in all the directions.) Distance measurement ・...
  • Page 86 VAA32001-R.3652.A Item Criteria Applied tool(s) Quality of image Resolution in AF The resolution must be in compliance with the following values in EIAJ chart all the postures of the EIA J chart evaluation. Photoshop <High quality of image> Siemens chart Center horizontal/vertical: 1100 TV pcs.
  • Page 87 VAA32001-R.3652.A Item Criteria Applied tool(s) In the case of compel- <Compelling infinity> (The whole zoom area) Infinity chart ling infinity Center horizontal/vertical: 900 TV pcs. ・ Shoot the infinity collimator image on condition that aperture is "open" in the scene distance view/night view mode and the image quality priority mode.
  • Page 88 VAA32001-R.3652.A Item Criteria Applied tool(s) Quality of image Noise [Histogram's standard deviation] 5100K viewer ・ Gray: 3.0 or less ITE γ 0.45 Black: 3.5 or less Gray scale (standard) ・ Equip the 5100K viewer with a scale and shoot an object in the Photoshop full range of angle of view while the AUTO mode and the image quality priority mode are set.
  • Page 89 VAA32001-R.3652.A Item Criteria Applied tool(s) Finder View / Image ・ There must be no blur, distortion, ghost, halation or other out- Visual observation standing troubles in contrast, gradation, etc. Visual field frame/ ・ Blur or difference in thickness must be within the proper range to Visual observation frame line operate the stamped line and visual field frame.
  • Page 90 VAA32001-R.3652.A Item Criteria Applied tool(s) LCD and others Monitor LCD View ・ The reproduction of W, B and RGB must not be interfered. Visual observation ・ The monitor LCD must comply with the SY monitor LCD perfor- mance standard. ・ There must be no shading in the LCD display range. ・...
  • Page 91 VAA32001-R.3652.A Item Criteria Applied tool(s) Electric characteristics Constant voltage Consumption current power supply Stand-by ・ When card is not used: 0.27mA or less (when the power switch Ammeter is OFF) Dummy battery pack ・ When card is used: 0.39mA or less (when the power switch is OFF) Start (Photography) ・...
  • Page 92 VAA32001-R.3652.A Item Criteria Applied tool(s) Electric characteristics When voltage increases (Alkaline battery) Level 1 ・ 2.25 ± 0.1V Level 2 ・ 2.1 ± 0.1V (Ni-MH) Level 1 ・ 2.45 ± 0.1V Level 2 ・ 2.1 ± 0.1V 就爱技术网 http://www.92jishu.cn (Li battery) Level 1 ・...
  • Page 93 VAA32001-R.3652.A ［２］ 工具一覧表　　Tool List ※：新規工具 ※：New tool 工具番号 名　　称 備　考 Tool No. Name Remarks J63080 パターンボックス　LV-1450DC 共通 (E4300, E3500, E3100, E2100, E5400, Pattern Box LV-1450DC E3700, E3200, E2200, E8700, E4100, E4600, E5600) 就爱技术网 http://www.92jishu.cn Common(E4300, E3500, E3100, E2100, E5400, E3700, E3200, E2200, E8700, E4100, E4600, E5600) J63080A...
  • Page 94 VAA32001-R.3652.A ※：新規工具 ※：New tool 工具番号 名　　称 備　考 Tool No. Name Remarks ※ J65071 キャリブレーションソフト 共通 (E995,E775,E885 E5000, E2500, E4500 Calibration Software E5700, E4300, E3500 E3100, E2100, E5400 E3700, E3200, E2200 E8700, E4100, E4600 就爱技术网 http://www.92jishu.cn E5600) Common(E995,E775,E885 E5000, E2500, E4500 E5700, E4300, E3500 E3100, E2100, E5400 E3700, E3200, E2200...
  • Page 95 VAA32001-R.3652.A ※：新規工具 ※：New tool 工具番号 名　　称 備　考 Tool No. Name Remarks ※ J61202 レンズユニット検査工具 FFD 点検調整用 Lens unit checking tool For FFD inspection and adjustment 就爱技术网 http://www.92jishu.cn ※ J61202F 接続コード FFD 点検調整用 Connection cable for lens For FFD inspection and adjustment ※...
  • Page 96 VAA32001-R.3652.A ※：新規工具 ※：New tool 工具番号 名　　称 備　考 Tool No. Name Remarks ※ J15327 FFD 調整用マイクロ台 FFD 点検調整用 Adjusting focus stand for APS For FFD inspection and adjustment 就爱技术网 http://www.92jishu.cn ※ J15327A FFD 調整用マイクロ台アダプター FFD 点検調整用 Adapter for J15327A For FFD inspection and adjustment ※...
  • Page 97 VAA32001-R.3652.A 就爱技术网 http://www.92jishu.cn - T5･ E4600 -...

  • Page 98: Parts List

    VAA32001-R.3652.A 作成承認印 配布許可印 就爱技术网 http://www.92jishu.cn VAA32001 PARTS LIST 修 理 部 品 表 Copyright ｃ 2005 by Nikon Corporation. All Rights Reserved. 無断転載を禁ず !! Printed in Japan January 2005...
  • Page 99 VAA32001-R．3652.A 636-082-3976(5) 411-178-9403x2(10) 636-082-4027(1) 636-082-4102x2(5) 411-177-9503x2(10) 就爱技术网 http://www.92jishu.cn Fig3 636-087-1410(5) 636-084-7378(10) 636-086-6843(10) 411-178-9403x2(10) 645-072-6552(5) 636-082-9442(5) 636-083-7614(5) 411-177-9503(10) 636-084-1550(5) 636-074-2468(5) 411-177-9503x3(10) 636-082-3860(5) 636-082-8490(5) 636-082-3914(5) 636-082-9244x2(10) 636-082-9299(5) 411-186-0409(10) 411-177-9503x4(10) 636-059-0069(5) 636-084-4834(5) 636-082-3921(5) 636-082-3938(5) 412-060-9501x2(10) 636-082-4119(5) 636-082-8445(5) 411-182-4609x2(10) 636-082-8070(5) 636-082-4126(5) 636-082-4065(5) 636-083-7560(1) 411-178-9403x2(10) 636-083-8109(5) 636-084-7842(5) 636-082-4898(5)
  • Page 100 VAA32001-R．3652.A 636-082-9251(10) 636-082-3952(5) 636-059-0069(5) 636-082-8469(10) 就爱技术网 http://www.92jishu.cn 636-082-3884(5) 636-082-8285(1) 636-082-3990(5) 411-177-9503(10) 636-083-4859(5) 636-086-1305(10) 636-084-6432(10) 636-082-3907(5) 636-083-8116(5) 636-084-9662(5) 636-082-8506(5) Fig.2 F2・E4600...
  • Page 101 VAA32001-R．3652.A 423-031-1707(5) F5002 F5001 423-031-1707(5) F5005 423-031-1707(5) F5004 423-031-1707(5) 636-084-6364(10) 645-057-4726(10) 636-082-8377(10) 411-178-9403(10) 645-070-8398(1) 636-082-3983(5) 636-082-4003(5) 645-064-7970(5) 645-054-4163(5) 就爱技术网 http://www.92jishu.cn 636-083-4750(5) 636-083-0998(5) 636-083-0684(5) 636-083-1001(5) 411-177-9503(10) 636-082-4034(5) 411-178-9403(10) 636-086-1367(10) 411-177-9503x3(10) 411-178-9403(10) 636-082-4041(5) 420-002-0202(5) 636-083-3982(5) 636-084-6425(10) 636-082-8520(5) 636-082-9626(5) 411-190-8309x2(10) 636-085-4000(5) 636-083-3142(5) 636-086-1350(10) 636-087-1649(5) 411-178-9403(10) 636-083-1421(5)
  • Page 102 VAA32001-R．3652.A ��������������� ������������� ������������ ������������ ������������� ������������� ������������ ������������� ���� �������� �������� �������������� ������������ ������������� 就爱技术网 http://www.92jishu.cn ������������� ������������� ��������������� ��������������� ������������ ��� �������� ������������� ������������ ������������ ������������ ������������� ������������ ������������ ������������ ������������� ������������� �������� ����������� ���� �������� ������������� ������������� ������������...
  • Page 103 Parts List E4600 VAA32001-R.3652.A Part Number 部品名 Pcs,/ Q'ty/ Barcode (Part Code) Main Assembly Remarks Part Code Part Name Unit Order 1B150-106 レンズユニット *1B150-106* 1B150-106 LENS MOUNT 409-542-9906 *409-542-9906* 409-542-9906 IMAGE SENSOR DEVICE 411-177-9503 SCREW *411-177-9503* 1,2,3 411-177-9503 SCREW 411-178-9403 SCREW *411-178-9403* 411-178-9403...
  • Page 104 Parts List E4600 VAA32001-R.3652.A Part Number 部品名 Pcs,/ Q'ty/ Barcode (Part Code) Main Assembly Remarks Part Code Part Name Unit Order 636-082-3921 ｸﾞﾘｯﾌﾟ飾り *636-082-3921* 636-082-3921 GRIP DECORATION 636-082-3938 飾り環 *636-082-3938* 636-082-3938 DECORATION RING 636-082-3952 PW LED　ｳｨﾝﾄﾞｳ *636-082-3952* 636-082-3952 PW LED WINDOW 636-082-3976 ｱｰｽ...
  • Page 105 Parts List E4600 VAA32001-R.3652.A Part Number 部品名 Pcs,/ Q'ty/ Barcode (Part Code) Main Assembly Remarks Part Code Part Name Unit Order 636-082-8070 ﾊﾞｯﾃﾘｰｶﾊﾞｰｷｬｯﾌﾟ *636-082-8070* 636-082-8070 BATTERY COVER CAP 636-082-8285 後ｶﾊﾞｰ ﾕﾆｯﾄ *636-082-8285* 636-082-8285 REAR COVER UNIT 636-082-8377 接着ﾃｰﾌﾟ (LCD) *636-082-8377* 636-082-8377 ADHESIVE TAPE (LCD) 636-082-8445...
  • Page 106 Parts List E4600 VAA32001-R.3652.A Part Number 部品名 Pcs,/ Q'ty/ Barcode (Part Code) Main Assembly Remarks Part Code Part Name Unit Order 636-083-1391 ﾚﾝｽﾞﾏｳﾝﾄ *636-083-1391* 636-083-1391 LENS MOUNT 636-083-1414 ｽﾍﾟｰｻｰ *636-083-1414* 636-083-1414 SPACER 636-083-1421 ｽﾍﾟｰｻｰ ｲﾝｼｭﾚｰﾀ *636-083-1421* 636-083-1421 SPACER (INSULATOR) 636-083-1438 ｽﾍﾟｰｻｰ...
  • Page 107 ｽﾍﾟｰｻｰ ﾕﾆｯﾄLED *636-084-7378* 636-084-7378 SPACER (UNIT LED) 636-084-7842 製品番号ｼｰﾙ　(INDONESIA） *636-084-7842* 636-084-7842 LABEL SEAL III 636-084-7859 製品番号ｼｰﾙ　(NIKON CORP.) *636-084-7859* 636-084-7859 SERIAL No. SEAL (NIKON CORP.) 636-084-7866 製品番号ｼｰﾙ　（CHINA） *636-084-7866* 636-084-7866 LABEL SEAL IV 就爱技术网 http://www.92jishu.cn 636-084-9662 ｽﾍﾟｰｻｰ VF *636-084-9662* 636-084-9662 SPACER (VF) 636-085-3713 ｽﾍﾟｰｻｰ...
  • Page 108 Parts List E4600 VAA32001-R.3652.A Part Number 部品名 Pcs,/ Q'ty/ Barcode (Part Code) Main Assembly Remarks Part Code Part Name Unit Order 636-087-1410 ｽﾍﾟｰｻｰ *636-087-1410* 636-087-1410 SPACER 636-087-1649 ｽﾍﾟｰｻｰ （LCD ﾜｲﾔ） *636-087-1649* 636-087-1649 SPACER (LCD WIRE) 645-054-4163 USBｿｹｯﾄ *645-054-4163* 645-054-4163 USB SOCKET 645-057-4726 ﾊﾟﾂﾄﾞ...
  • Page 109 Parts List E4600 VAA32001-R.3652.A Part Number 部品名 Pcs,/ Q'ty/ Barcode (Part Code) Main Assembly Remarks Part Code Part Name Unit Order A1-00157 回転筒 *A1-00157* A1-00157 ROTARY BARREL A2-07028 固定筒 *A2-07028* A2-07028 FIXED BARREL A2-07034 ｷﾞﾔｶﾊﾞｰ *A2-07034* A3A07581 A2-07034 GEAR COVER A3-07496 ﾊﾞﾘｱﾘﾝｸﾞ...
  • Page 110 Parts List E4600 VAA32001-R.3652.A Part Number 部品名 Pcs,/ Q'ty/ Barcode (Part Code) Main Assembly Remarks Part Code Part Name Unit Order A4-40458 ｷﾞﾔ軸B *A4-40458* A4-40458 GEAR SHAFT B A4-40515 ｷﾞﾔ軸D *A4-40515* A3A07581 A4-40515 GEAR SHAFT D A4-40581 ﾊﾞﾘｱﾘﾝｸﾞﾊﾞﾈ *A4-40581* A4-40581 BARRIER RING SPRING A4-40624 FPC固定ﾃｰﾌﾟ...

This manual is also suitable for:

Coolpix4600

Table of Contents
