High power outdoor solid state power amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Teledyne Paradise Datacom LLC
328 Innovation Blvd., Suite 100
State College, PA 16803 USA
Email: sales@paradisedata.com
211670 REV D

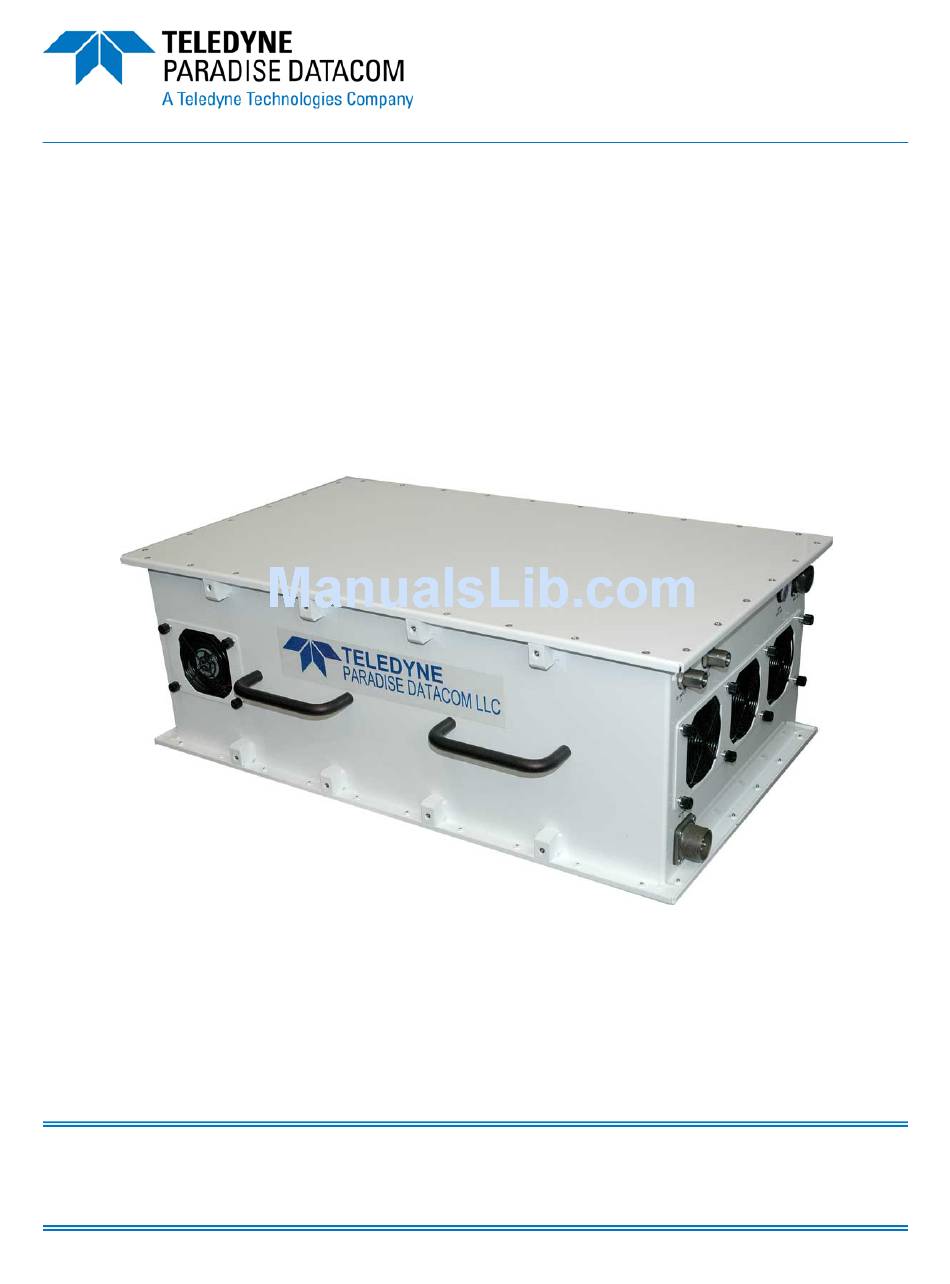

High Power Outdoor
Solid State Power Amplifier
Operations Manual
ECO 18186
Phone:
(814) 238-3450
Fax:
(814) 238-3829
Web: www.paradisedata.com
08/02/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teledyne H-SERIES

Summary of Contents for Teledyne H-SERIES

  • Page 1 High Power Outdoor Solid State Power Amplifier Operations Manual Teledyne Paradise Datacom LLC Phone: (814) 238-3450 328 Innovation Blvd., Suite 100 Fax: (814) 238-3829 State College, PA 16803 USA Web: www.paradisedata.com Email: sales@paradisedata.com 211670 REV D ECO 18186 08/02/2016...
  • Page 2 (SSPAs), Low Noise Amplifiers (LNAs), Block Up Converters (BUCs), and Modem products. Operating out of two primary locations, Witham, United Kingdom, and State College, PA, USA, Teledyne Paradise Datacom has a more than 20 year history of providing innovative solutions to enable satellite uplinks, battlefield communications, and cellular backhaul.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ........................3 List of Figures ........................7 List of Tables ......................... 8 Section 1: General Information ................... 9 1.0 Introduction ......................9 1.1 Description ......................9 1.2 Specifications ......................9 1.3 Equipment Supplied ....................9 1.4 Inspection ......................
  • Page 4 3.2.2 Quick Start Ethernet Connection ............22 3.2.3 Quick Start RS-232 Connection ............23 3.2.4 Setting Custom IP Address ..............24 3.3 Universal M&C Operation ................... 25 3.3.1 Universal M&C Status Window .............. 26 3.3.1.1 Signal Indicators ..............26 3.3.1.2 Fault Status Indicators ............. 27 3.3.1.3 Voltage, Current and Temperature Display ......
  • Page 5 7.3.1 Unit doesn’t power up ................72 7.3.2 Unit powers on, LED lamp blinks (red or green) ........72 7.3.3 Unit powers on, LED lamp glows red ............ 72 7.3.4 SSPA unit powers up, LED lamp glows green, no RF present ....72 7.3.5 Cannot connect to SSPA through remote control interface ....

  • Page 6: List Of Figures

    List of Figures Figure 2-1: Outline Drawing, Ku-Band H-Series High Power Outdoor SSPA ... 13 Figure 2-2: Connectors at Bottom of Enclosure ............14 Figure 2-3: RF Output Connector at Top of Enclosure ..........15 Figure 3-1: Ethernet Quick Start Cable, 207755 ............21 Figure 3-2: RS-232 Quick Start Cable, 207998 ............
  • Page 7 Figure 6-1: Phase Combined Amplifier System ............65 Figure 6-2: 1:1 Fixed Phase Combined System with FPRC-1100 controller ..... 66 Figure 6-3: FPRC-1100 Phase Combined System Controller ........67 Figure 6-4: Block Diagram, 1:2 Fixed Phase Combined System ....... 68 Figure 8-1: Amplifier Remote Control Interface Stack ..........

  • Page 8: List Of Tables

    List of Tables Table 2-1: Monitor & Control Connector (J4) Pin-Outs ..........16 Table 2-2: Link Port (J5) Pin-Outs ................17 Table 2-3 Switch Port (J6) Pin-Outs ................17 Table 2-4: AC Input Connector (J7) Pin-Outs ............17 Table 2-5: AUX PWR Port (J8) Pin-Outs..............18 Table 2-6: Handheld Connector (J10) Pin-Outs ............

  • Page 9: Section 1: General Information

    Section 1: General Information 1.0 Introduction This section provides the general information for the Teledyne Paradise Datacom High Power Outdoor (H-Series) Solid State Power Amplifier (SSPA). This includes a description of the unit and safety precautions. 1.1 Description The H-Series high power outdoor SSPA contains an internal microprocessor which allows full monitoring and control via a remote serial (RS-232 or RS-485) and Ethernet connector.

  • Page 10: Shipment

    1.5 Shipment To protect the High Power Outdoor SSPA during shipment, use high quality commercial packing methods. When possible, use the original shipping container and its materials. Relia- ble commercial packing and shipping companies have facilities and materials to adequately repack the instrument.

  • Page 11: Rf Transmission Hazards

    Large DC currents are generated to operate the RF Module inside of the enclosure. EX- TREME CAUTION IS REQUIRED WHEN THE ENCLOSURE IS OPEN AND THE AMPLIFI- ER IS OPERATING. DO NOT TOUCH ANY OF THE CONNECTIONS ON THE RF MOD- ULES WHEN THE AMPLIFIER IS OPERATING.
  • Page 12 THIS PAGE LEFT INTENTIONALLY BLANK 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 13: Section 2: Description Of Unit

    Datacom H-Series High Power Outdoor SSPA, its connectors and their functions. 2.1 Description of Unit Figure 2-1 shows an outline drawing of a typical H-Series High Power Outdoor SSPA. The unit enclosure has overall dimensions of 27.5 inches (698.5 mm) by 16.5 inches (419.1 mm) by 9.335 inches (237.1 mm).

  • Page 14: Installation Of Unit

    Doing so will void the warranty. The H-Series High Power Outdoor SSPA weighs between 100 and 140 lbs. (45.5 - 63.6 kg), depending on the power level of the unit. If mounting the unit to a boom or king post, ensure the mounting brackets and surface are capable of supporting the weight of the unit.

  • Page 15: Connectors

    2.3 Connectors Figure 2-2 and Figure 2-3 show the connectors available on the unit. RF INPUT SAMPLE SSPA STATUS SWITCH (J6) AUX PWR (J8) RF INPUT (J1) RF OUTPUT SAMPLE (J3) HANDHELD (J10) LINK (J5) M&C (J4) GROUND TERMINAL AC INPUT (J7) Figure 2-2: Connectors at Bottom of Enclosure Figure 2-3: RF Output Connector at Top of Enclosure Operations Manual, High Power Outdoor SSPA...

  • Page 16: Rf Input Port (J1) [Type N (F)]

    2.3.1 RF Input Port (J1) [Type N (F)] The Type N (F) connector shown at the top left of Figure 2-2 is the RF Input connector. Warning! Maximum RF input that should be introduced at this connector is +15 dBm. An optional L-Band input is available for units with an internal block up converter.

  • Page 17: Table 2-1: Monitor & Control Connector (J4) Pin-Outs

    Table 2-1: Monitor & Control Connector (J4) Pin-Outs Signal Type Function Notes Unit powers up muted; Mute Input Closure to Ground Disables DC Power to SSPA This line must be pulled to ground (V) to enable amplifier Auxiliary Input Closure to Ground Auxiliary Input Closed on Fault L-a : normally open...

  • Page 18: Link Port (J5) [Ms3112E10-6S]

    2.3.5 Link Port (J5) [MS3112E10-6S] The interface connector is used to connect two amplifiers when used in a 1:1 redundant system. It is a 6 pin circular connector, MS3112E10-6S. It requires a mating connector, MS3116F10-6P. A link cable is provided with a 1:1 Redundancy Kit, which can be purchased separately.

  • Page 19: Aux Pwr Port (J8) [Ms3112E10-6S]

    2.3.7.1 Power Cable Construction Construct a power cable using the supplied MS3106F20-19S mating connector for J7. Use a three-conductor, 25A, 12 AWG cable, UL rated for outdoor use. When constructing the cable, discard the connector grommet, but keep the plastic ferrule. Connect the black conductor to terminal A (L1) of the connector, the white conductor to terminal C (L2/N) of the connector, and the green (protective earth ground) connector to terminal B (GND) of the connector.

  • Page 20: Chassis Ground Terminal

    2.4 Physical Features In addition to the I/O connectors, the H-Series High Power Outdoor SSPA features include a summary alarm indicator and removable fan trays. 2.4.1 Summary Alarm Indicator A summary alarm indicator LED is located on the input side of the amplifier.

  • Page 21: Section 3: Quick Start And Operation

    Section 3: Quick Start and Operation 3.0 Introduction The H-Series High Power Outdoor SSPA is available with a standard Ethernet & RS-232/RS- 485 interface. This section summarizes the connections to a remote computer for various re- mote communications. Table 2-1 summarizes the hardware connections of Port J4.

  • Page 22: Quick Start Connections

    This section describes the necessary steps to communicate with an amplifier using either the Ethernet or RS-232 Quick Start cables and the Teledyne Paradise Datacom Universal M&C Software. The Universal M&C Software is a free Windows-based application that can be downloaded from the company web site, www.paradisedata.com.

  • Page 23: Quick Start Rs-232 Connection

    This connection will unmute the amplifier. Review the cable schematic in Figure 3-1. 6. Launch the Windows-based Teledyne Paradise Datacom Universal M&C Software. IMPORTANT! If the unit is powered up with the Ethernet Quick Start Cable connected to Port J4, the following default conditions apply to the unit: IPNET Interface Gateway: 192.168.0.1...

  • Page 24: Setting Custom Ip Address

    3.2.4 Setting Custom IP Address The following steps show how to set custom IP settings to the amplifier. This procedure assumes the user has downloaded and installed the Teledyne Paradise Datacom Universal M&C application. 1. Remove power to the unit.

  • Page 25: Universal M&C Operation

    [Compact Outdoor SSPA] from the menu choices. See Figure 3-3. Figure 3-3: Universal M&C Add Unit menu Note: The H-Series High Power Outdoor SSPA uses the same protocol as the Teledyne Paradise Datacom Compact Outdoor SSPA. 3. A new dialog window will open (see Figure 3-4). Enter the following information where applicable: Unit ID;...

  • Page 26: Universal M&C Status Window

    3.3.1.1 3.3.1.3 3.3.1.5 3.3.1.4 3.3.1.2 Figure 3-5: Universal M&C Status Window 3.3.1 Universal M&C Status Window The Universal M&C Software will initialize and open to the Status Window, the main monitor- ing display. See Figure 3-5. The Status Window shows the current conditions (or state) of the amplifier.

  • Page 27: Fault Status Indicators

    3.3.1.2 Fault Status Indicators The Fault Status frame in the lower left side of the Status Window contains a 3x4 grid of SSPA fault lights. See Figure 3-6. Figure 3-6: Fault Indicators Summary Alarm: The Summary Alarm is simply a logical ‘OR’ of any major alarm indicators. Unit Online: This is a status indicator that illuminates green when the unit is online.

  • Page 28: Voltage, Current And Temperature Display

    EEPROM Alarm: The EEPROM Alarm is primarily used as a Fiber RX Link alarm for amplifi- er units configured with a fiber-optic interface. RF Switch Alarms: The RF Switch 1 Alarm is only active if a 1:1 Redundant System has been configured in the M&C program.

  • Page 29: Universal M&C Settings Window

    Figure 3-7: Universal M&C Settings Window 3.3.2 Universal M&C Settings Window Figure 3-7 shows the Settings tab of the Universal M&C Software. The Settings tab contains many of the global settings that are available in the SSPA. 3.3.2.1 Power Up Settings The amplifier will power up with the “last-state”...

  • Page 30: Figure 3-8: Spare Fault Wizard

    Protocol Select: The operator may select either the standard string protocol described in Section 8 or older generation binary based protocol. The operator will be asked to verify that the change in Protocol. Communication with the amplifier may be affected. Baud Rate Select: Sets the baud rate of the unit.

  • Page 31: Ip Setup Window

    Fault Setups: The user may also adjust the Spare, Auxiliary, BUC, and Forward RF [15] Fault Status and Handling via the appropriate pull-down menus on the Settings Window. Spare/Auxiliary/BUC/Forward RF Fault Handling: Selects whether the associated fault should be a major or minor fault, and whether the fault should mute the unit. A minor fault will trigger a Spare/Auxiliary/BUC/Forward RF Fault alarm but not trigger a Summary Fault.

  • Page 32: Universal M&C Preferences

    3.3.4 Universal M&C Preferences The user can adjust certain preferences of the Universal Monitor and Control Software. See Figure 3-10. Figure 3-10: Preferences Window Queries: Enable and adjust the interval that the software queries the unit. Note that if queries are disabled, there will be no communication with the unit at startup. Logs: Enable and adjust the interval that the software writes to the log.

  • Page 33: Web-Based M&C

    3.4 Web-based M&C The most basic method of communication with the amplifier is via a web browser, which accesses the built-in web pages served from the amplifier’s embedded web server. Support- ed web browsers include Internet Explorer version 6 or better, and Mozilla Firefox version 3.0.3 or better.

  • Page 34: Navigating The Web M&C

    As the applet loads, the user will be prompted to enter a password. The default password is paradise (see Figure 3-14), but the user may assign a new password using the web M&C or Teledyne Paradise Datacom’s Universal M&C Software. See Section 3.3 for details on using the Universal M&C Software.

  • Page 35: Figure 3-16: Communication Settings Window Descriptions

    • IP Address; Gateway Address; Subnet Mask; Local Port; IP Lock Address Note: While the image of a Compact Outdoor SSPA is shown in the Web M&C windows, the software is valid for use with the H-Series High Power Outdoor amplifiers.

  • Page 36: Figure 3-17: General Settings Window Descriptions

    Select Mute State: Muted or Unmuted. Select Single Select BUC Source or Redundant Mode. Reference: Internal, External, Auto. Select HPA1, HPA2 or HPA3. Select Gain Control: Serial Port, Select Startup State: Online or Standby. Select Attenuation; Click ‘Confirm’ to change. Select Standby Mode: Hot or Cold Standby.

  • Page 37: Figure 3-18: Fault Settings Window Descriptions

    Select “Ignore”, “Fault on High”, “Fault on Low”, “10% Window” or “15% Window”. Select “Minor Fault”, or “Major Fault”. Select “Ignore”, “External Mute”, or “ADC Channel 0-7”. Select Forward RF Fault Threshold. Click to change. Select “Minor Fault”, “Major Fault” or “Major Fault + Mute”.
  • Page 38 THIS PAGE LEFT INTENTIONALLY BLANK 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 39: Section 4: L Band Operation

    FSK communications for remote M&C capability. The FSK is a 650 KHz signal that is multi- plexed onto the L-Band input of the unit. The ZBUC converter utilizes Teledyne Paradise Datacom’s proprietary “Smart Reference Technology”. Smart Reference Technology allows the system user to change reference frequency and power level or choose internal or external reference without requiring any system configuration.

  • Page 40: Zbuc Features

    SSPA. 4.1 ZBUC Features This section describes the features available in the Teledyne Paradise Datacom ZBUC con- verter. The ZBUC converter is available as an option for the High Power Outdoor SSPA, and is available in four C-Band models, two Ku-Band models, one X-Band model, and one Ka-Band model.

  • Page 41: Zbuc Converter Theory Of Operation

    4.3 Smart Reference Technology Teledyne Paradise Datacom’s new ZBUC converter comes standard with smart reference technology. Smart reference technology allows the system operator to change the external system reference frequency without any system configuration required. The ZBUC converter will automatically sense and lock to a 10 MHz or 50 MHz system reference frequency.

  • Page 42: Zbuc Fsk Monitor And Control

    ± 32.5 kHz Input Level Range -5 to -15 dBm Start Tone Time 10 ms minimum See Teledyne Paradise Datacom document number 201410 for a full description of the VSAT BUC Protocol. 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 43: Typical System Configuration

    4.5 Typical System Configuration This section shows the High Power Outdoor SSPB in a common system application. Figure 4-3 shows the High Power Outdoor used with a Teledyne Paradise Datacom Q-Series Q-Flex Satellite Modem, and a PC running remote M&C software.
  • Page 44 THIS PAGE LEFT INTENTIONALLY BLANK 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 45: Section 5: Redundant System Operation

    Section 5: Redundant System Operation 5.0 Redundant System Concepts The High Power Outdoor Amplifier is capable of operating in a variety of redundant system configurations. These include 1:1 and 1:2 as well as 1:1 with L-Band Block Up Converters. The High Power Outdoor Amplifier has a built-in 1:1 redundancy controller, allowing it to be used in 1:1 redundant systems without a separate external controller.

  • Page 46: Figure 5-3: 1:1 Redundant System With L Band Input

    The system shown in Figure 5-3 uses the same concept of the power splitter on the RF input. In this case the High Power Outdoor amplifiers are equipped with L-Band block up converters. L-Band input amplifiers use phase locked oscillators as the local oscillator to the up converter. Such systems must use a splitter at the input instead of a switch so that the reference input is always available to the standby amplifier.

  • Page 47: High Power Outdoor Amplifier In 1:1 Redundancy

    The High Power Outdoor Amplifier is ideally suited for a self-contained and cost effective 1:1 redundant system. Each amplifier has a built-in 1:1 redundant controller. The controller is activated via computer command from the Teledyne Paradise Datacom Universal M&C application. The High Power Outdoor Amplifier may be purchased as a redundant system or upgraded in the field from a single thread amplifier to a 1:1 redundant system.

  • Page 48: Hardware Setup

    5.1.1 Hardware Setup The hardware setup for a High Power Outdoor 1:1 Redundant System is very simple and involves the addition of (2) cables along with a redundancy switch. A schematic diagram of the redundancy setup is shown in Figure 5-5. Figure 5-5: Schematic, 1:1 Redundant High Power Outdoor System The Link Cable is a simple (3) conductor crossover cable that allows the system to pass com- mand and control between amplifiers.

  • Page 49: Software Setup

    To instruct the High Power Outdoor Amplifier to operate in redundancy it is necessary to temporarily connect it to a PC running the Teledyne Paradise Datacom Monitor and Control Software to set up the redundant configuration. There are three basic modes of Redundant System communication.

  • Page 50: Figure 5-7: M&C Program "Sspa Settings" Window

    Each amplifier can be configured for redundancy by the Teledyne Paradise Datacom Univer- sal M&C software that ships along with each unit. Using the Quick-Start cable, connect each amplifier to the PC and run the M&C program. Select the “Settings” tab from the main form.
  • Page 51 The Standby amplifier can be muted to have a “Cold Standby” condition. It keeps the SSPA module powered down for power savings while the microprocessor and fans remain opera- tional. SSPAs with Parallel I/O board firmware version 3.50 or beyond are provided with a true cold standby mode.

  • Page 52: Pc Control Using Rs232 And Paradise M&C Software

    5.1.2.2 PC Control using RS232 and Paradise M&C Software In applications requiring remote monitor and control of the redundant system, the Teledyne Paradise Datacom Universal M&C program has a control panel that can be used for this pur- pose. To enable the 1:1 system to operate with the remote control software, first configure each amplifier for 1:1 redundant operation as previously described in the Stand-Alone 1:1 Re- dundant System section.

  • Page 53: Figure 5-9: Add New Compact Outdoor Sspa Window

    From this screen choose the COM port and baud rate. The factory default baud rate is 9600. If a single SSPA is used the Global network address setting should be used. After the COM port has been selected, and the instance created, the “Status” window will be displayed.

  • Page 54: Figure 5-12: Universal M&C, Add 1:1 Redundant System Window

    Figure 5-12: Universal M&C, Add 1:1 Redundant System Window The Redundant Control Panel window will then be displayed as shown in Figure 5-12. Note that once the Redundant Control Panel is enabled, the Main Menu on the M&C program changes. The Control Panel must be configured by selecting “Set Redundancy System”...

  • Page 55: Figure 5-14: Dialog Window, Affirm Mute Of Online Amplifier

    From the Control Panel display all typical 1:1 system functions can be monitored and con- trolled. A particular SSPA can be put on line be selecting the command button for either am- plifier. The online amplifier will be indicated by the “Online” notation. The standby amplifier will be listed as such as shown in Figure 5-13 (Unit 2).

  • Page 56: Figure 5-15: Control Panel Showing Unit 1 Faulted And Signal Routed To Unit 2

    By clicking on the [Unit1] button (which will be labeled to correspond to the unit’s name), the M&C Status window for Unit1 is activated, so the user may determine the cause of the fault. See Figure 5-16. Once the fault is cleared, Unit1 can be reactivated as the online unit by clicking on the triangular amplifier symbol for Unit2 in the System1 control panel.

  • Page 57: Pc Control Using Rs-485 And Paradise M&C Software

    5.1.2.3 PC Control using RS-485 and Paradise M&C Software Applications requiring long cable runs between the computer and the 1:1 Redundant System may use RS-485 communication. The amplifier firmware supports networking on a RS-485 bus. This type of network can be used to support the 1:1 Redundant System. The RS-485 link can typically be run up to 4000 ft.

  • Page 58: Figure 5-18: 1:1 Redundant System With Half Duplex Communication

    Figure 5-18: 1:1 Redundant System with Half Duplex Communication 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 59: High Power Outdoor Sspa In 1:2 Redundant Systems

    5.2 High Power Outdoor SSPA in 1:2 Redundancy The High Power Outdoor Amplifier can also be configured in 1:2 Redundant Systems. A 1:2 Redundant System typically has two transmit paths, one on a horizontal polarity and the other on a vertical polarity. The system provides automatic switchover to the spare SSPA to either polarization path in case of a primary SSPA malfunction.

  • Page 60: Hardware Setup

    If the user is using an amplifier not configured for a redun- dant system, the amplifier settings must be changed for such use. Temporarily connect the amplifier to a PC running the Teledyne Paradise Datacom Universal M&C Software to set up the redundant configuration.

  • Page 61: Pc Control Using Universal M&C Software

    The above settings are valid as soon as the operator sets them on the SSPA Settings win- dow. The SSPA’s redundant operation can be verified by monitoring the RF Switch Fault indi- cator. 5.2.2.1 PC Control using Universal M&C Software When using RS-232 or RS-485, a separate COM port will be required for each amplifier.

  • Page 62: Figure 5-22: Universal M&C, High Power Outdoor Sspa Status Window

    Figure 5-22: Universal M&C Application, High Power Outdoor SSPA Status Window After the COM port has been selected, the “Operation” window will be displayed. If the unit is connected to a power source and turned on, the SSPA will begin communicating with the M&C program and its operating parameters will be displayed, as shown in Figure 5-22.

  • Page 63: Figure 5-24: Universal M&C Application, Controller Status Window

    Figure 5-24: Universal M&C Application, Controller Status Window From the Control Panel display, all typical 1:2 system functions can be monitored and con- trolled. The online amplifiers will be indicated by the “Online” notation. The standby amplifier will be listed as such, as shown in Figure 5-24 (Unit 2 Standby). A particular redundant configuration can be saved by going to the “File”...
  • Page 64 THIS PAGE LEFT INTENTIONALLY BLANK 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 65: Section 6: Phase Combined Systems

    Section 6: Phase Combined Systems 6.0 Phase Combining Overview Phase combining amplifiers has long been a popular means of increasing the output power of an amplifier system. Under high power microwave conditions it is common to utilize some form of waveguide hybrid coupler to combine the output power of two amplifiers. This coupler is generally a waveguide tee such as a four port magic tee.

  • Page 66: Figure 6-2: 1:1 Fixed Phase Combined System With Fprc-1100 Controller

    RF out- put. Teledyne Paradise Datacom has developed a series of controllers that greatly enhances the operation of the phase combined system. The FPRC-1100 Phase Combined System Control- ler is designed specifically to control 1 for 1 Fixed Phase Combined redundant amplifier sys- tems.

  • Page 67: 1:1 Fixed Phase Combined Systems

    LED in the waveguide switch path. Figure 6-3: FPRC-1100 Phase Combined System Controller Detailed information on the installation and operation of the FPRC-1100 can be found in the unit’s operations manual, Teledyne Paradise Datacom drawing #209351. Operations Manual, High Power Outdoor SSPA 211670 REV D...

  • Page 68: 1:2 Fixed Phase Combined Systems

    Controller. Detailed information on the installation and operation of the FPRC-1200 can be found in the unit’s operations manual, Teledyne Paradise Datacom drawing #205933. The FPRC-1200 can be used in automatic or manual mode. In manual mode, if a fault occurs in one of the amplifiers, a fault will be indicated on the front panel but no waveguide switch change will occur.

  • Page 69: Section 7: Maintenance And Troubleshooting

    Section 7: Maintenance and Troubleshooting 7.0 Introduction This section describes some of the standard maintenance practices that can be performed on the High Power Outdoor Amplifier and tips to troubleshoot common customer issues. 7.1 Cooling System Maintenance It is recommended that the cooling system of the SSPA be checked at least once per month. If the amplifier is being operated in an environment that produces a large amount of dust and debris, this check should be performed more frequently.

  • Page 70: Fan Replacement

    Perform the following procedure when cleaning the amplifier’s fan assemblies and heatsink. 1. Using a Philips head screw driver, loosen the thumbscrews holding the fan tray in place. The intake fans use eight (8) thumbscrews; the exhaust fans use two (2) thumbscrews.
  • Page 71 The exhaust fan assemblies are located on the same side of the amplifier as the handles. The exhaust fan assemblies use one (1) fan to blow air out of the amplifier enclosure. The exhaust fan power cable has a circular MIL connector (MS3116F8-3P) which connects to the circular MIL connector (MS3112E8-3S) on the inside of the amplifier enclosure.

  • Page 72: Troubleshooting Guide

    7.3 Troubleshooting guide The following section describes solutions for some of the most common issues with the operation of the High Power Outdoor SSPA. 7.3.1 Unit doesn’t power up Cooling fans do not spin, and alarm LED lamps are off. Possible causes: AC power is off;...

  • Page 73: Cannot Connect To Sspa Through Remote Control Interface

    7.3.5 Cannot connect to SSPA through remote control interface Possible causes: The SSPA remote control is set to a different interface setting. The interface cable is not wired properly or has a broken wire harness. A PC interface port malfunction. An incorrect version of the software is being used to control the unit. The selected SSPA protocol is no longer supported by the SSPA firmware.
  • Page 74 THIS PAGE LEFT INTENTIONALLY BLANK 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 75: Section 8: Remote Control Interface

    Section 8: Remote Control Interface 8.0 Serial Protocol Overview The amplifier can be managed and controlled over a variety of remote control interfaces as shown in Figure 8-1. Remote control interface stack 10Base-T IP Interface SNMP HTTP Web Serial Interface Protocols: RS485 1.

  • Page 76: Table 8-1: Interface Selection

    The selected interface is controlled by a combination of internal SSPA settings and Interface control pins: Baud1 (Pin e) and Baud0 (Pin j) on the J4 M&C connector (See Table 8-1). Table 8-1: Interface Selection Baud0 (Pin j) Baud1 (Pin e) Selected interface state state...
  • Page 77 If it is ever necessary to revert the SSPA to a known interface state, follow the steps below: 1. Turn off the SSPA; 2. Establish wire jumpers to the M&C connector (J4) according to the desired proto- col selection as shown in Table 8-1; 3.

  • Page 78: Serial Communication

    8.1 Serial Communication This section describes the normal communication protocol between the amplifier and a host computer over RS-232/RS-485 serial interface. Serial port settings on the host computer must be configured for 8 bit data at no parity, with 1 stop bit. The baud rate should match the selected baud rate parameter on the SSPA unit.

  • Page 79: Source Address

    8.1.1.3 Source Address The source address specifies the address of the node that is sending the packet. All unique addresses, except the broadcast address, are equal and can be assigned to individual units. The host computer must also have a unique network address. 8.1.2 Data Packet The data sub-packet is comprised of 6 to 32 bytes of information.

  • Page 80: Data Tag

    frame varies by the amount of attached data bytes. It may contain 11+N bytes where N is the amount of requested data bytes from a particular table, specified in Data Length field. The Set Request command allows the sender to actively change parameters for the receiv- er’s internal configuration.

  • Page 81: Data Address / Error Status / Local Port Frame Length

    8.1.2.5 Data Address / Error Status / Local Port Frame Length This field is a tag extension byte and specifies the first table element of the tagged data. If the Data Length is more than 1 byte, then all subsequent data fields must be accessed starting from the specified address.

  • Page 82: Trailer Packet

    8.1.3 Trailer Packet The trailer component contains only one byte called the Frame Check Sequence. This field provides a checksum during packet transmission. See Figure 4-5. TRAILER (1 HEADER DATA (4 bytes) (6-32 bytes) byte) Frame Check Checksum (1 byte) Figure 8-5: Trailer Sub-Packet 8.1.3.1 Frame Check This value is computed as a function of the content of the destination address, source...

  • Page 83: Serial Communications Protocol

    8.1.5 Serial Communications Protocol Tables 8-6 through 8-10 describe the various values of the serial communications protocol. Table 8-6: Request Frame Structure Byte position Byte Value (Hex) Description 0xAA Frame Sync 1 0x55 Frame Sync 2 Destination Address -//- Source Address -//- Protocol Version Protocol compatibility hole, must be set to 0...

  • Page 84: Table 8-8: System Settings Data Values

    Table 8-8: System Settings Data Values Data # Bytes Description Limits and Byte Values Address Single Amplifier = 255; 1:1 Redundant = 0; Dual 1:1 = 1 System Operation Mode (version 3.60); Maintenance Switch =2 (version 5.05) System Hierarchical Address HPA 1= 0;...

  • Page 85: Table 8-9: System Threshold Data Values

    Table 8-8: System Settings Data Values (continued) Data # Bytes Description Limits and Byte Values Address Disabled =255; Fault on low RF threshold = 0 Forward RF Fault Status 10% Forward RF power window = 1 15% Forward RF power window = 2 Fault on High RF threshold = 3 Minor Fault (no effect on Summary Fault) = 255 Forward RF Fault Handling...

  • Page 86: Table 8-10: System Condition Addressing

    Table 8-10: System Condition Addressing Data # Bytes Description Limits and valid values Address Tempcomp DAC value readout 0 to 1023 Present Temperature ± 125 2-Byte Value 0 fault clear; 1 fault set 0 mute clear; 1 mute set 0 standby state, 1 on line state Lower Byte Bit 0 = Summary Fault Bit 1 = High Temp Fault...

  • Page 87: Ethernet Interface

    The amplifier supports several IP network protocols to provide a full featured remote M&C interface over an Ethernet LAN: 1. IPNet protocol – redirection of standard Teledyne Paradise Datacom LLC serial protocol over UDP transport layer protocol. This protocol is fully supported in Tele- dyne Paradise Datacom’s Universal M&C software.

  • Page 88: Figure 8-6: Udp Redirect Frame Example

    The number of the retransmissions is user configurable. The Teledyne Paradise Datacom SSPA Ethernet IP interface can use UDP ports from 0 to 65553 for sending and receiving. The receiving port needs to be specified through the front panel menu.

  • Page 89: Setting Ipnet Interface

    8.2.2.2 Setting IPNet Interface To set up the amplifier with custom IP parameters, the internal IP settings need to be modi- fied by using Teledyne Paradise Datacom’s Universal M&C, version 4.4.3 or later. See Sec- tion 3.2.4. 8.2.2.3 Troubleshooting IP Connectivity Check IP connectivity to the SSPA unit.

  • Page 90: Snmp Interface

    Downloads section of the company web site, www.paradisedata.com. The Teledyne Paradise Datacom MIB is a table-based MIB, and is the same for all devices. The MIB table is designed to follow the same pattern as the tables for serial protocol. For ad- ditional information about OID values, refer to Tables 8-11 to 8-13.

  • Page 91: Snmp Mib Tree

    8.2.3.1 SNMP MIB Tree --paradiseDatacom(1.3.6.1.4.1.20712) +--deviceINFO(1) | +-- r-n OctetString deviceID(1) | +-- rwn OctetString deviceLocation(2) | +-- r-n OctetString deviceRevision(3) | +-- r-n Enumeration deviceType(4) +--devices(2) +--paradiseDevice(1) | +--settings(1) | | | | | +--settingsEntry(1) [settingIndex] +-- rwn Integer32 settingIndex(1) +-- rwn Integer32 settingValue(2) +-- r-n OctetString settingTextValue(3) | +--thresholds(2)

  • Page 92: Description Of Mib Entities

    8.2.3.2 Description of MIB Entities deviceINFO - This field includes general device information. deviceID - Octet string type; maximum length -60; field specifies device model and serial number; read only access; OID -1.3.6.1.4.1.20712.1.1 deviceLocation - Octet string type; maximum length 60; filed allow customer to store information about device physical location or any other textual information related to the device;...

  • Page 93: Extended Snmp

    8.2.4 Extended SNMP High Power Outdoor units feature an extended SNMP MIB and SNMP traps. This extended MIB covers several OID objects related to SNMP trap functions. These units allow independent functioning of two SNMP traps (asynchronous notifications): Fault trap and Conditions trap. Both traps can be enabled or disabled by the user. The user can also specify how many times the same trap notification will be sent back to the SNMP manager.

  • Page 94: Extended Snmp Mib Tree

    8.2.4.1 Extended SNMP MIB Tree --paradiseDatacom(1.3.6.1.4.1.20712) +--deviceINFO(1.3.6.1.4.1.20712.1) | +-- r-n OctetString deviceID(1.3.6.1.4.1.20712.1.1) | +-- rwn OctetString deviceLocation(1.3.6.1.4.1.20712.1.2) | +-- r-n OctetString deviceRevision(1.3.6.1.4.1.20712.1.3) | +-- r-n Enumeration deviceType(1.3.6.1.4.1.20712.1.4) | +--deviceTimeTicks(1.3.6.1.4.1.20712.1.5) | | | | | +-- r-n TimeTicks deviceUpTime(1.3.6.1.4.1.20712.1.5.1) | | +-- r-n TimeTicks deviceFaultTime(1.3.6.1.4.1.20712.1.5.2) | +--deviceCounters(1.3.6.1.4.1.20712.1.6) | | | | | +-- r-n Counter deviceSFaultCounter(1)
  • Page 95 +--paradiseDevice(1) | +--settings(1) | | | | | +--settingsEntry(1) [settingIndex] | | | | | +-- rwn Integer32 settingIndex(1) | | +-- rwn Integer32 settingValue(2) | | +-- r-n OctetString settingTextValue(3) | +--thresholds(2) | | | | | +--thresholdsEntry(1) [thresholdIndex] | | | | | +-- rwn Integer32 thresholdIndex(1) | | +-- r-n Integer32 thresholdValue(2)

  • Page 96: Extended Snmp Mib Tree Elements In Detail

    8.2.4.2 Extended SNMP MIB Tree Elements in Detail deviceRevision - Octet string type; maximum length 60; field specifies device firmware revi- sion; read only access; OID -1.3.6.1.4.1.20712.1.3 deviceUpTime - Device total up time in hundredths of a second; deviceFaultTime - Time elapsed since deviceLastFault last state change in hundredths of second;...

  • Page 97: Table 8-12: Detailed Settings For Co Sspa Mode (Device Type=2)

    Table 8-12: Detailed Settings for CO SSPA mode (Device Type=2) Operations Manual, High Power Outdoor SSPA 211670 REV D...

  • Page 98: Table 8-13: Detailed Thresholds

    Table 8-12: Detailed Settings (continued from previous page) settingIndex/ Value OID Description settingTextValue settingValue 29/INTEGER IPAddressByte1'0..255 1.3.6.1.4.1.20712.2.1.1.1.2.29 Device IP address byte1 (MSB) 30/INTEGER IPAddressByte2'0..255 1.3.6.1.4.1.20712.2.1.1.1.2.30 Device IP address byte2 31/INTEGER IPAddressByte3'0..255 1.3.6.1.4.1.20712.2.1.1.1.2.31 Device IP address byte3 32/INTEGER IPAddressByte4'0..255 1.3.6.1.4.1.20712.2.1.1.1.2.32 Device IP address byte4 (LSB) 33/INTEGER IPGateWayByte1'0..255 1.3.6.1.4.1.20712.2.1.1.1.2.33 Device Gateway address byte1 (MSB) 34/INTEGER IPGateWayByte2'0..255...

  • Page 99: Table 8-14: Detailed Conditions

    Table 8-14: Detailed Conditions conditionIndex/ conditionTextValue Value OID Description conditionValue 1/INTEGER DACCount'0..1023 1.3.6.1.4.1.20712.2.1.3.1.2.1 Tempcomp DAC control output 2/INTEGER SSPACoreTemperature(C)'-100..100 1.3.6.1.4.1.20712.2.1.3.1.2.2 SSPA core temperature 3/INTEGER FaultStateAgregateValue'0-65535 1.3.6.1.4.1.20712.2.1.3.1.2.3 Aggregate Fault State of SSPA 4/INTEGER SSPAAgregateAttenuation(dBx10)'0..200 1.3.6.1.4.1.20712.2.1.3.1.2.4 Current SSPA Attenuation Level 5/INTEGER ForwardRFPower(dBmx10)'0..800 1.3.6.1.4.1.20712.2.1.3.1.2.5 Forward RF Forward output in dBm 6/INTEGER...

  • Page 100: M&C Via Snmp

    Set up the amplifier with custom IP parameters by modifying the internal IP settings using Teledyne Paradise Datacom’s Universal M&C, version 4.4.3 or later. Use the default Read and Write Community settings, or check the boxes to modify them. See Figure 8-7.

  • Page 101: Connecting To A Mib Browser

    For a MIB browser application example, we will be using the freeware browser GetIf, version 2.3.1. Other browsers are available for download at http://www.snmplink.org/Tools.html. 1. Copy the provided Teledyne Paradise Datacom LLC MIB file into the Getif Mibs subfolder. 2. Start the GetIf application.

  • Page 102: Snmp V3 Implementation Issues In Sspas

    Novell Internet Packet Exchange (IPX). SNMPv1 is widely used and is the de-facto network- management protocol in the Internet community. The Teledyne Paradise Datacom SSPA family of products utilizes the most popular imple- mentation, SNMP V1 over UDP transport layer.
  • Page 103 SNMPv3 primarily added security and remote configuration enhancements to SNMP. Problems with implementing SNMP V2 and V3 in Teledyne Paradise Datacom SSPA product family Many embedded controllers and microprocessors that are used in electronic components such as amplifier modules do not have support for SNMP V2 or V3.
  • Page 104 THIS PAGE LEFT INTENTIONALLY BLANK 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 105: Section 9: Option, Universal Handheld Controller

    Universal Handheld Controller 9.0 Overview, RCH-1000 Teledyne Paradise Datacom’s Universal Handheld Controller (model RCH-1000) is a versa- tile device used to interface with a High Power Outdoor SSPA. The device enclosure features a seal which provides an ingress protection level of IP65. This allows the controller to be used in most outdoor environments.
  • Page 106 THIS PAGE LEFT INTENTIONALLY BLANK 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 107: Appendix A: Installation, Uni-Strut Frame For 1:1 Redundant System Mounting

    Outdoor SSPA System. Before beginning the assembly of the uni-strut mounting kit, verify that the kit includes all of the items in Table A-1. If any items are missing, contact Teledyne Paradise Datacom with the part number and quantity of the shortage.

  • Page 108: Table A-1: Parts List, Mounting Kit Assembly (L213302-1)

    A.2 Installation, Uni-Strut Assembly Reference the parts list in Table A-1 and Figure A-1, Figure A-2, and Figure A-3 throughout the assembly of the mounting frame. Table A-1: Parts List, Mounting Kit Assembly (L213302-1) Item Qty. Description Image UNI-STRUT, 34.5” UNI-STRUT, 37.5”...

  • Page 109: Figure A-1: Uni-Strut Assembly

    Figure A-1: Uni-Strut Assembly 1. Arrange the uni-strut sections (Items 1, 2 and 3) as shown in Figure A-1. Secure the 4-hole L-brackets (Item 12) on the flat side of the uni-strut as shown in Figure A-1, and refer to Figure A-2, Detail A for hardware placement. 2.

  • Page 110: Figure A-2: Uni-Strut Assembly, Hardware Placement

    Figure A-2: Uni-Strut Assembly, Hardware Placement Figure A-3: Uni-Strut Assembly, Base Strut 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 111: Figure A-4: Mount Hpas To Frame

    A.3 Installation, HPAs to Frame Warning: The base struts (Item 1) included in the mounting kit should be bolted securely to the location decking prior to mounting the HPAs to the mounting frame. This is to ensure that the mounted SSPA assem- bly does not tip over during or after system installation.

  • Page 112: Figure A-5: Components, Waveguide Switch Array

    A.4 Installation, Waveguide Switch Array The redundant system was shipped with the following components that comprise the wave- guide switch array: a switch/termination assembly, switch support bracket, and waveguide segments that connect between the output of the HPAs and the switch. See Figure A-5. Figure A-5: Components, Waveguide Switch Array The switch support bracket is mounted to the top rail between the HPAs.

  • Page 113: Figure A-7: Connect Waveguide To Switch, Ku-Band (Typical)

    INSERT O-RING GASKET (1 PER SIDE) #6 FLAT WASHER (x2 EA. SIDE) #6 LOCK WASHER (x2 EA. SIDE) 6-32x0.75 S.H.C.S (x2 EA. SIDE) Figure A-7: Connect Waveguide to Switch, Ku-Band (typical) Connect the waveguide segments to the switch assembly as shown in Figure A-7. Insert an O-ring gasket (supplied) between the waveguide flange and the switch port for each HPA in- put.

  • Page 114: Figure A-9: Waveguide Installation, Ku-Band (Typical)

    6-32x0.75 S.H.C.S (x4) INSERT O-RING GASKET #6 FLAT WASHER (x4) #6 LOCK WASHER (x4) 6-32 NUT (x4) Figure A-9: Waveguide Installation, Ku-Band (typical) Insert an O-ring gasket (supplied) between the RF Output waveguide of the HPA and the waveguide segment. Secure the waveguide to the RF Output flange of the HPA with the sup- plied hardware.

  • Page 115: Figure A-10: Input Plate Assembly (With Splitter)

    A.5 Installation, Input Plate and RF/IF Connections A redundant system is available with input switching or input splitting. In both cases, an Input Plate Assembly will be installed between the amplifiers. An outline drawing of a typical Input Splitting Plate Assembly is shown in Figure A-10. REMOVE SELF-HOLDING NUTS AND INSTALL INTO UNI-STRUT FRAME PRIOR...

  • Page 116: Figure A-12: Connect Switch And Link Cables

    A.6 Installation, Switch and Link Cables The redundant system includes a Switch Cable and Link Cable which need to be connected to complete the installation. The cables include labels near each connector that identify to which port the connector should be plugged. Check the system schematic to verify proper connections.

  • Page 117: Appendix B: Installation, Uni-Strut Frame For 1:2 Phase Combined System

    Power Outdoor SSPA System. Before beginning the assembly of the uni-strut mounting kit, verify that the kit includes all of the items in Table B-1. If any items are missing, contact Teledyne Paradise Datacom with the part number and quantity of the shortage.

  • Page 118: Table B-1: Parts List, Mounting Kit Assembly (L214792-1)

    B.2 Installation, Uni-Strut Assembly Reference the parts list in Table B-1 and Figure B-1, Figure B-2, and Figure B-3 throughout the assembly of the mounting frame. Table B-1: Parts List, Mounting Kit Assembly (L214792-1) Item Qty. Description Image UNI-STRUT, 34.5” UNI-STRUT, 37.5”...

  • Page 119: Figure B-1: Uni-Strut Assembly

    71.25 47.25 24.75 20.25 DO NOT INSTALL HARDWARE DO NOT INSTALL DO NOT INSTALL DO NOT INSTALL DO NOT INSTALL HARDWARE HARDWARE HARDWARE HARDWARE 26.25 45.75 51.75 Figure B-1: Uni-Strut Assembly 1. Arrange the uni-strut sections (Items 1, 2, 3 and 5) as shown in Figure B-1. Secure the 4-hole L-brackets (Item 12) on the flat side of the uni-strut as shown in Figure B-1, and refer to Figure B-2, Detail A for hardware placement.

  • Page 120: Figure B-2: Uni-Strut Assembly, Hardware Placement

    Figure B-2: Uni-Strut Assembly, Hardware Placement Figure B-3: Uni-Strut Assembly, Attach Footers 211670 REV D Operations Manual, High Power Outdoor SSPA...

  • Page 121: Figure B-4: Install Amplifiers

    B.3 Installation, HPAs to Frame Warning: The base struts (Item 1) included in the mounting kit should be bolted securely to the location decking prior to mounting the HPAs to the mounting frame. This is to ensure that the mounted SSPA assem- bly does not tip over during or after system installation.

  • Page 122: Figure B-5: Install Signal Box

    B.4 Installation, Signal Box The signal box is a weatherized enclosure which houses the block up converters and pro- vides a single point of connection for system I/O. Mounting hardware is provided with the unit. The mounting plate for the signal box includes mounting supports for the system waveguide and termination, which will be referenced later.

  • Page 123: Figure B-6: Components, Output Waveguide And Switch Array

    B.5 Installation, Output Waveguide and Switch Array The system was shipped with the following components that comprise the output waveguide and switch array: • RF Output Assembly, which includes the Magic Tee, Crossguide Couplers, and Termination • Switch 1 (SW1) •...

  • Page 124: Figure B-7: Attach W/G Segment 214784-1 To Sw2

    WAVEGUIDE TO HPA 3 214784-1 INSERT O-RING GASKET SECURE WAVEGUIDE TO SWITCH USING (2x) 6-32 x 1/2” S.H.C.S, FLAT & LOCK WASHERS (LEAVE TOP TWO HOLES OPEN) SWITCH 2 & TERMINATION Figure B-7: Attach W/G Segment 214784-1 to SW2 INSERT O-RING GASKET BETWEEN SWITCH 1 WAVEGUIDE FLANGE AND SWITCH SECURE WAVEGUIDE TO SWITCHES...

  • Page 125: Figure B-9: Attach W/G Segment 214785-1, Magic Tee And W/G 214786-1

    INSERT O-RING GASKET BETWEEN WAVEGUIDE FLANGE AND SWITCH LEAVE TOP 2 HOLES SECURE WAVEGUIDE TO SWITCHES OPEN USING (4x) 6-32 x 1/2” S.H.C.S, FLAT & LOCK WASHERS 214785-1 214786-1 Pressure Pressure Window Window 6-32 x 7/8” S.H.C.S., Flat & Lock Washers (x4) O-Rings O-Rings...

  • Page 126: Figure B-11: Attach Magic Tee Support Bracket To Uni-Strut Frame

    SECURE MAGIC TEE SUPPORT BRACKET TO UNI-STRUT FRAME USE 1/2-13 x 1.25 HEX BOLT, 1/2” SELF-HOLDING NUT, USE 1/2-13 x 2.75 HEX BOLT FLAT & LOCK WASHER (THROUGH UNI-STRUT), 1/2” NUT, FLAT & LOCK WASHERS Figure B-11: Attach Magic Tee Support Bracket to Uni-Strut Frame INSERT O-RING GASKET BETWEEN WAVEGUIDE FLANGE AND SWITCH SECURE WAVEGUIDE TO SWITCH...

  • Page 127: Figure B-13: Insert O-Ring Gasket At Hpa Rf Output And Secure Waveguide

    Insert supplied O-ring gaskets between the RF Output flange of each HPA and the connect- ing waveguide. See Figure B-13. Warning: Do not try to force the waveguide to fit to the position of the HPA RF Output flange. Doing so may damage the waveguide. Minor adjust- ment in the position of the HPAs may be necessary.

  • Page 128: Figure B-14: Semi-Rigid Coaxial Cables

    B.5 Installation, Semi-Rigid Coaxial Cables A series of pre-formed semi-rigid coaxial cables were shipped with the system. Each cable is labeled (W1 through W9) for easy identification. These cables are used to transmit the RF signal to each HPA, and the forward power signal from the crossguide coupler to the signal box.

  • Page 129: Figure B-15: Connect W5 To Sw2 (Shown From Top Of Switch)

    Figure B-16: Connect W4 to Port J8 Crossguide Diode / Coupler Attenuator Figure B-15: Connect W5 to SW2 Figure B-17: Connect W4 to Diode/Atttenuator (shown from top of switch) at Crossguide Coupler 1. Locate the short coax cable labeled W5. Connect this cable to the SMA connectors on Switch 2 (SW2) at Port 3 and Port 4.

  • Page 130: Figure B-18: Connect W1 To Signal Box Port J4 (Hpa1) And Sw2-2

    Figure B-19: Connect W2 to Signal Box Port J2 (HPA2) Figure B-18: Connect W1 to Signal Box J4 (HPA1) and SW2-2 Figure B-20: Connect W3 to Signal Box Port J3 (HPA3) Note: Cables W7, W8 and W9 should be secured into the cable grommets connected to the HPA support brackets.

  • Page 131: Figure B-21: System Control Cable

    B.6 Installation, System Control Cable The redundant system includes a System Control Cable which needs to be connected to complete the installation. The cable includes labels near each connector that identify to which port the connector should be plugged. Check the system schematic to verify proper connections. Note: Self-amalgamating tape or putty should be used to cover all con- nector junctions (circular MIL, MS-type) from the plug/socket connec- tion to as close as possible to the cable sheath so that no water can...

  • Page 132: Figure B-22: Schematic, Connections For 1:1 Buc And 1:2 Hpa System Cables

    B.7 Installation, 1:1 BUC Control Cable The signal box houses a 1:1 redundant block up converter system which is controlled from a separate rack-mountable controller (RCP2-1100). A control cable (L206173-X) is supplied which connects between port J9 of the signal box and ports J3 and J8 of the controller.

  • Page 133: Documentation

    Appendix C: Documentation The following pages comprise the specification sheet for the Teledyne Paradise Datacom High Power Outdoor SSPA (drawing number 211669). See the Teledyne Paradise Datacom web site at http://www.paradisedata.com for the latest revision of this document. The block diagram, schematic and outline drawing specific to the ordered unit/system is also appended to this section.
  • Page 134 THIS PAGE LEFT INTENTIONALLY BLANK 211670 REV D Operations Manual, High Power Outdoor SSPA...

Table of Contents
