5.7 Adjusting And Regulating The Knee Clamps and The Knee Pads
5.7.1 Unfastening and Setting the Knee Clamps
Use the locking knob marked with the red arrow (Fig. 19). To unfasten the knee clamp, loosen the locking
knob and pull away the knee pad from the user's knee. Next, move the knee pad up and turn it out or
pull it away outside.

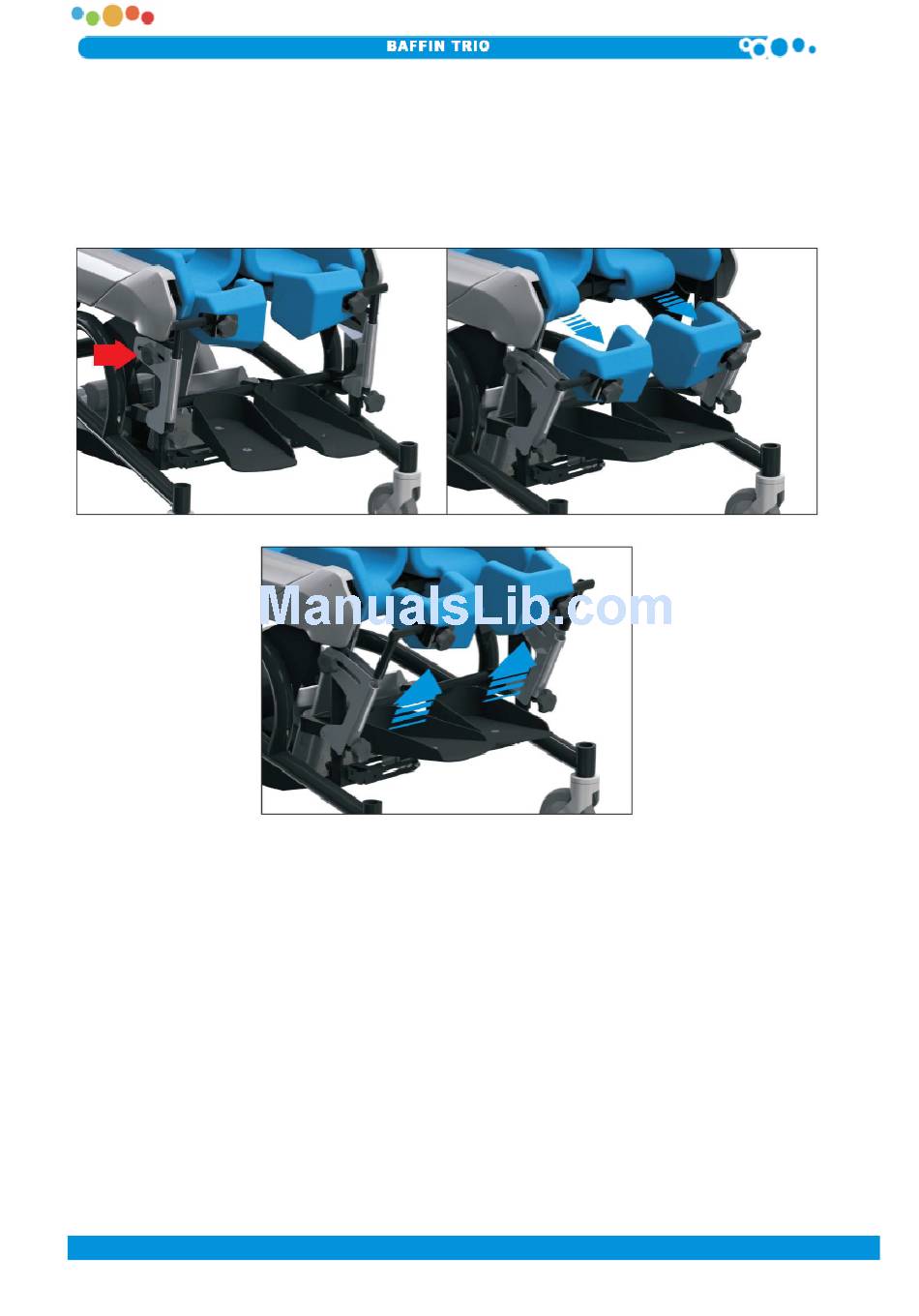

Fig. 19: Unfastening and closing the knee pads
To secure back the knee clamp and knee pad, start by putting the knee pad in the knee clamp and then
push both against the user's knee.
After setting the right position from the user's knee (the minimum space between the user's knee and the
knee pad which does not cause discomfort), lock the knee pad with the locking knob.
Properly set, the knee pad should not put too much pressure on the leg in the sitting and standing
position.
Each time when fastening the knee pads, check the locks by pulling the knee pads in the opening
direction.
