5.4 Adjusting the Side Supports / Underarms

5.4.1 Width Adjustment - Side Supports / Underarms

Use the knobs marked with the red arrow in Fig. 11. Turning the knob right or left allows for adjusting
the underarms to the individual needs of the User - by moving them closer to, or further from the body.
The knobs are situated on both sides of the device and operate independently. This means the supports
can be set symmetrically or asymmetrically in relation to the axis of the user's body.

5.4.2 Height Adjustment - Side Supports / Underarms

To adjust the height of side supports, use the knob marked with the red arrow in Fig. 12. The required
height is set by turning the knob to the right or left. The knob is used to adjust the right and left support
at the same time.

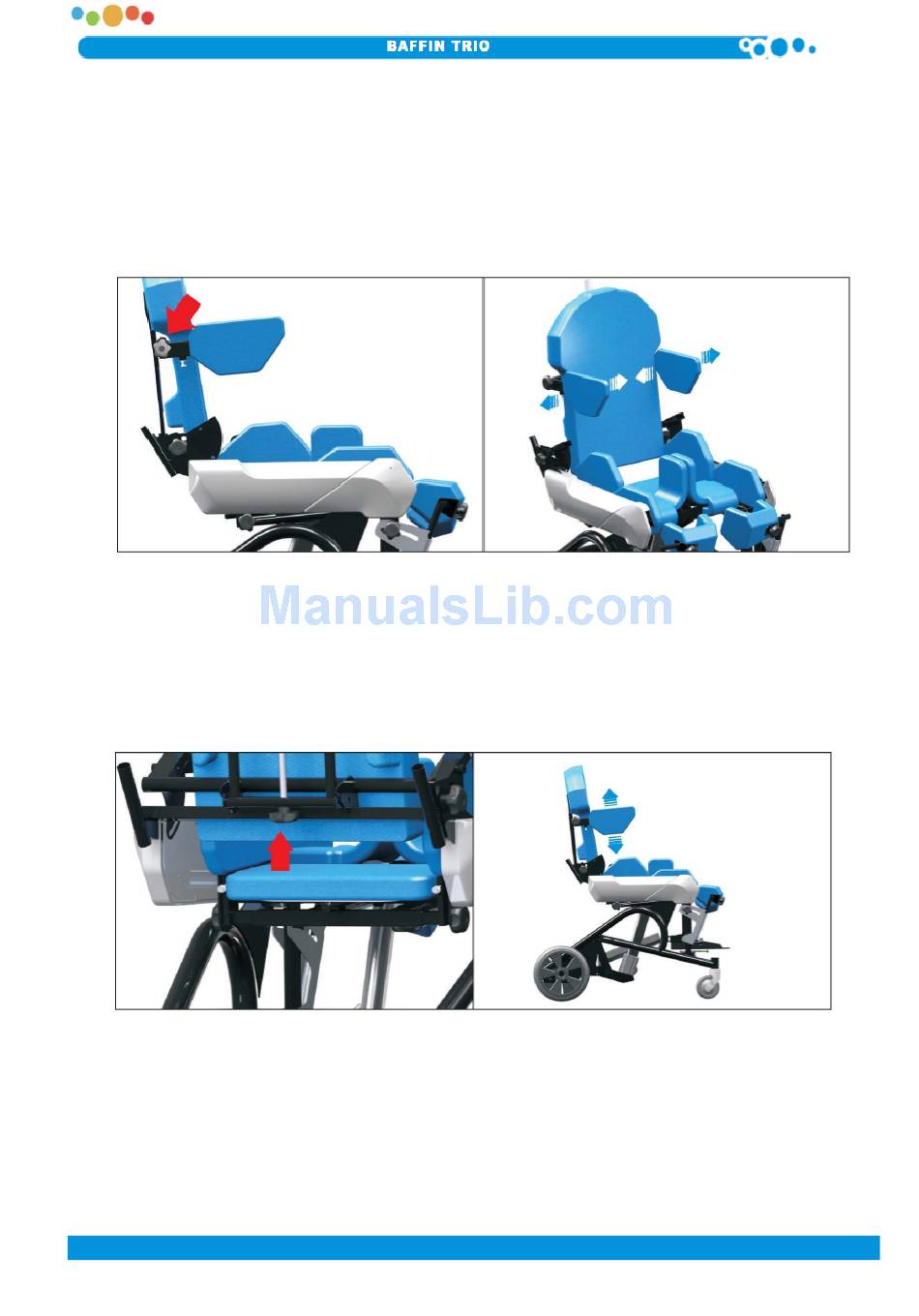

Fig. 11: Adjusting the width of side supports
Fig. 12: Adjusting the height of the side supports
