- Page 1 INSTALL ATION AND OPERATION MANUAL HS SERIES MIXER AMPLIFIER HS60 HS120 HS250...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION PRÉCAUTIONS DURANT UTILISATION LISEZ ces instructions. Read these instructions. Tenez ces instructions. Keep these instructions. Notez tous les avertissements. Heed all warnings. Suivez toutes les avertissements. Follow all instructions. N’utilisez pas ce produit près de l’eau (la piscine, la plage, le lac, etc.). Do not use this apparatus near water. - Page 3 INTRODUCTION AND CONTENTS Introduction HS SERIES MIXER AMPLIFIER Features & Protection Congratulations on choosing Australian Monitor for your professional Controls, Connectors and Indicators amplification requirements. Block diagram The design of our HS series mixer amplifier embraces all the aspects of a well-designed amplifier.
- Page 4 FEATURES & PROTECTION FEATURES FEATURES PROTECTION Class-D amplification Clip protection • • • 4Ω/70V/100V Operation • Short-circuit protection 6 Balanced XLR inputs or unbalanced RCA inputs Overload protection • • 3.5mm front line input socket Thermal protection • • Bluetooth® 3.0+EDR audio receiver supporting A2DP profile •...
-
Page 5: Controls, Connectors And Indicators

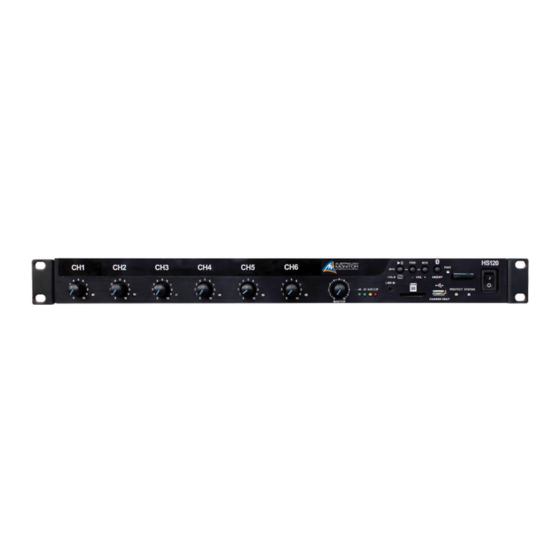

CONTROLS, CONNECTORS & INDICATORS Front panel FRONT PANEL Channel Signal / Clip Indicator The functions of the controls and indicators are as follows: A green LED will illuminate to show a signal is present on the corresponding Power Switch audio input channel. A red LED will illuminate when clipping occurs due to an excessive input signal. - Page 6 CONTROLS, CONNECTORS & INDICATORS Front panel, cover removed FRONT PANEL cont. Gain / Trim and Equaliser Defeat Volume Control Turn the corresponding channels potentiometer clockwise to increase You can defeat/disable the mixer’s volume controls to prevent end users the gain, bass, mid or treble and counter-clockwise to decrease. interfering with the system volume.
-
Page 7: Rear Panel
CONTROLS, CONNECTORS & INDICATORS REAR PANEL Mains Input Connector Record Output Your amplifier is fitted with a standard IEC 60320-C14 socket for mains A standard stereo RCA output containing the pre-master mixer stage output connection. Use the mains cable supplied to power up the unit. signal –... -
Page 8: Block Diagram
BLOCK DIAGRAM CHANNEL STAGE CHANNEL LEVEL PRIORITY CONTROL CONTROL PRE-AMP ±12dB MUTING STAGE GAIN EQUALISER POT DEFEAT (CH1–3) RCA Input XLR Input 12V-PHANTOM SIGNAL-PRESENCE GREEN MIXER STAGE MASTER LEVEL CONTROL ±12dB CLASS D MIXER GAIN EQUALISER POT DEFEAT AMPLIFIER 500kΩ External CH1–6 LINE-IN... -
Page 9: Installation
800m cooling further. Cooling The HS60 and HS120 amplifiers are convection cooled and do not require any special consideration. The HS250 amplifier is cooled by axial fans which draw air from the right side of the amplifier and expel the heated air out the left side of the amplifier. These amplifiers offer variable speed fans which run at half speed up to full speed when the internal heatsink temperature increases. -
Page 10: Installation (Cont)
INSTALLATION (CONT) Speaker Output Setup The amplifier output has a 6 pin output screw terminal with a pre-fitted link between the 4Ohm and the high impedance output. Follow the instructions below to connect the amplifier to your speaker/s for each output mode. 100V Fit the link between 4Ω... -
Page 11: Hum Problems
INSTALLATION (CONT) Hum Problems Powering Up Most equipment is designed for minimum hum when used under ideal REMEMBER: The amplifier should be the last piece of equipment conditions. When connected to other equipment, and to a safety earth in an that you turn on and the first piece of equipment that you turn off. -
Page 12: Basic Setup & Operation
BASIC SETUP & OPERATION STEP BY STEP SETUP The inputs of the HS mixer amplifiers can accommodate a wide range of sources including dynamic microphones, DVD and CD players. Each installation will require setting the appropriate relative mix of levels CONNECT THE SOURCES between microphones and program sources. -
Page 13: Operation
OPERATION VOLUME CONTROLS The diagram below shows the volume control stages of the HS mixer amplifier. CHANNEL CHANNEL MASTER MASTER GAIN POT VOLUME GAIN POT VOLUME BLUETOOTH MOBILE DEVICE VCA (optional) 1. VOLUME IN FILE NAME PLAY MUSIC 2. VOLUME.TXT IN FOLDER 3. -
Page 14: Operation (Cont)
OPERATION (CONT) TONE GENERATOR The HS mixer amplifier ships as standard with 5 factory programmed default tones. Tones can be played by shorting the appropriate contact to GND on the back panel 10 way Phoenix connector. IMPORTANT: Do NOT drive external voltages into the pins (except VOX) or damage to the unit will occur. Tones 1) ‘EVAC’: a long continuous repeating tone with a ramped frequency. - Page 15 OPERATION (CONT) Overriding Default Tones using an SD Card The default tones of the amplifier can be overridden by added tones to a user supplied SD card. Simply place the tone MP3 or WAV file on the root of the SD card and it will be played instead of the inbuilt tone. (See the Tone File/Folder Structure and Format section for further information on this feature.) In addition, the volume for each custom tone can be customised when using the SD card by adding the required volume to the filename.
- Page 16 OPERATION (CONT) BINARY INPUT TRIGGER The 10 way Phoenix connector on the back panel features a special BINARY input pin, by pulling this pin low it allows combinations of input triggers on the connector to perform additional features. Ability to play up to 11 additional customer specified tones. •...
-
Page 17: Priority Control
OPERATION (CONT) PRIORITY CONTROL The HS mixer amplifiers feature priority mode detection which allows channels to be muted when audio is detected on channels 1–3. This can be used for applications like paging where background music is muted while the announcement occurs. The priority section consists of three DIP switches and four POTS to configure the operation. -
Page 18: Music Player
OPERATION (CONT) MUSIC PLAYER The amplifier also includes an audio MP3/WAV player which can play an unlimited number of files stored on a user supplied SD card. Music files should be stored in the ‘sequence’ or ‘random’ folders of the SD card. These can then be played from either the front panel controls or the 10 way back panel Phoenix connector (using the continuous play commands). -
Page 19: Bluetooth ® Audio Streaming
OPERATION (CONT) BLUETOOTH AUDIO STREAMING ® The mixer amplifier includes a Bluetooth® Audio streaming interface which can receive audio from any device like a mobile phone, computer or tablet. Simply connect your Bluetooth® device and it will mix in to the amplifier output. Bluetooth Device Name: AUS MONITOR Passcode/PIN:... -
Page 20: Standby Input
The VCA input allows remote volume control of the mixer amplifier and muting of the master output. VCA Mode: Connect an Australian Monitor RC1 remote panel or any 500kΩ logarithmic potentiometer between the VCA and GND terminals of the 10 way Phoenix block connector to adjust the volume. -
Page 21: Sd Card Format
OPERATION (CONT) SD CARD FORMAT NOTE: Please consult the Australian Monitor website to download default tones and other test files for your SD card – www.australianmonitor.com.au SD card support Maximum SD card capacity See Support of SD cards larger than 32GB section for further details File Format System FAT32. - Page 22 OPERATION (CONT) User defined Tone Priority Override Trigger Number _ Track Name _ mixN_Volume.mp3 File Format: In order to activate the priority mode for an individual tone (or to override the current priority mode setting), append the filename with the following to change the priority muting mode: ‘_mix0’...
- Page 23 OPERATION (CONT) SD CARD FORMAT (cont) Random Folder In order to play random audio files they must be placed in a ‘random’ folder of the SD card, 1. Create a folder on the root of the SD card named ‘random’ 2.
-
Page 24: Fault Finding
FAULT FINDING Status Indicator If the blue STATUS LED is flashing instead of remaining on it can indicate a possible fault. See the table below on the meaning and how to resolve the fault. Flashes Meaning Cause Resolution SD card absent or faulty The front panel Music player buttons or 10way Phoenix Insert an SD card •... -
Page 25: Specifications
SPECIFICATIONS Model HS60 HS120 HS250 Conditions/Comments Topology Class-D Class-D Class-D Channels Power Output (per channel) 4Ω 120W 250W 1kHz. 1%THD. -10W/+30W 120W 250W 1kHz. 1%THD. -10W/+30W 100V 120W 250W 1kHz. 1%THD. -10W/+30W Maximum Output Level 26dBu (15.5Vrms ) 29dBu (21.9Vrms ) 32dBu (31.6Vrms ) -
Page 26: Specifications (Cont)
230Vac, 50Hz, 100V Output 1/8 Power 0.132A 0.250A 0.327A 230Vac, 50Hz, 100V Output 1/3 Power 0.222A 0.486A 0.627A 230Vac, 50Hz, 100V Output Full Power 0.503A 1.25A 230Vac, 50Hz, 100V Output HS60=55W, HS120=110W, HS250=220W PAGE 26 HS SERIES AMPLIFIER INSTALLATION AND OPERATION MANUAL... - Page 27 230Vac, 50Hz, 100V Output 1/3 Power 139W 230Vac, 50Hz, 100V Output Full Power 182W 337W 230Vac, 50Hz, 100V Output HS60=55W, HS120=110W, HS250=220W Efficiency 1/8th Power 230Vac, 50Hz, 100V Output 1/3 Power 230Vac, 50Hz, 100V Output Full Power 230Vac, 50Hz, 100V Output...
-
Page 28: Display Firmware Version
Firmware update procedure NOTE: Full detailed instructions on the firmware update procedure are included in all firmware update releases. Contact Australian Monitor for the latest release of the firmware. Basic update procedure; Using a USB to 3V3 UART bridge ( e.g. Silabs CP2102), connect the UART bridge to the 10 way Phoenix LOGIC connector as follows: •... - Page 29 NOTES HS SERIES AMPLIFIER INSTALLATION AND OPERATION MANUAL PAGE 29...
- Page 30 NOTES PAGE 30 HS SERIES AMPLIFIER INSTALLATION AND OPERATION MANUAL...
- Page 31 NOTES HS SERIES AMPLIFIER INSTALLATION AND OPERATION MANUAL PAGE 31...
- Page 32 ENGINEERED BY AUSTRALIAN MONITOR The Bluetooth word mark and logos are ® Address: 1 Clyde St, Silverwater NSW 2128 Australia. registered trademarks owned by Bluetooth SIG, Website: www.australianmonitor.com.au Inc. and any use of such marks by Australian International enquiries email: international@australianmonitor.com.au Monitor is under license.
