Phone device
XL-2023ID
User's manual
Issue 1.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-2023ID and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Slican XL-2023ID

Summary of Contents for Slican XL-2023ID

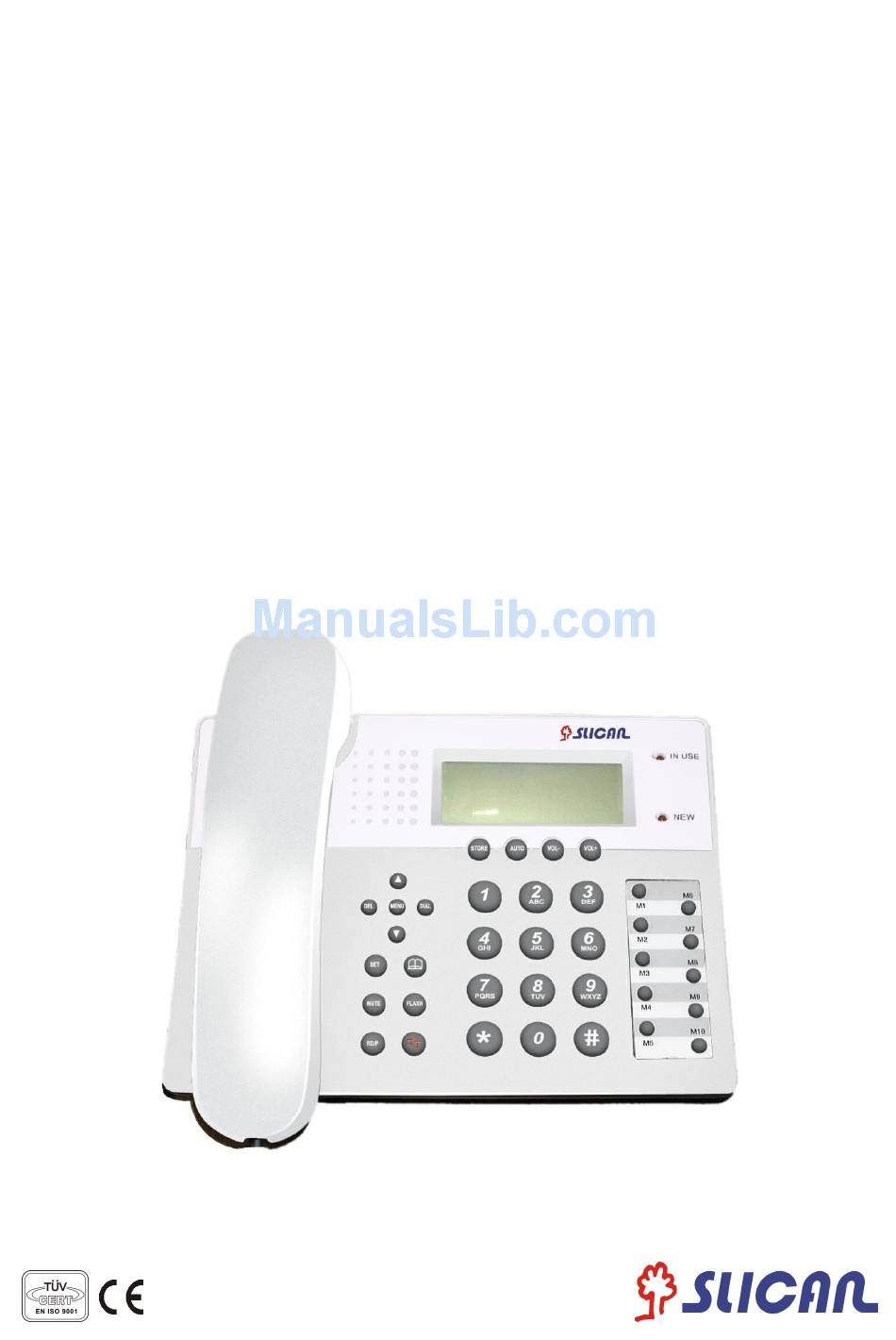

  • Page 1 Phone device XL-2023ID User's manual Issue 1.02...

  • Page 2: Table Of Contents

    Table of content 1 Introduction......................3 2 Location of control....................3 3 Function buttons.......................5 3.1 Ringer Volume Adjustement................5 3.2 Redial Function....................5 3.3 Speakerphone Function..................5 3.4 Flash Function....................6 3.5 Mute Function....................6 3.6 Pause Function....................6 3.7 One-touch memory.....................6 3.8 Two-touch memory....................7 3.9 Phone Book Function..................7 3.10 Handset Receiving and Speaker Volume Adjustment...........7 3.11 Timer Setting....................7 3.12 New Call Indicator....................7...

  • Page 3: Introduction

    1 Introduction Thank you for purchasing Slican XL-2023ID phone. This product is modern analogue phone equiped with LCD display, phone book, speakerphone, list of incoming and dialed numbers list, and many other useful features. All phone features are listed in chapter 8.
  • Page 4 Redial/Pause (RD/P) button MUTE button 10. SET button 11. Down ( ▼ ) button 12. DEL button 13. MENU button 14. Up ( ▲ ) button 15. DIAL button 16. STORE button 17. AUTO button 18. Volume – (VOL-) button 19.

  • Page 5: Function Buttons

    3 Function buttons 3.1 Ringer Volume Adjustement In the state of on-hook, you can press the VOL+ or VOL- button to adjust the desired ringer volume (there are 4 levels for selecting). The LCD will show the current setting, e.g.: RING VOLUME 2. 3.2 Redial Function Lift the handset or press the speakerphone button.

  • Page 6: One-Touch Memory

    3.7 One-touch memory • Store a number In one-touch memory Enter the number you want to store at first, then press and hold the desired location button (M1~M10) until the LCD shows SAVE OK. NOTE: If you want to update the stored number, you need to store a new number to replace the old one.

  • Page 7: Phone Book Function

    3.9 Phone Book Function You can store 99 numbers and names in the phone book, refer to FUNCTION OPERATIONS chapter, section PHONEBOOK for details. 3.10 Handset Receiving and Speaker Volume Adjustment During conversation using handset or speakerphone, you can press the VOL+ or VOL- button to adjust the desired handset receiving or speaker volume (there are 8 levels for selecting).

  • Page 8: Function Operations

    4 Function operations This chapter contains phone special function, press the MENU button or press the DEL button twice to enter the setting mode and press ▲ or ▼ button to select one. The setting sequence is PHONE BOOK - SET RING - LCD CONTRAST - DIAL MODE - SET TIME - SET LANGUAGE - SET FLASH - HOUR FORMAT - DATE FORMAT - FACTORY RESET.

  • Page 9: Review The Entry In Phone Book

    4.1.2 Review the entry in phone book To review the number/name in phone book following operations should be performed: 1. Press the DIAL button to select the phone book menu and the LCD will show REVIEW. Press the DIAL button to enter the function of reviewing the name and number (also you can press the phone book button once, the LCD will display Phonebook).

  • Page 10: Ring Settings

    4.2 Ring Settings When caption SET RING is shown on the LCD, press the DIAL button. To enter the setting, use the ▲ or ▼ button to select the sub-menu. SET RING RING TYPE RING VOLUME Table 4.2: SET RING menu option 1.

  • Page 11: Language Selectings

    4.6 Language selectings The unit supports multiple languages including English, Greek, Australian, Czech, Portuguese, Turkish, Italian, Spanish, Dutch, French, German, Polish, Swedish, Danish, Finnish and Norwegian. To enter the language settings, press the DIAL button when the caption SET LANGUAGE is shown on LCD. Use the ▲ or ▼ button to select the language.

  • Page 12: Factory Reset

    11.11 Factory reset When the caption FACTORY RESET is shown on LCD, press the DIAL button to enter this settings, then the next caption RESET (Y/N)? will be shown on LCD. If you want to select Y (yes - reset the phone), press the DIAL button and all the settings will turn to default values (factory reset).

  • Page 13: Receiving Display Messages

    6 Receiving display messages Figure 1: LCD display MESSAGE WAITING - If you have voice mail service from your telephone company and a recorded message left, caption MESSAGE WAITING will be displayed on the screen. The envelope icon will appear in the upper left corner.
  • Page 14 PRIVATE - If the caller uses CLIR service to prevent his name and number from being send, caption PRIVATE will be shown on the screen. Figure 5: Private call REPEAT CALLS - If a call comes repeatedly, the display will show + icon in the upper right corner of the LCD.

  • Page 15: Caller Id System Operations

    7 Caller ID system operations Subscription to Caller ID service from your local phone company is required before the first use. • New call indicator - The red indicator light of your phone will flash to indicate that you have new calls until all the new calls have been reviewed. •...

  • Page 16: Using Batteries

    8 Using batteries Phone device XL-2023ID include battery chamber accessible from the bottom device side. This chamber is designed for four AA batteries. Inserting batteries is not needed for proper device operation, however it is recomended to insert batteries into battery chamber.

  • Page 17: Troubleshooting

    10 Troubleshooting If you have problems with your phone, please check below for helpful hints: Trouble Reason or solution BLANK OR Check the line cord, connect the telephone cord, check batteries, FAINT check adapter. SCREEN CALLER ID Call your telephone company to yerify that your Caller ID services WILL NOT are active.

  • Page 18: Safety Instruction

    11.Safety instruction To reduce the risk of fire, electrical shock, and injury, please follow these basic safety precautions before you use this equipment. Carefully read the instructions in this manual. Follow all warnings and instructions marked on the unit. When cleaning, unplug the telephone jack from the wall outlet. Use a damp cloth. DO NOT use liquid or aerosol cleaners.
  • Page 19 Product description: Phone device Slican XL-2023ID is designed for work with analogue lines, supports services offered by SLICAN PABXes. Phone is equiped in LCD display, 10 specialized speed access keys, 10 speed access memory cells, phone book with up to 99 numbers stored and handsfree function.
