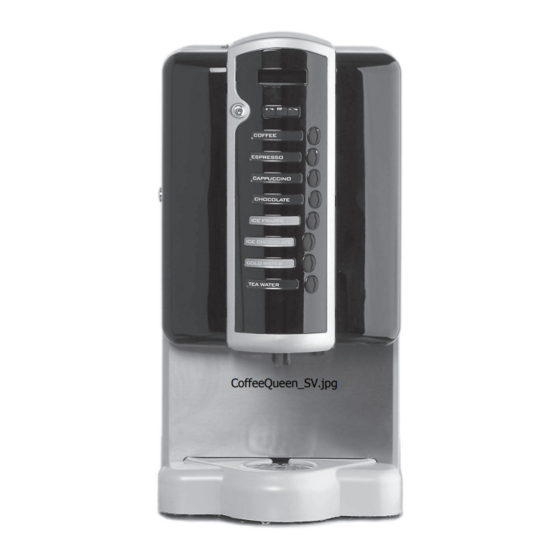

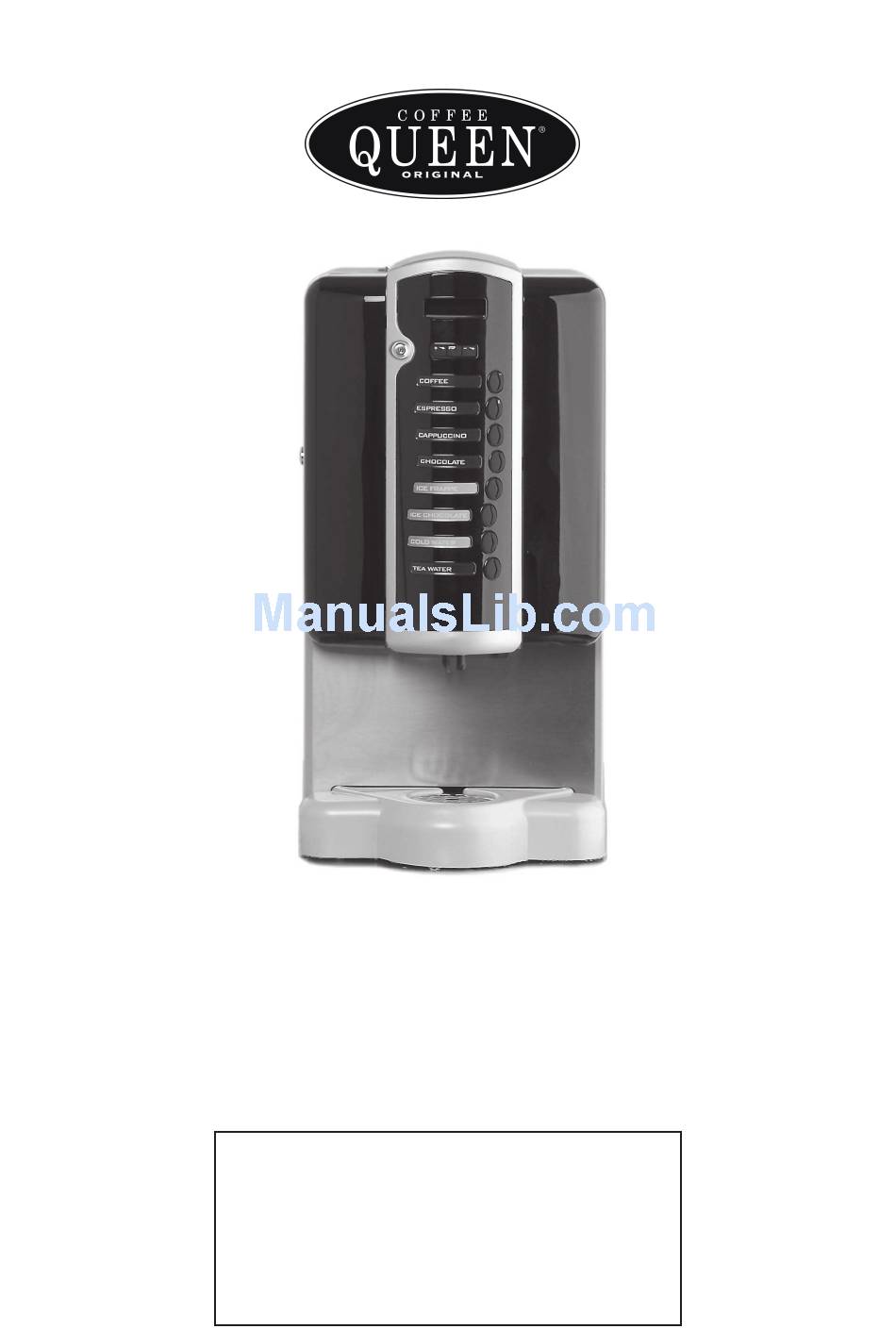

  • Page 1 Service manual CoffeeQueen_SV.jpg Empire Hot COFFEE QUEEN Your retail dealer S / EN ................Rev. 100426 ................

  • Page 2: Table Of Contents

    1. Table (list) of contents. 1. Table of contents sid. 2. General 3. Overview of components front 3. Overview of components mixing system SERVICE; Installation and start Place the brewer Connectings: Electricity - Water Starting up machine Fill canister with ingredients OPERATION Making coffee in a cup CLEANING...

  • Page 3: General

    2. General. Empire Hot We congratulate to your choice of a Coffee Queen coffee machine. Please read this manual before you take the machine into operation for the first time. Always keep this manual within reach for the user! Coffee Queen / Empire hot...

  • Page 4: Overview Of Components Front

    3. Overview of components , front Empire Hot Display Key switch Strength of drinks cup and jug ++ or - - choice) Door Choices of lock drinks Outlet drinks Drip tray insert Drip tray...

  • Page 5: Overview Of Components Mixing System

    3. Overview of components , mixer system Empire Hot Ingredients canister Chute Steam trap Mixing bowl Service opening ON/OFF- emptying switch water tank Outlet drinks Empire cold: 4 canisters. Canister: Width Depth Height Volume/litre; coffee 1,15 espresso 1,15 chocolate 1,15...

  • Page 6: Service; Installation And Start

    4. Service. Installation and start Empire Hot Place the brewer on a flat Connect the electrical plug to a separate level and waterproof surface. grounded wall socket Grounded wall socket 230V 10A OBSERVE! Make sure there is a space behind the machine for free flow of air.

  • Page 7: Fill Canister With Ingredients

    4. Service. Installation and start Empire Hot Fill canisters with ingredients. Take out (this to avoid unnecessary spillage in the machine) ingredient canisters and fill them with ingredients. Loosen canister. Remove lid and fill canister with ingredients. Reassemble canisters. When placing the ingredient canisters;...

  • Page 8: Operation Making Coffee In A Cup

    5. Operation; Making coffee in a cup Empire Hot Place a cup in the centre of the cup holder The strength has a standard setting, if you wish to increase or decrease it, do as follows if not continue to point 3.

  • Page 9: Washing Parts

    6. CLEANING: Weekly cleaning Empire Hot Dismantle : Mixer system Cleaning Loosen mixer bowl. Pull apart (C). 5. Clean with a wet rag and Loosen outlet hose (A) drought drily. turn lock knob (B) anti-clockwise. Wash these parts: A. Mixer bowl B.

  • Page 10: Cleaning

    6. CLEANING: Weekly cleaning Empire Hot REASSEMBLE: Mixer system Make sure that the motor whippers plane side will be in accordance with the whippers plane Reassemble the assembly plate by turning side. see next (G) and picture (H). lock knob (F) clockwise. INSPECT gaskets.
  • Page 11 7. CLEANING: Cleaning program: Daily Empire Hot Automatic cleaning of mixing system. The mixer bowls can easily be cleaned with the key switch in ”cup” (normal) position. Daily automatic cleaning of mixing system must be done once a day. Place a jug in the drip tray.

  • Page 12: Automatic Cleaning Of Mixing Bowl 1 Or 2

    7. CLEANING: Cleaning program Empire Hot Automatic cleaning of mixing bowl 1 or 2 The mixer bowls can easily be cleaned with the key switch in ”cup” (normal) position. Place a jug in the drip tray. Turn the key slowly ninety degrees and back again.

  • Page 13: Automatic Cleaning Of In/Outlet Valves

    7. CLEANING: Cleaning program Empire Hot Automatic cleaning of In/Outlet valves: The In/Outlet valves can easily be cleaned with the key switch in ”cup” (normal) position. Place a jug in the drip tray. Turn the key slowly ninety degrees and back again.

  • Page 14: Cup Counter And Easy Access

    Cup counter - Easy Access Empire Hot Cup counter: The machine has a cup counter which is available to see and reset with the key switch in ”cup” (normal) position. Push ”-” button for 6 seconds. After 4 seconds the signal will go faster..

  • Page 15: Safety Functions

    9. Safety functions. Empire Hot The machine is equipped with following safety functions Indication of door Door not closed ”Door open” The display shows; ”Door open” When machine is not in use: Valves are blocked. 10. Failure messages. Failure messages which can mostly be corrected without any help from service company Display shows: ”Blocked”...

  • Page 16: Dimension Sketch

    12. DIMENSION SKETCH. Empire Hot...

  • Page 17: Cleaning And Maintenance

    13. Cleaning and maintenance. Empire hot Outside cleaning; use a soft rag and liquid cleaning agent to prevent scratches.

  • Page 18: Circuit Diagram

    14. Circuit diagram.

  • Page 19: Spare Parts List

    15. Spare part list. Empire Hot Amount/unit Description: Art. no. Pos. no. Level sensor with gasket 120548 Gasket for sensor 150118-02 Sensor pin short 1205302 Double seal, level sensor 1605362 Sensor pin long 1205301 Heating element 2200W 230V 1601361 Gasket, water tank,lid...
  • Page 20 15. Spare part list. Empire Hot Amount/unit Description; Art. no. Pos. no. 2can. 3can. 4can. Ingredient canister compl. B67 x H 200 plast 1205622 Ingredient canister compl. B137x H 200plast 1204878 1204955 Chute left(FB) 120489 Feed control, plast 1204712 Cage(metal) 1801451 Agitator+screw kompl.

  • Page 21: Spare Parts List

    15. Spare part list. Empire Hot Amount/unit Description; Art. no. Pos. no. 2can. 3can. 4can. Electr.onic-card,display Ver I 1604101 Flat conductor cable 1606727 Drip tray low, till och med 07-03 1105354 Drip tray high, grey 1105383 Drip tray insert 252416...

  • Page 22: Exploded View

    16. Exploded View. Water tank Empire Hot...
  • Page 23 16. Exploded View. Mixer system II och III Empire Hot (2 canisters (3 canisters...
  • Page 24 16. Exploded View. Mixer system Empire Hot (with 4 canisters...
  • Page 25 16. Exploded View. Canisters Empire Hot Parts; canisters. 40 complete Parts; canisters. 40 complete...
  • Page 26 16. Exploded View. Canisters Empire Hot Parts; Canisters. Parts; canisters...
  • Page 27 16. Exploded View. Parts in machine Empire Hot Fuse 2 Amp slow Fuse 4 Amp slow...
  • Page 28 16. Exploded View. Door Empire Hot Drip tray low model t.o.m. 07-03 Drip tray high model from 07-04...
  • Page 29 COFFEE QUEEN Empire hot FOR SERVICE Please contact Your retail dealer ................................................Crem International AB Box 960, 671 29 ARVIKA, Sweden +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art. nr/Art. no.1704385...
