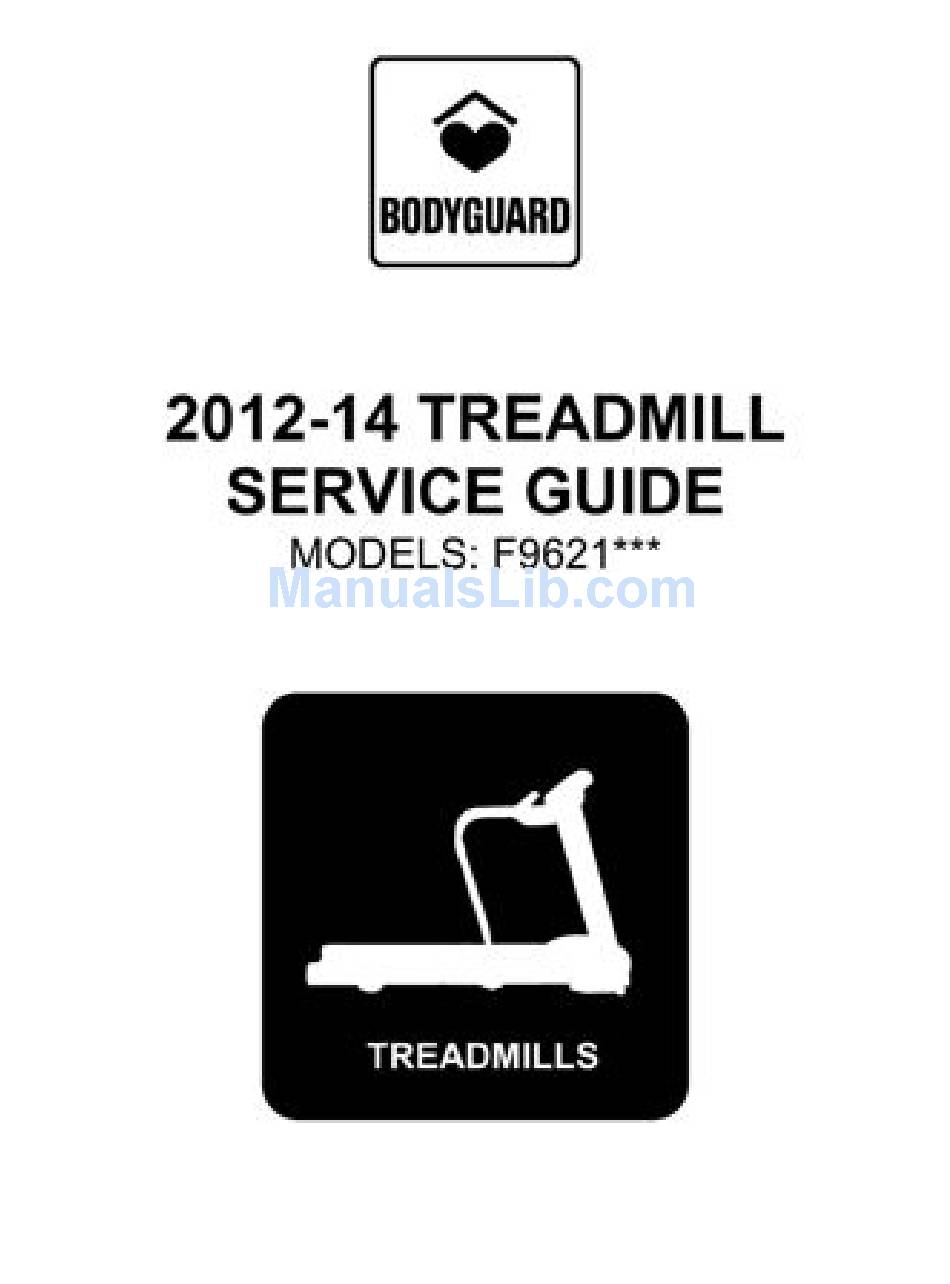

Bodyguard T460XC Service Manual
F9621 series
Hide thumbs
Also See for T460XC:
- Owner's manual (56 pages) ,
- User instruction manual (52 pages) ,
- Owner's manual (48 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Bodyguard T460XC
Summary of Contents for Bodyguard T460XC
- Page 8 TREADMILL!MCB!CODE!SHEET! Model!#!F9621***!! Symbol Description Actions Relay Position Abnormal Usually accompanied by an Error 54 Change Motor Control Board on the Display Don’t do anything! Normal Operation – Relay is closed “Eight is Great” or “B is Beautiful” Some errors cause the Relay to open, which then Default Position when Relay causes ‘C’...
- Page 9 TREADMILL!MCB!CODE!SHEET! Model!#!F9621***!! Symbol Description Actions Check Elevation Motor power wires are connected Elevation Motor has a problem moving correctly on the MCB. If OK, then change the Elevation Motor. Motor Power Circuit problem Usually accompanied by an Error 52 Change Motor Control Board on the Display If the Display has no power check if the Data Cable is connected correctly or damaged.
- Page 14 TREADMILL!DISPLAY!ERROR!CODES! Model!#!F9621****! Error Description Actions Code Check if the Safety Key is correctly installed. Check if the cable from the Reed Switch is correctly connected to the Display Check if the Reed Switch is glued to the inside of the console and in the correct position so the safety PLEASE PUT SAFETY key magnet activates the switch from the outside correctly.
- Page 15 Error Description Actions Code Check the motor wires (+ & -) are correctly attached to the MCB. Test. Quick Motor Functionality Test using a 9V Battery: Remove the Drive Belt that is connected to the Drive Motor Pulley so the motor can turn easily. On units manufactured Remove the Motor Wires and connect a 9V battery to the positive and negative connectors.
- Page 16 Error Description Actions Code Look to see if there is a “d” on the MCB. If so, the issue is likely with the speed sensor cable. Check connection of cable and refer to MCB error code sheet. If there is a “8” or a “C” on the MCB check the following. Speed Sensor does not get Check there is nothing jammed in the rollers or under the treadmill causing the belt to be jammed or a continuous reading from...
- Page 17 Error 57 is caused by an Check the motor wires (+ & -) are correctly attached to the MCB. Open Circuit detected from Check if the motor brushes are touching the commutator. Are they worn? If so, clean with fine the Drive Motor on the MCB sandpaper and reinsert.
- Page 18 HOW!TO!ALIGN!A!TREADMILL!WALKING!BELT! ALL!TREADMILLS! Model!#!F9611****!&!F9621****! If the walking belt is not centered and is running to one side then it needs to be REQUIRED realigned before it hits the foot rails and permanently damages the belt. TOOLS Frayed belts damaged from hitting the foot rail are not covered by the parts warranty, as it is considered user error.
- Page 19 5. Once you see “COMPLETE” on the display, press the “Stop” key 4 times to return to the “Welcome Screen”. Your treadmill is ready to go. 2012 T240S, T240S0, T260P, T280S, T280PO, T460XC, T520P, T560X 1. Remove the motor cover.
Need help?
Do you have a question about the T460XC and is the answer not in the manual?
Questions and answers
I follow the instructions per manual but I am not able to access the diagnostic platform. I have screen indicator indicating belt maintenance I have perform maintenance and need to reset. Have some in the past but not able to access the diagnostic menue
To access the diagnostics menu on the Bodyguard T460XC:
1. Turn the power OFF.
2. Press and hold the INCREASE and DECREASE SPEED keys at the same time.
3. While holding the keys, turn the power ON.
4. Release the keys once in the DIAGNOSTICS Menu.
5. Press the JustGo key to access detailed items.
This menu allows you to view software version and perform functions like resetting the belt maintenance indicator.
