1.

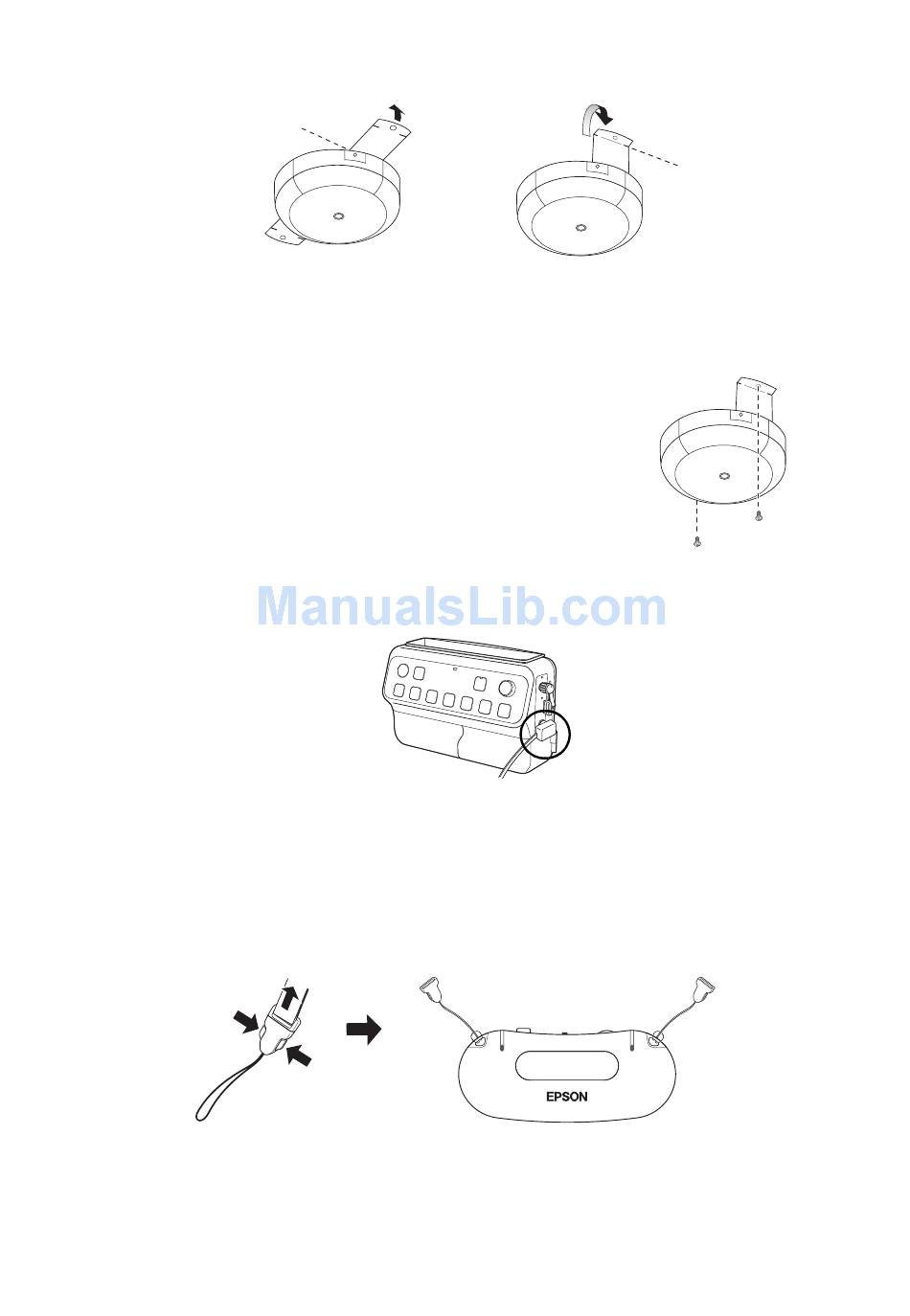

Bend both ends of the mounting bracket as shown below.
2.
Securely attach the IR dome sensor to the ceiling. Installation varies depending on
your building construction.
3.
Attach the coaxial cable to the back of the IR dome
sensor.
4.
Secure the coaxial cable to the ceiling.
Note: The coaxial cable can also be run in the ceiling
instead of securing it to the ceiling. For best
performance, keep it away from electrical wires and
florescent lighting.
5.
Attach the end of the coaxial cable to the IR receiver module.

Attach the Neck Strap

1.
Disconnect both ends of the pendant microphone's neck strap.
2.
Attach the ends of the neck strap to the pendant microphone.
8
Getting Started
