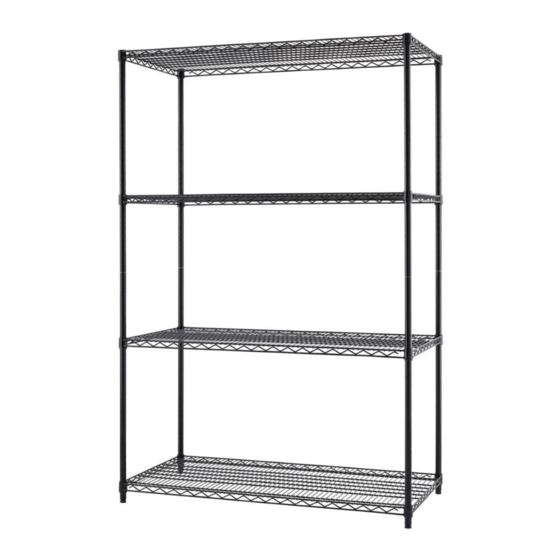

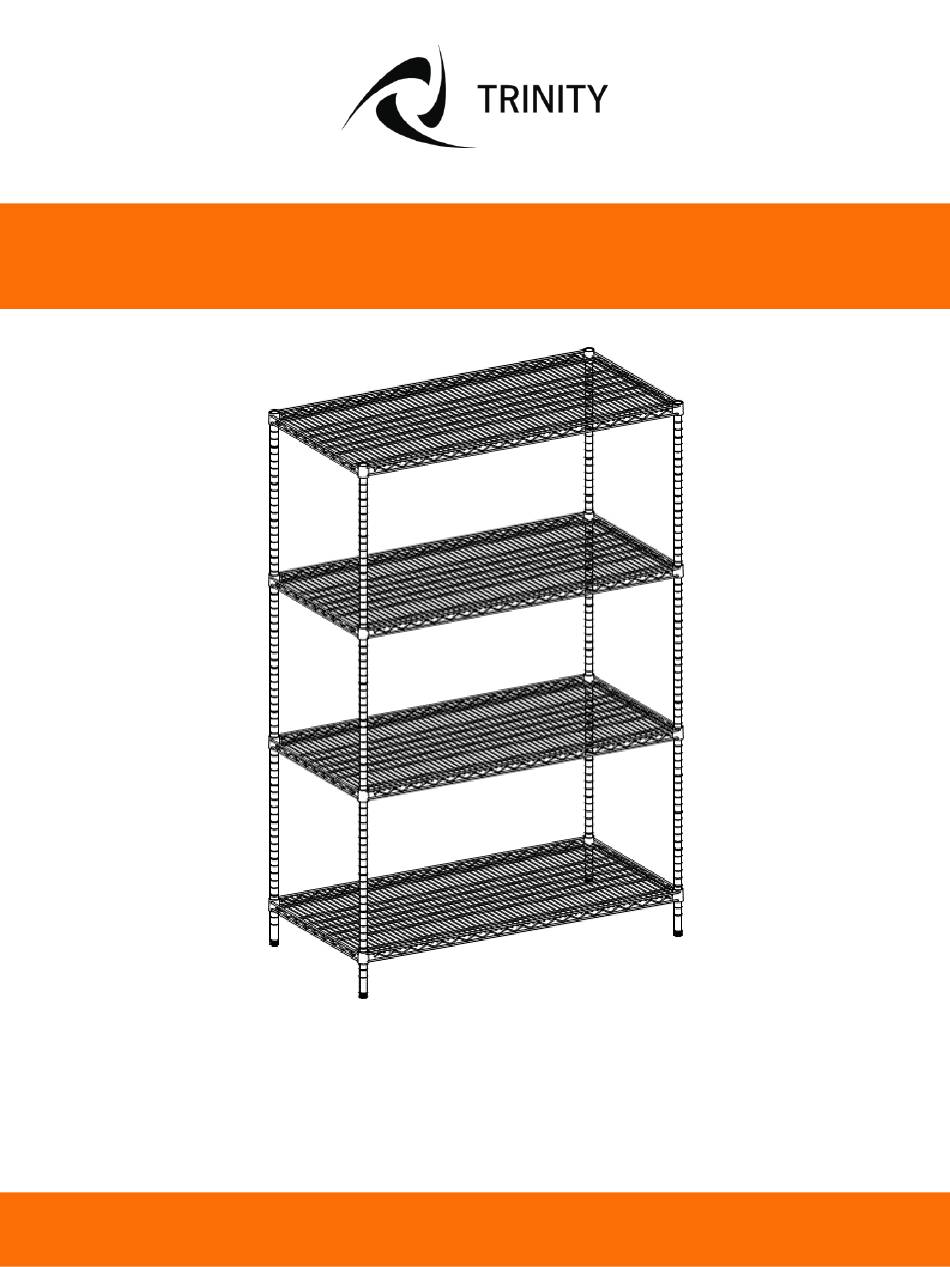

- Page 1 ® Everything in its place. OWNER’S MANUAL TRINITY 4-TIER NSF 48” x 24” x 72” WIRE SHELVING RACK – BLACK Model # TBFPB-0916...
-
Page 2: Parts List
PARTS LIST Your TRINITY EcoStorage™ 4-Tier NSF 48” X 24” Wire Shelving Rack – Black should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. - Page 3 C (1) Stand the unit upright. *Note: The level side of the SHELF (C) is the TOP side (the TRINITY logo on the corner cylinders should be right-side up.) **Use a rubber mallet, if needed, to secure the SHELF (C).
- Page 4 **Use a rubber mallet, if needed, to secure the SHELVES (C). STEP 4: INSTALLING TOP POLES Screw the TOP POLE (B) into the BOTTOM POLE (A). The tops of these poles are indicated by the BLACK END CAP. B (4) © 2017 TRINITY - 800.985.5506...
- Page 5 **Use a rubber mallet, if needed, to secure the shelves. STEP 6: FEET LEVELERS The Feet Levelers are already screwed into the BOTTOM POLES (A) and you can adjust as needed to ensure your shelving rack is level. © 2017 TRINITY - 800.985.5506...
- Page 6 SERVICE PARTS LIST – TBFPB-0916 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-01-011-2543 Slip Sleeve XBK-98-003-2538 Feet Leveler PBK-04-006-3600 Top Pole XBK-23-004-2517 End Cap ZSV-01-013-2523 Pole Connector PBK-03-007-4824 Shelf PBK-04-008-3600 Bottom Pole © 2017 TRINITY - 800.985.5506...
-
Page 7: Care And Maintenance
Weight capacity per shelf Total weight capacity of Shelving Rack 3200 lb (evenly distributed) CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals • This item is not certified for outdoor use © 2017 TRINITY - 800.985.5506... - Page 8 © 2017 TRINITY - 800.985.5506...
-
Page 9: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY 4-Tier NSF 48” X 24” Wire Shelving Rack – Black. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to... - Page 10 © 2017 TRINITY - 800.985.5506...
-
Page 11: Year Limited Warranty
Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty. - Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 8:00 AM –...
