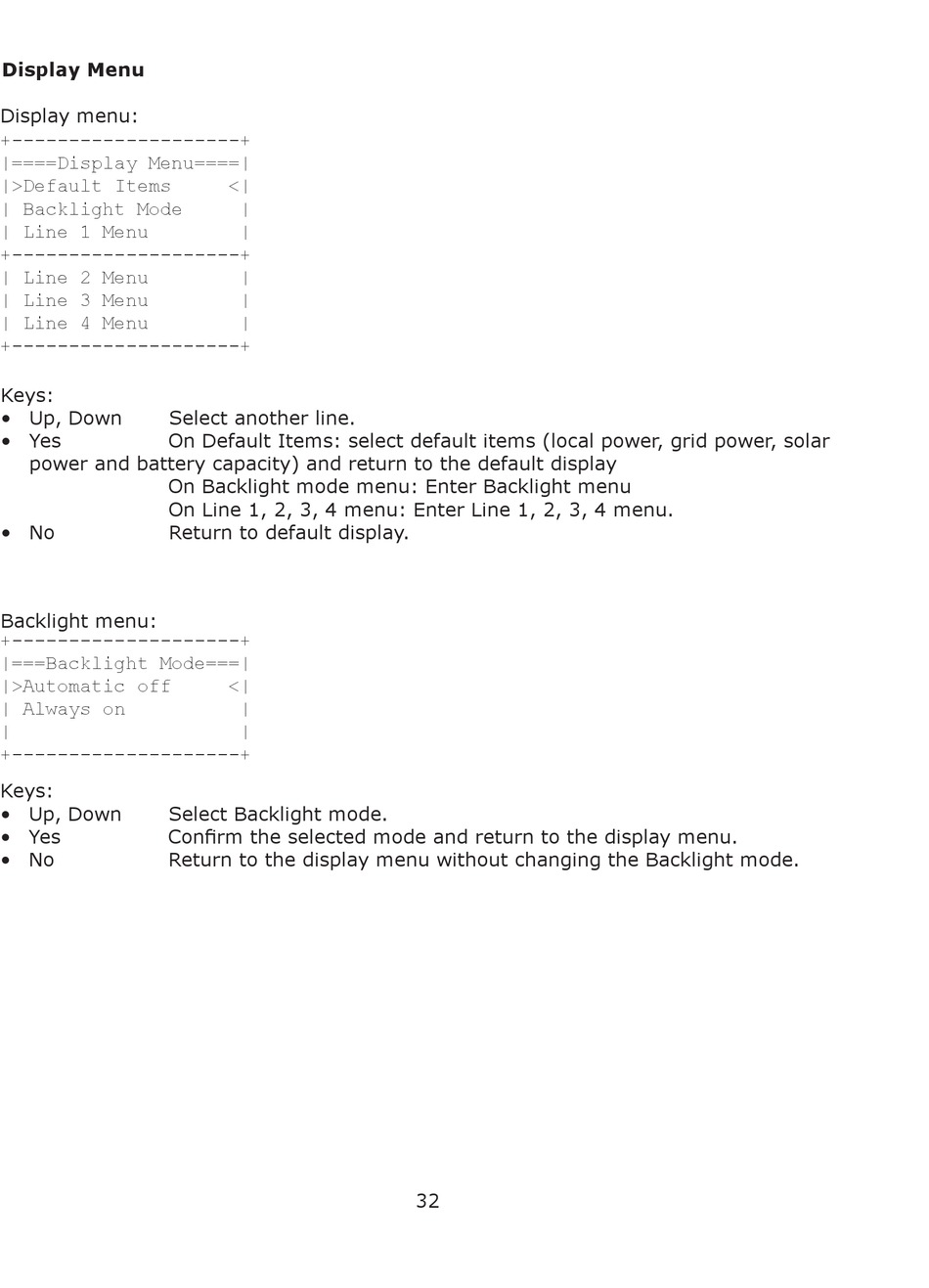

Nedap PowerRouter PR50S Installation And Operating Manual page 32

Display Menu
Display menu:
+--------------------+
|====Display Menu====|
|>Default Items
| Backlight Mode
| Line 1 Menu
+--------------------+
| Line 2 Menu
| Line 3 Menu
| Line 4 Menu
+--------------------+
Keys:
• Up, Down
• Yes
power and battery capacity) and return to the default display
• No
Backlight menu:
+--------------------+
|===Backlight Mode===|
|>Automatic off
| Always on
|
+--------------------+
Keys:
• Up, Down
• Yes
• No
<|
|
|
|
|
|
Select another line.
On Default Items: select default items (local power, grid power, solar
On Backlight mode menu: Enter Backlight menu
On Line 1, 2, 3, 4 menu: Enter Line 1, 2, 3, 4 menu.
Return to default display.
<|
|
|
Select Backlight mode.
Confirm the selected mode and return to the display menu.
Return to the display menu without changing the Backlight mode.
32
