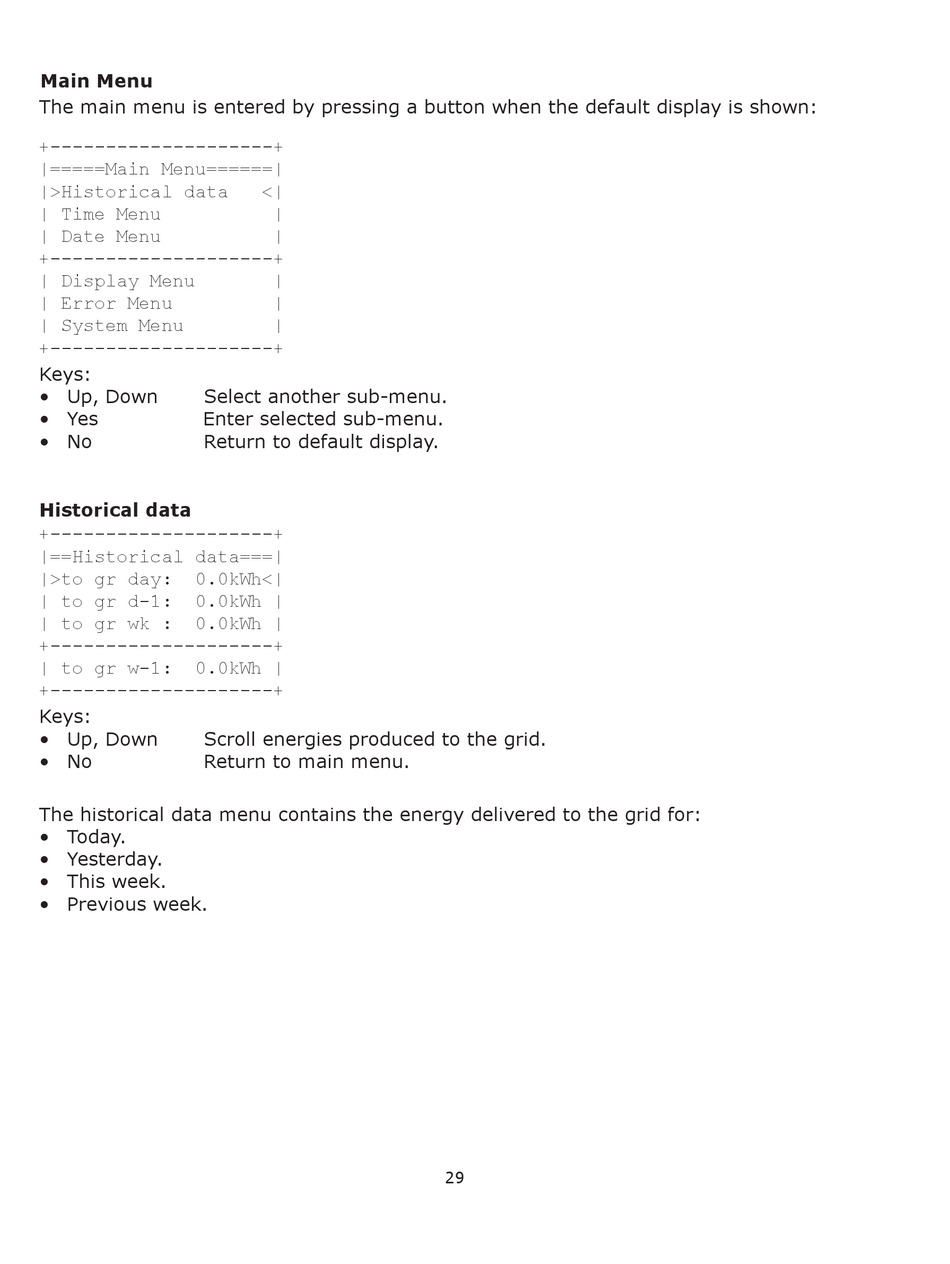

Nedap PowerRouter PR50S Installation And Operating Manual page 29

Main Menu
The main menu is entered by pressing a button when the default display is shown:
+--------------------+
|=====Main Menu======|
|>Historical data
| Time Menu
| Date Menu
+--------------------+
| Display Menu
| Error Menu
| System Menu
+--------------------+
Keys:
• Up, Down
• Yes
• No
Historical data
+--------------------+
|==Historical data===|
|>to gr day:
| to gr d-1:
| to gr wk :
+--------------------+
| to gr w-1:
+--------------------+
Keys:
• Up, Down
• No
The historical data menu contains the energy delivered to the grid for:
• Today.
• Yesterday.
• This week.
• Previous week.
<|
|
|
|
|
|
Select another sub-menu.
Enter selected sub-menu.
Return to default display.
0.0kWh<|
0.0kWh |
0.0kWh |
0.0kWh |
Scroll energies produced to the grid.
Return to main menu.
29
