8.2 Displays and Messages

Description of the buttons and display
Display:
The display consist of 4 rows and 20 characters. It displays user messages,
settings and errors.
Led indicators:
• Operational:
• Charging:
• Grid:
• Error:
Operational
Charging
Grid
Error

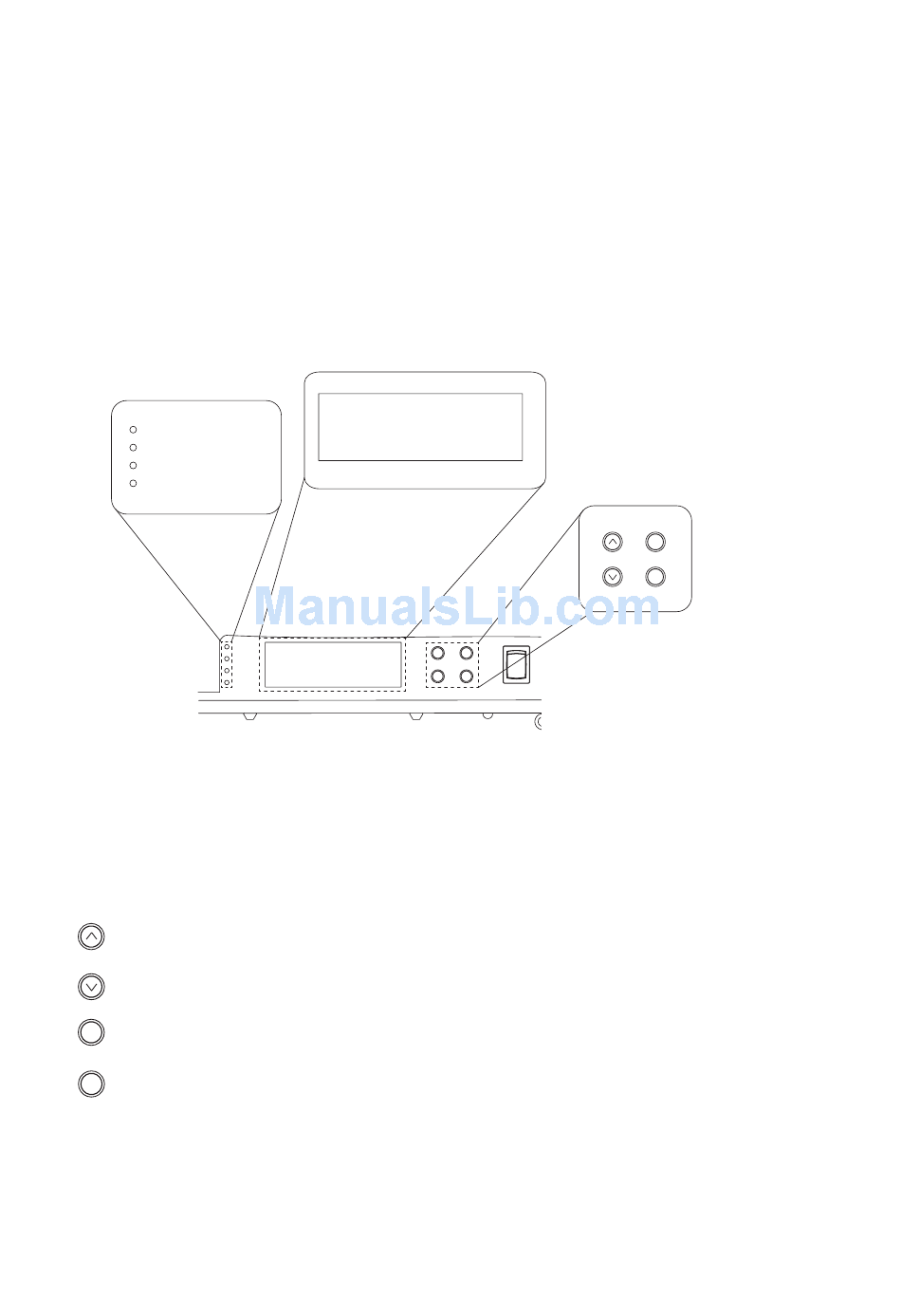

Figure 24 Display and Buttons of the PowerRouter
(Message shown in this display is an example)
The display is accompanied by 4 buttons with the following functionality:
Up
Down
Yes
YES
No
NO
PowerRouter is operational.
Not applicable
Grid is available / connected.
Error condition occurs (check display message).
Local AC Pwr:
Grid Power:
Solar Power:
Autonomy:
scroll through menu/list or change value.
scroll through menu/list or change value.
select sub-menu or item.
return to parent screen.
275W
0W
0W
12h 14m
26
