5.2 Dimensions and recommended clearances
Mount the PowerRouter so that there is at least 300 mm of clearance at the top and
bottom of the PowerRouter.
Bracket holes (2 x)

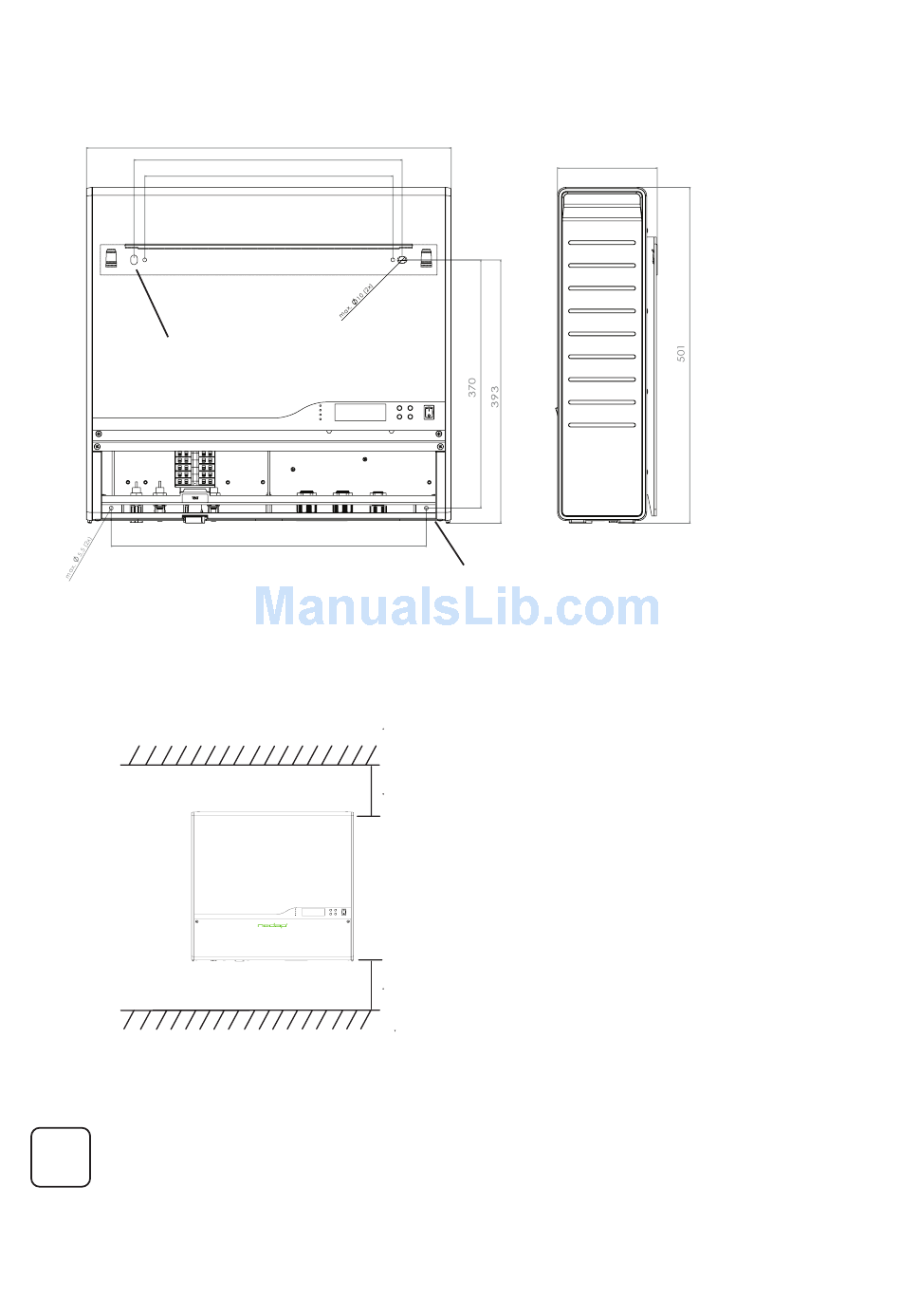

Figure 5 External Dimensions of the PowerRouter (in mm)
Use the drill template for drilling the bracket and mounting holes (Nedap part-
number 5555426)
Figure 6 Recommended clearance
i
Ensure that there is sufficient clearance for the flow of the air around the
PowerRouter! In a normal operating environment with good ventilation, a
minimum of 300 mm clearance on top and bottom is adequate.
Local regulations may require larger working clearances.
544
400
370
470
min. 300 mm
min. 300 mm
149
Mounting holes (2 x)
13
